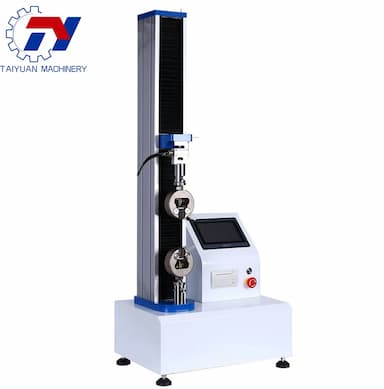

TY-80085T Universal material tensile strength testing machineMicrocomputer control electronic universal testing machine is a new generation of microcomputer control electronic universal testing machine designed specifically for universities and research institutes. The computer system through the full digital controller, the speed control system control servo motor rotation, the deceleration system through the precision ball screw pair drive moving beam up and down, complete the tensile, compression, bending, shearing and other mechanical properties of the specimen test, in addition to a variety of test accessories, It has a very broad application prospect in mechanical properties test of metal, non-metal, composite materials and products. This machine is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber plastic, textile, household appliances and other industries of material inspection and analysis, is the scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments of the ideal testing equipmentModel:
TY-80085T
Force value choice: 5000kgDisplay accuracy: Force and extension display force measurement accuracy: better than
±1.0%Force resolution:
1/200,000Effective force range: 1~100%F.SAccuracy of deformation indication: better than±0.5%Test speed range: 0.01~500mm/min,It can be set arbitrarily in this rangeStroke:

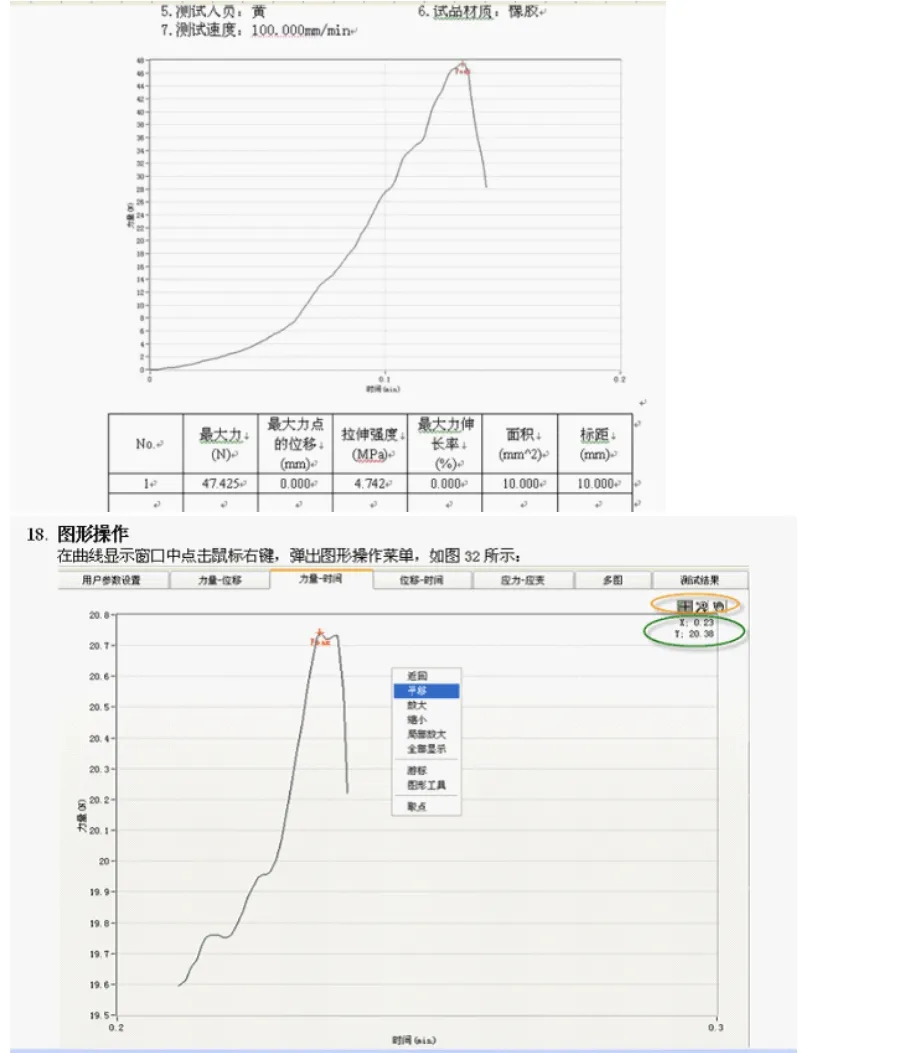

800mm,Excluding jigPower unit switch: kgf,gf ,N,kN,IbfStress unit switching: MPa,kPa,kgf/cm2,Ibf/in2Deformation unit switch: mm,cm,inUpper and lower safety Settings, program strength and elongation SettingsThe way of selecting knot:The method of sampling point for failure sensing of specimens includes manual sampling point and pre-set sampling point (20 points) in the test process.Output function:Can display and output test curve, standard equipped with a single point extension meter (built-in machine)Configuration of choose and buy:Two point extension fixture, needle printer or micro printer, customer requirements of various test fixtureDimension:
75×55×190cm(W×D×H)Weight:
About 300kgImpetus:
3.75KW
AC
servo motorPower supply:
AC220V,50/60Hz,10A

After-sales service commitment
The quality guarantee period is one year, starting from the date of formal delivery;
During the warranty period, in addition to the damage caused by natural disasters, abnormal power, improper use, improper maintenance and other factors, the company completely free of charge;
Free to provide users with the required use and maintenance consultation;
Timely to provide users with wearing parts, spare parts, to provide spare parts for life;
During the work of the test box, in case of the test system failure, our company should immediately give a reply after receiving the notice, and send the maintenance engineer to the site within 24 hours (depending on the status of the work assignment) to help the user with the equipment testing and maintenance to realize the normal operation of the equipment;
Our company will regularly send maintenance engineers for users of free door-to-door maintenance, maintenance;
After the shelf life, for the user lifetime maintenance, but discretionary maintenance and material costs.
