基本信息产品详情证书
基本信息
型号 | ON-7803 |
驱动型 | 液压 |
认证 | CE、ISO |
机械升降机驱动电机数量 | 1 |
双缸提升类型 | 薄板型 |
剪切升降机类型 | 小剪切型 |
条件 | 新 |
品牌 | 尤尼斯 |
设计 | 剪刀 |
提升时间 | 60年代 |
提升高度 | 2070毫米(81 1/2 ''') |
最小高度 | 330毫米(13 '') |
跑道长度 | 1550毫米(61 '') |
总长度 | 1750毫米(68 7/8 '') |
跑道宽度 | 550毫米(21 11/16 '') |
毛重 | 701公斤(1,545磅) |
电机功率 | 2.2kw(3 HP) |
封装尺寸 | 1560*600* 870毫米 |
控制盒大小 | 560*450* 1150毫米 |
运输包装 | 容器 |
规范 | 1600*850* 750 MM & 480*430* 1130 MM |
商标 | 尤尼斯 |
起源 | 中国 |
HS编码 | 8425429000 |
产能 | 10000 |
封装尺寸 | 1.56厘米 * 0.60厘米 * 0.87厘米 |
包装总重量 | 701.000kg |
封装尺寸 | 1.56厘米 * 0.60厘米 * 0.87厘米 |
包装总重量 | 701.000kg |
产品详情
Product Description
Preview

Preview

Preview

Preview

Preview

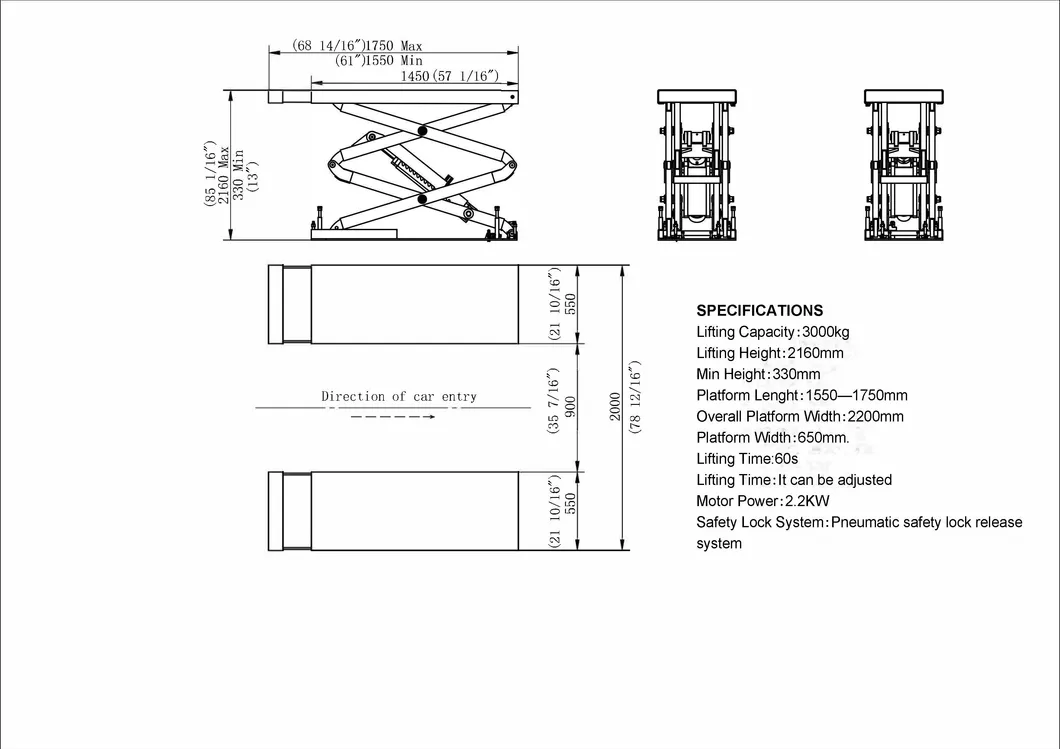

TECHNICAL DATA:
Preview

Preview

Preview

Preview

Preview
PRODUCT INTRODUCTION:

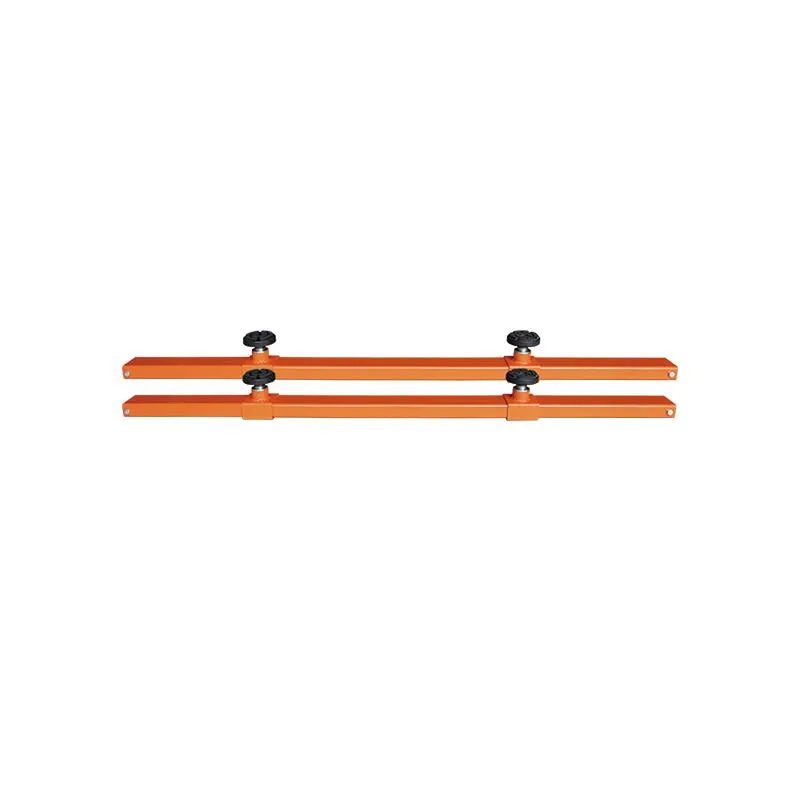

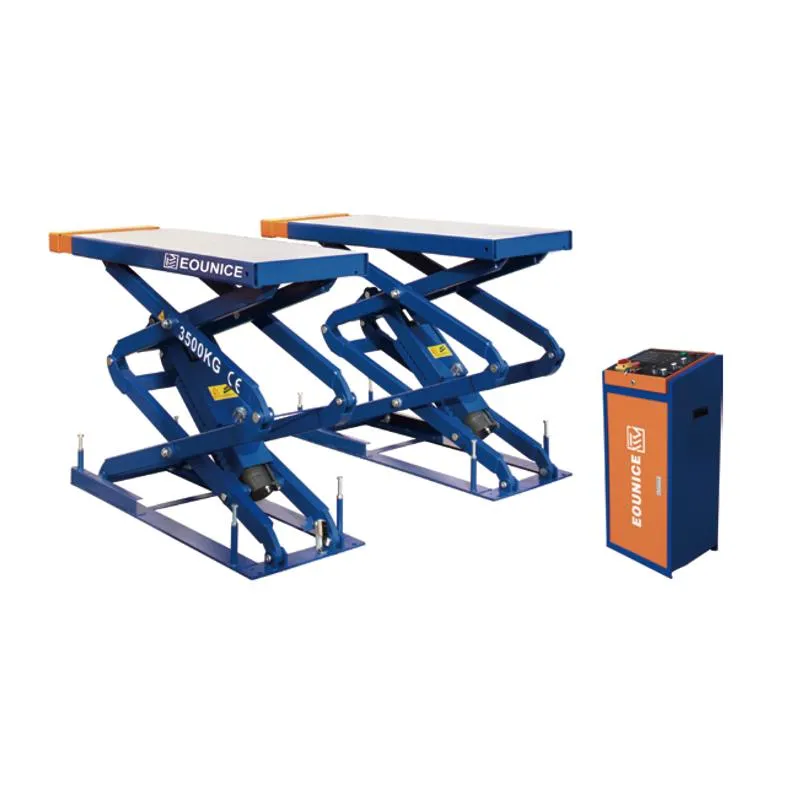

CE approval by TUV.3,500Kg (8,000LBS.) lifting capacity.Dual synchronous cylinders are applied to assure the lifting level on both platforms.Durable cylinders with anti-surge valves.Mechanical and pneumatic safety lock release system.24V low voltage electrical control system.Self-lubricated bushing and bearing.Platforms are designed to be extended.Standard with height limit switch.Standard with aluminum motor power unit.Optional Platforms can be extended on two sides.Optional SUV support kit to lift most of SUV vehicles.
MAIN FEATURES:
Portable design and the lift can be moved easily.The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

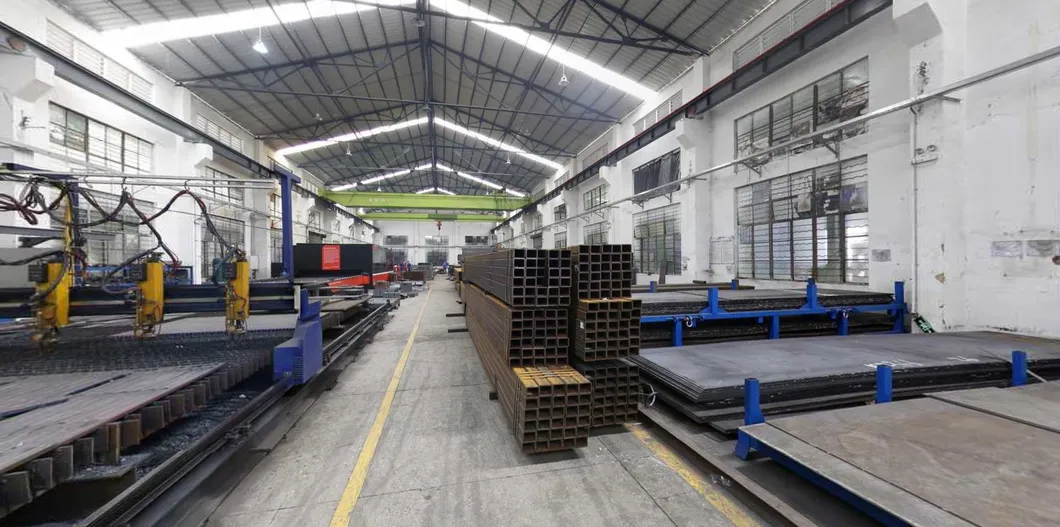

OUR FACTORY
CE approval by TUV.3,500Kg (8,000LBS.) lifting capacity.Dual synchronous cylinders are applied to assure the lifting level on both platforms.Durable cylinders with anti-surge valves.Mechanical and pneumatic safety lock release system.24V low voltage electrical control system.Self-lubricated bushing and bearing.Platforms are designed to be extended.Standard with height limit switch.Standard with aluminum motor power unit.Optional Platforms can be extended on two sides.Optional SUV support kit to lift most of SUV vehicles.
MAIN FEATURES:
Portable design and the lift can be moved easily.The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
OUR FACTORY
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
Warranty term:
Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.
Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,
Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services
Our Company will be Provide to you some Service.
1.OEM ODM service.
2.Customized service.
3.One Year Quality warrant service, during the period spare part supplied free
If you pay for shipping.
4.Professional team supply service for life long time.
Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.
Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,
Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services
Our Company will be Provide to you some Service.
1.OEM ODM service.
2.Customized service.
3.One Year Quality warrant service, during the period spare part supplied free
If you pay for shipping.
4.Professional team supply service for life long time.
Preview
FAQ
Preview
The Some buyer
maybe ask ?
A:You Are Trade Company or Factory?
A:We are manufacturer and we have our own trade company.So pls don`t worry.
B:How long the production can be delivered?
A:Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
Subject to prior sales.This ways based on 1
20FT Containers or 40HQ Container.
C:What is the regular color?Can I
order special color which I
like?
A:The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.
D:Can I
order
in any special size?
A:Yes,you can.
The size is customized, but should be suitable for the inner size of containers.Pls understand.
maybe ask ?
A:You Are Trade Company or Factory?
A:We are manufacturer and we have our own trade company.So pls don`t worry.
B:How long the production can be delivered?
A:Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
Subject to prior sales.This ways based on 1
20FT Containers or 40HQ Container.
C:What is the regular color?Can I
order special color which I
like?
A:The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.
D:Can I
order
in any special size?
A:Yes,you can.
The size is customized, but should be suitable for the inner size of containers.Pls understand.
