Preview
基本信息产品详情证书
基本信息
型号 | ES-S-450 |
OEM | 是的 |
汽车制造 | 大众 |
保险杠位置 | 前保险杠 |
伏 | 12V-24V |
自身重量 | 18公斤 |
延长/撤回时间 | 1-2 S |
测试重量 | 500公斤 |
承载能力 | 225kg |
证书 | CE |
平台尺寸 | 600*300/450*300/750*300 |
防水 | 是的 |
运输包装 | 纸箱箱 |
规范 | 450*300(长 * 宽) |
商标 | 辛德 |
起源 | 江苏中国 |
HS编码 | 870899999 |
产能 | 5000个/年 |
封装尺寸 | 600.00厘米 * 300.00厘米 * 50.00厘米 |
包装总重量 | 18.000kg |
封装尺寸 | 600.00厘米 * 300.00厘米 * 50.00厘米 |
包装总重量 | 18.000kg |
产品详情
Product Description
Preview
Introductions:

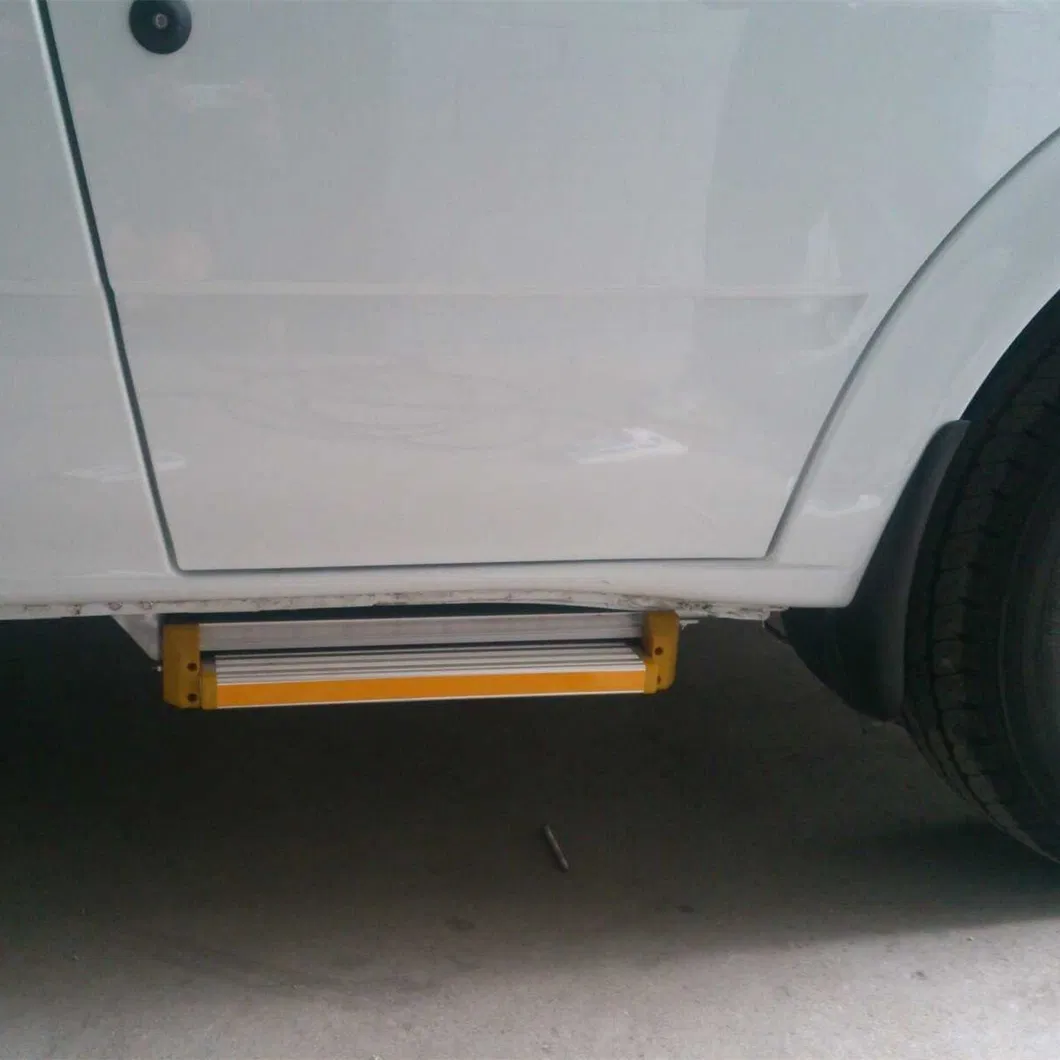

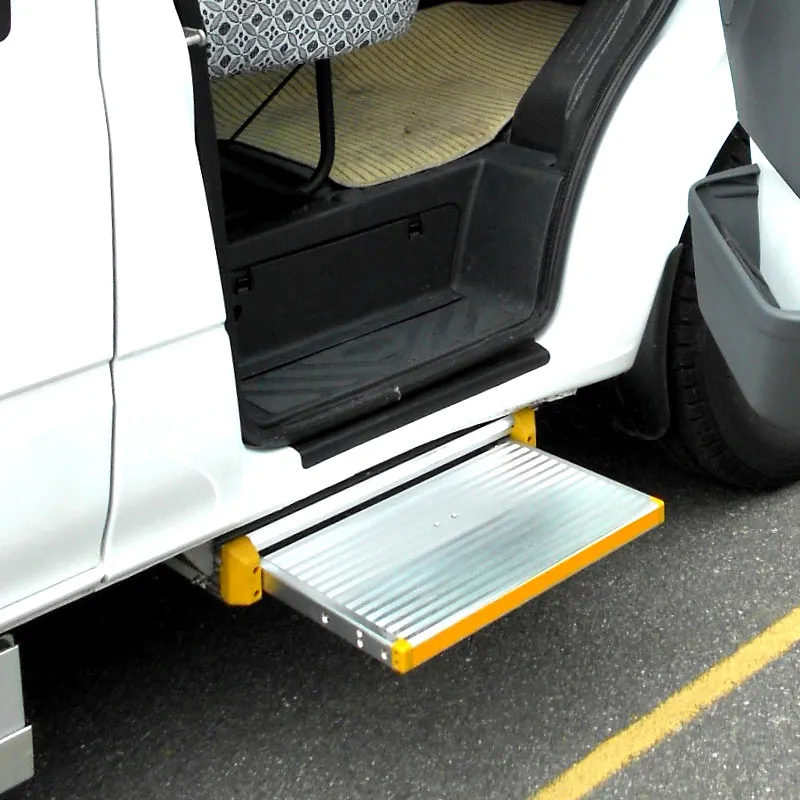

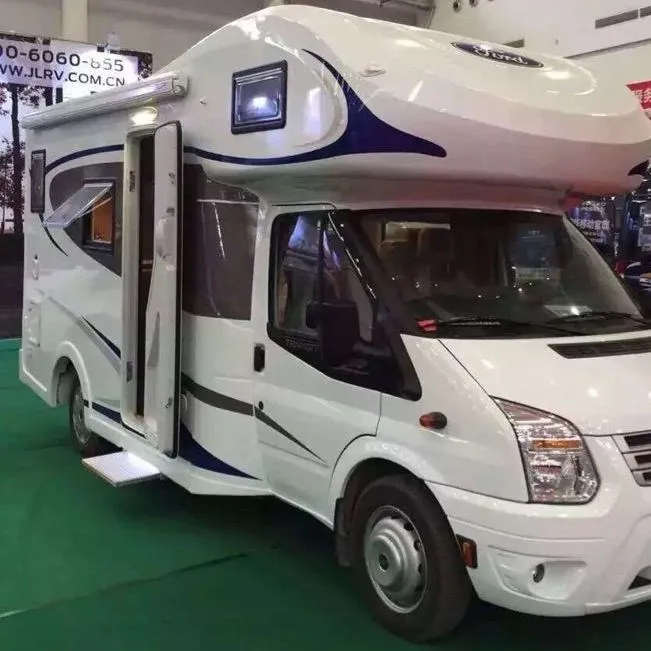

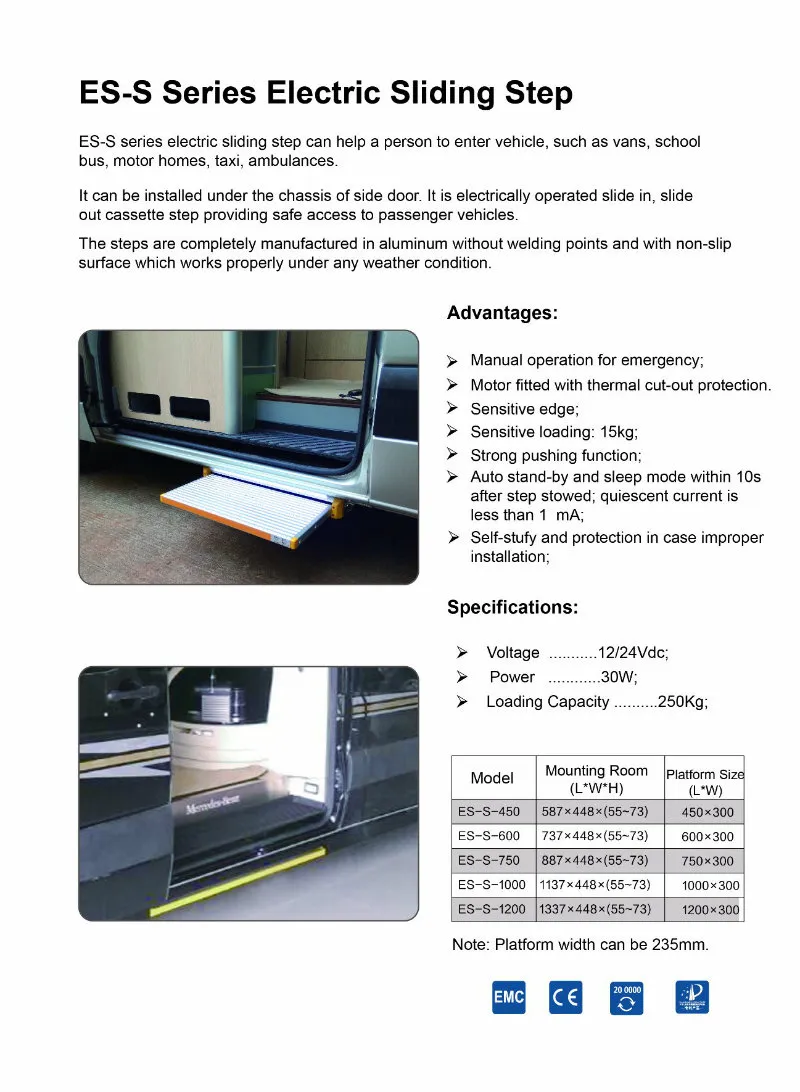

ES-S series electric sliding step is a kind of cassette steps which can help passengers to get on vehicles easily.It is designed to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.It is electrically operated slide in and slide out cassette step providing safe access to vehicle.It's driven by motor, voltage can be 12Vdc or 24Vdc.It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.The main material is aluminum which is light and has good corrosion resistance.It can be operated by a switch or gang controlled by door.This step can work steadily, reliably and safely.We have different steps with several specifications, which can meet different requirements.
Advantages:
Manual emergency function;
door interlock function;
sensitive edge;
15kg sensitive loading function;
strong pushing function to clear dust;
auto sleep mode;
warning in case of improper installation;
self-protection in case of wrong connection;
LED and LED cover are equipped as standard
Test weight is 500kg
Technical Specifications:
Voltage: 12Vdc or 24Vdc;
Power: 30W;
Loading capacity: 250Kg;
ES-S series electric sliding step is a kind of cassette steps which can help passengers to get on vehicles easily.It is designed to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.It is electrically operated slide in and slide out cassette step providing safe access to vehicle.It's driven by motor, voltage can be 12Vdc or 24Vdc.It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.The main material is aluminum which is light and has good corrosion resistance.It can be operated by a switch or gang controlled by door.This step can work steadily, reliably and safely.We have different steps with several specifications, which can meet different requirements.
Advantages:
Manual emergency function;
door interlock function;
sensitive edge;
15kg sensitive loading function;
strong pushing function to clear dust;
auto sleep mode;
warning in case of improper installation;
self-protection in case of wrong connection;
LED and LED cover are equipped as standard
Test weight is 500kg
Technical Specifications:
Voltage: 12Vdc or 24Vdc;
Power: 30W;
Loading capacity: 250Kg;
Preview

Preview

Preview

Preview

Preview
证书
标题:FMWR Manual Ramp Quality Certificate



Preview
铝制可靠的大篷车电动滑动侧台阶
¥3077 ~ ¥3258
运输工具制造产业链 · 车身及内外饰零配件
型号ES-S-450
运输包装纸箱箱
产地江苏中国
