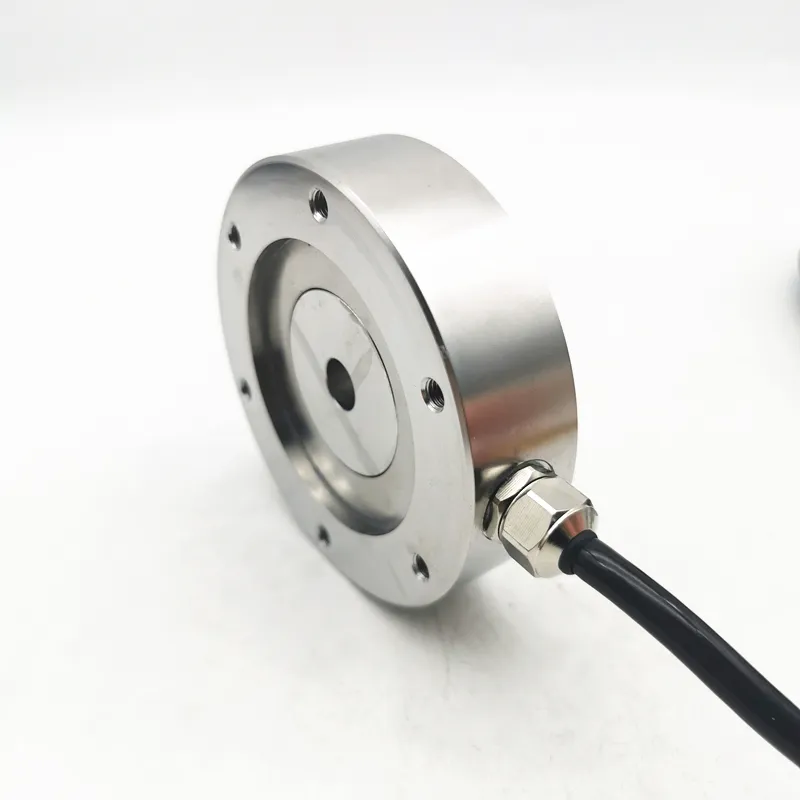

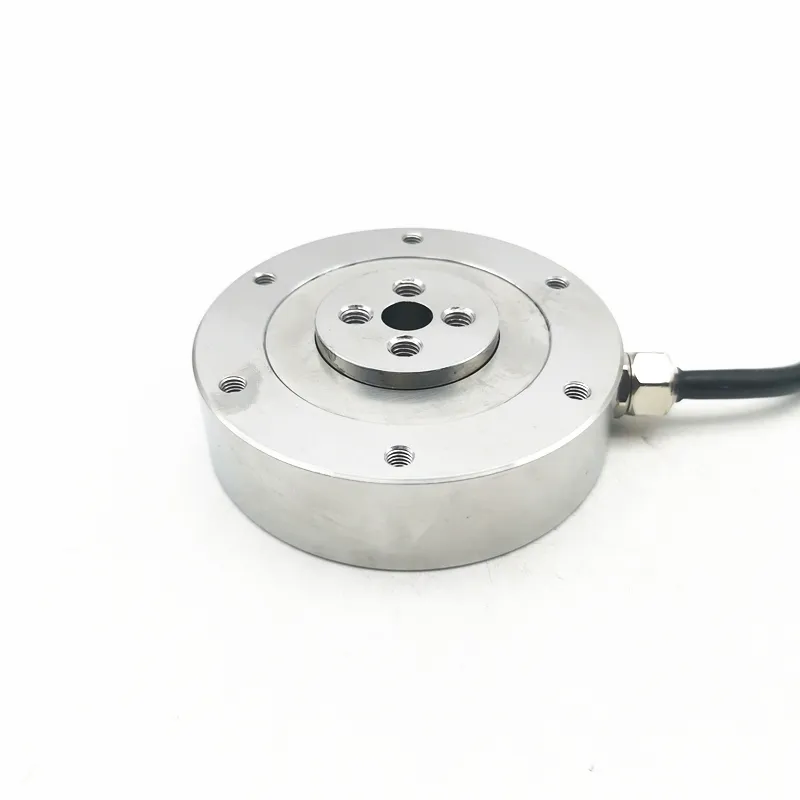

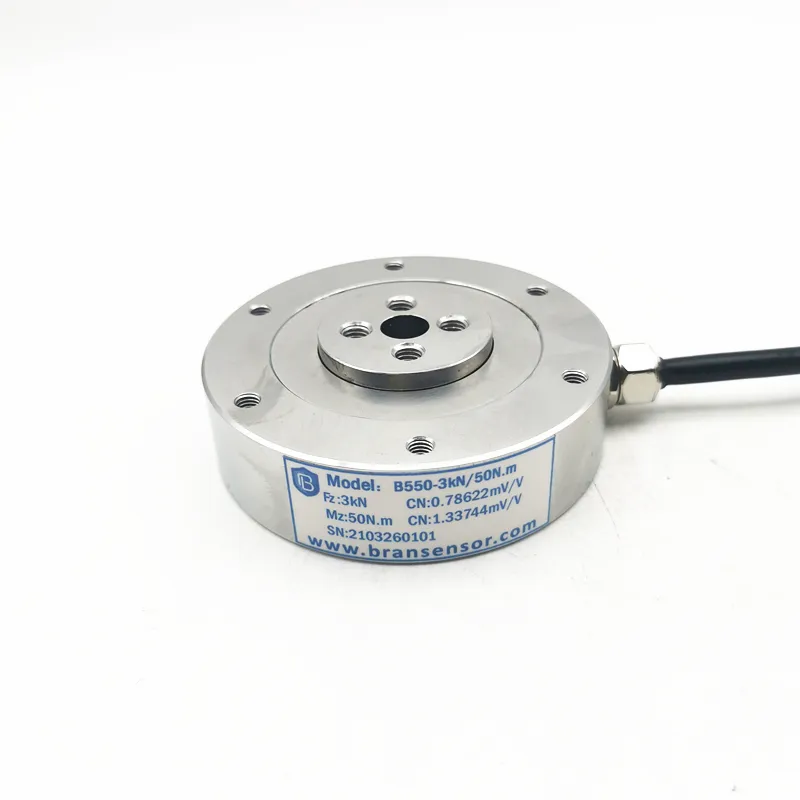

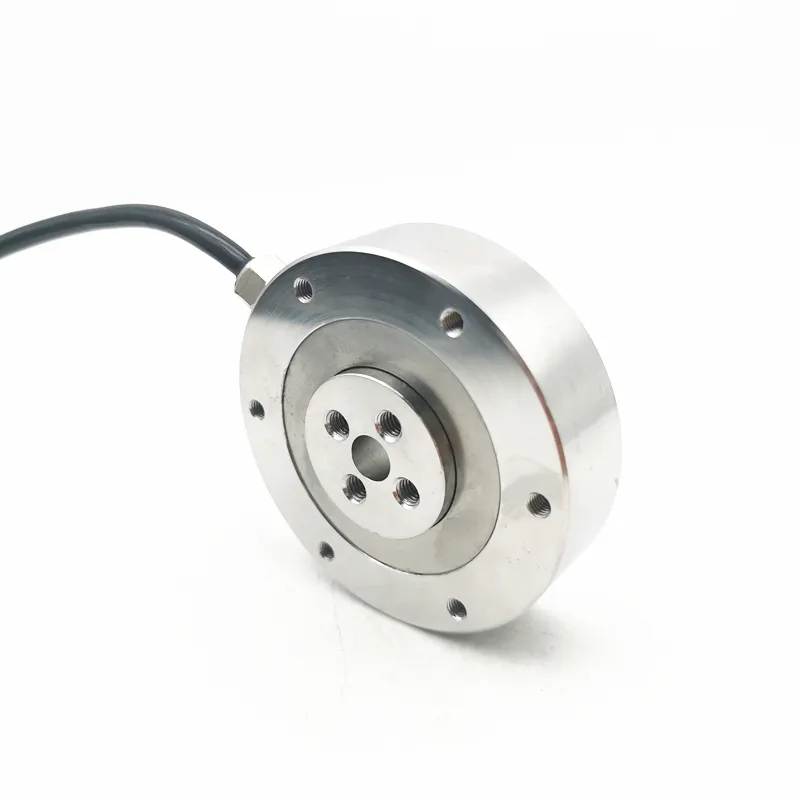

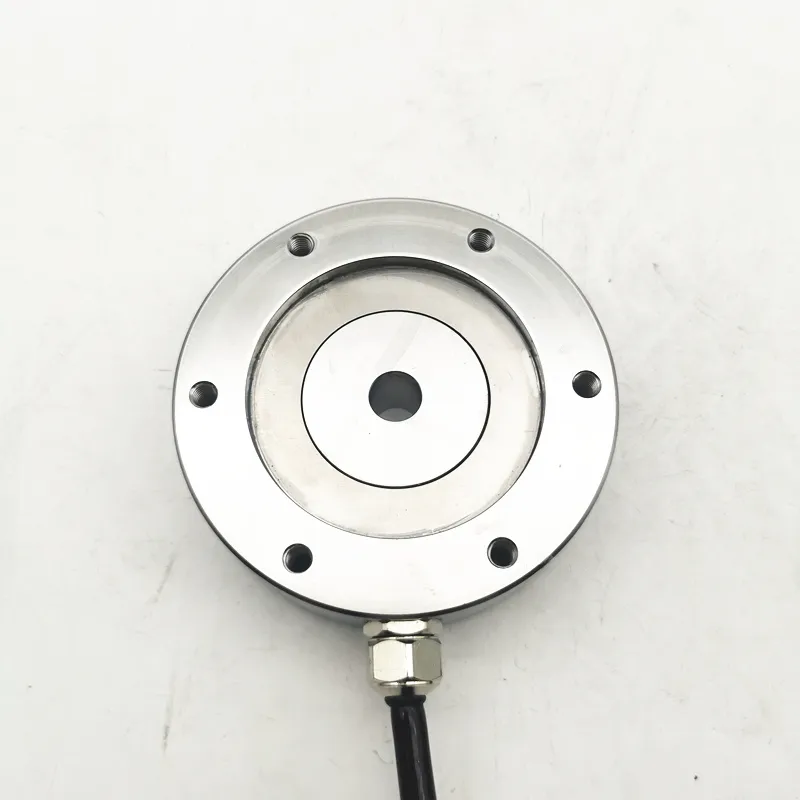

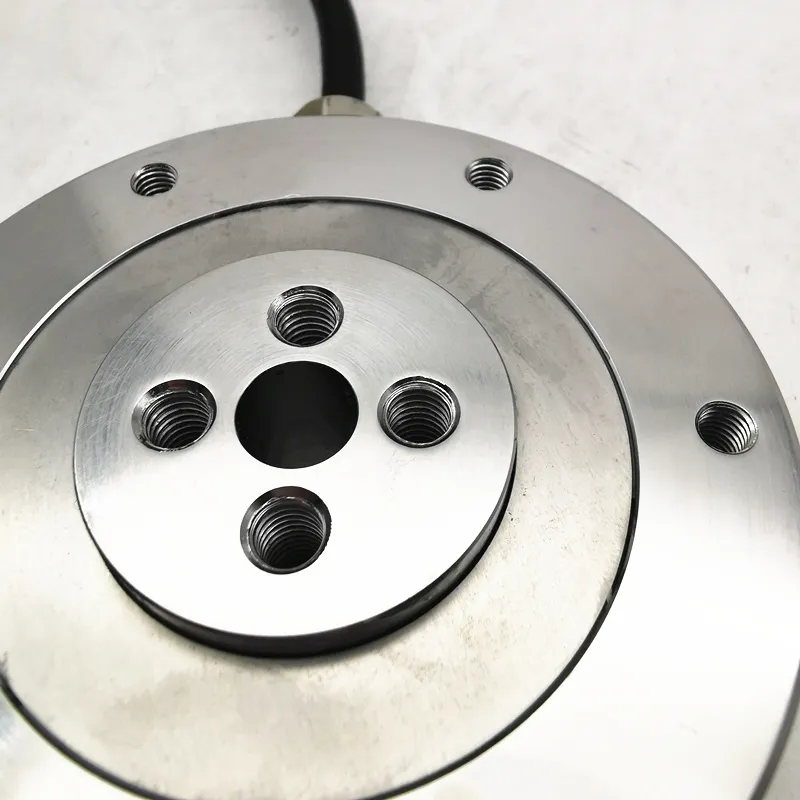

1. Introduction: Brans' B550
2
axials Load Cell F, M
offers an excellent solution for measuring Fx, Fm
loads with a safe-overload of 150% the rated output. This load cell
features a nonlinearity of ±
0.1% of RO and is constructed from 17-4 PH stainless-steel.This one
can be modified or customized to meet your requirements. Similar to our entire multi-component load cell series, this model is manufactured in China
and utilizes metal foil strain gauge technology.2. Applications:
Brans 2-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and biomechanical).3. Product Highlights:
Can support simultaneous force measurements on the X, Y, Z axes
Used for wind tunnel model applications
Used for triaxial dynamometer applications for motion studies
The load cell is provided in various capacity ranges and sizes with each of the three axes providing the same capacity.

4. Datasheet
5. Design
We are happy to work with your design needs - providing a custom design if warranted for varying capacities (between X-Y and Z), higher temperature capability, or OEM/private labeling if needed.bransensor.en.made-in-china.com
