霍尔效应直流接地泄漏廉价接地故障电流传感器

Preview

基本信息产品详情证书

基本信息

型号	B3
材料	塑料
精度等级	0.5G
应用	开关电源
IP等级	IP65
认证	ISO
定制	定制
模型	B3- 50 atb3 - 100 at B3- 200 A B3- 300 A
电源电压	+-12V、+-15V、+-18V
Di/DT	100多
带宽	@-1分贝0~ 150 GHz
电流隔离	@50 Hz，AC，1分钟3 GHz
运输包装	绿色塑料薄膜
规范	CE, ISO, Rohs
商标	合益
起源	中国浙江省乐清市柳市
HS编码	8542390000
产能	5000件/月

产品详情

Product Description

Preview

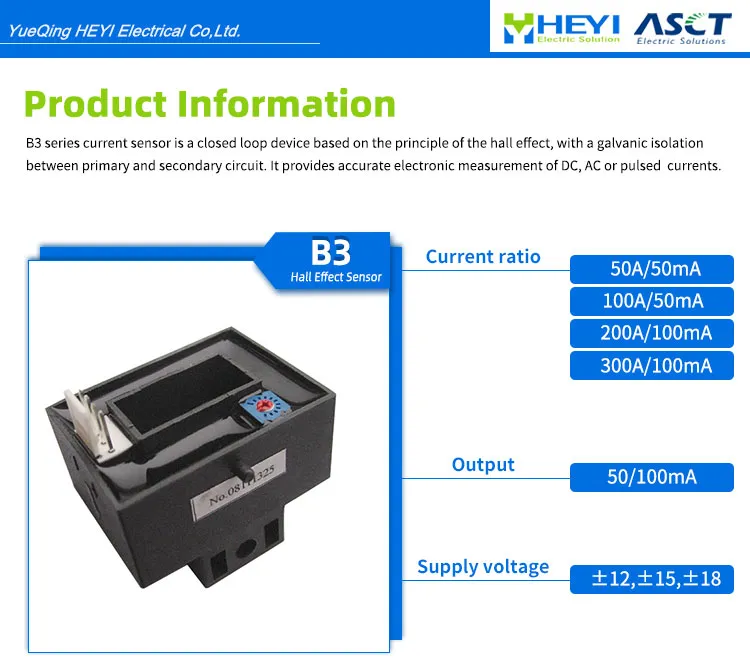

B3 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Preview

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Preview

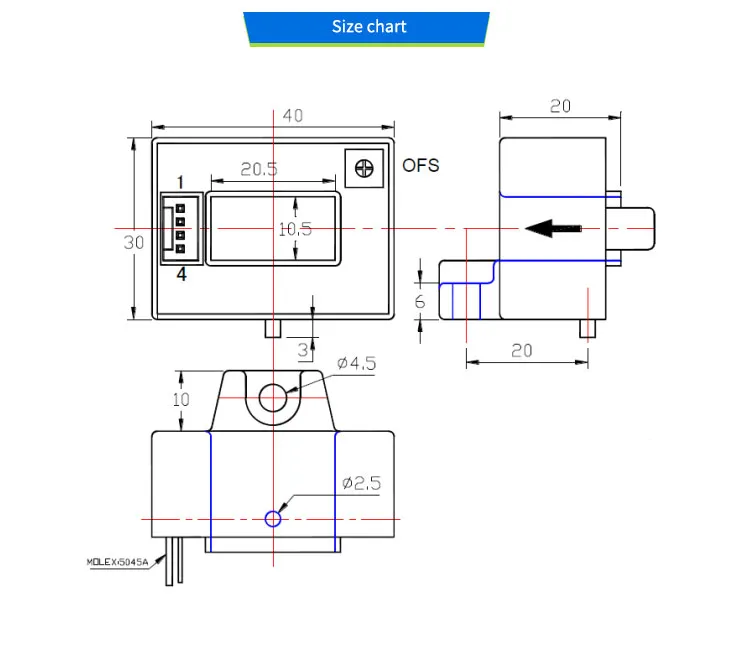

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC

Preview

1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2.Custom design in the different rated input current and the output current are available.
·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000
