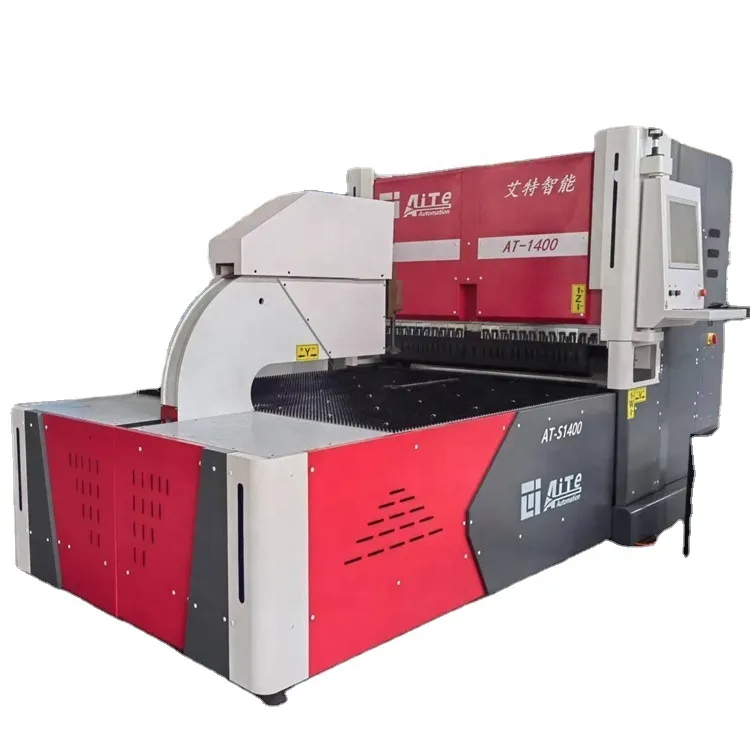

AIOTEK BENDING: AT-S1400
Panel bending center
Full electric SERVO CNC Intelligent and Flexible Bending Center (CNC Panel Bender, CNC Press Brake)

This bending center is intelligent and flexible, capable of bending the edges of sheet metal panels according to complex combinations of various edge angles. Notably, it can perform continuous upward and downward bending without the need to replace the bending blades.
The whole machine consists of five main parts:
1. Bottom fabricated and welded heavy structure: It is integrally fabricated and holistically welded using super high - strength steel. This results in a machine with a large tonnage weight and a stable center of gravity. These characteristics ensure long - term bending accuracy stability, better reliability, and good durability. The entire structure is also heat - treated using processes such as annealing and tempering. This endows the structure with high rigidity, relieves internal stress, and specifically extends the machine's service life while improving its positioning precision.

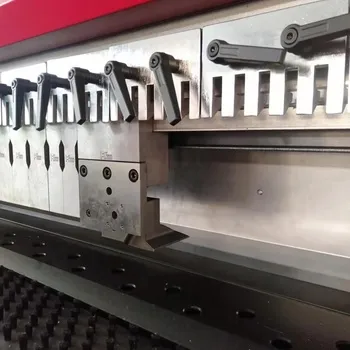

2. Upper fabricated and welded heavy structure: Equipped with pressing blades and hinge blades, it is fabricated, welded, and treated in the same way as the bottom structure.
3. Mobile fabricated and welded heavy bracket for upward and downward bending blades: Fabricated, welded, and treated identically to the bottom structure.
4. Feeding system: The working table is equipped with C - type mobile strong clamping arms for flexible control and operation of the sheet metal panel. Optionally, a mobile suction - cups plate can be chosen for flexible control and operation of the sheet metal panel.
5. Worktable features: The worktable is also equipped with an adequate number of hard brushes and rolling stainless - steel beads to protect the sheet metal panel during processing.
Bending center machine has below outstanding merits :
1. Simple bending program and easy to understand, operate,flexibly and easily complete various complex bending workpieces.
2. Fast and convenient ,high degree of auotmation with manipulator,
high precision of processing.
4. Obviously Save a lot of labor and tool costs in processing than the traditional press brake .
5. SERVO systems for energy saving and high efficiency .
6. Bending length up to 1400mm ,bending height up to 170mm

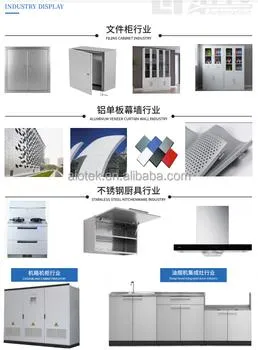

Application field:
1. Various Boxes
2. Canopies
3. File Cabinets
4. Kitchen Cabinets
5. Chassis Cabinets
6. Furniture Industry
7. Decorating Industry
8. Ventilation Facilities
9. Refrigeration Facilities
10. Elevator Industry
11. Car Industry
12. Door Industry
Product Paramenters
Technical Parameters
Unit
Model
AT-S1400
Feeding Structure
/
C-TYPE ARM
Bending Length
mm
1400
Maximum Bending Height
170
Minimum Bending Height
4
Min. Inner Size of Four-side Bending
110*140
Min. Inner size of One-side Bending
110
Minimum Arc Radius
1.2
Minimum Continuous Bending Speed
s
0.2
Bending Angle
°
0-180
Axes Controllable
Set
10
Maximum Feeding Speed
m/min
120
Equipment Size
4563*2600*2480
Total Power
KW
20
Average Power
3.5
Main Functions

Qingdao Aiotek

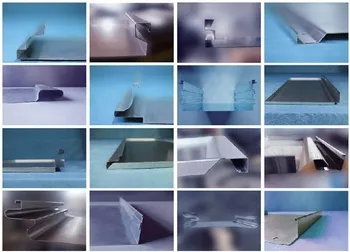

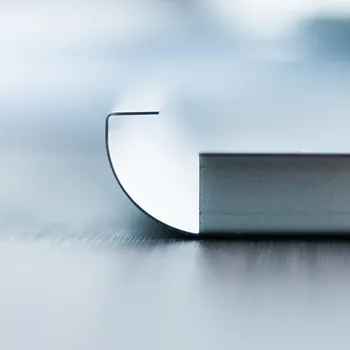

Intelligent Equipment Co., Ltd. has been engaged in the research, development, production and sales of CNC turret punch presses since 2006. In 2016, the technical R & D department focused on the research and development of the flexible bending center and obtained an invention patent. It has developed a servo - flexible bending center with an international advanced level. The bending speed is only 0.2 seconds per cut. The equipment can automatically perform upward and downward bending actions according to the bending process to achieve circular arcs, hemming, and combined bends of various angles. Multiple bending requirements can be achieved without replacing the bending tools, saving a large amount of labor and die costs for enterprises.
