Stainless Steel Welded Pipe Making Machine
The plate in certain width after slitting line and stripping is unfolded and leveled. Then, they are sent into forming machine. Used the roller, the plate is bent into pipe state. The pipe is welded by plasma welder and Tig welder.
Stainless steel pipe welded mill adopts total automatic flexible forming technology.
In recent year, our company developed the precise control forming. The advantage of this kind forming is to guarantee the excellent forming quality in rough forming section through the precise control. Then it is no need to have the repair management in precise forming section. Therefore, the precise forming in this forming method does not need to change the roller. All the forming section does not need to change the roller, which solves the problem of the change in precise forming section and non-change in rough forming section. Therefore, it saves the roller investment and decreases the time of roller changing. Besides, during the diameter changing, all are controlled by industrial computer. The roller will automatically reach the position by inputting the pipe diameter, pipe wall thickness, material and other parameters. It largely improves the mill efficiency and pipe qualified rate. This forming method is suitable for medium and large mill from 219mm to 711mm, which saves the investment and improves the efficiency.
Stainless steel welded pipe mill is mainly used for manufacturing the industrial pipe in chemical, the bottom sea, oil, gas delivering and other fields. The pipe requirement on the material and quality is very strict. The machine has internal welding seam leveling treatment, solution annealing, X-ray detector, UT detector, high pressure hydro tester and other detector equipment.
Model
Working Process:

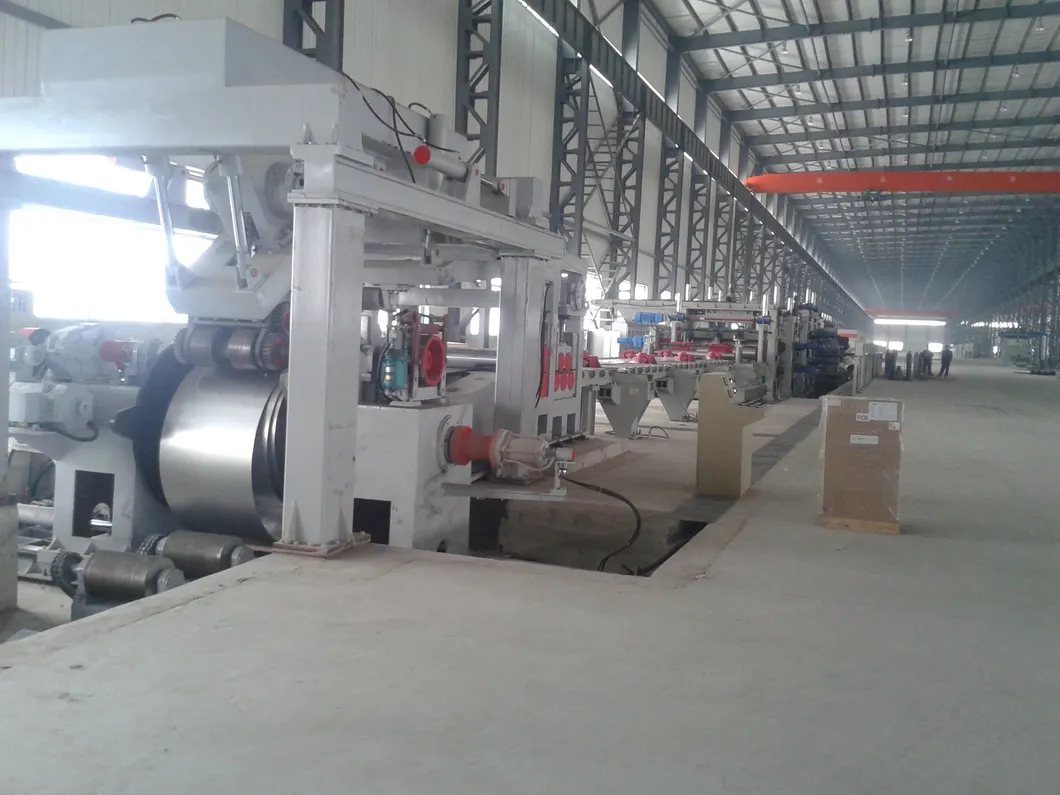

Coil Loading - Uncoiler - Leveler - Steel Cutting and Welding - Small Accumulator - Forming - PPT Welding - Internal Welding Seam Leveling - Online Annealing - Water Cooling - Sizing - Cut to Length - X-Ray Detector - Pipe End Facing and Beveling - Hydrotester - Solution Treatment - Offline UT Welding Seam and Pipe Detector - Acid Pickling Passivating - Weighting, Measuring, Marking - Pipe Collection
Intergrated services:
1. Offer reasonable investment plan, reconmmend the appropriate models based on actual market situation.2. Offer layout of production line based on customer plant's drawings.3. Offer the base drawings required for installation.4. Offer machine's installation and commissioning by sending technicians, until machines operates normally.5. Offer professional training, until the buyer's operator command machine's operation.6. Offer and coordinate auxiliary components, accessories, and spare parts.7. The warranty is
1 year long, excluded situation of human-damage. If you have any question about machine operating, just contact us via mails or phone call, we will solve the problem for you immediately.FAQ
1. Which
countries
your
products
are
exported
to?
Our
products
are
sold
all
over
the
world.2.How
about
the
warranty?
All
our
products
have
one
year
quality
warranty, during
the
warranty
time, the
spare
parts replacement
is
free. And
we
provide
life
long
time
technical
support
and
other
assistance.3.How
to
install
your
machine?
Usually speaking, engineers will be sent to your factory to help to install and adjust the machines. We
also have
paper
installation
instructions
and
videos,
teaching you
till
you
command
it.4. Which
export
port
you
use?
Any
China
ports.Commonly,
we
will
use
Tianjin port,China. But it can
be appointed
as
you
like.5.How
about
the
payment
terms
and
delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.The big machines and big amount: 30%
deposit,
70%
before
shipment (we
will
shoot
total
delivering
process
for
customer's
confirmation)
and
the
related
papers.You can
pay
by
T/T,L/C, Western
Union
or
other
ways.The
machine
delivery
time is
within
100-200days.6.What
is
your
nature
of
your
company:dealer or factory ?
We
are
manufacturer
,warmly
welcome
to
visit
our
factory and contact us.
