TRADITIONAL RADIATOR WORK PROCESS
1 tube making-->2 fin making --->3material cleaning--->4 core assembly--->5 brazing --->6connectors welding--->7 tanks welding -->pressure test--->painting --->package
NEW STYLE RADIATOR WORK PROCESS
1tube making --->assembly--->connectors welding--->tanks welding --->pressure test---->painting---->package

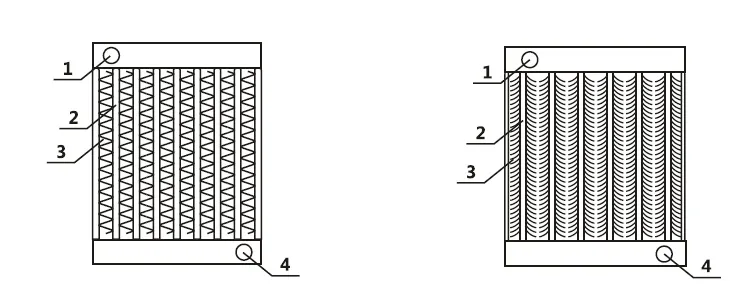

TRADITIONAL RADIATOR(left image)
NEW STYLE RADIATOR(right image)
TRADITIONAL RADIATOR:
1)Solder can make thermal resistance between tube and fin .

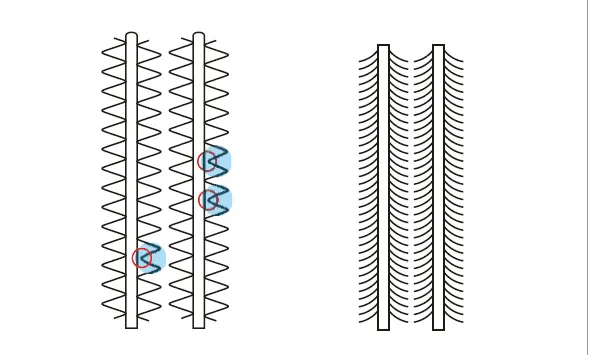

2)Brazing process can not ensure 100% tube and fin can be coherent( blue
marks are invalid heat transfer area).
3)It
will reduce heat rejection accrodingly .
4)aluminum alloy with 3003&4004 for fin and tube ,so it is easy to be damaged
during transport or vibration during operation ,leakages are hard to be avoided (especially for large radiator) .
NEW STYPLE RADIATOR : 1)
fin and tube integration design ,avoid thermal resistance
.2)
high conductivity for heat .without trouble of brazing quality .
3)
heat rejection rate will increae 10-20% in same dimension.
4)
material is aluminum alloy 6063 , it is tough and durable .
MOST COMPETITIVENESS POINTS FOR OUR NEW STYLE
RADIATOR
1. We can produce with max dimension 4000mm*4000mm*236mm
2. You can clean fin with high pressure water gun .3.Can stand Inner
fluid pressure up to 100bar .4
Anti-mechnical shaking model ,longer operational life span .5. It is suitable for extremely harsh working conditions ,Such as highland,forests,desert etc.
