基本信息
型号 | LED模块 |
功率 | 2W |
LED芯片 | 三安 |
IP等级 | IP68 |
防水 | 防水 |
保修 | 5年 |
电压 | DC12V |
视角 | 170度 |
亮度 | 180 lm-200 lm/模块 |
尺寸 | 45* 42毫米 * 8毫米 |
LED类型 | 9V LED 2835 |
防水等级 | IP68 |
工作温度 | -10-60度 |
字符串数量 | 20个/串 |
认证 | CE& RoHS |
安全标准 | En 62031 -2018 |
光衰 | 3年内<5% |
寿命 | 超过4年 |
背面贴纸 | 3M |
运输包装 | 纸箱 |
规范 | 45* 42毫米 * 8毫米 |
起源 | 深圳 |
HS编码 | 9405409000 |
产能 | 1000000/月 |
封装尺寸 | 45.00厘米 * 28.00厘米 * 30.00厘米 |
包装总重量 | 16.000kg |
提前期 | 3天(1 - 3000件) 待谈判(> 3000件) |
封装尺寸 | 45.00厘米 * 28.00厘米 * 30.00厘米 |
包装总重量 | 16.000kg |
提前期 | 3天(1 - 3000件) 待谈判(> 3000件) |
产品详情
Product Description
Preview
Product Description:
features
:1.
DC12V output,20pcs in one string.
2.Waterproof IP67 for outdoor and indoor use
3.Each unit can be cut and reconnect
4.CE&ROHS EN62031-2018 listed
5.It 170Degree lens for
signage letter
6.It working temperature is -20°C - 55°C
7.It suitable use for big advertising light box and channel letter

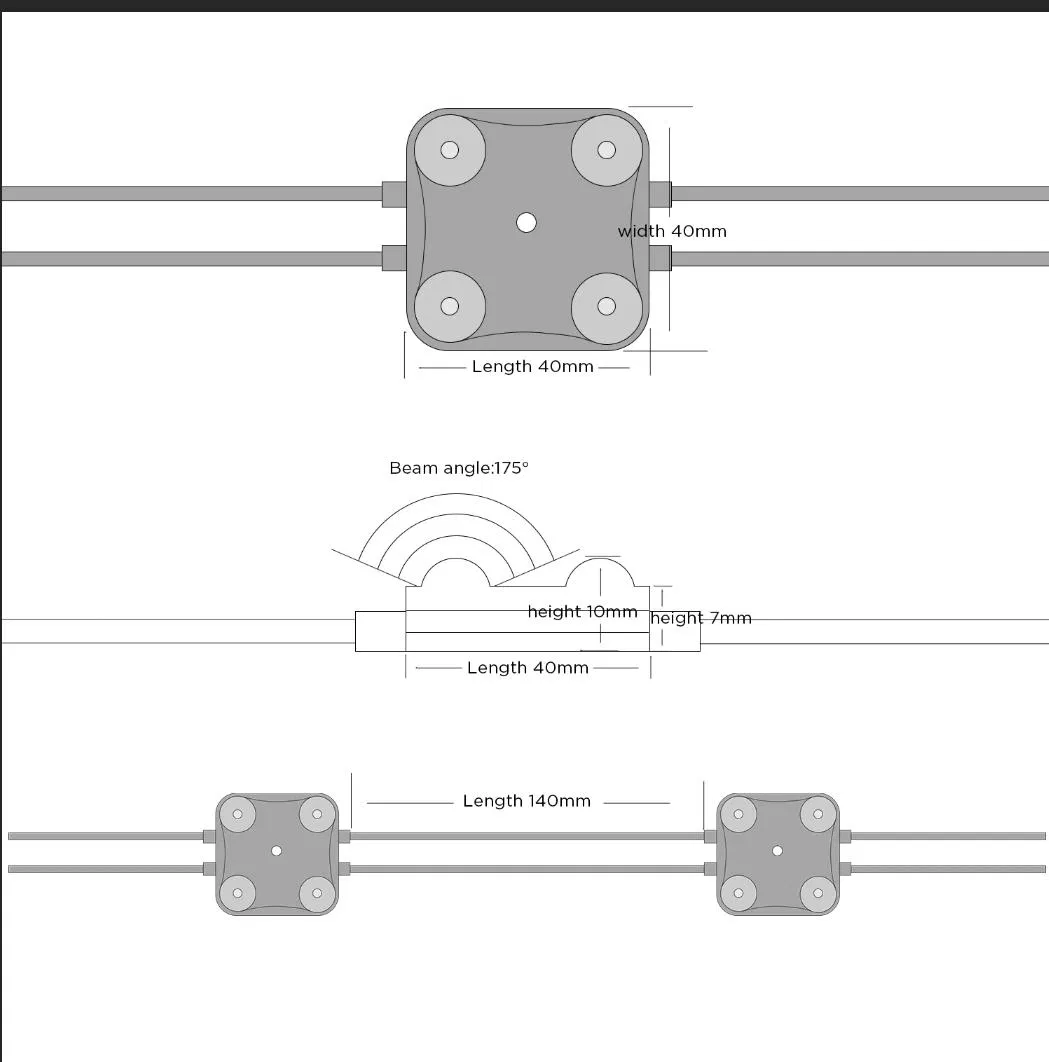

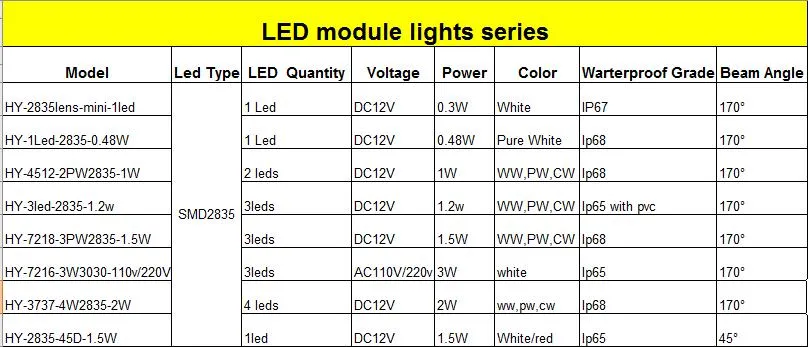

products parameters
features
:1.
DC12V output,20pcs in one string.
2.Waterproof IP67 for outdoor and indoor use
3.Each unit can be cut and reconnect
4.CE&ROHS EN62031-2018 listed
5.It 170Degree lens for
signage letter
6.It working temperature is -20°C - 55°C
7.It suitable use for big advertising light box and channel letter
products parameters
Preview

Preview

Preview

Preview

Preview

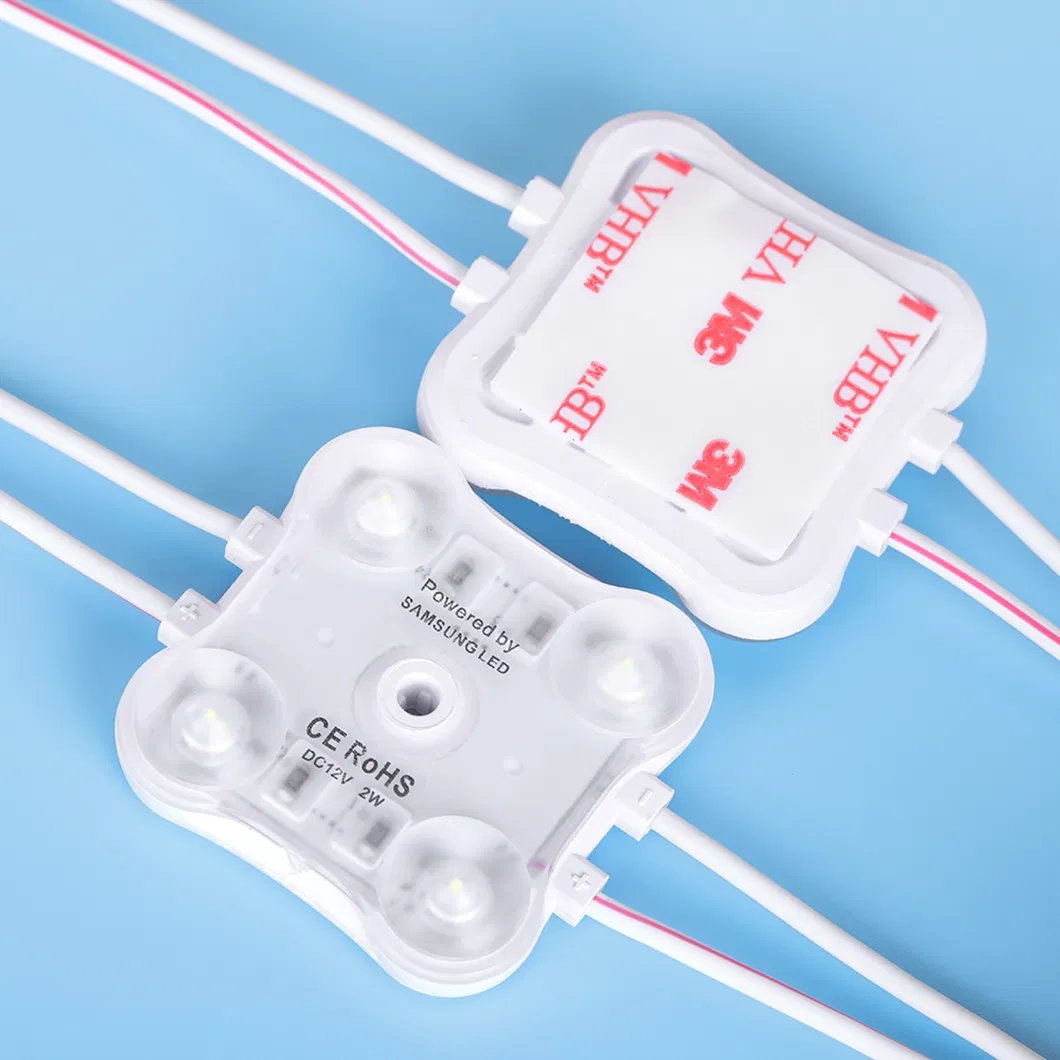

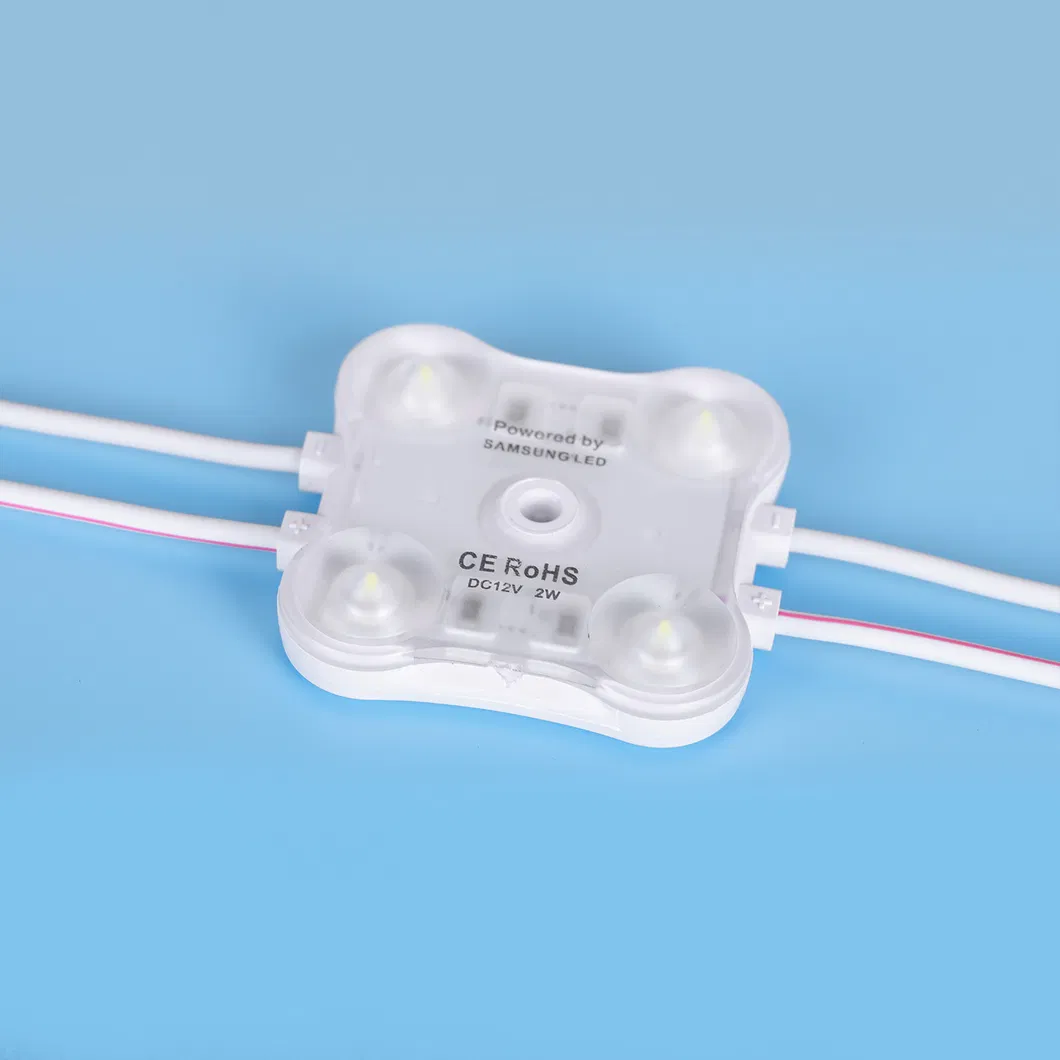

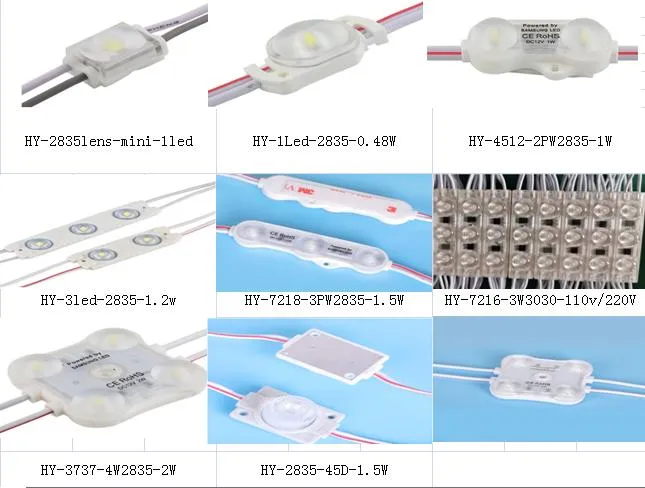

products series photos:
Preview

Preview

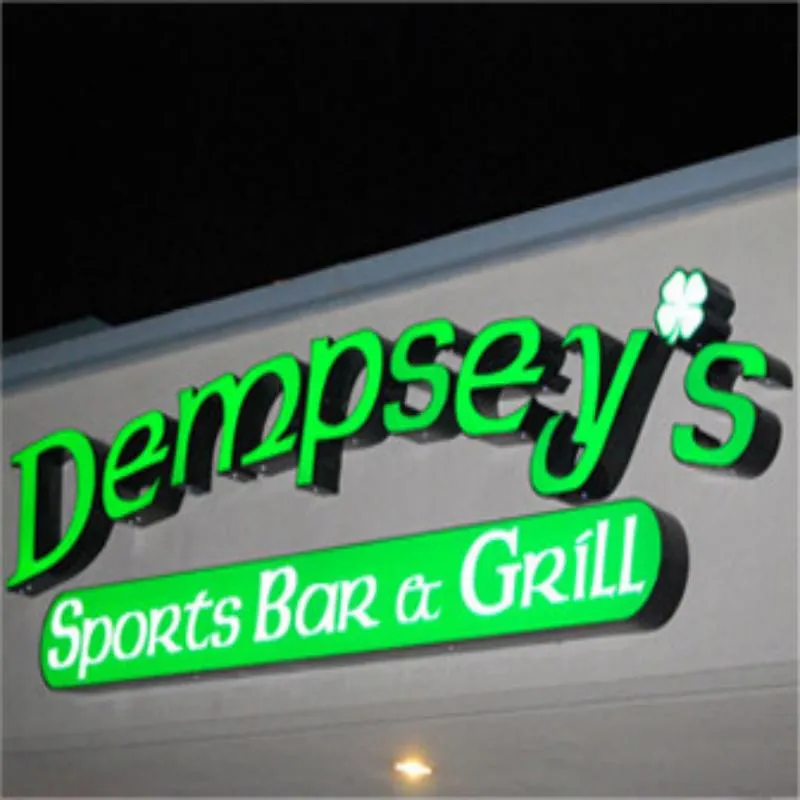

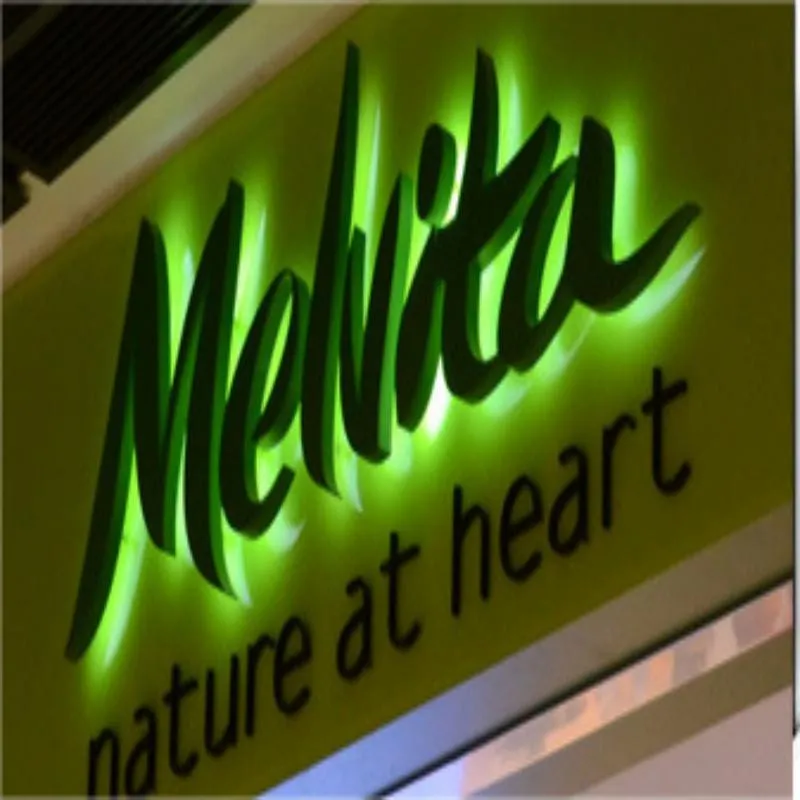

install photos:
Preview

Preview

Preview

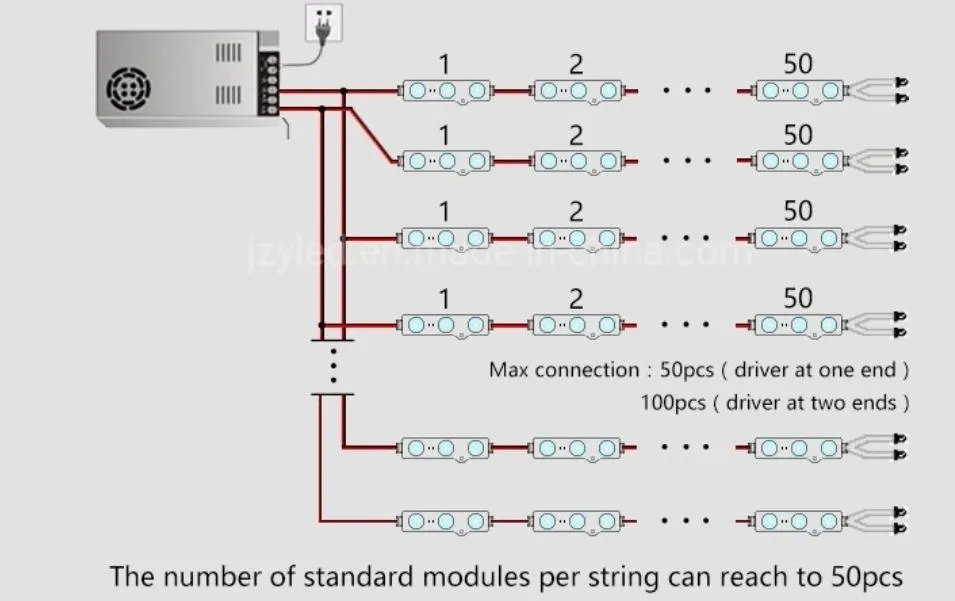

wire connect guide:
Preview

Preview

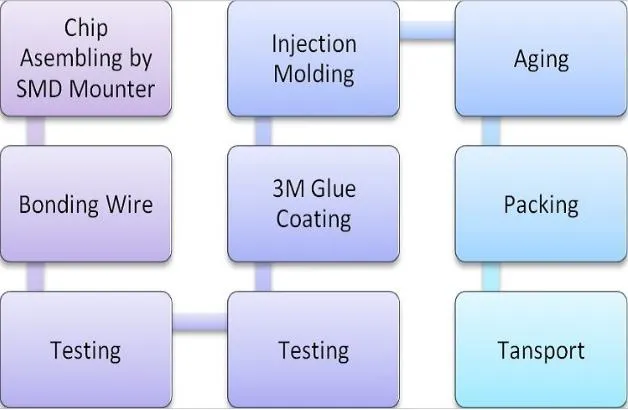

production steps:
Preview

Preview
FAQ:
Q1: Are you are manufacturer or trading company?
A: We are professional manufacturer located in Shenzhen, China.Q2: Can I
have sample(s) to test?
A: Yes, we are glad to provide samples to test and check quality. Mixed samples are acceptable.Q3: Do u
have any MOQ limit for led light?
A: 1
pc also be available.Q4: What's the lead time?
A: Sample: 1-3 working days; mass order: 7-12 working days (all depend on the order quantity).Q5: How do you ship the goods and how long does it take?
A: We usually ship by DHL, TNT, UPS or Fedex.It will need 3-5 days to arrive. Shipping by airline or sea is also alternative.Q6: Is it ok to print our own logo on it?
A: Yes, please inform us the logo you want to print in advance.Q7: Which kind of payment do you accept?
A: We accept T/T, Paypal or Western Union.
Q1: Are you are manufacturer or trading company?
A: We are professional manufacturer located in Shenzhen, China.Q2: Can I
have sample(s) to test?
A: Yes, we are glad to provide samples to test and check quality. Mixed samples are acceptable.Q3: Do u
have any MOQ limit for led light?
A: 1
pc also be available.Q4: What's the lead time?
A: Sample: 1-3 working days; mass order: 7-12 working days (all depend on the order quantity).Q5: How do you ship the goods and how long does it take?
A: We usually ship by DHL, TNT, UPS or Fedex.It will need 3-5 days to arrive. Shipping by airline or sea is also alternative.Q6: Is it ok to print our own logo on it?
A: Yes, please inform us the logo you want to print in advance.Q7: Which kind of payment do you accept?
A: We accept T/T, Paypal or Western Union.
