Part Number
Model
Description
02353AES
CR8B0BKP03C0

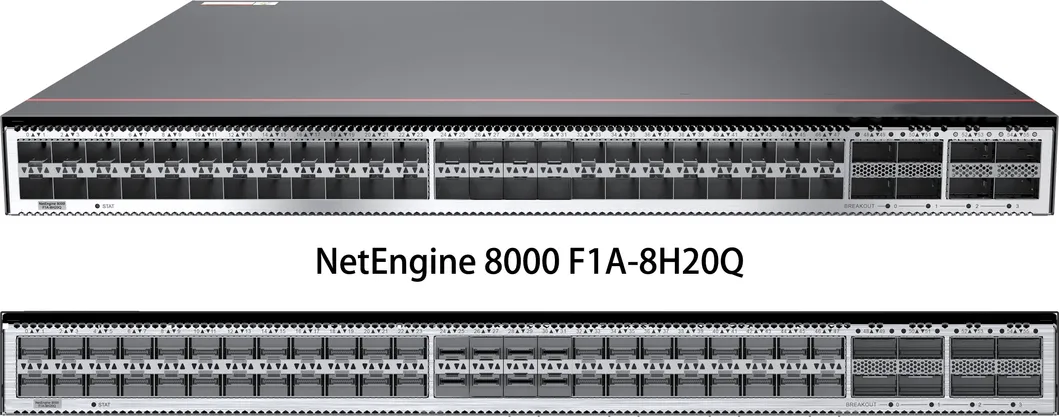

NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Intake)
02353AES-001
NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Intake)
02353AES-006
02353AGV
CR8B0BKP03C2
NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Exhaust)
02353AGV-001
NetEngine 8000 F1A-8H20Q Integrated Chassis Components(Port-side Exhaust)
02353AGV-002
02355KVX
CR8B0BKP03D0
02355KVY
CR8B0BKP03D2
Item
Specification
Cabinet installation standards
IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)]
43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
175 mm x 550 mm x 650 mm (6.89 in. x 21.65 in. x 25.59 in.)
Chassis height [U]
1 U
Weight without packaging [kg(lb)]
6.3 kg (13.89 lb)
6.8 kg (14.99 lb)
7 kg (15.43 lb)
Weight without packaging (full configuration) [kg(lb)]
DC: 8.4 kg(18.52 lb); 8.9 kg(19.62 lb)
AC: 8.75 kg(19.29 lb); 9.2 kg(20.28 lb)
Weight with packaging (full configuration) [kg(lb)]
DC: 13.58 kg(29.94 lb); 14.08 kg(31.04 lb)
AC: 13.75 kg(30.31 lb); 14.2 kg(31.31 lb)
Typical power consumption (with configuration) [W]
325 W
Typical heat dissipation (with configuration) [BTU/hour]
1054.44 BTU/hour
MTBF [year]
DC: 25.52
AC: 25.65
MTTR [hour]
0.5 hour
Availability
0.99999
CPU
-20-core 2.0 GHz:
CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV)
-8-core 2.3 GHz:
CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C2 (02353AGV-001)
-16-core, 2.0 GHz:
CR8B0BKP03C0 (02353AES-006); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D0; CR8B0BKP03D2
SDRAM
-16 GB:
CR8B0BKP03C0 (02353AES); CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C2 (02353AGV); CR8B0BKP03C2 (02353AGV-001);
-32 GB:
Storage
-4G NAND FLASH:
CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV);
-16G M.2 flash:
CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C0 (02353AES-006); CR8B0BKP03C2 (02353AGV-001); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D0; CR8B0BKP03D2
Power supply mode
DC, AC/HVDC
Rated input voltage [V]
DC: -48 V/-60 V
AC: 100 V to 240 V AC, support 240 V HVDC
Input voltage range [V]
DC: -40 V to -72 V
AC: 90 V to 290 V
Maximum input current [A]
DC: 30 A
AC: 8 A / 10 A
Rated output power [W]
DC: 1000 W
AC: 600 W / 1200 W
Maximum input cable size [mm²]
DC:4mm^2 (1-14 meters), 6mm^2 (15-21 meters), 10mm^2 (22-35 meters)
AC:2.5mm^2
Front-end circuit breaker/fuse [A]
DC:≥32A
AC:≥10A
Heat dissipation mode
Air cooling
Airflow direction
-Front to back: port-side intake:
CR8B0BKP03C0 (02353AES); CR8B0BKP03C0 (02353AES-001); CR8B0BKP03C0 (02353AES-006); CR8B0BKP03D0
-Back to front: port-side exhaust:
CR8B0BKP03C2 (02353AGV); CR8B0BKP03C2 (02353AGV-001); CR8B0BKP03C2 (02353AGV-002); CR8B0BKP03D2
Noise at normal temperature (acoustic power) [dB(A)]
< 72 dB (meeting the ETSI 72 dBA standard)
Number of slots
7
Number of service board slots
1
Switching capacity
2.4 Tbit/s
Maximum number of physical ports on the entire device
56
Maximum number of 100GE ports
8
Maximum number of 50GE ports
Maximum number of 40GE ports
Maximum number of 25GE ports
20+32(100GE breakout)
Maximum number of 10GE ports
48+32(100GE breakout)
Maximum number of GE ports
28 (V8R12C00), 36 (V8R12C10)
Maximum number of FE ports
28
Maximum number of electrical ports
Redundant power supply
1+1
Redundant fans
3+1,Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)
Long-term operating temperature [°C(°F)]
Front-to-rear airflow model: -5°C to +45°C (23°F to 113°F)
Port-side Exhaust:-5°C ~ 40°C(23°F to 104°F)
Restriction on the operating temperature variation rate [°C(°F)]
≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 90% RH, non-condensing
Short-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Storage relative humidity [RH]
Long-term operating altitude [m(ft.)]
< 4000 m (< 13123.4 ft.)
Storage altitude [m(ft.)]
< 5000 m (16404.20 ft.)
FlexE supported: CR8B0BKP03C0 (02353AES); CR8B0BKP03C2 (02353AGV)
Yes
Physical ports 48, 49, 50, and 51 can be added to the same group. port-id ranges from 56 to 95 and from 1000 to 3000. A maximum of 40 FlexE clients can be created.
Physical ports 52, 53, 54, and 55 can be added to the same group. port-id ranges from 96 to 135 and from 1000 to 3000. A maximum of 40 FlexE clients can be created.
