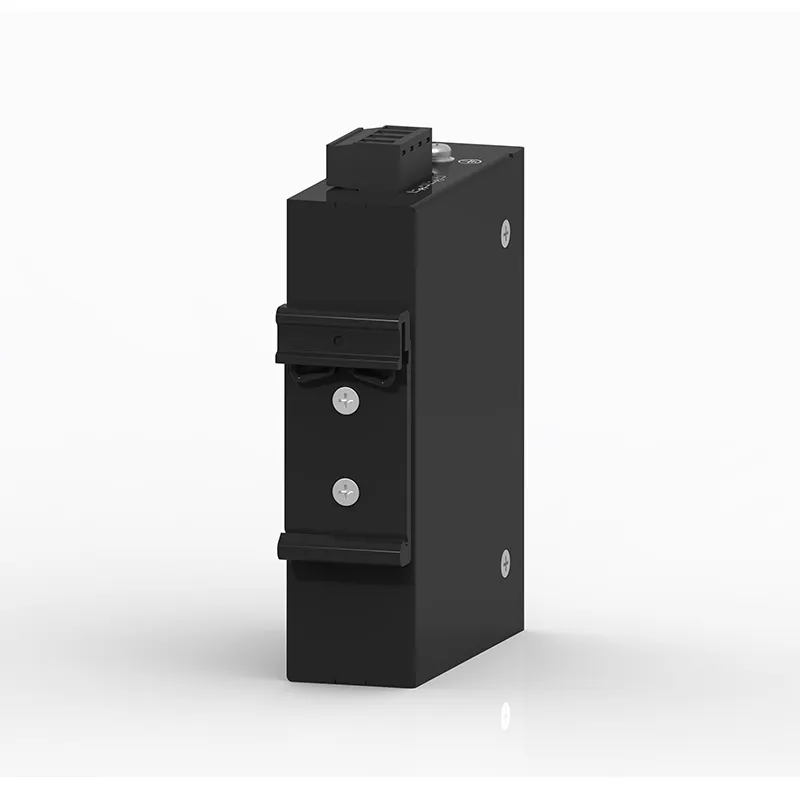

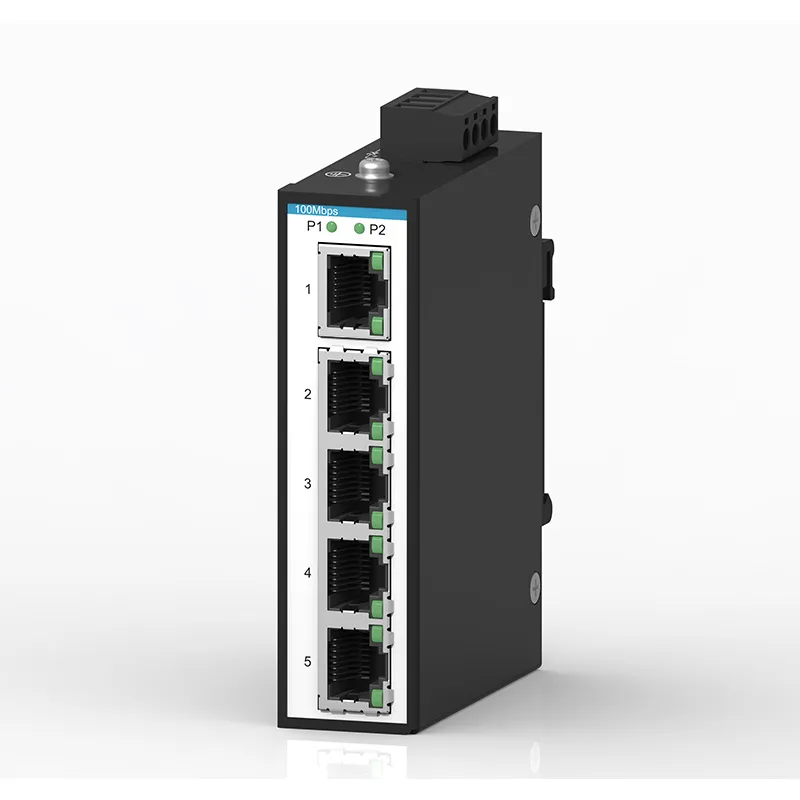

The EGMO5A series are highly integrated and reliable industrial Ethernet switches. They are equipped with up to 5 10/100BaseT(X) ports and 4 100base-FX fiber ports. All RJ45 ports support auto-negotiation, 10/100Mbps speed, full and half duplex, MDI/MDIX.While all fiber ports support 100Mbps speed, full duplex, single/multi-mode, ST/ SC connectors, and dual fiber connectors. They offer redundant power supply input ,with the range of 1236VDC or 1024VAC. They can be installed with either din-rail or panel.
Specification
Standard
Test Method
Descriptions
Testing Level
EN55024
EN61000-4-2
Electrostatic Discharge Test
6KV Contact Discharge
8KV Air Discharge
EN61000-4-3
RI
Radiated Susceptibility
10V/m
80MHz-1000MHz
EN61000-4-4
FTB
Electrical Fast Transient /Burst Immunity Test
Power DM:2KV CM:2KV;
Signal DM:1KV CM:1KV
EN61000-4-5
VS
Surge Immunity Test
Power, Signal DM:1KV;
Power, Signal CM:2KV
EN61000-4-6
CI
Conducted Susceptibility Test
10V rms
0.15MHz to 80MHz
EN61000-4-11
Voltage Dips
/Interruptions
Voltage Interruptions and Voltage Dips Emission Immunity Test
1 Line Cycle@1005% Dip
1-5seconds@>100% Dip
EN55022
CISPR 22
Radiated
Radiated Emission Test
Class A
Conducted
Conducted Emission Test
CFR47,
P15
ANSI C63.4

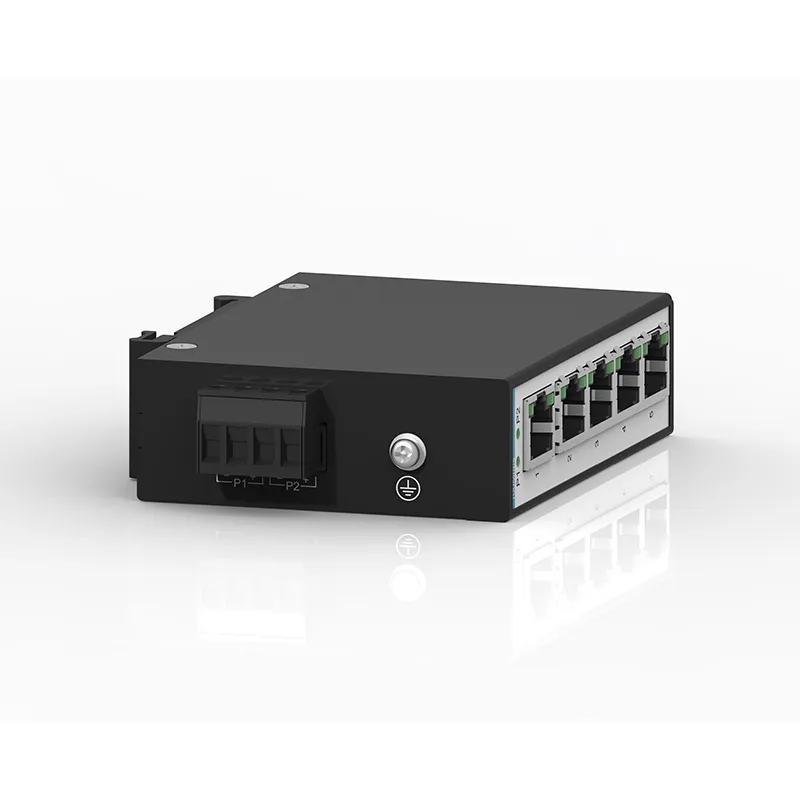

EGMO5A-24VDC
Din-rail Unmanaged Switches, 5 10/100BaseT(X) ports, -10 to 60 operating temperature, 12-36VDC or 10-24VAC Power Input
EGMO5A-24VDC-W
Din-rail Unmanaged Switches, 5 10/100BaseT(X) ports, -40 to 85 operating temperature, 12-36VDC or 10-24VAC Power Input
EGMO5A-2SC-24VDC
Din-rail Unmanaged Switches,3 10/100BaseT(X) ports and 2 100BaseFX ports with SC connectors, multi-mode, 2km, -10 to 60
operating temperature, 12-36VDC or 10-24VAC Power Input
EGMO5A-2SC-24VDC-W
Din-rail Unmanaged Switches, 3 10/100BaseT(X) ports and 2 100BaseFX ports with SC connectors, multi-mode, 2km, -40 to 85
