2.5G 4 Port Poe Switch IP Monitoring and Wireless Ap Equipment
This is an 2.5G POE switch. There are 1*10G SFP+ fiber port, 1*2500Mbps RJ45 uplink ports and 4*2500Mbps
PoE ports. The PoE ports
comply with the IEEE 802.3af/at 48V PoE standard, up to 30W for each PoE port. The maximum PoE output power consumption of the whole machine is 65W. It support active PoE standard, automatically detect and identify the PD's power standards, then provide the PoE power by a simple network cables. Plug and play, meeting high-speed network + PoE power supply network environment, suitable for IP monitoring and wireless AP equipment, widely used in hotels, shopping malls, campuses, factories, dormitories, hospitals and other small and medium-sized enterprises to establish high speed
networks.
Product Features:
10G uplink+2.5G PoE ports, higher speed
4*10/100/1000/2500Mbps PoE ports, 1*10/100/1000/2500Mbps RJ45 uplink port, 1*10G
SFP+
port;
All ports support IEEE 802.3x full-duplex flow control and Backpresure half-duplex flow control;
Supports automatic port rollover(Auto MDI/MDIX), 10/100/1000/2500M self-adaptive;
PoE Power Supply
4*10/100/1000/2500Mbps RJ45 ports support PoE+, meeting the PoE power supply needs of security, teleconferencing systems, wireless network coverage and other scenarios.Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 65W, the maximum PoE output power of PoE port is 30W;
Automatically identify PoE devices for power supply without damaging non-PoE devices
l
Stable and reliable
With the latest high-speed Ethernet chip, self-identifying and intelligent management, ultra-high backplane bandwidth design with extremely fast data processing capabilities, improved the data transmission performance;
Seiko metal housing with electrostatic paint, double-flow heat dissipation, strong and durable
Support Surge protection:
Common mode 4KV;
Differential mode 2KV(level B);ESD: Air 8KV, Contact 6KV(level B)
Simple to Operate
Simply to operate, plug and play, intelligent management, lossless transmission and zero lag in security monitoring. The PoE power is no restricted by power lines and power socket, saving the labor and wiring costs.Users can easily understand the working status of device through the power indicator light and network port status light.
Hardware Spec

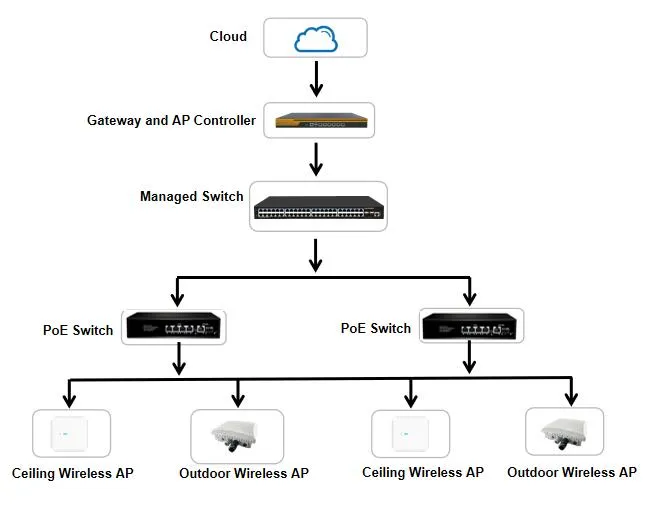

Applications and Network Topology
Monitoring and IP Phone
