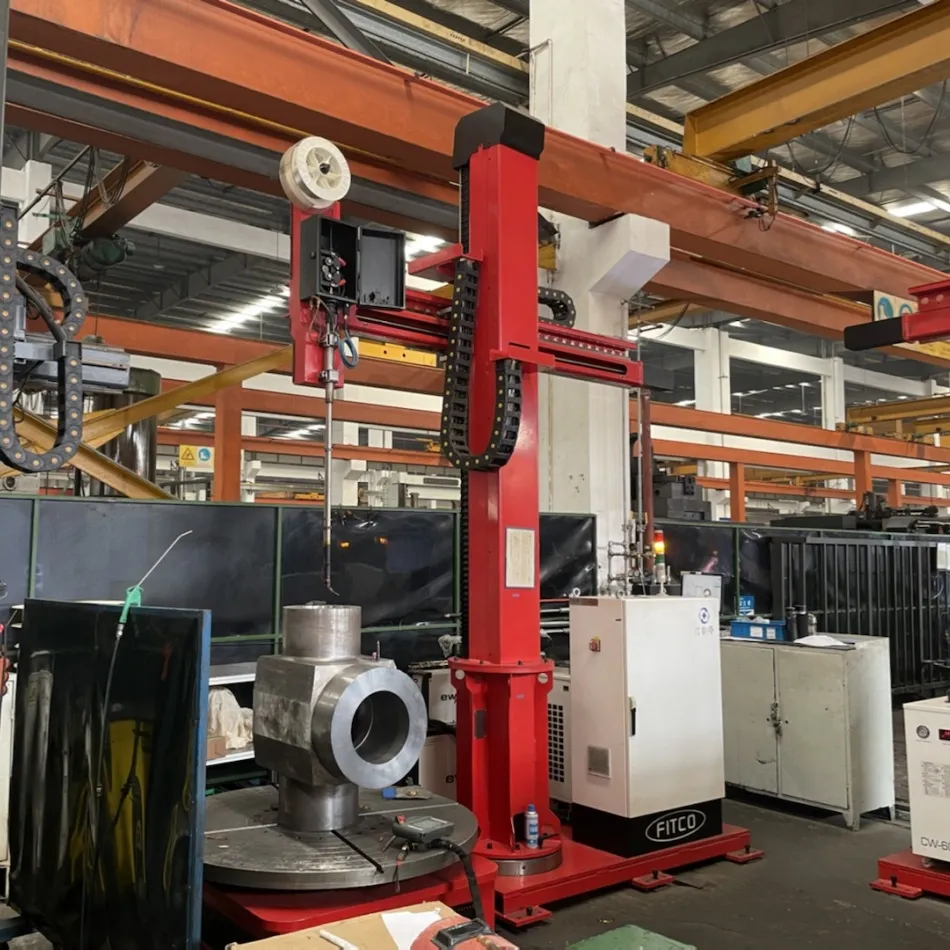

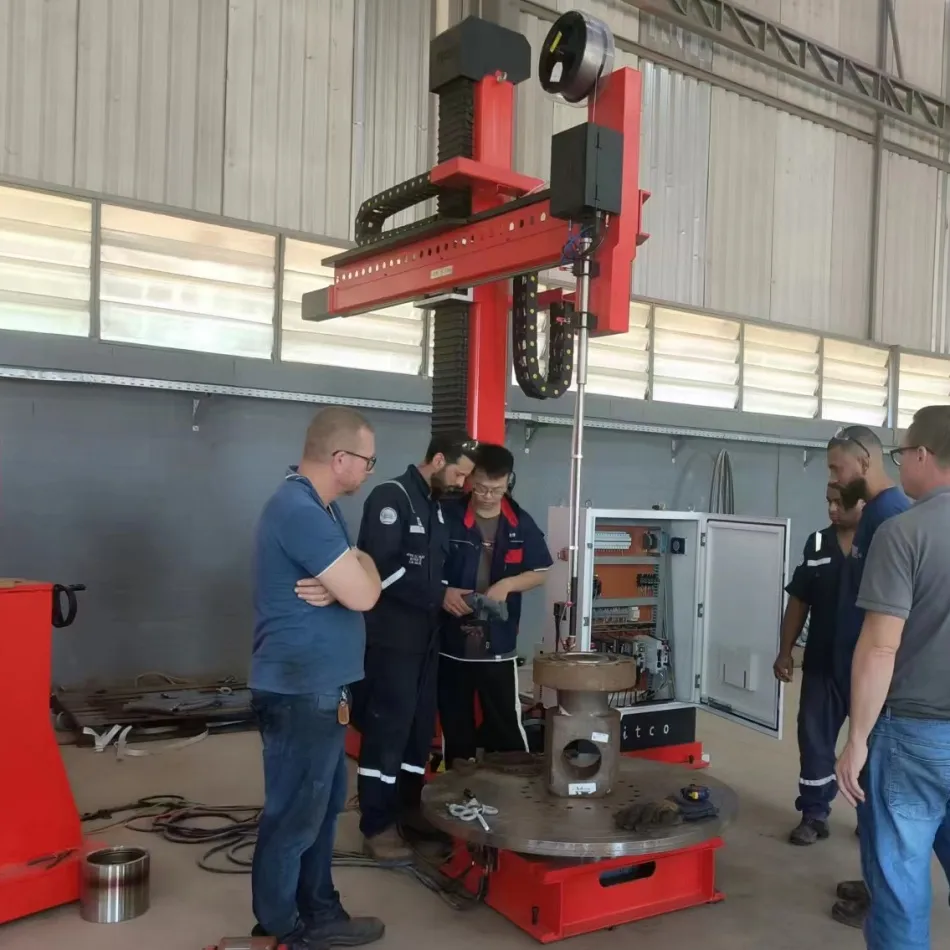

The compact type vertical cladding station is designed for oil and gas, chemical, valve manufacturing, pressure vessels and other industries. Requirements of products with a variety of shapes can be met. This model can be used for precision welding of
corrosion-resistant and wear-resistant materials.With compact design, this model is space-saving and
powerful.

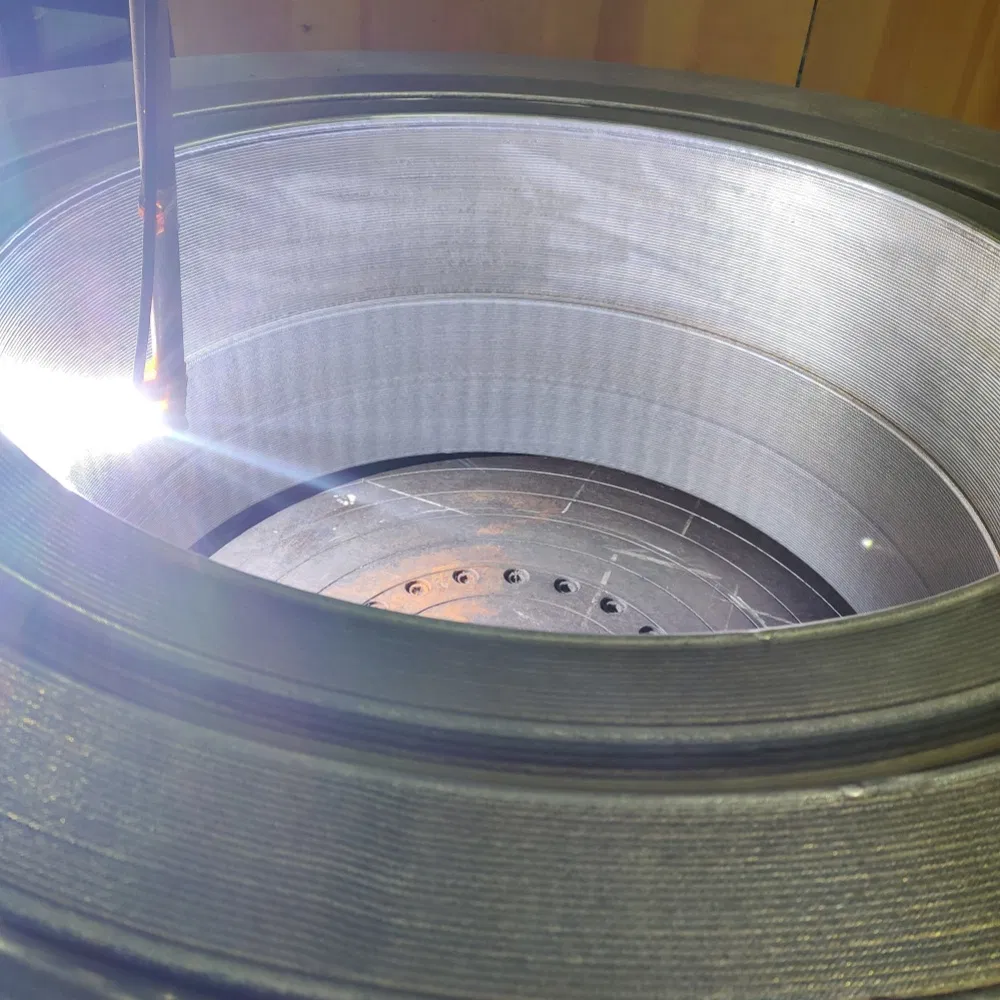

Configured with the basic functions of internal and external surface
together with flat surface welding, this mode also boasts optional functions such as two holes 90-degree crossing intersection surface cladding,
multi-bore intersection surface automatic welding, workpiece pre-heat system, workpiece cooling system, etc.
The cladding station is using TIG hot wire welding process. Suitable for automatic welding of carbon steel wire, stainless steel wire, nickel-based alloy wire, wear-resistant welding wire and other materials.
Fitco offers
fully automated TIG cladding welding systems for vertical valve-cladding applications. Complete turnkey packages include a wire-feed unit as well as a standard touch-programmable, hot-wire pulsed-TIG welding power source with an optional hot-wire system available for applications where higher deposition rates are required.
Fitco can specially design it according to client's requirments
Technical Parameter

1.This model is compact design, saving space and powerful.

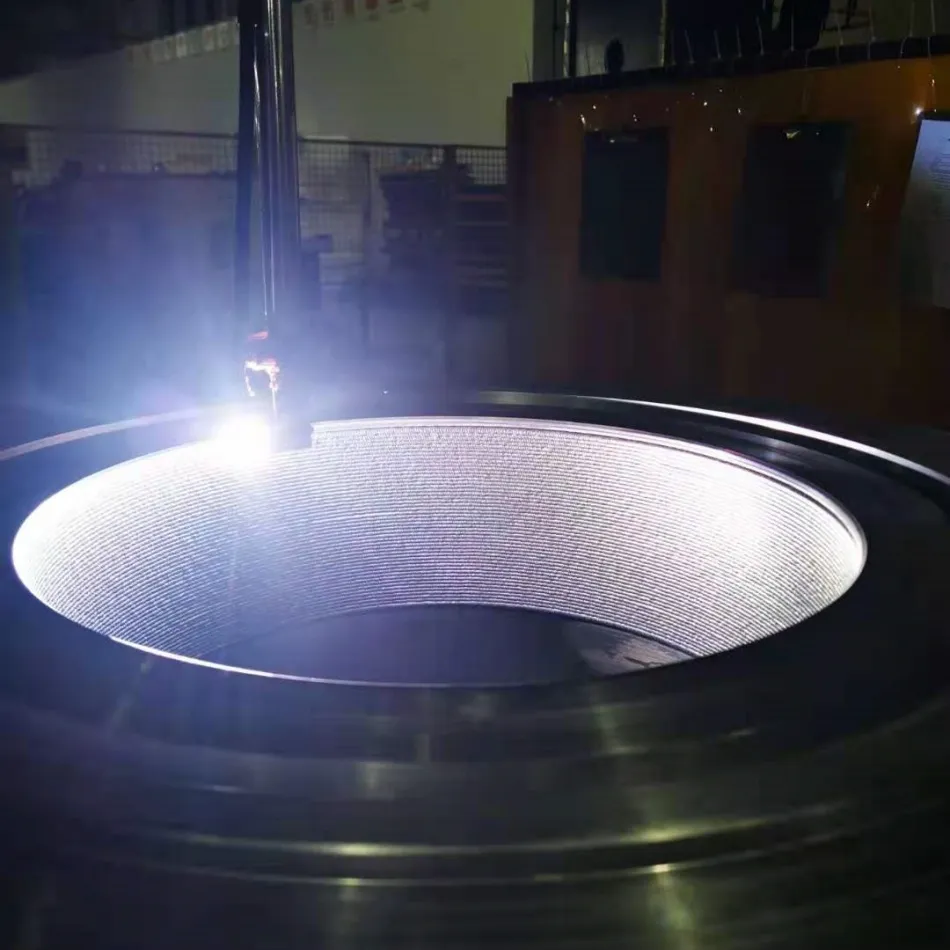

Internal and external bore, flat surface cladding
and
two holes 90-degree cross-section cladding are standard functions.
2.

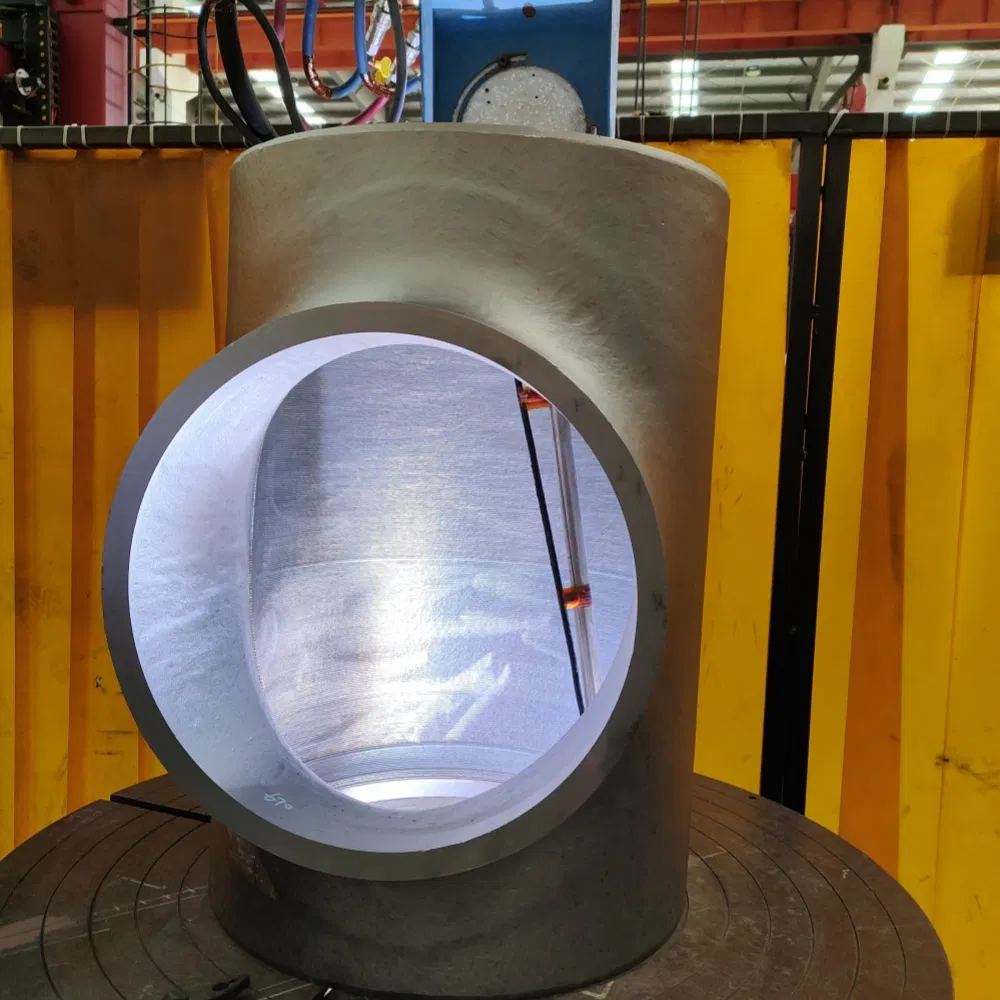

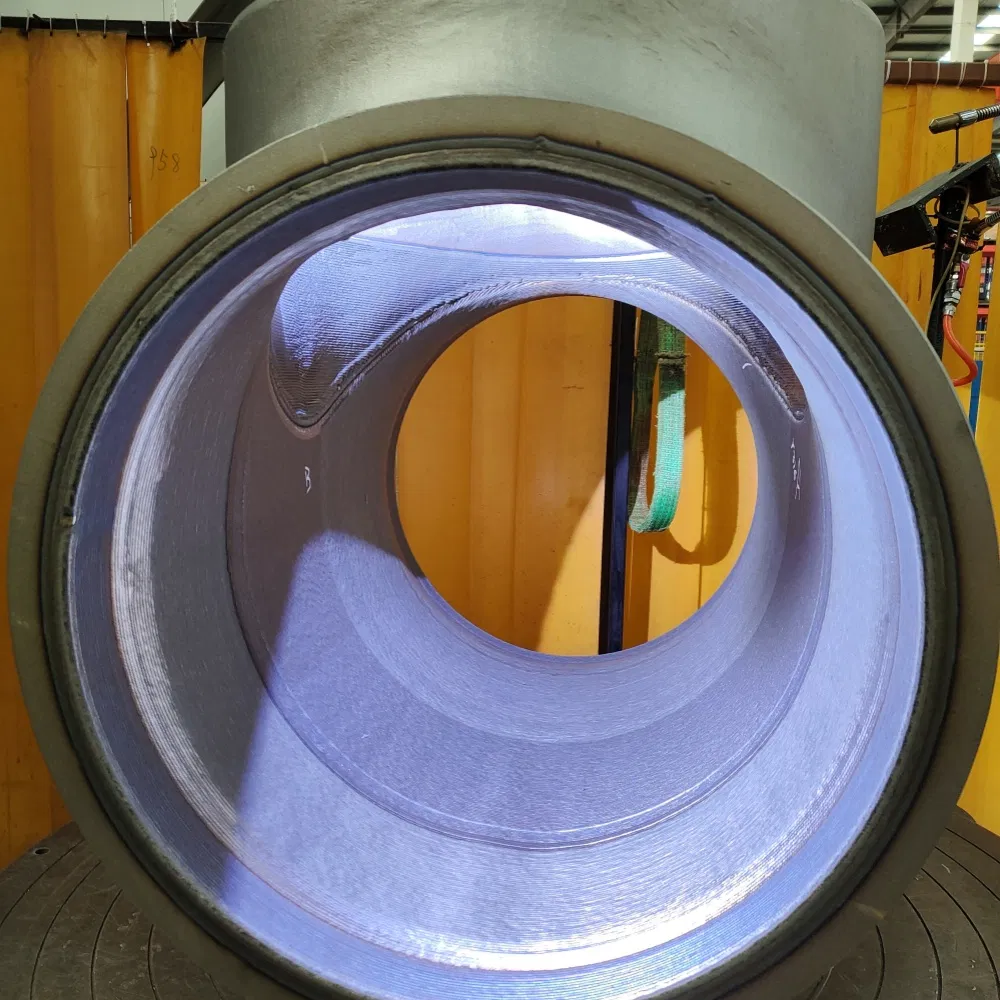

We also provide multiple 90-degree cross-hole section, sphere borehole, multi-position one-time automatic cladding, workpiece pre-heating system, workpiece air cooling system and other optional functions, such as interstction surface cladding, weld-repair of ball mouth, ring groove cladding, tee vertical main pipe cladding, set angle cladding, ball valve hole avoiding cladding.
Complete Turnkey System
System Controller with Touch-Screen Control
Germany EWM TETRIX 452 DC Ethernet/IP HF-TIG Unit Power Source
Germany EWM TETRIX 200 Smart Hot Wire Power Source
Controller: Rockwell AB USA
Servo Motor: ICON MOONS
Electrical Switch & Button: Famous brand
HMI: Pro-face Japan
Control Panel & Structure: Fitco, China
Rotation Table: Fitco, China
Limit Switch: Sick, Germany
Application Products

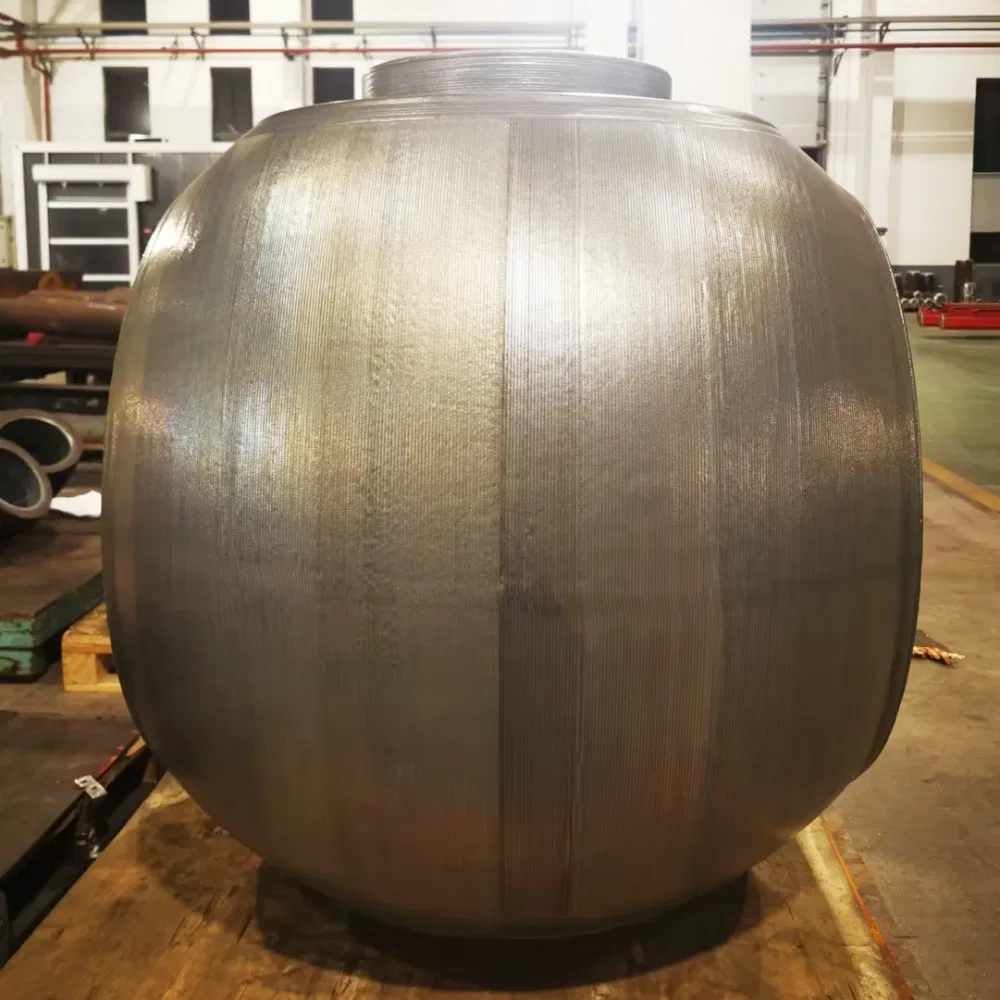

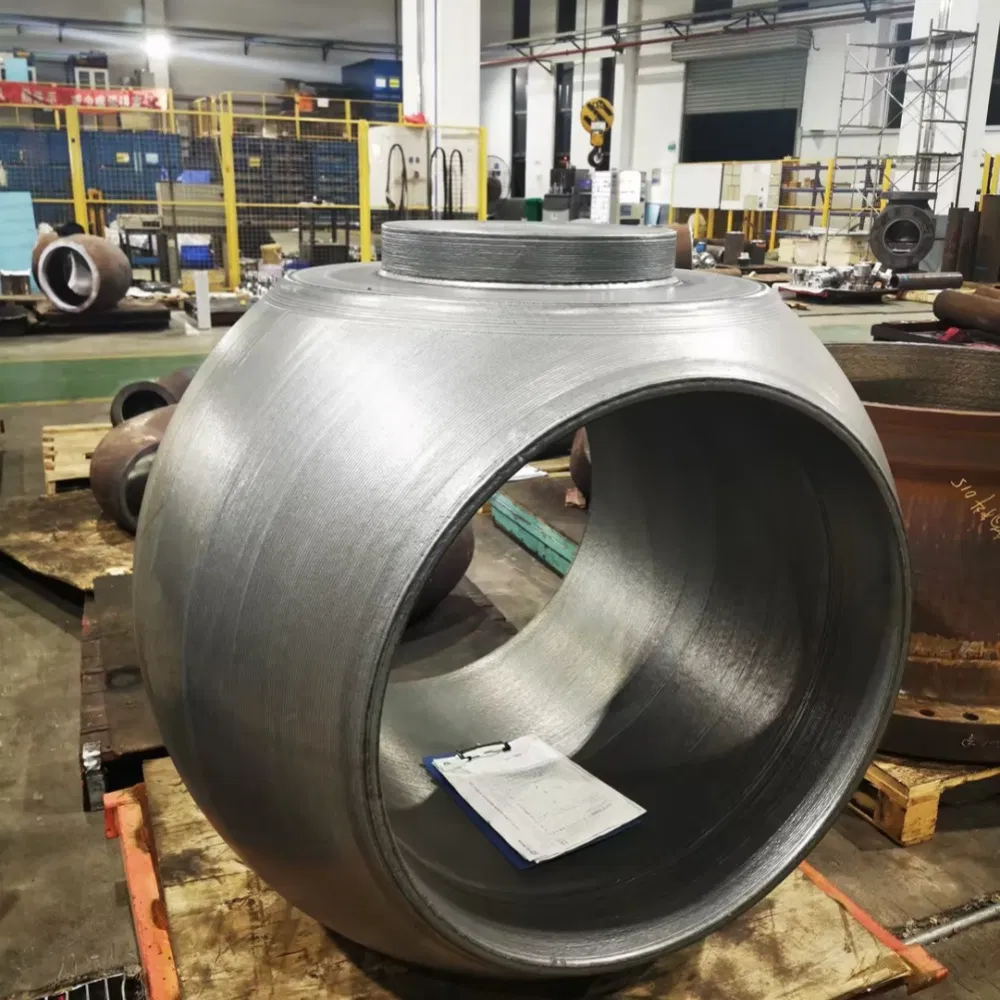

Pipe rings, Fittings, Flanges, LR bends, Valve Bodies, Valve Balls, Risers, Well head block tree valves, Pressure Vessel Components, Nozzle, Dished ends, etc.

We also provide multiple 90-degree cross-hole section, sphere borehole, multi-position one-time automatic cladding, workpiece pre-heating system, workpiece air cooling system and other optional functions,
specifically according to the commercial contract options to determine the cladding function block of the whole machine.

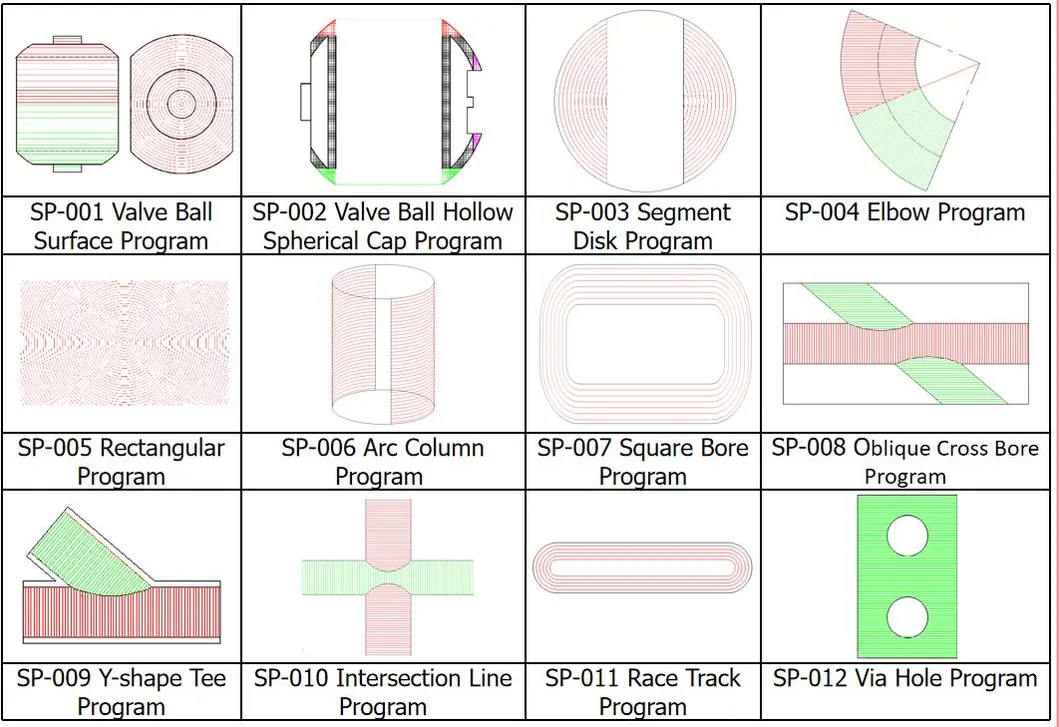

3. PROGRAM OPTIONS
We provide automatic surface cladding, automatic inner hole cladding, intersection cladding as a standard function. Below you can find more functions by select different program options. All below red, green and pink color area can be weld overlaid full automatically. Which will bring best quality and lower human labor to our valued customer.

SYSTEM CONTROLLER AND REMOTE CONTROLER
WO-ACS SERIES SOFTWARE base on
1.Touch & retract;
2. Online adjust;
3. AVC - Arc Voltage Control;
4. Actual value visualization;
5. Remote support;
6. Bore-to-bore;
7. Data Logge

Applications:
Base material: A105, A350 LF2, A694 F42~F70, AISI 4130, 30CrMo, SS304/304L, SS316/316L, SS410, F51, F55, WCB, LCB casting, forged materials or pipe base materials;
Weld Consumables: ERNiCrMo-3, ERNiFeCr-1, ER316L, ER2594, ERCCoCr-E, ERCCoCr-A, ERNi1, ERCuNi and other wires;
Clad thickness: 1~3mm/layer, multilayer cladding, standard clad thickness will be 3.2mm, FL+2mm dilution will be less than 5%;
Quality requirements: Liquid Penetrant Testing as per ASTM E165 & ASTM V
requirements. First time yield for intersection surface cladding will be >95%, bore or flat surface cladding >98%, ring groove cladding >96%.
Welding process: Automatic TIG hotwire;
Welding Position: 2G or 1G typically.
Applicable workpieces:
Bore to Bore; bore to bore advanced, sphere, circle segment, cylinderical bore, flange with bore, hemisphere, race track, rectangular
ract tangular, ring groove, straight to conical bore.
Advantages:
Fitco originated and grew up in manufacturing plants that use our equipment to produce products, so we understand the needs of our products, processes and operators better than other equipment manufacturers Fitco is from China's largest and the world's leading welding products manufacturing plant. Our equipment is more stable and intelligent with higher customer recognition; We use the world's top programmable controller platform and mathematical models to program our devices more intelligently!

Our Company--Faith-Han Intelligent Technology Co., Ltd.
Founded and registered in 2018, Fitco is located in Kunshan High-tech District, between Shanghai and Suzhou.Fitco is committed to designing and manufacturing non-standard customized automation control intelligent industrial welding/welding equipment, manufacturing information software, auxiliary equipment and related products and services.Fitco has designed and manufactured more than 150 sets of welding equipment for the Chinese and the international market. Our equipment is highly stable and intelligent that has been proven on-site for many years, gaining the respect of our global customers and markets. The extensive use of mathematical models in our programs makes our machines more intelligent than our competitors' products. Environmental friendliness and safety are always our top priority when it comes to mechanical and electrical design.
