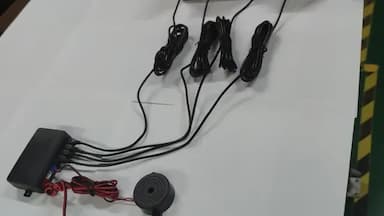

Parking sensor,

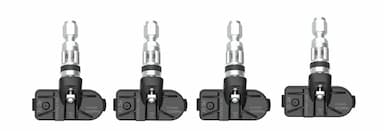

Tire pressure monitor,
Etc.)
with a wide range,
Good quality,
Factory
prices
and Stylish designs according to your need
More quantity, please contact me about best price and postage
More quantity, please contact for best discount and postage
Product Parameters
Item
Description
Parameters
1
Function
Tx-Rx
Dual-Use
2
Center frequency
40±1 KHz
3
Ringing
time
≤1.8ms
4
Capacitance
1800±15% PF
5
-6 dB Directivity
50±15º50±15º
6
Max. Input Voltage
140Vp-p
7
Material
Aluminum
8
Operating Temp
-40~+85ºC
9
Storage Temp
10
Dimension
16*10mm
11
Terminal
PIN
12
Color
Aluminum (color)

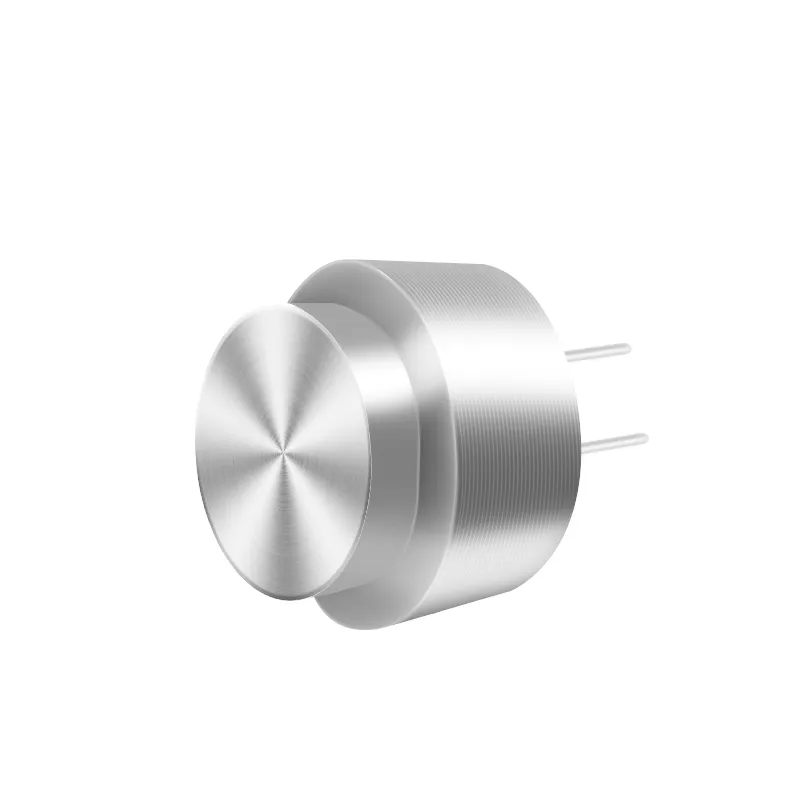

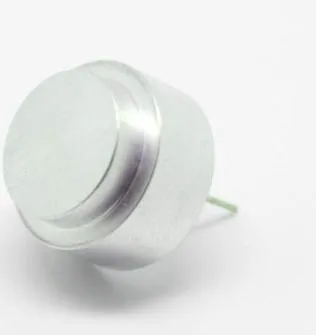

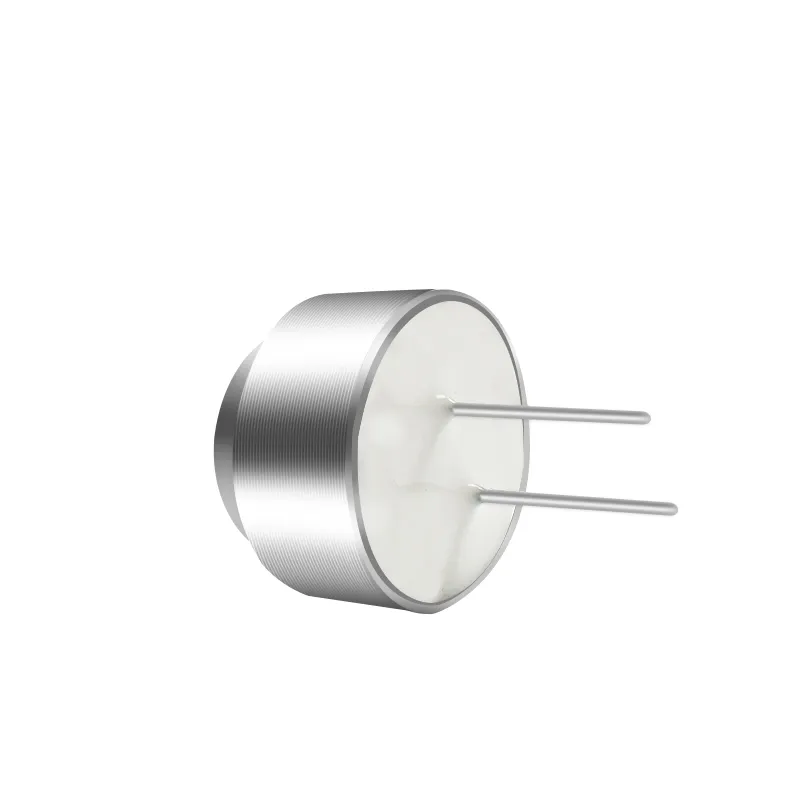

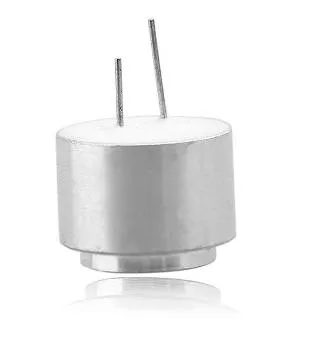

The sealed ultrasonic sensor uses ultrasonic technology to detect the presence, distance and direction of objects in a non-contact manner. It is widely used in the fields of reversing distance monitoring, smart home, robots, etc., providing accurate data support for automatic control and intelligent interaction.
Notes:
To prevent sensor failure, operational failure or deterioration of its characteristics, do not use the sensor in the following or similar situations:
1) Strong impact or vibration;
2) Long-term exposure to high temperature and high humidity; In corrosive gas or sea breeze;
3) In an environment with dissolved organic matter;
4) In a dusty environment;
5) Exceeding the allowable input voltage;
6) To prevent additional stress on the leads, do not apply external force to the leads that have just been soldered. If it is necessary to do so, clamp the root of the lead first.7) Since the ultrasonic sensor has directionality, be sure to pay attention to its installation position. It is recommended that the installation position is perpendicular to the object to be measured.8) To ensure reliability and service life, do not use and store it above the rated temperature.9) Do not use the sensor in a vacuum area or explosion-proof area.10) Do not use it in an environment where the atmosphere is uneven and produces a temperature gradient, which will cause measurement errors.11) The product must not be used in an environment with dissolved organic matter or stored in corrosive gases, especially those containing hydrogen chloride gas, hydrogen sulfide gas, acid, alkali, salt or the like. Products stored in the warehouse should pay attention to normal temperature and humidity. During storage, please pay attention to moisture-proof and prevent pin oxidation. Sudden changes in temperature and humidity may cause product performance failure or malfunction.12) If applied to special conditions such as non-standard frequency, please inform our company of the specific working conditions, circuits, etc. you need, so that we can design and manufacture sensor products that meet your specific usage requirements.13) If there is a problem with the use of our products, please contact the relevant staff of our company in time. If the appearance of the sensor is not damaged, our company can replace the product.14) The sensor shall not be disassembled without authorization. If the performance and appearance are poor due to unauthorized disassembly, our company will not be responsible.15) In order to prevent accidents caused by work failure, anti-failure function should be added during secondary development.16) If you want to add a shell to this product, use a cushion material between the shell and the sensor as an improvement measure. At the same time, the sensor should not have strong mechanical vibration when used, and the working environment should not have strong electromagnetic interference.

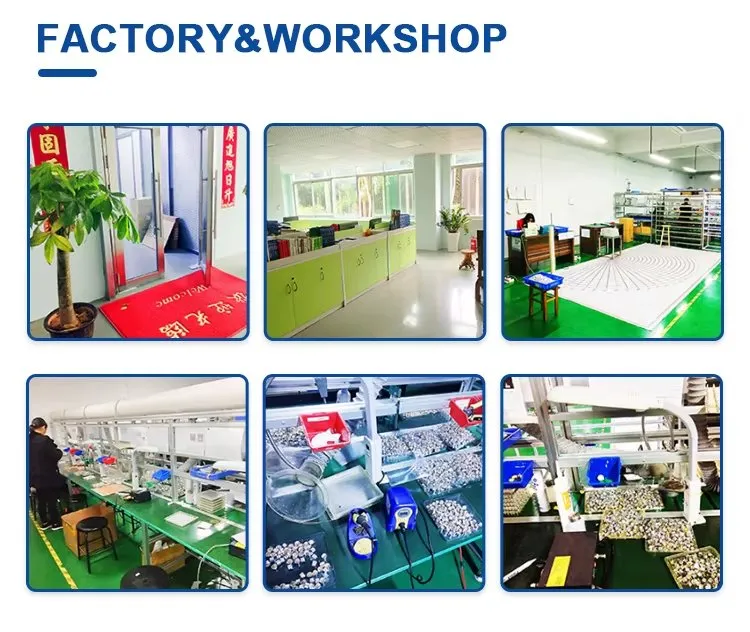

Q:What are the advantages of factory?A:its own factory, has independent research and development and independent production capacity.Products using high-end chips, with high quality, high stability products to customers.Q:Can we order many different parts and make combine shipment?A:We can combine many items,and deliver by courier/sealland/air etc.pack well.Q:How can I make our own brand for my order?A:If the order quantity meets the requirements, we provide customized serviceQ:What is the delivery if I make payment?A:We will ship the products in stock within 1-3 business days.Products that need to be produced will be produced and shipped within 7-15 business days.Q:Can we visit your factory or office?A:We always welcome customer visit us, let me know the sched
