昆威数字信号或模拟信号扭矩传感器86毫米80纳米扭矩传感器

Preview

基本信息产品详情证书

基本信息

型号（No.）	KW-2007
输出信号类型	数字类型
生产过程	正常绕线
国家	静态
防护等级	IP64
定制的	按您的要求
材料	不锈钢
线性	≤0.2%满量程（Fs）
爬行	≤0.2%满量程(Fs)
可重复性	≤0.05% Fs
通信协议	RS485
桥电阻	700欧姆
安全过载	200%满量程
限定过载	300%满量程
交通运输政策包	纸箱/纸盒
规格	80牛顿米
商标	昆威
起源	中国
生产能力	每年两万件
包装尺寸	35.00厘米乘以27.00厘米乘以11.00厘米
包装总重量	2.000kg 千克
包装大小	35.00cm * 27.00cm * 11.00cm
包装总重量	2.000kg 千克

产品详情

Kunwei Digital Signal or Analog Signal Torque Sensor 86mm 80Nm Torque Sensor

Preview

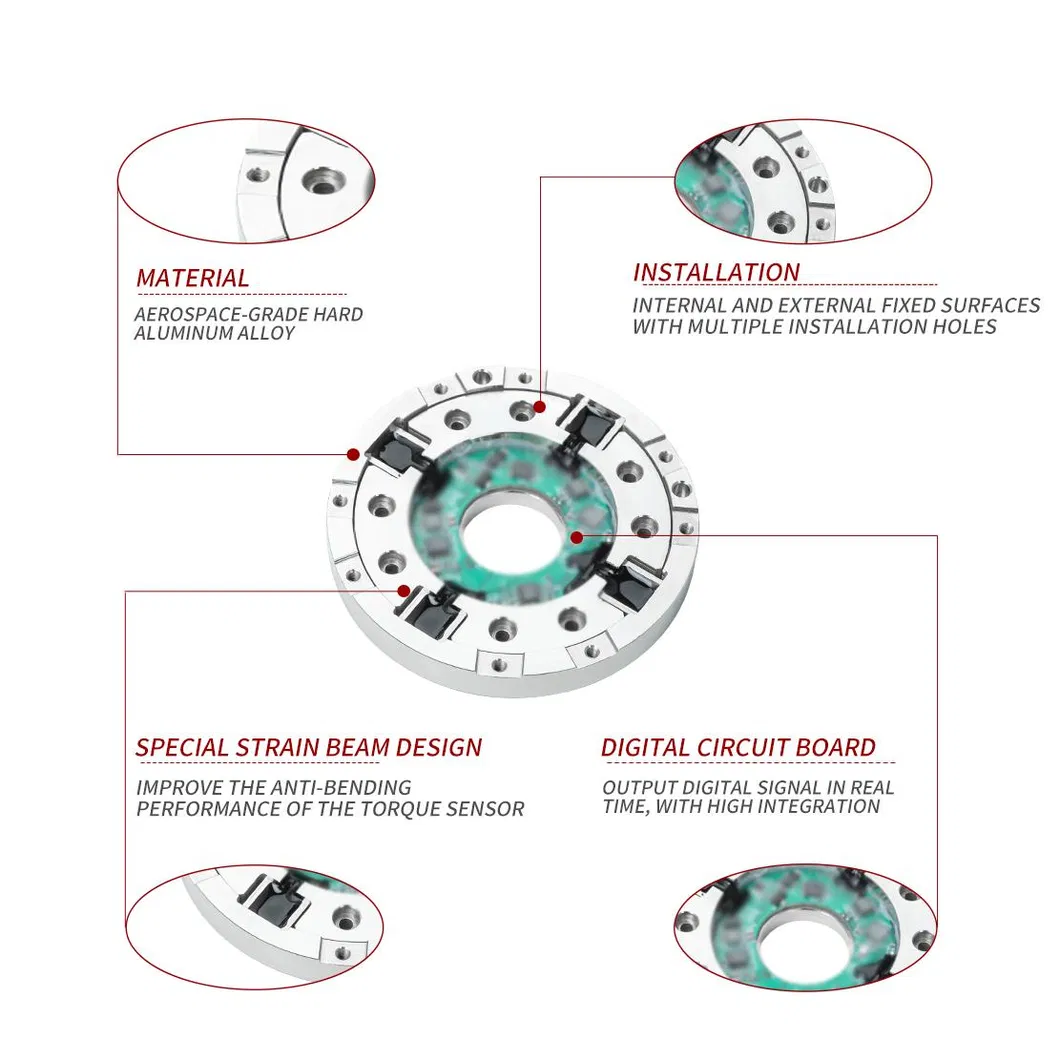

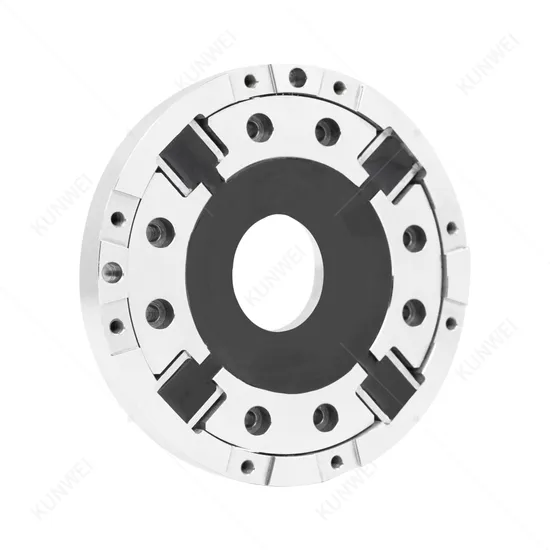

The KWR86N80 series torque sensor is a medium-sized and medium range joint torque sensor designed with a special structure. This is a sensor for measuring robot joint torque. This torque sensor adopts a disc design with low height and a double flange structure inside and outside, resulting in excellent installation strength and great stiffness. This sensor can measure both the clockwise and counterclockwise torque of the expenditure. We can produce all the force range according to client's demands.
How to choose a proper sensor?
Note:F stands for force,T stands for torque.

Preview

FAQ

Preview

1.How to place an order ?Just
provide us
your application&requirement and we`ll help you confirm all the details.2.What is lead time?
3-5 working days
if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 pc for testing is available for all types.4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product.
Kunwei Digital Signal or Analog Signal Torque Sensor 86mm 80Nm Torque Sensor
Kunwei Digital Signal or Analog Signal Torque Sensor 86mm 80Nm Torque Sensor
Kunwei Digital Signal or Analog Signal Torque Sensor 86mm 80Nm Torque Sensor

Preview
