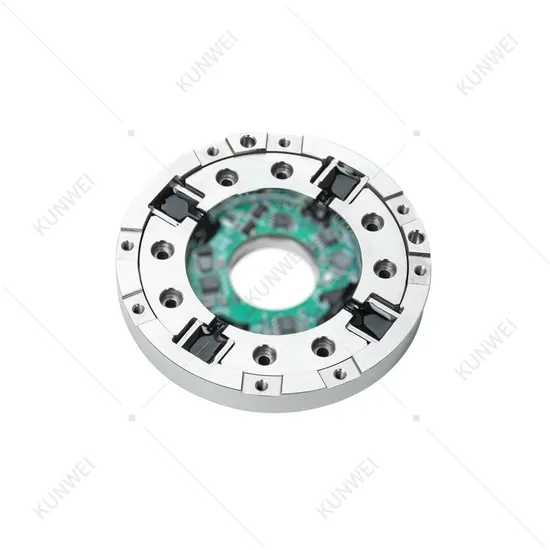

80Nm Robot Joint Torque Transducer Force Sensor

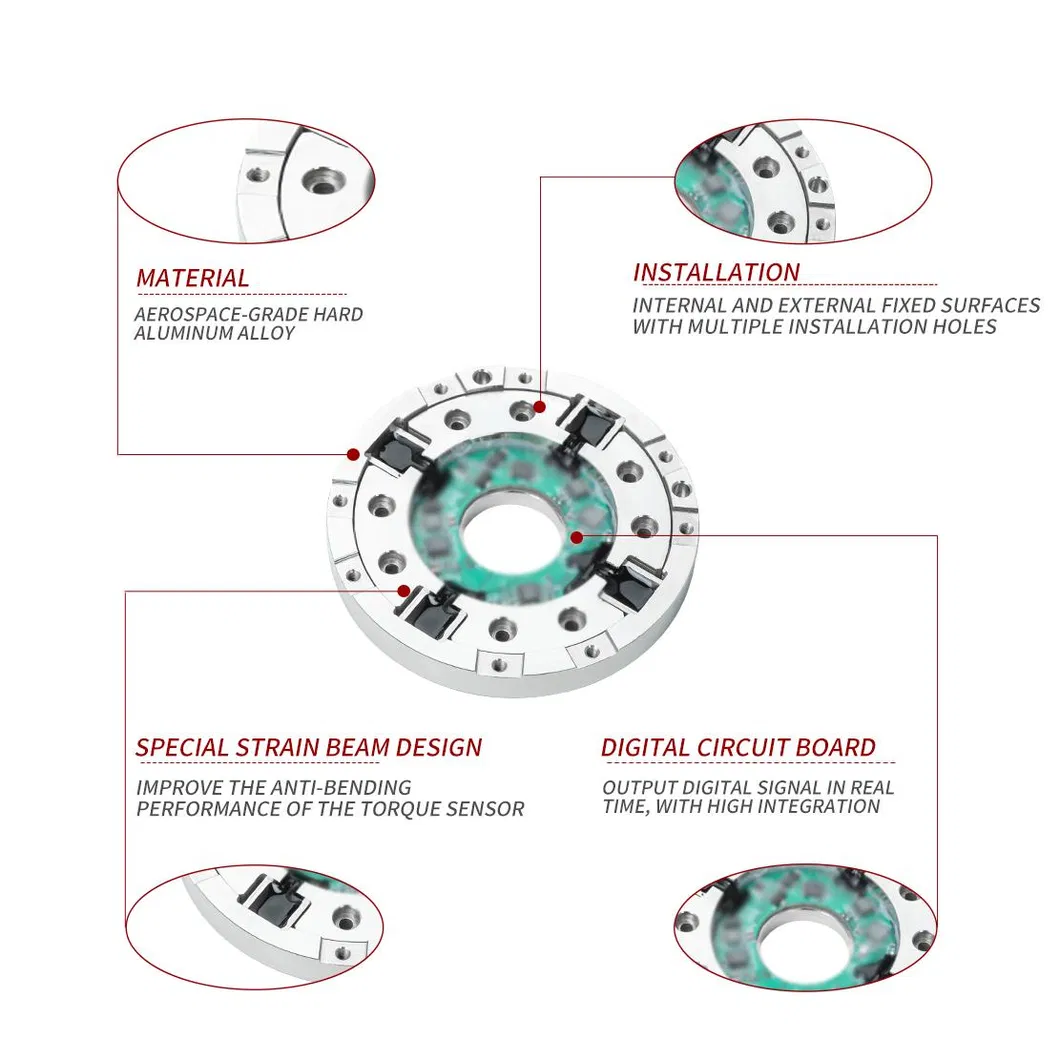

The KWR86N80-NEU series torque sensor is a medium-sized and medium range joint torque sensor designed with a special structure. This is a sensor for measuring robot joint torque. This torque sensor adopts a disc design with low height and a double flange structure inside and outside, resulting in excellent installation strength and great stiffness. This sensor can measure both the clockwise and counterclockwise torque of the expenditure. We can produce all the force range according to client's demands.

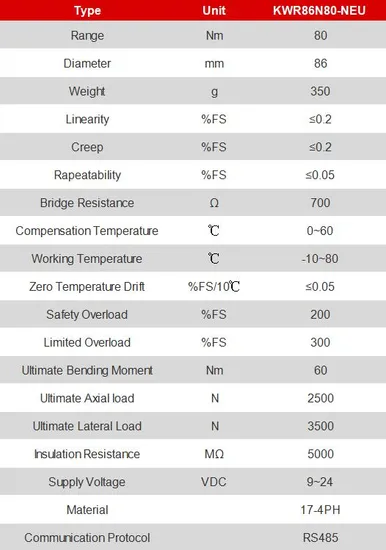

Type
Unit
KWR86N80-NEU
Range
Nm
80

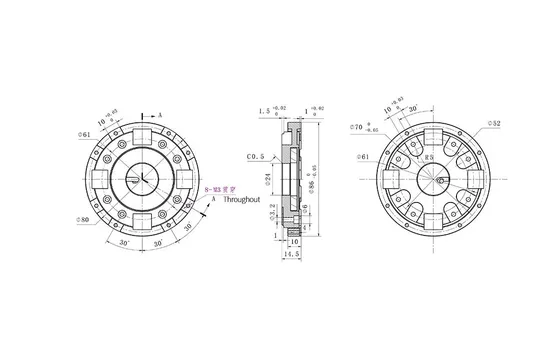

Diameter
mm
86
Weight
g
350
Linearity
%FS
≤0.2
Creep
%FS
≤0.2
Rapeatability
%FS
≤0.05
Bridge Resistance
Ω
700
Compensation Temperature
ºC
0~60
Working Temperature
ºC
-10~80
Zero Temperature Drift
%FS/10ºC
≤0.05
Safety Overload
%FS
200
Limited Overload
%FS
300
Ultimate Bending Moment
Nm
60
Ultimate Axial load
N
2500
Ultimate Lateral Load
N
3500
Insulation Resistance
MΩ
5000
Supply Voltage
VDC
9~24
Material
17-4PH
Communication Protocol
RS485
How to choose a proper sensor?
Items
Measuring Items
F&T of 3 Directions
F or T of 3 Directions
F or T of 1 Direction
No. of Outputs
6
3
1
Point of F
Not Fixed
Fixed
Fixed
Direction of F
Not Fixed
Not Fixed
Fixed
Measuring Accuracy
High
High or Medium
High or Medium
Budget
High
Medium
Low
Recommendation
6 Axis F&T Sensor
3 Axis F/T Sensor
1 Axis F/T Sensor
Note:F stands for force,T stands for torque.86Nm Robot Joint Torque Transducer Force Sensor
86Nm Robot Joint Torque Transducer Force Sensor
86Nm Robot Joint Torque Transducer Force Sensor
86Nm Robot Joint Torque Transducer Force Sensor
86Nm Robot Joint Torque Transducer Force Sensor
86Nm Robot Joint Torque Transducer Force Sensor

1.How to place an order ?Just
provide us
your application&requirement and we`ll help you confirm all the details.2.What is lead time?
3-5 working days
if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 pc for testing is available for all types.4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product.
