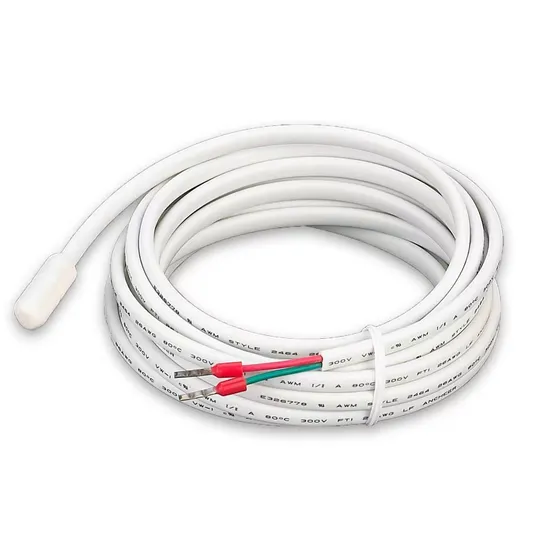

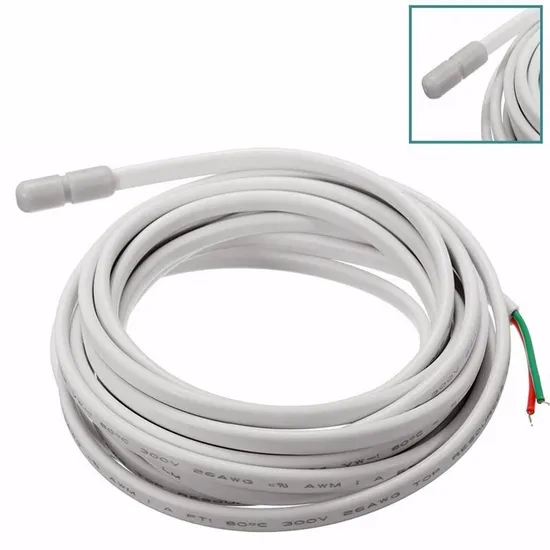

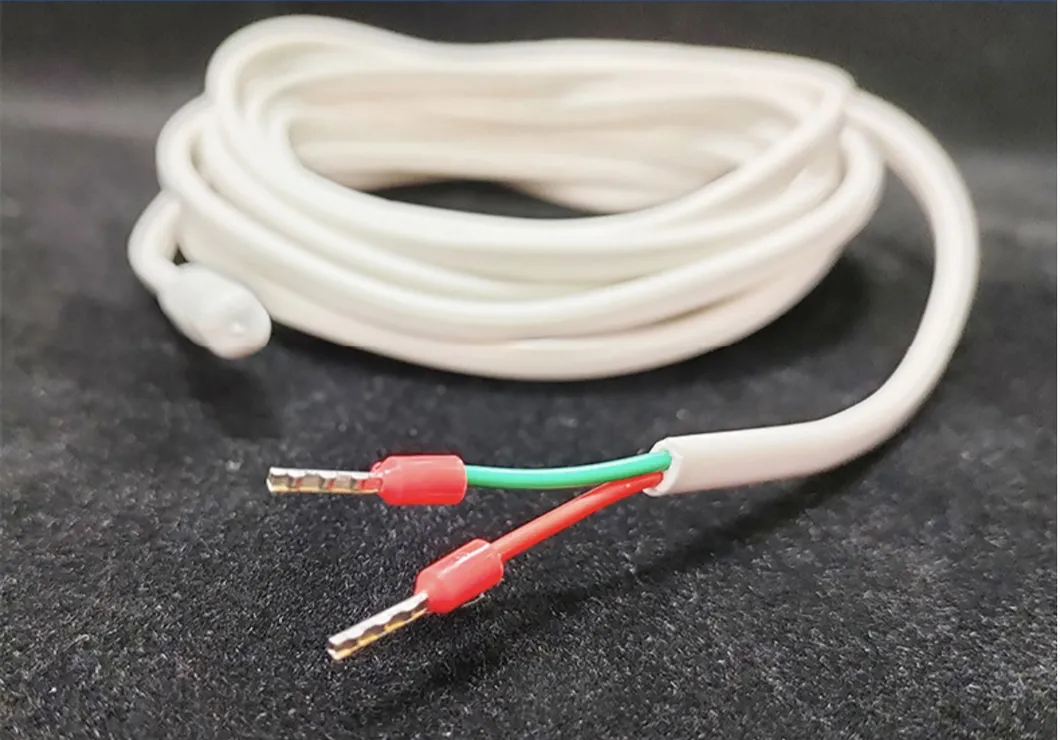

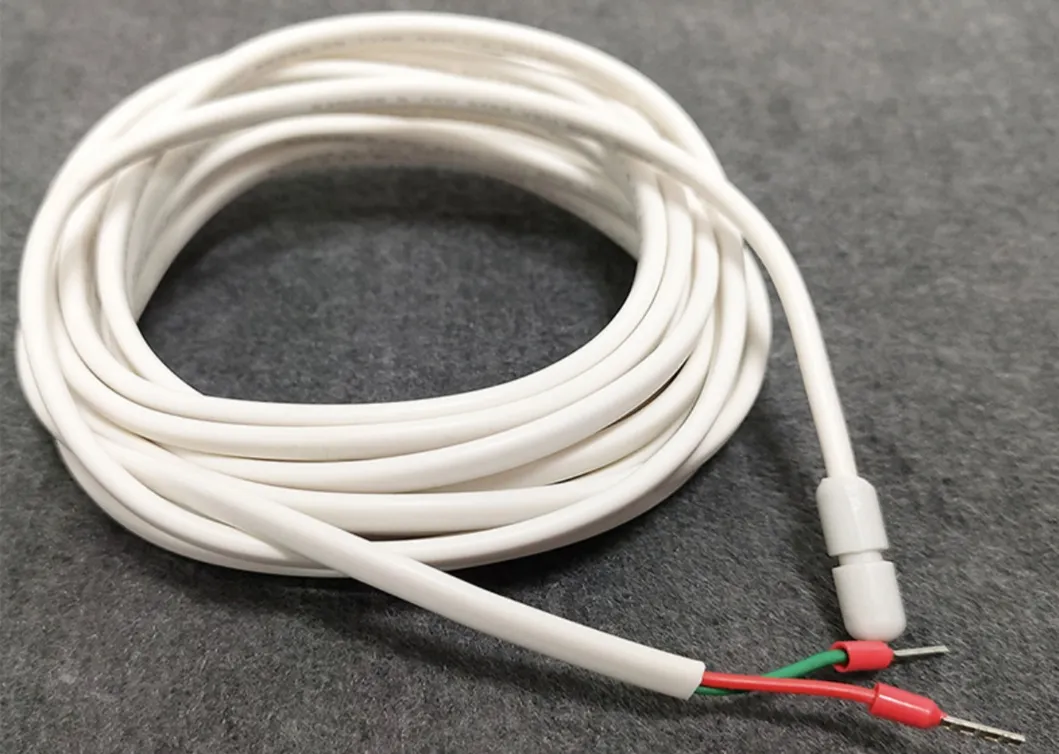

Waterproof and Dust Resistant NTC Floor Sensor 10K Ohms with Round Cable
FEATURES:
* Key point for temperature sensing and electronics control
* Sensor Design following double insulations (principal = supplementary insulation for sensor head)
* High adhesive strength Between PVC Wire and ABS Shell
* Specifically developed design allow for a very godo water, moisture and ICE resitance
* The Sensors are available with single insulated cables,and with PVC-Free cable
Applications:
Temperature mesurement sensing and control
White goods
refrigerator, freezer, deep-freezers, coolers
Ice Cube Makers
Floor heating system
6*30mm/6*50mm Waterproof Digital Termal Probe Sensor DS18B20 IP68
The latest DS18D20 1-Wire digital temperature Sensor from Maxim IC, Reports Degree C with 9 to
12-Bit Precision, -55C to 125C (±0.5C), Each sensor has a uniquie 64-bit Serial Number etched into it
Allows for a huge number of sensors to be used on one data bus, This is a wonderful part that is the
comer Stone of many Data-logging and temperature control projects.CABLE SPECS:
* Stainless steel tube Dia: 6*30mm, 6*50mm.* Cable UL21411 #24AWG*3C
* Contains DS18B20 Temperature Sensor
* Output lead: Red(VCC), Blue(DATA), Black(GND)
DS18B20 TECHNICAL SPEC.:
* Usable Temperature Range: -55 to 125C (-67F to +257F)
* 9 to 12 Bit selectable Resolution
* Uses 1-wire interface-Requires only one digital pin to Communication
* Unique 64 bit ID burned into Chip
* Multipe Sensors can share one pin
* ±0.5C Accuracy from -10c to +85C
* Temperature limit alarm system
* Query Time is less than 750ms
* Usable with 3.0v to 5.5V power/Data
MORE DS18B20 SENSOR SOLUTIONS:
* Probe Size: Dia 6*26mm, 6*45mm, 6*50mm, or to be advised
* Probe material: SUS304, SUS316, PVC, ABS, TPE etc
* Cable: PVC, TPE, Silicon
* Connector: 2.5mm/3.5mm Stereo plug, RJ11/RJ12/RJ45, USB, M12/16, BNC, 3P-2510 Etc.
