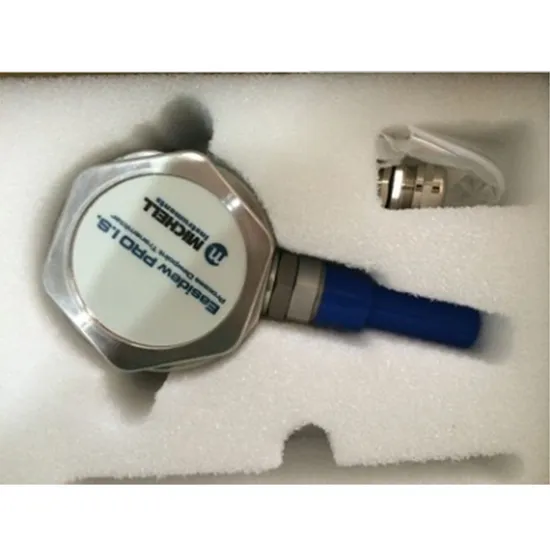

Michell Easidew PRO I. S. Intrinsically Safe Dew-Point Transmitter Is Class 1 Hazardous Area Use Natural Gas Dew Point Sensor

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	Easidew PRO I. S.
Output Signal Type	Analog Type
Production Process	Integrated Molding
Material	316 Stainless Steel
Measuring Medium	Humidity
IP Rating	IP67
Certification	CE
Customized	Non-Customized
Description	Hazardous Area Use Dew Point Sensor
Warranty	1 Year
MOQ	1PC
Brand	Michell
Repeatability	0.9°f (0.5°c) Dew Point
Accuracy	2°c Accuracy
Response Time	5 Minutes to T95 (Dry to Wet)
Current Consumption	20 Ma
Measuring Range	-100 to 20 Deg C
Voltage - Supply	12-28 VDC
Output	4~20mA
Features	Hazardous Area Use
Transport Package	Export Carton
Specification	316 stainless steel
Trademark	Michell
Origin	United Kingdom
HS Code	9025800090
Production Capacity	1000 PCS Per Year
Package Size	35.00cm * 30.00cm * 15.00cm
Package Gross Weight	2.000kg
Package Size	35.00cm * 30.00cm * 15.00cm
Package Gross Weight	2.000kg

Product Description

Hangzhou Xinjian Electronic Co., Ltd. presents the Michell Easidew PRO I. S. Intrinsically Safe Dew-Point Transmitter for Class 1 Hazardous Areas. This natural gas dew point sensor features a Tee Type installation and Polyester Film sensing, making it ideal for contact applications.

Preview

Product Description

Preview

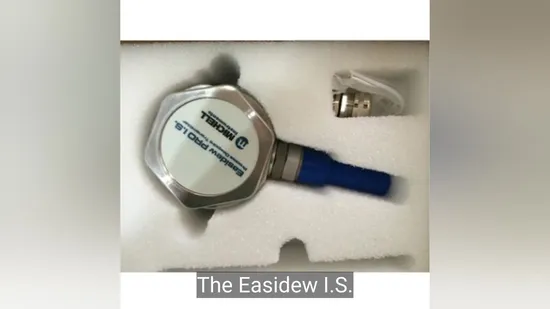

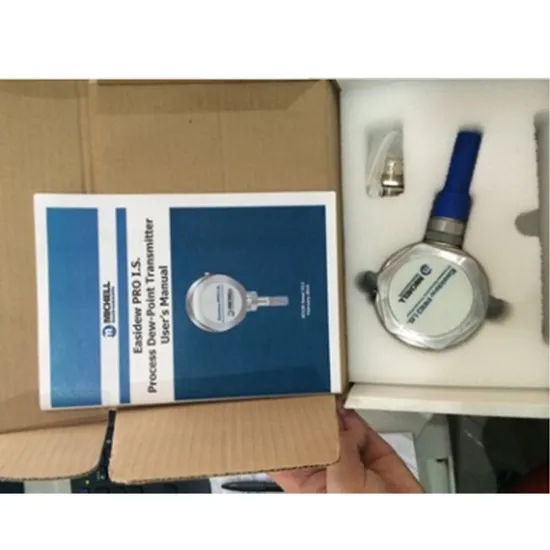

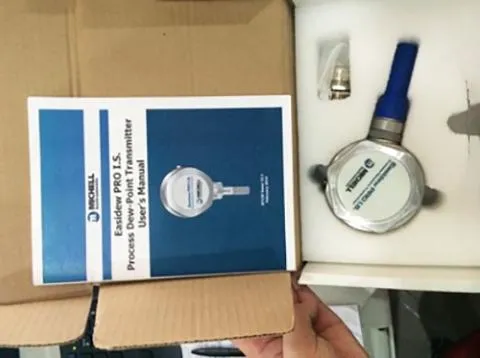

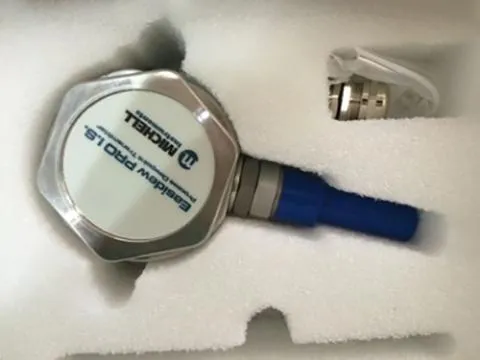

Detailed Photos

Preview

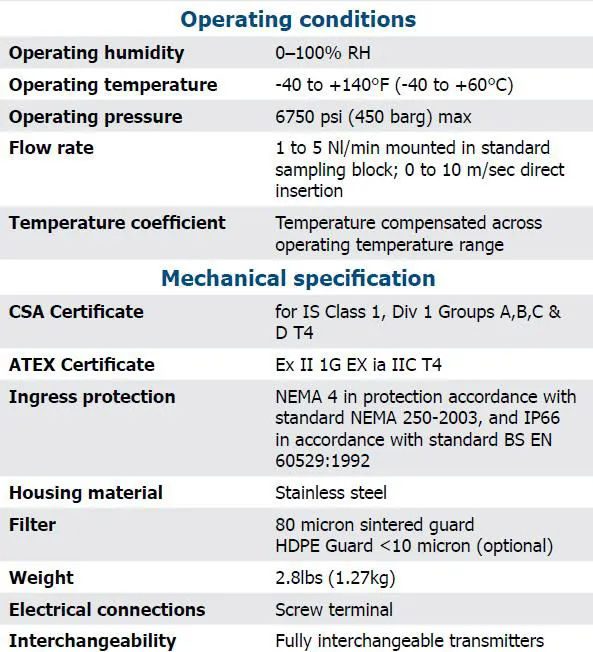

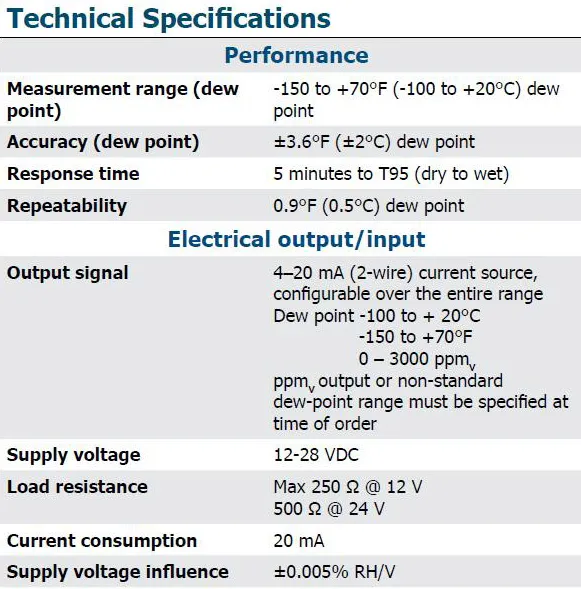

Product Parameters

Preview

Highlights
wire connection
±3.6°F(2°C) accuracy
Output configurable in ppm, moisture content
HDPE Guard
NEMA 4 /IP66
Improved measurement resolution and range for
temperature compensation
Configuration by digital communications
The Easidew PRO l.S. has been certifed by CSA for use in
North America to Class 1, Div 1, Groups A,B,C & D T4. It
has also been certifed by ATEX
for use in hazardous area
zone 0.
