基本信息

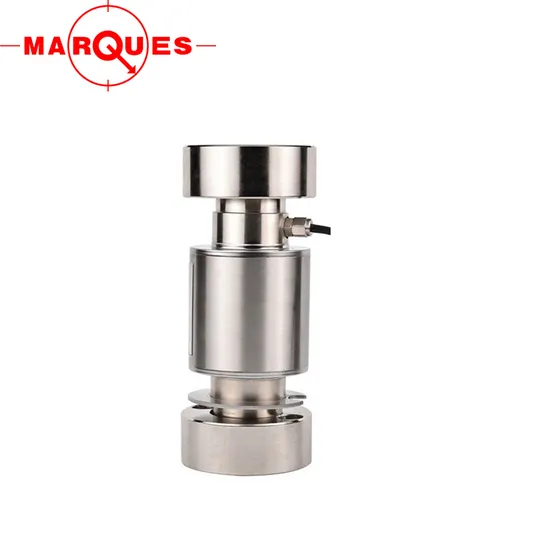

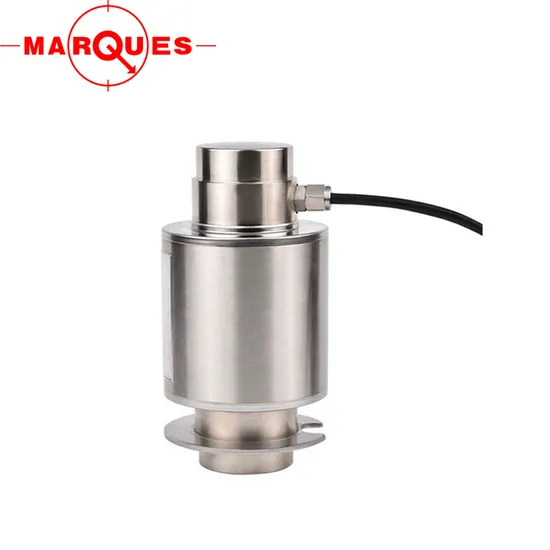

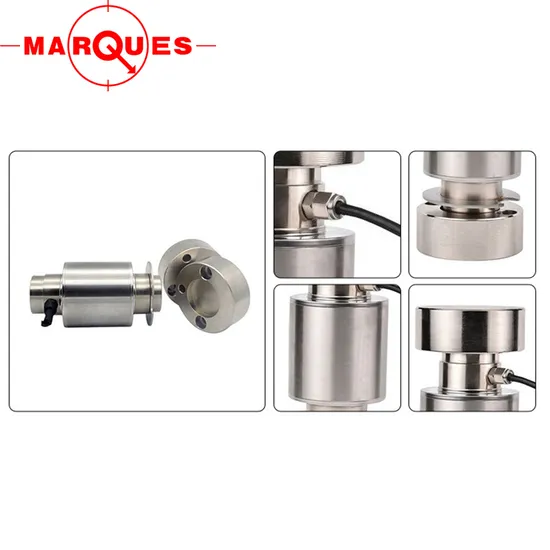

| 型号编号 | MC21 |
| 输出信号类型 | 模拟型 |
| 特征 | 简易安装 |
| 生产过程 | 普通绕线型 |
| 材料 | 合金钢或不锈钢 |
| 防护等级 | IP68 |
| 认证 | OIML |
| 定制的 | 定制的 |
| 最大容量(Emax) | 10、15、20、30、40、50吨 |
| 最小LC验证间隔（Vmin） | 将0.0200除以Emax的0.0100% |
| 灵敏度（Cn） | 2.0±0.002毫伏/伏特 |
| 零余额 | ±0.02mv/V，误差范围在千分之二每伏特 |
| 温 (Temp.) 对零余额的影响 | 把±0.02/0.017%的Cn/10K（数值） |
| Temp.对敏感度的影响 | Cn/10K的±0.02/0.017% |
| 滞后误差 | ±0.0270/0.0180 乘以 Cn 后的百分比 |
| 非线性 | Cn的±0.0250/0.0167% |
| 超过30分钟的爬行 | ± 0.030 / 0.0167%的Cn |
| 输入电阻 | 700正负20欧姆 |
| 输出电阻 | 703±3.5欧姆 |
| 安全载荷限制 | Emax的百分之150 |
| 断裂载荷 | Emax的250% |
| 运输方案 | 泡沫和纸板 |
| 规格 | 10吨到50吨 |
| 商标 | 马奎斯 |
| 起源 | 宁波 |
| 商品编码 | 9031809090 |
产品详情
Product Description
Preview

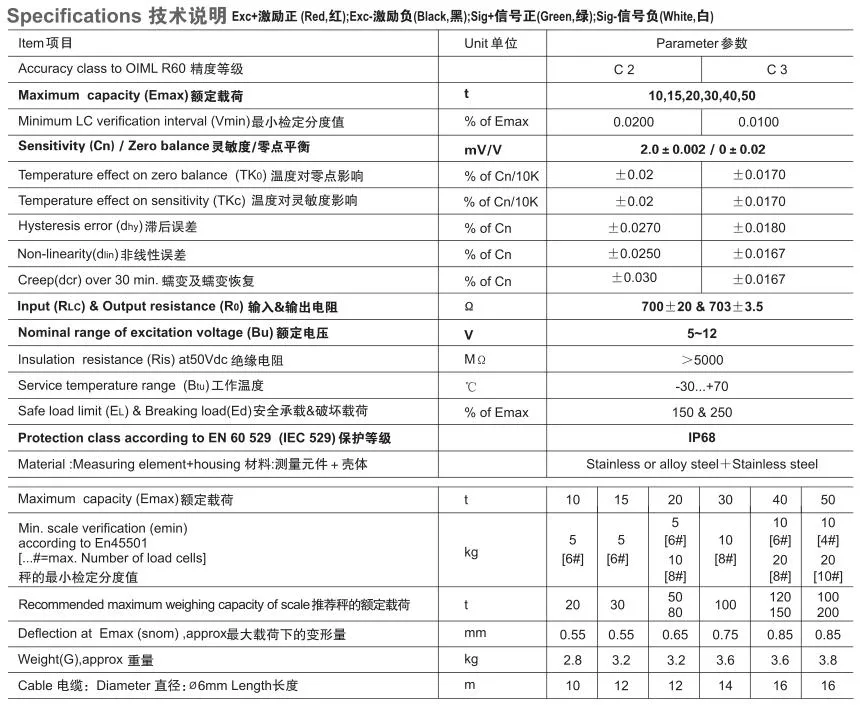

Product Parameters
Preview
Preview
Preview
Preview
Preview
Application

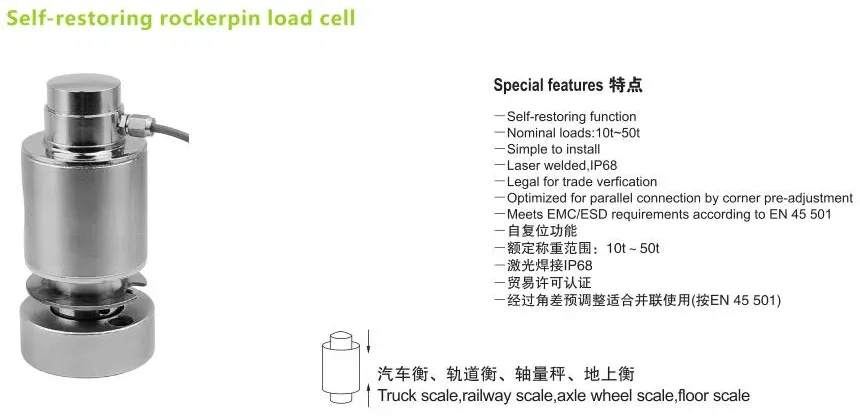

Used in truck scale, railway scale, axle wheel scale, floor scale
Used in truck scale, railway scale, axle wheel scale, floor scale
Preview
Preview
Protocols
============================================================
We are homologated in the main current weighing systems. Also able to be customized according to your system.
============================================================
We are homologated in the main current weighing systems. Also able to be customized according to your system.
Preview
Preview
Company Profile
Preview
Preview
MARQUES ELECTRONIC TECHNOLOGY (NINGBO) CO.,LTD
is located in the port city - Ningbo, is a professional engaged in a variety of load cells, indicators and electronic scales of high-tech company. With its own engineering service team, the company gains the ability to internally develop what needs for its scales, gaining autonomy and competitiveness.
The products have been exported to dozens of countries and regions such as Europe, Mexico, Pakistan, the Middle East and Southeast Asia .
is located in the port city - Ningbo, is a professional engaged in a variety of load cells, indicators and electronic scales of high-tech company. With its own engineering service team, the company gains the ability to internally develop what needs for its scales, gaining autonomy and competitiveness.
The products have been exported to dozens of countries and regions such as Europe, Mexico, Pakistan, the Middle East and Southeast Asia .
Preview
Preview
Through
many years development, the company has more than 15,000 square meters of modern factory buildings, in Ningbo, Anhui, Guangdong and other places have a production base, the existing engineers, technical personnel, and a group of high-quality, high-efficiency, professional staff a total of more than 200 people.
is the production base of JOSE PIMENTA MARQUES Group in China, the group has 15 companies, which are established in many countries in the world, besides Portugal and China, but also in Brazil, France, Spain and Belgium with branches.
With strict quality assurance system, international ISO9001 standard, advanced produce technology, credit first to create excellent quality, outstanding performance, elegant out appearance home scale series with competitive price of which win highly recognition of client from abroad and domestic!

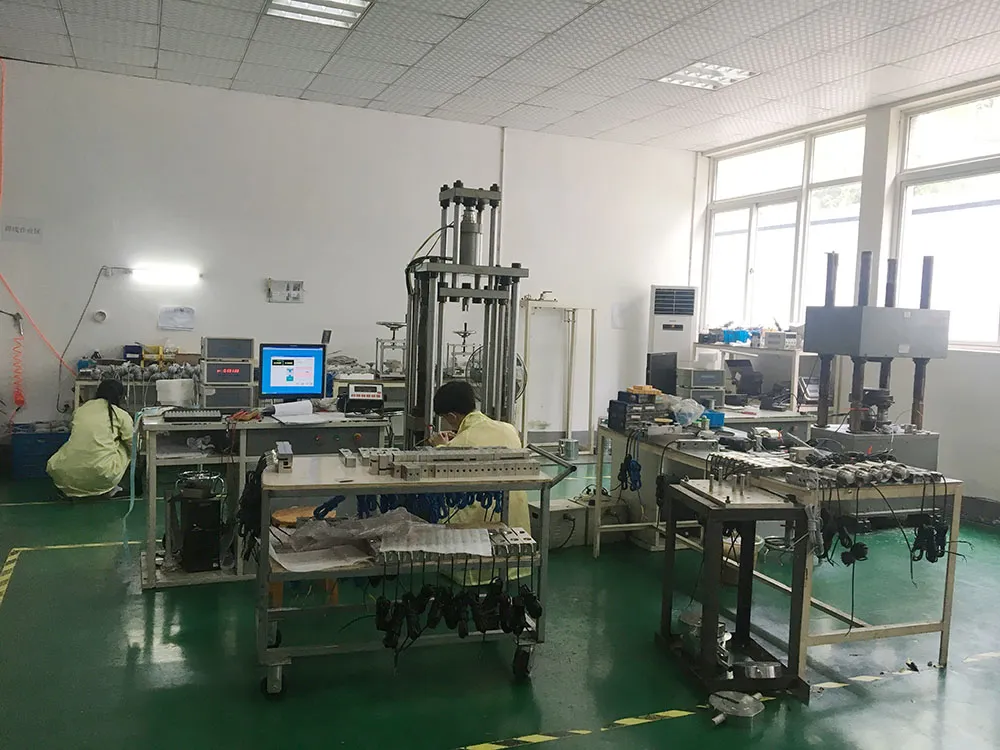

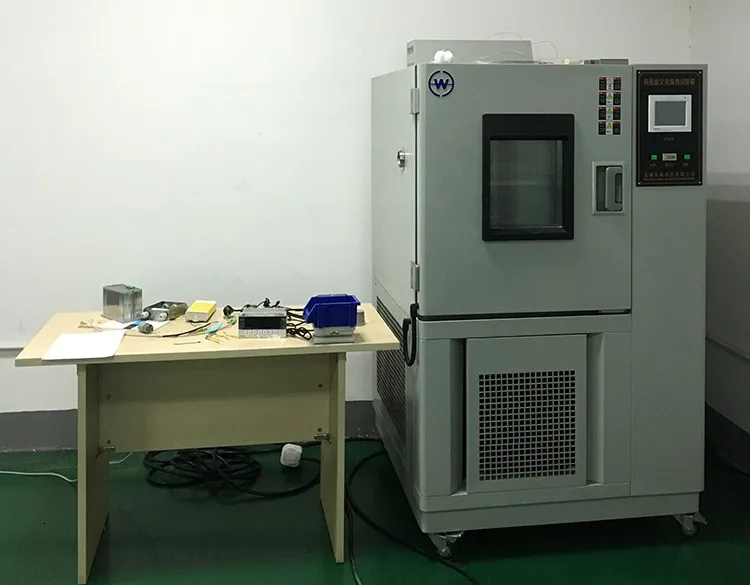

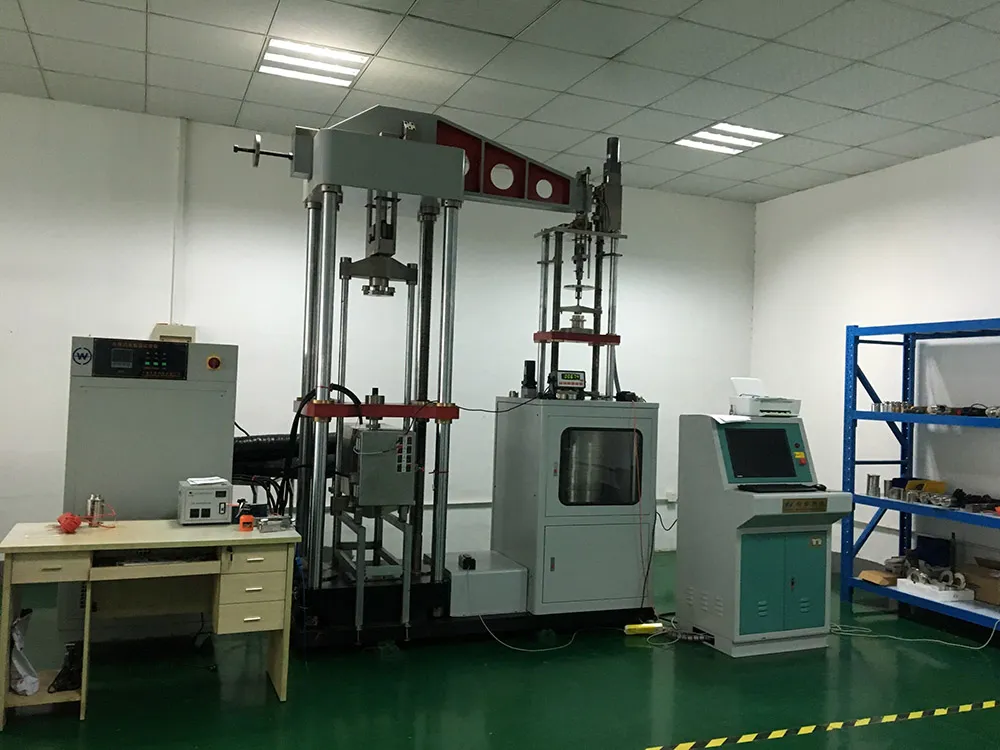

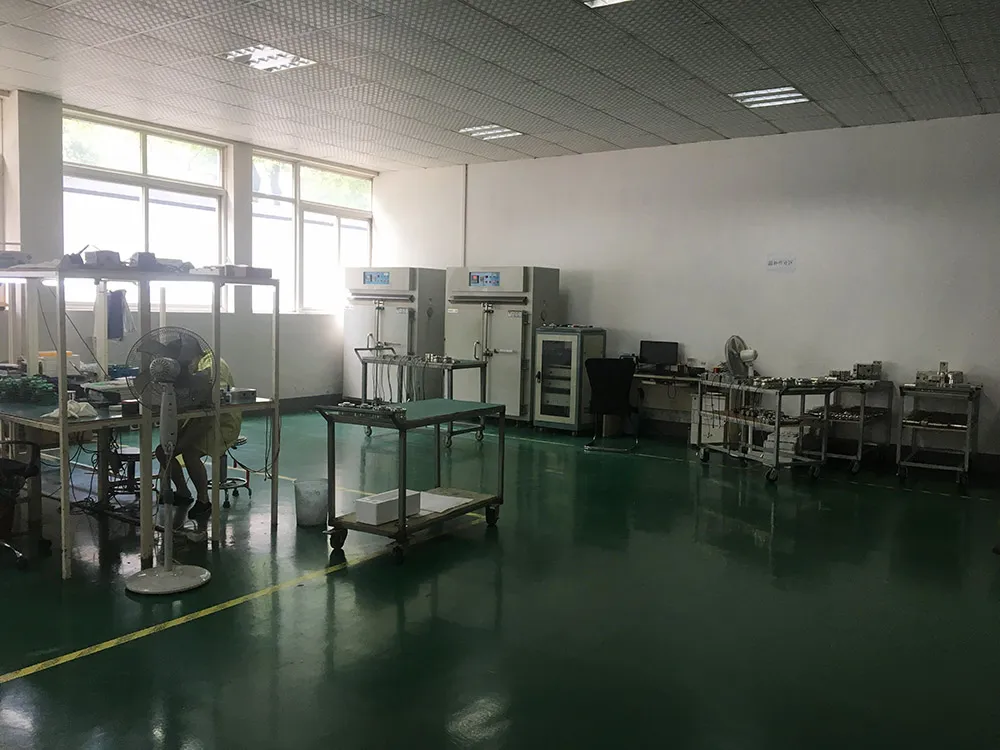

Workshops & Equipment
many years development, the company has more than 15,000 square meters of modern factory buildings, in Ningbo, Anhui, Guangdong and other places have a production base, the existing engineers, technical personnel, and a group of high-quality, high-efficiency, professional staff a total of more than 200 people.
is the production base of JOSE PIMENTA MARQUES Group in China, the group has 15 companies, which are established in many countries in the world, besides Portugal and China, but also in Brazil, France, Spain and Belgium with branches.
With strict quality assurance system, international ISO9001 standard, advanced produce technology, credit first to create excellent quality, outstanding performance, elegant out appearance home scale series with competitive price of which win highly recognition of client from abroad and domestic!
Workshops & Equipment
Preview
Preview
Preview
Preview
Preview
Our Advantages
1.Fast replied until 12 hours.2.OEM/ODM are welcome.3.We provide samples.4.All products have been tested in High-Quality Area.5.All products have one year of warranty.6.We have our own R&D Professional team.7.We have our own IT area that develops our own system making it easy and fast for customizations.8.All products have high quality and European standards.9.All process is made by us making it possible to give a competitive price.10.Team is fully prepared to give you full support.
1.Fast replied until 12 hours.2.OEM/ODM are welcome.3.We provide samples.4.All products have been tested in High-Quality Area.5.All products have one year of warranty.6.We have our own R&D Professional team.7.We have our own IT area that develops our own system making it easy and fast for customizations.8.All products have high quality and European standards.9.All process is made by us making it possible to give a competitive price.10.Team is fully prepared to give you full support.
Preview
证书
标题：OIML stands for International Organization of Legal Metrology.
