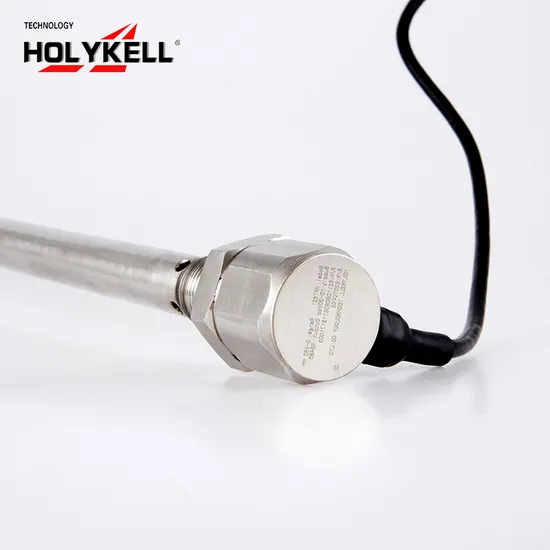

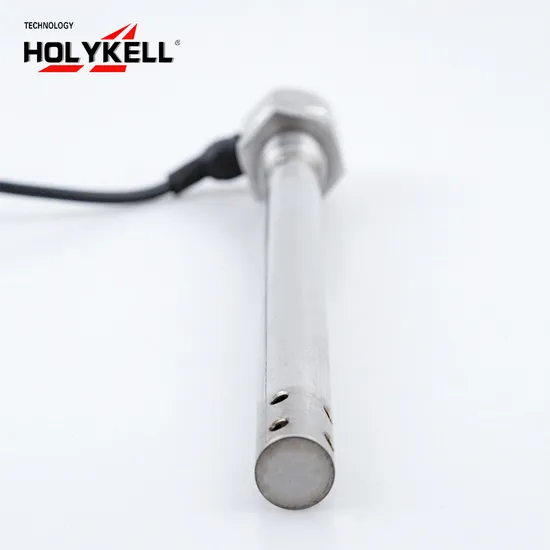

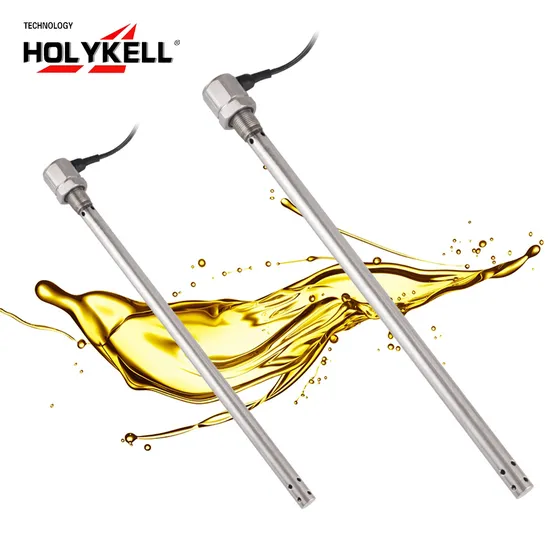

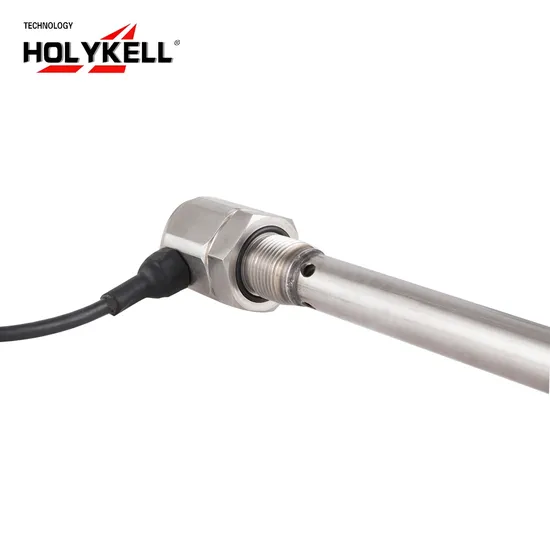

Holykell Factory 1500mm Top of Tank Mounted Water Level Sensor
Product Parameters
Parameter
HPT621
Probe Diameter
Φ16 mm (Typical); Φ12
mm (Customized)
Overload
Standard
atmosphere
pressure
or
-1
Bar~10
Bar
by
customized
Accuracy
≤
±1.0%F.S(Typical);≤
±0.5%F.S(by customized)
Resolution
0.1mm; 1 mm
(RS485)
Bottom Blind Zone
10mm(Standard)
Stability
Standard:
0.1%F.S/year,Max: 0.15%F.S/year
Medium working Temp.
-30 ºC to 80ºC Standard , -40ºC~300ºC by customized.
Ambient Temp Span
-40
to +60
ºC
Storage Temp.
to +85 ºC
Probe materials
304 stainless steel with PTFE/brass
Electrical wire
3 wires typebut with another two wires for calibration
4 wiresSoftware for re-calibration
Output
4-20mA
0-5V
RS485
Modbus
Power Supply
11-33Vdc
12Vdc
or 11-33Vdc
Zero Temp. Drift
0.2%f.s./10ºC
Temperature output
Suitable for CAN communication
Electrical
connection
Fixed cable by stainless steel cap and Explosion Proof and water proof IP67
Process
connection port
G1/2'' male, M20*1.5 male, Flanges 2.5''… (by customized)
Response time
First time starting time≈2s; working status≤200 ms Diesel
Medium compatible
gasoline; water and others liquid is customized
EMC
EN 61326-1:2013; EN 61326-2-3:2013; EN 61000-6-2:2005;
EN61000-6-4:2007+A1
Certificate
CE Certificate and Exia II CT6
Our Services
Company Information
Buying Guides
In
order
to
recommend
you
the
most
suitable
products
and
make
an
accurate
quotation,please
provide
following
information
send
it
our
sales
when
are
going
inquiry,
thanks
!
1.
What is your medium? Water ,oil or others.
2.
Working Temperature? -30~80
3.
Pressure range: 0-1bar...2000Bar optional
4.
Output signal:4-20mA, 0-5V or others
