Product Description
Shutter 640x480px NTED less 20mk

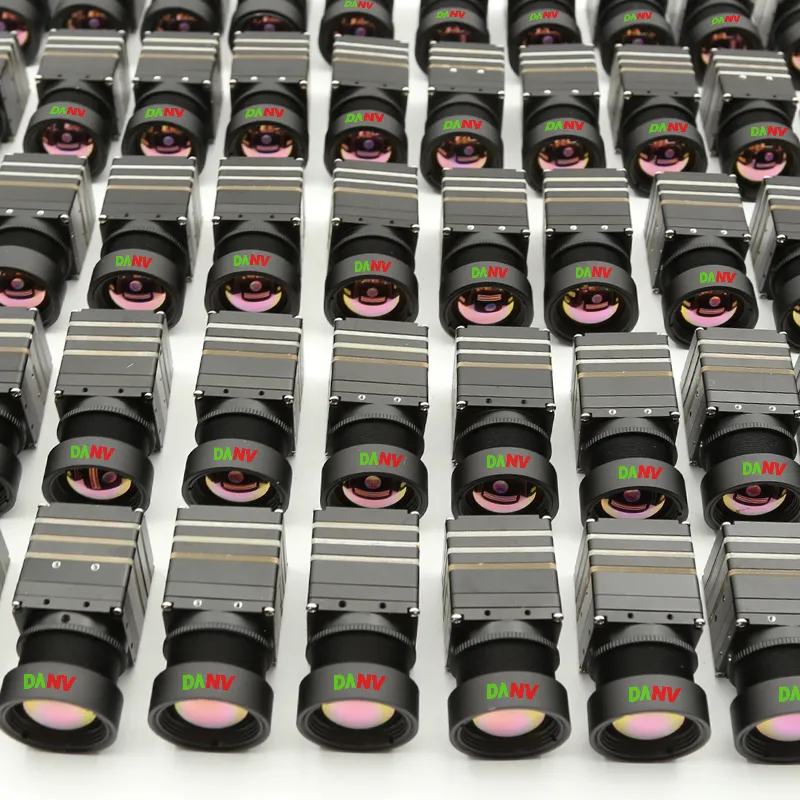

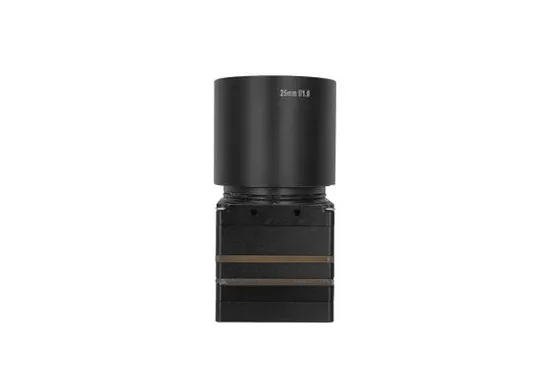

LWIR thermal imaging sensor camera module
1.HD mini shutter
2.640x480px@17µm pitch Amorphous Silicon uncooled detector.3.Compact design LWIR thermal imaging sensor camera module
We provide LWIR (Long-wave infrared) camera cores for specialized imaging applications requiring detection of reflected radiation, including counter-UAS, mapping and precision agriculture!
Regular models and mini
models can be customized
1.Small, light, and powerful.2.Different lens can be customized
3.Different imaging color modes available
4.Smaller, lighter, more affordable optics
OEM/ODM welcomed!Pls contact our professional tech team directly~
For drones, security or
fire fighting
Competitive price and flexible integration options

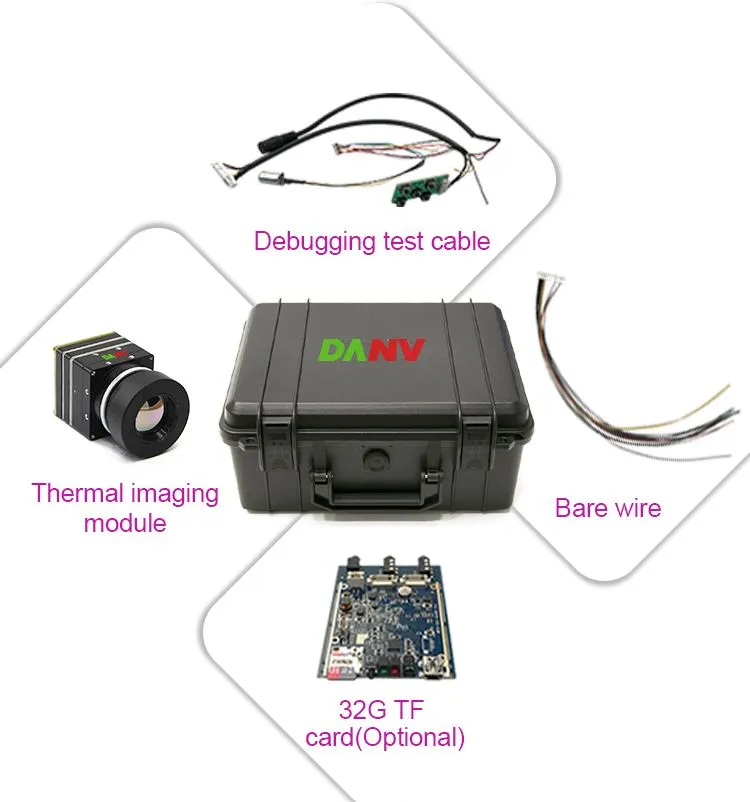

1. The interface can becustomized, USB/RJ45/HDMI/Camera Link,etc
2. Lightest in weight, module excluding lens only 12g Interface of Mini thermal imaging core

Shaanxi Ireeda Protective Technology Co., Ltd.is a leading manufacturer and developer
As a professional and trustable manufacturer, our advanced equipment! Professsional research& D team and hardwroking workersprovide you best solution in Gen2+/Gen3 Night Vision Devices, Thermal Imaging Devices, warmest welcome you visit our factory.
Welcome to Join us on a journey where R&D ,innovation, precision, and reliability converge to redefine what is possible in nighttime vision.
Professional Manufacturer IRD is!
Welcome you send inquiry or visit our factory for checking. Provide the best solution for you!
Professional R&D design
engineer
team and advanced equipment!
1.3500+ square meter workshop
2.Professional Engineers and workers
3.2000 pcs production capacity
4.300+ workers
5.Quality Guaranteed
Stock Available
!Support OEM ODM customization
!Fast delivery
!Cheaper price
Warmest welcome you face-to-face explore our diverse range of products, from thermal maging devices to precision measurement instruments!
Participate in International Exhibitions
We go abroad to attend International Exhibitions every year!
Looking forward to meeting you at the exhibition!
Product Parameters
SPECIFICATION
Item
DA-SM567-3
DA-SM567-6
Detector Performance
Type
Uncooled Asi FPA Detector
FPA Formal/ Pixel Pitch
384*288px@ 17μm
640*480px @ 17μm
Sentivity
NETD<30mk @ f/1.0 300k
Frame Rate
50Hz
Spectral Range
8~14μm
Image Processing
Non-unifromity Correction
Self-adaption Calibration
Time to Image
<3s
Image Enhancement
DDE
Image Display Resolution
640*480px

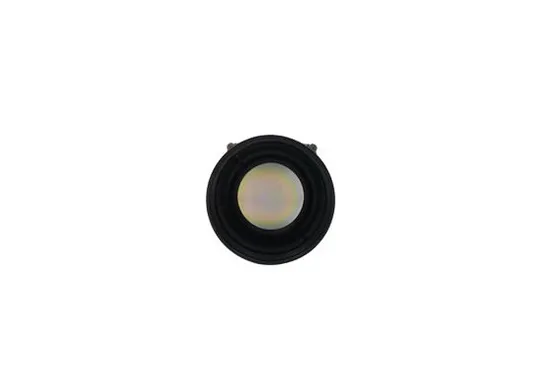

Lens
Optical 12mm, 19mm, 35 mm, 40 mm, 50 mm, 75 mm, 100 mm
Dispaly Control
Modes
White hot; Black hot; (Optical colorful)
Image Zoom
x2, x4 digital zoom
Brightness
Auto/Manual
Contrast
Image Reversal
Horizontal/Vertical
Crosshair
One or more
Analogue Video
Yes
Power
Operation Voltage Range
DC: +2.5V~+5.5V
Typical
DC 3.7V
Power Consumption
<0.9 W
Reverse Protection
Over/Under Voltage Protection
Environment Parameters
Operation Temperature Range
Commercial: -20ºC~+60ºC;
Special Purpose: -40ºC~+60ºC
Storage Temperature Range
-45ºC~+65ºC
Humidity
5%~95% non-condensing
Anti-vibration and Shock
GJB 150-16 2.3.1;
GJB 150-18 T7 100g/6ms
Temperature Shock
-5ºC/min (-40ºC~+60ºC)
Physical Attributes
Weight (excludes lens)
12g
33g
Module Size
20*20 mm (only PCB)
24*24 mm (only PCB)
External Power Supply
Keyboard
Digital Video Output
14 Bit (50Hz) / BT.656 (customized)
Communication
RS232 or RS485

Q: Are you manufacturer or trader?
A:
Ireeda
is a
professional manufacturer
of night vision, thermal vision and other photoelectric products.
Q: What products can you provide?A: We can provide high-quality
night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes, infrared detectors, other optoelectronic products and core accessories, as your requirement.
Q:What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within
3-5 days
for small quantity,for large quantity please contact us.
Q.:What is your payment term?
A: By ****** Trade Assurance or T/T in advance.
Q:What is the shipping method?
A: Usually shipped by
Express delivery (DHL, EMS, UPS, FEDEX, etc.)
is adopted. Please contact us if you have any requirements.
Q:Do you accept OEM or ODM?
A: Yes, our factory
definitely provide OEM or ODM service, it depends on the quantity.
Q: How can I placeorder?
A: You can contact us by send inquiry about your order details, or place order online.
Q: How long is the warranty?
A: Most
of our products provide the
one year
warranty.
