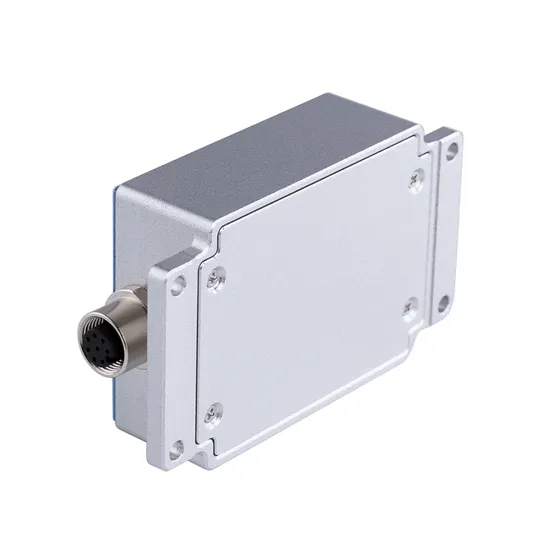

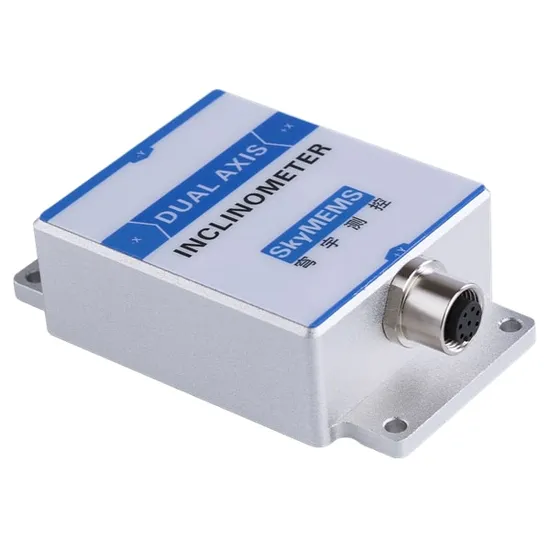

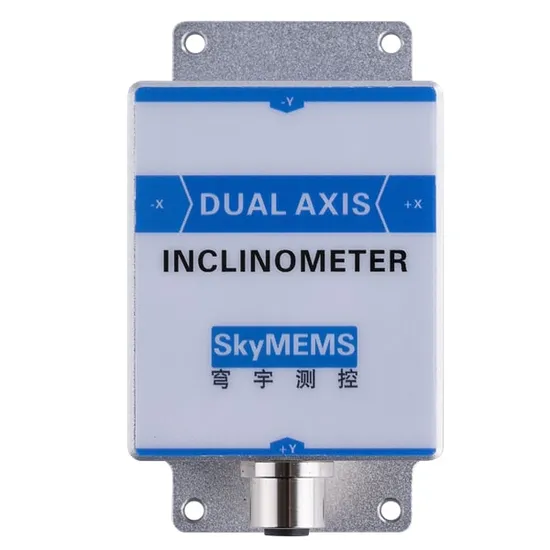

INC2000 Ultra-High Accuracy Dual/Single Analog or Digital Inclinometer (Tilt Sensor)

Main Features
-Super High Accuracy: ±0.001°, Range from ±5°to ±30°
-Low Temp Drift, With Temperature Compensation
-Temperature Coefficient: ±0.0008º/ºC
-Multiple Output interfaces: RS485, RS232, RS422,
Voltage Output, Current Output Options
-Wide Voltage Input: 5~36V, IP67 Sealed
-Compact and Lightweight: 93.8×55.5×26 mm, 250grams
-Wide Working Temperature: -40°C~+85°C

Brief Introduction
INC2000 series inclinometer is super high accuracy single or dual axis inclinometer sensor, it usesa sealed IP67 machined aluminum alloy housing, and it enjoys super high accuracy: up to ±0.001°(room temperature) and has a wide range of options to cover a measurement range from ±5°to ±30°, and it has multiple optional output interfaces including RS485, RS232, RS422, voltage output (0-5V or 0-10V), and current output (4-20mA, 0-20mA, or 0-24mA). The inclinometer adopts big brand components and material, and the cable are qualified for continuous outdoor use, and it is manufactured and calibrated in our own factory to guarantee performance and the real accuracy to the stated specification.Adopting SkyMEMS proprietary algorithms, which reduce the non-linearity, cross errors, quadrantal errorand installation error, the inclinometer has inherently good temperature stability, but this can be improved further with temperature compensation over a range of different temperatures. And it enjoys high reliability and survivability in harsh environment and the working temperature is -40~85°C. It has been widely used in high accuracy medical platform, track gauge instrument, high building monitoring, bridge and dam monitoring, high accuracy platform, etc.

Technical Specifications

Typical Applications
- high accuracy medical platform
-
track gauge instrument
-
high building monitoring
-
bridge monitoring
-
dam monitoringHeart and Fast Service
