基本信息产品详情证书
基本信息
型号 | TCR300 |
输出信号类型 | 数字类型 |
生产过程 | 半导体集成电路 |
材料 | 塑料 |
精确度等级 | 0.5G |
IP等级(IP Rating) | IP67 |
认证 | CE |
定制的 | 定制的 |
界面。 | 可以 |
检测范围 | 250米 |
理论 | 多普勒 |
发射频率 | 77吉赫 |
检测目标 | 车辆 |
保护等级 | IP67 |
目标数字 | 128个目标,4至6条车道 |
速度范围 | 时速-200公里……+250公里 |
交通总包 | 装在盒子里 |
规格 | 40.00厘米*40.00厘米*30.00厘米 |
商标 | 纳雷达 |
起源 | 中国 |
生产能力 | 每年100万件 |
产品详情
Company Profile
Preview

Preview
Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.
Preview
Product Description
Preview

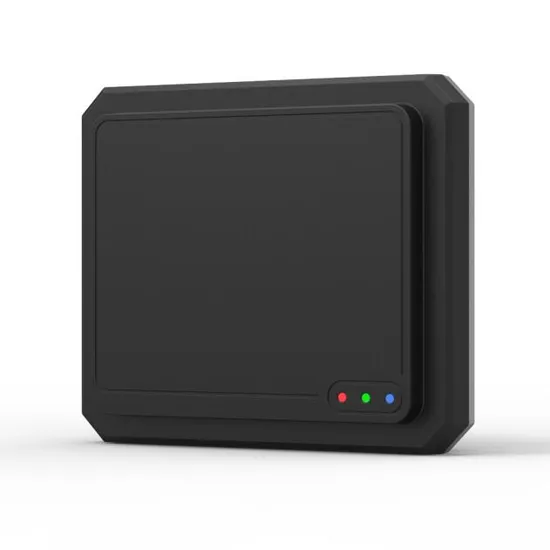

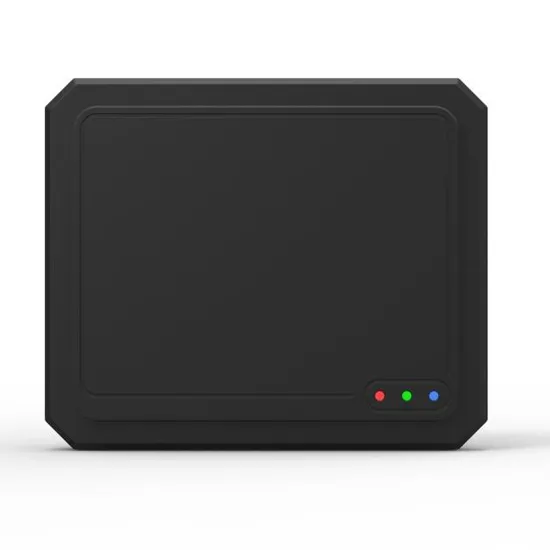

TCR300 is a long-distance 77GHz traffic flow radar developed byHunan Nanoradar Science and Technology Co.,Ltd. TCR300 radar is conducive to improving the accuracy of traffic information and significantly improving the pertinence and timeliness of intelligent traffic early warning by emitting fan-shaped microwaves to the front, detecting microwave reflection and obtaining the running information (such as
position, speed and parking situation) of vehicles in front.
Application
Traffic flow statistics
Whole process monitoring of bridges and tunnels
Safety distance control snapshot
Traffic cooperative safety early warning
Product Features
It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-6 lanes, longitudinal 300 meters;
It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h;
It supports multi-row virtual coil setting, coil size and position software can be adjusted, and real-time output of vehicle presence information;
It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc;
It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc;
It supports customized data output;
It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc;
It supports RJ45 Ethernet interface and RS485 serial interface, switching value;

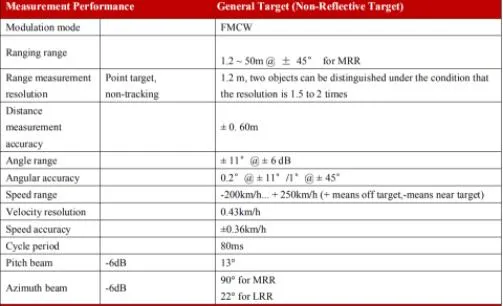

Product Parameters
position, speed and parking situation) of vehicles in front.
Application
Traffic flow statistics
Whole process monitoring of bridges and tunnels
Safety distance control snapshot
Traffic cooperative safety early warning
Product Features
It supports two-way multi-lane multi-target trajectory tracking and detection, software real-time online simulation, lateral 4-6 lanes, longitudinal 300 meters;
It supports multi-target real-time speed monitoring, with a maximum of 128 targets and a speed measurement range of -200km/h ~ +250km/h;
It supports multi-row virtual coil setting, coil size and position software can be adjusted, and real-time output of vehicle presence information;
It supports multi-section lane-dividing statistical data output, including traffic, speed, occupancy rate, headway, maximum queue length, etc;
It supports traffic incident detection, including slow congestion, retrograde, abnormal parking, lane change, too close to the car, etc;
It supports customized data output;
It supports all-day and all-weather work, including rain, snow, fog, strong wind, ice, dust, etc;
It supports RJ45 Ethernet interface and RS485 serial interface, switching value;

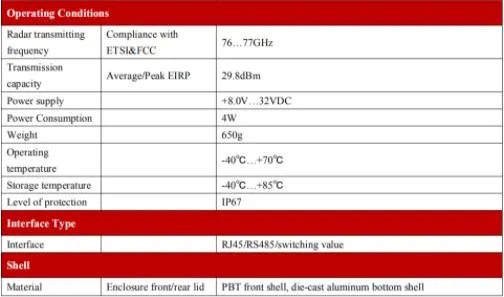

Product Parameters
Preview

Preview

Preview

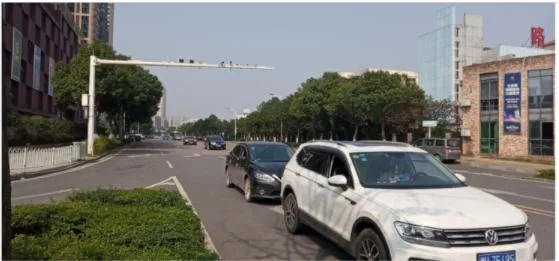

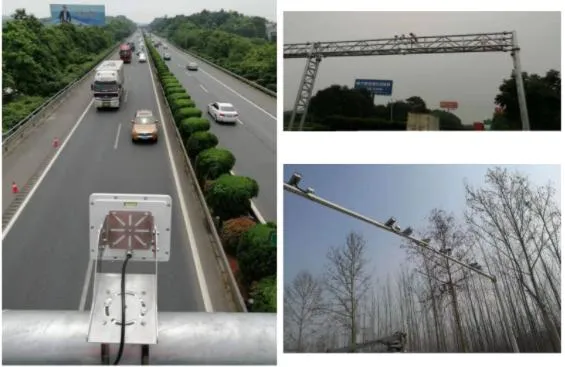

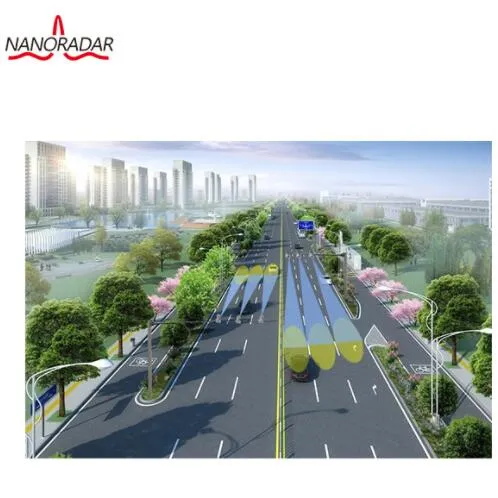

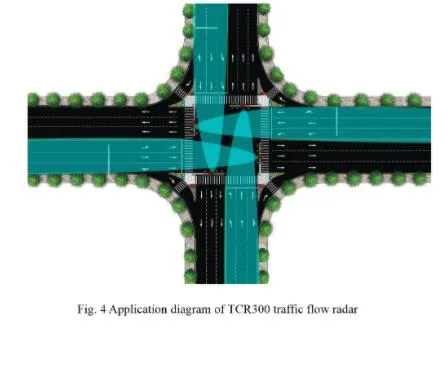

TCR300 traffic flow radar can simultaneously detect the distance, speed and angle information of 8 lanes and 128 target vehicles, and the maximum detection distance of radar can reach 300 meters.
Based on the advantages of millimeter wave radar, TCR300 is not affected by light and dust, and can realize all-day and all-weather real-time monitoring of road sections.TCR300 can effectively solve the problem of large vehicle target splitting, and does not produce false alarm and false alarm when the target is running at low speed. It can filter the false alarm caused by strong wind in the green belt of highway and realize free flow traffic flow statistics and events.
Based on the advantages of millimeter wave radar, TCR300 is not affected by light and dust, and can realize all-day and all-weather real-time monitoring of road sections.TCR300 can effectively solve the problem of large vehicle target splitting, and does not produce false alarm and false alarm when the target is running at low speed. It can filter the false alarm caused by strong wind in the green belt of highway and realize free flow traffic flow statistics and events.
Preview

Preview

Preview
Certifications
Preview

Preview
Our Exhibition
Preview

Preview

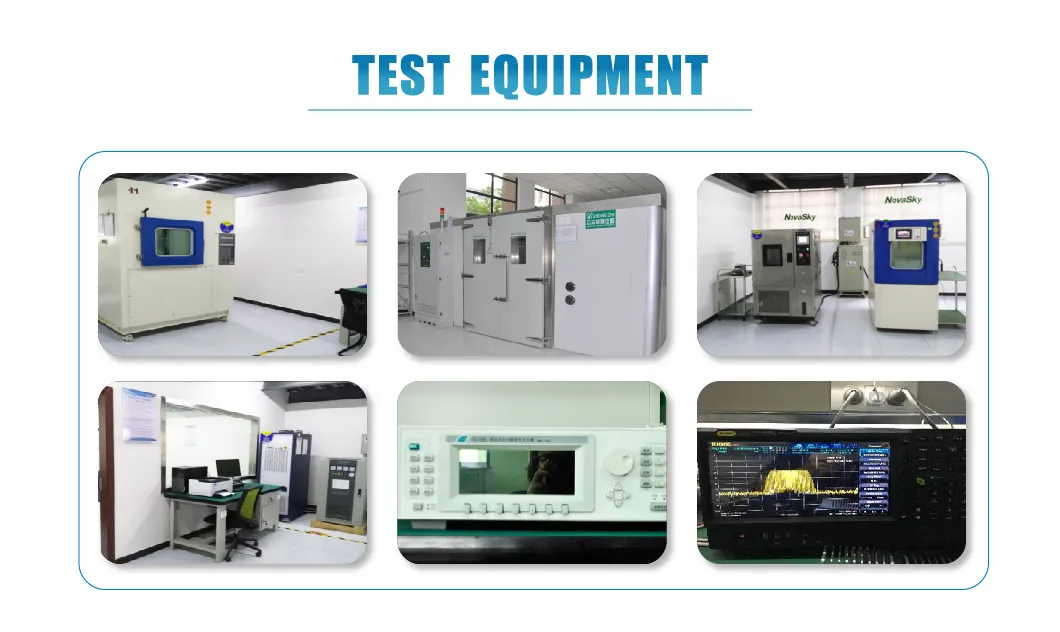

Test Equipment
Preview

Preview
After Sales Service
Preview

Preview
FAQ
Preview
1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK
and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK
and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
