基本信息产品详情证书
基本信息
型号 | CX-PT-3351 |
材料 | 不锈钢 |
准确度等级 | 1.0G(千兆) |
国际防护等级 | IP65 |
认证 | ISO |
定制的 | 定制的 |
应用程序 | 浓硫酸 |
进程连接 | 1“150#直接法兰” |
安装隔膜 | 钽其他浸湿部分 |
范围比率 | 0至10000毫米水柱 |
法兰衬套材料 | 聚四氟乙烯 |
运输包 | 胶合板/纸箱 |
规格 | CE:欧洲共同认证 ISO:国际标准化组织 SGS:瑞士通用公证行 |
商标 | GN |
起源 | 上海 |
商品编码 | 9026201090 |
生产能力 | 每月五千 |
产品详情
Product Description
Preview
CX-PT-3351 flush diaphragm pressure sensor

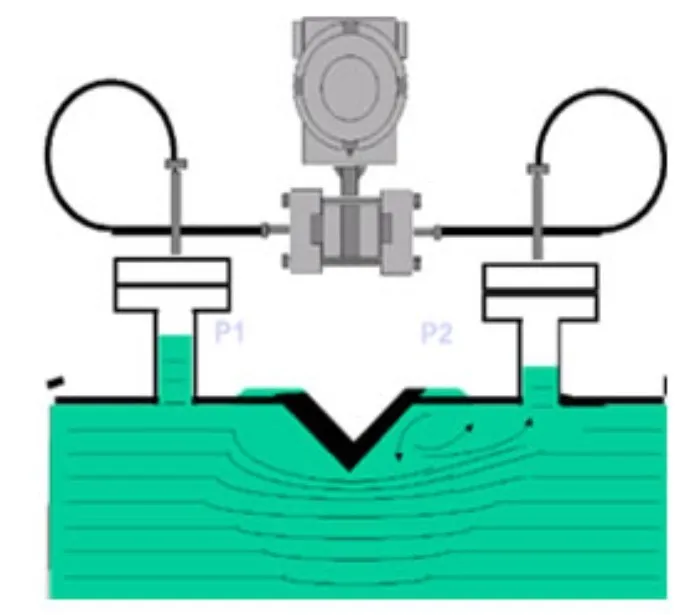

Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output.
CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device.
CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:
1.tested medium is corrosive ;
2.need to isolate high temperature tested medium and transmitter;
3.tested medium has solid seston or high viscosity medium;
4.tested medium leads by lead pressure pipe and easily solidify or crystallize;
5.replace medium need to clean test convertor carefully;
6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid.
Selection
Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.
Remote differential/level transmitter is used for prevent the medium in the pipe direct into the transmitter. The capillary (filled with fluid) is connected between pressure sensing diaphragm and transmitter. It is used for measuring liquid, gas or steam's level/flow or pressure, then change it as 4-20mA signal output.
CX-PT-3351 remote differential pressure transmitter can use together with Hart handhold device.
CX-PT-3351 remote flange type differential pressure/level transmitter can used as the following condition:
1.tested medium is corrosive ;
2.need to isolate high temperature tested medium and transmitter;
3.tested medium has solid seston or high viscosity medium;
4.tested medium leads by lead pressure pipe and easily solidify or crystallize;
5.replace medium need to clean test convertor carefully;
6.test convertor need to keep hygiene. Use for: corrosive or viscosity liquid.
Selection
Attn:1.filled 200 series silicone oil, operating temperature -40~+149ºC;filled high-temp proof silicone oil, operating temperature -20~+315ºC.
Preview

Preview
证书
标题:椭圆齿轮流量计



Preview
Cx-PT-3351冲洗隔膜压力传感器(CX-PT-3351)
¥600.92
消费电子产业链 · 传感器 · 差压传感器
型号CX-PT-3351
产地上海
