基本信息产品详情证书
基本信息
| 型号（NO.） | HYCA-F01 |
| 材料 | 混合物 |
| 精确度等级 | 0.1G（千兆） |
| 应用 | 开关电源 |
| 国际防护等级 | IP65 |
| 认证 | ISO |
| 定制的 | 定制的 |
| 输出 | 模拟传感器 |
| 供电电压 | + -12，+ -15 |
| 功率消耗 | 小于25 |
| 伽伐尼隔离 | 在 50Hz 交流电下，持续 1 分钟，电压为 2.5 伏 |
| 快递 | DHL（敦豪）、TNT（天地华宇）、FedEx（联邦快递） |
| 运输包 | 出口及适航空运标准的纸箱 |
| 规格 | IEC 6044-1 |
| 商标 | 嘿一 |
| 起源 | 中国乐清 |
| 商品编码 | 8542390000 |
| 生产能力 | 每年十万件 |
| 包装尺寸 | 5.00cm乘以5.00cm乘以5.00cm |
| 包装总重量 | 0.250千克 |
| 包装尺寸 | 5.00cm * 5.00cm * 5.00cm |
| 包装总重量 | 0.250千克 |
产品详情
Product Description
Preview

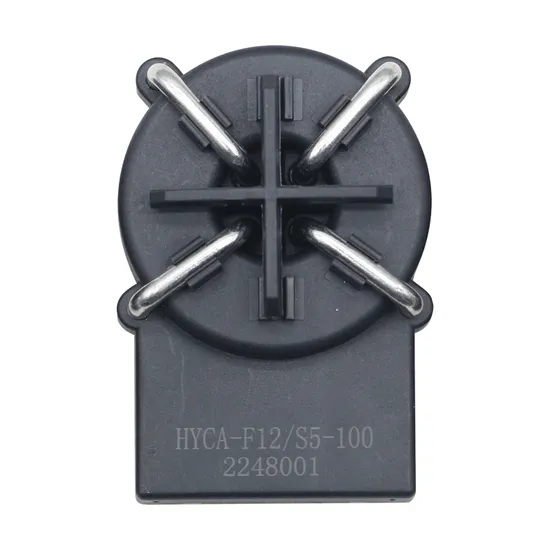

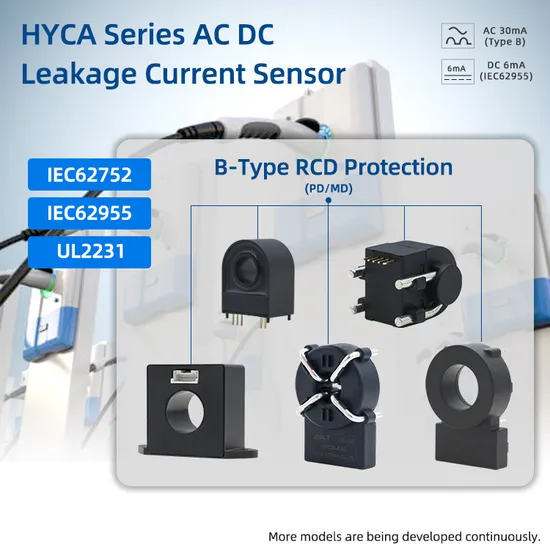

HYCA
type AC DC
leakage current sensor
Introduce:
HEYI
HEYI
Electrical company
ASCT
brand new product
HYCA
type AC DC
leakage current sensor
is a Leakage Protection Residual
Current sensor

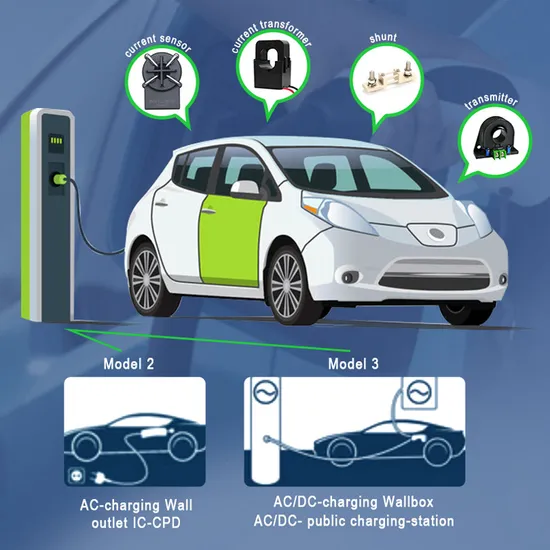

specifically developedfor EV-charging providing all-current sensitivity. Charging of electric vehicles ata standard wall socket or a wall box requires protection devices against DC faultcurrents to avoid electric shock. Installed type A residual current circuit-breakers(RCCBs) are unable to identify and deactivate DC fault currents.
ASCT
HYCA
leakage current sensor
Current sensor
type AC DC
leakage current sensor
Introduce:
HEYI
HEYI
Electrical company
ASCT
brand new product
HYCA
type AC DC
leakage current sensor
is a Leakage Protection Residual
Current sensor
specifically developedfor EV-charging providing all-current sensitivity. Charging of electric vehicles ata standard wall socket or a wall box requires protection devices against DC faultcurrents to avoid electric shock. Installed type A residual current circuit-breakers(RCCBs) are unable to identify and deactivate DC fault currents.
ASCT
HYCA
leakage current sensor
Current sensor
Preview

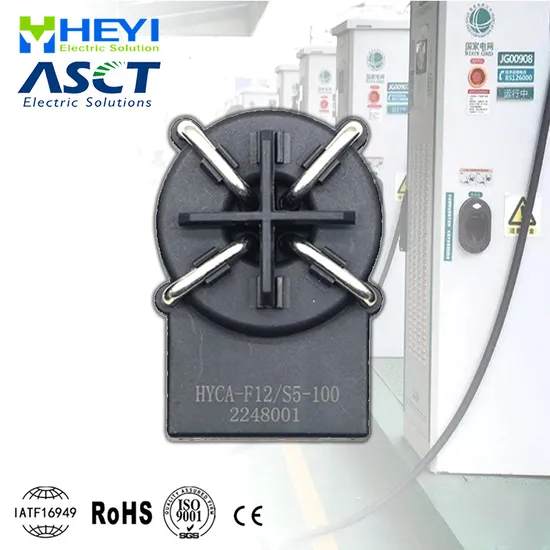

Detailed Photos
Preview
Preview
Preview
Preview
Preview
Preview

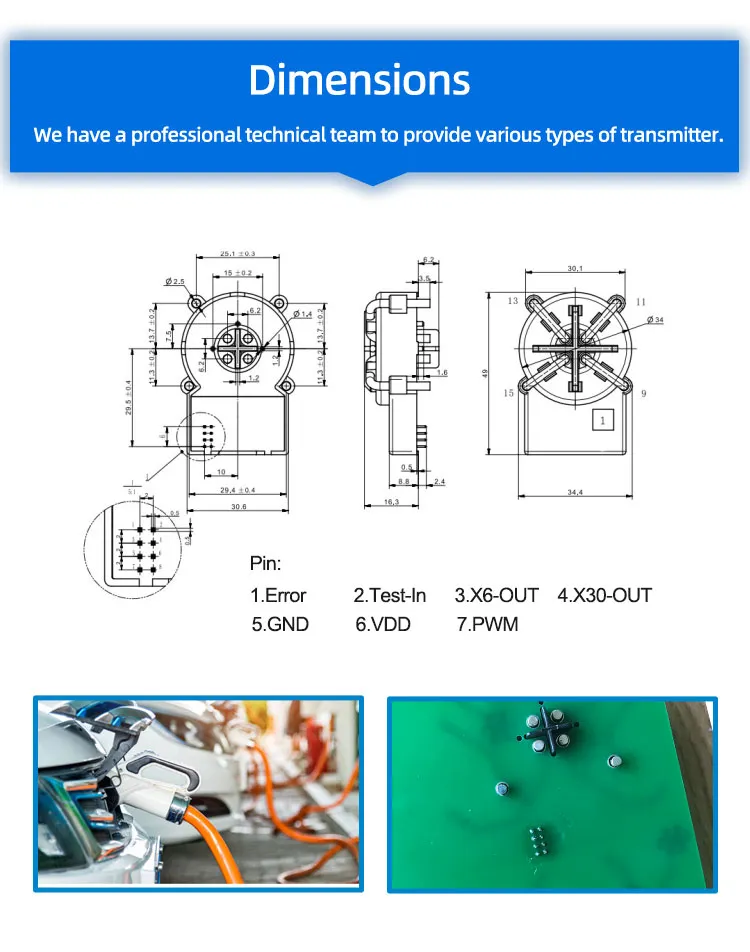

Product Parameters
Preview

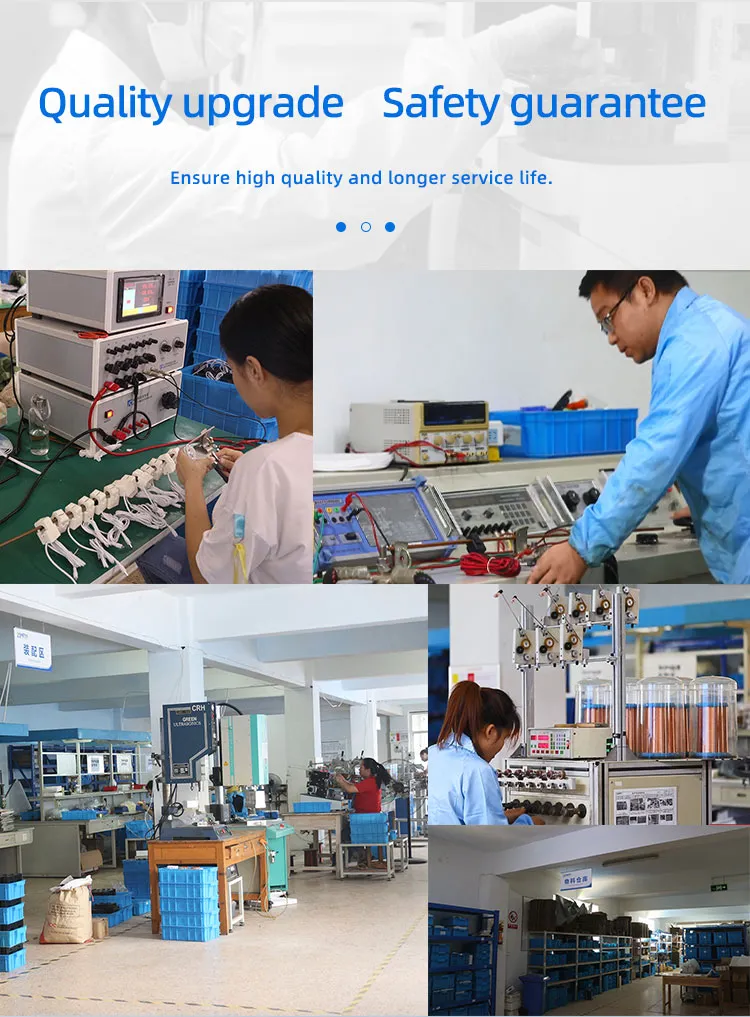

Company Profile
Preview
Preview
Preview
Preview
Preview
Features:
Small volume and footprint for integration into compact IC-CPD.Avoids hazardous situations with DC fault currents.Protects RCCB type A from saturation.Saves costly type B RCCD.Volume optimized.AC/DC-current sensitivity at low cost.Protects RCCB type A from saturation.Self-monitoring and test functions.Robust mechanical design suitable for IC-CP.
Technology:

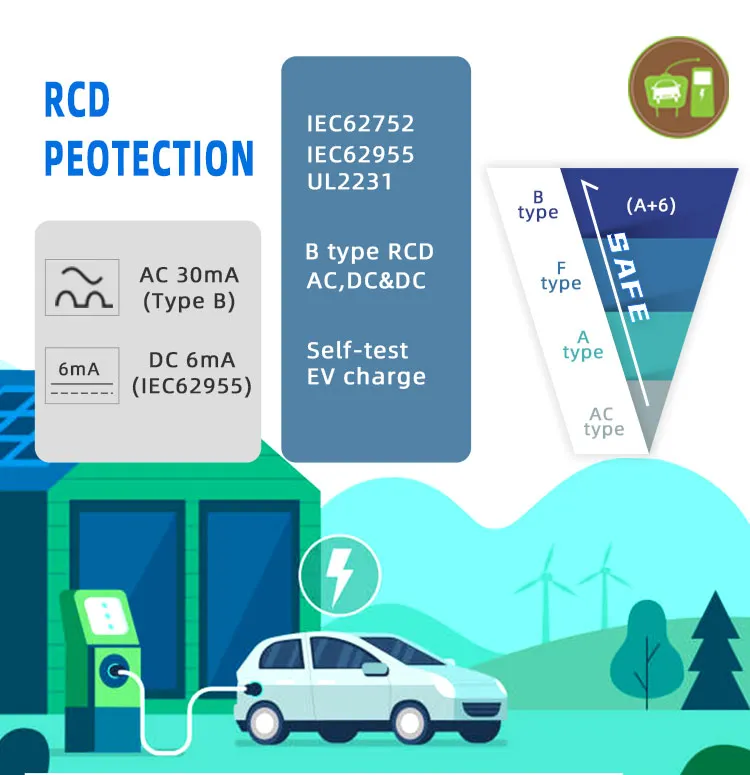

ault current detection according to IEC 62752 or UL 2231.Frequency range DC up to 2 KHz.Load current up to 80 Arms (1-phase) or 3 x 32 Arms (3-phase).Switching output for 6 mA DC and 30 mA AC (acc. to IEC 62752)
Integrated self-monitoring and test functions.Measurement resolution of 0.2 mA.Variants with pass through opening or with integrated primary conductors.Differential current range 0~300 mA.Robust mechanical design suitable for IC-CPD environmental requirements (e.q. drop test)
Widely usable in harsh electronic environment (e.g, resistant to external maanetic fields)
The sensor can trigger an automatic shut-off in case ofhazardous electrical faults (DC and AC) according to lEC 62752 or UL2231.
Standard:
HYCA
type AC DC
leakage current sensor

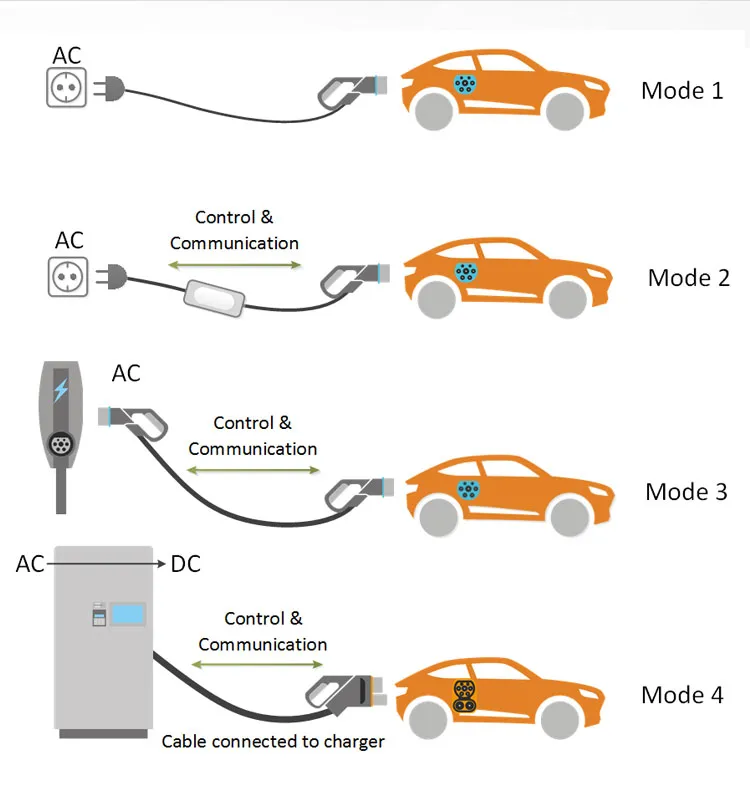

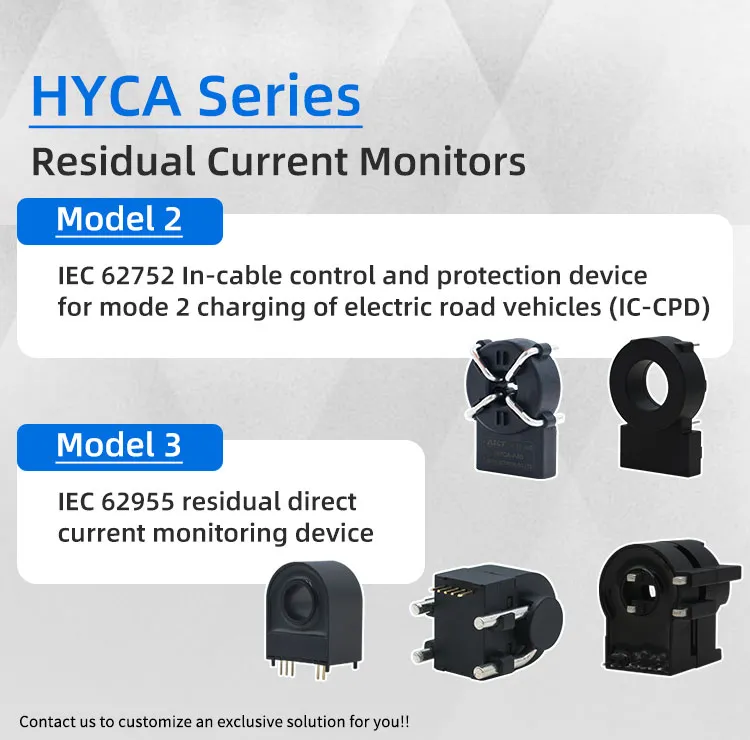

Meet IEC 62752 mode II charging-related residual current test requirements.HYCA
type AC DC
leakage current sensor
Meet IEC 62955 mode three charging RDC-PD related residual current test requirements.HYCA
type AC DC
leakage current sensor
Meet the basic requirements of GB/T 22794 based on the adaptation of DC 6mA test requirements
Small volume and footprint for integration into compact IC-CPD.Avoids hazardous situations with DC fault currents.Protects RCCB type A from saturation.Saves costly type B RCCD.Volume optimized.AC/DC-current sensitivity at low cost.Protects RCCB type A from saturation.Self-monitoring and test functions.Robust mechanical design suitable for IC-CP.
Technology:
ault current detection according to IEC 62752 or UL 2231.Frequency range DC up to 2 KHz.Load current up to 80 Arms (1-phase) or 3 x 32 Arms (3-phase).Switching output for 6 mA DC and 30 mA AC (acc. to IEC 62752)
Integrated self-monitoring and test functions.Measurement resolution of 0.2 mA.Variants with pass through opening or with integrated primary conductors.Differential current range 0~300 mA.Robust mechanical design suitable for IC-CPD environmental requirements (e.q. drop test)
Widely usable in harsh electronic environment (e.g, resistant to external maanetic fields)
The sensor can trigger an automatic shut-off in case ofhazardous electrical faults (DC and AC) according to lEC 62752 or UL2231.
Standard:
HYCA
type AC DC
leakage current sensor
Meet IEC 62752 mode II charging-related residual current test requirements.HYCA
type AC DC
leakage current sensor
Meet IEC 62955 mode three charging RDC-PD related residual current test requirements.HYCA
type AC DC
leakage current sensor
Meet the basic requirements of GB/T 22794 based on the adaptation of DC 6mA test requirements
Preview
