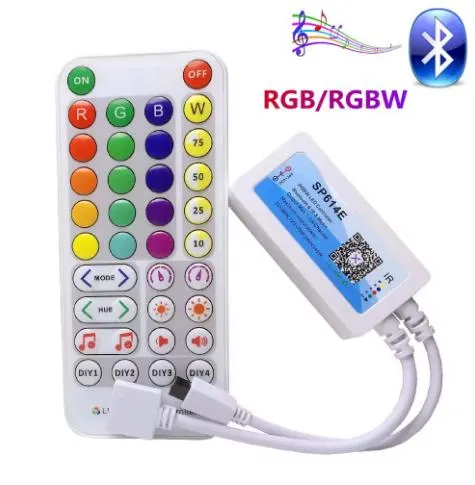

SP614E Mini BT App Control PWM RGB LED Controller Music reactive
Product Description
SP624E ControllerFor RGB LED StripSupply voltage: DC5-24VOperating temperature: -20-60°COutput mode: 4pin RGBMaximum load current: <6AInput power: 5V<30W, 12V<72W, 24V<144WStatic power consumption: <1WProduct Features1. Support mobile APP control;2. Support the automatic connection of the device when the APP starts and the automatic reconnection of the device after disconnection;3. Support group control of multiple devices;4. Support two music collection modes: mobile phone microphone and player streaming;5. Supports functions such as modifying device name, calibrating RGB channel sequence, timer, etc.;6. Supports common single-line LED driver ICs on the market, and supports driving 600 pixels;7. Built-in 142 dynamic modes, support dynamic mode effect length adjustment, dynamic mode collection, and dynamic mode and collection mode can be cycled independently;8. Built-in 18 music modes,Support music mode effect length adjustment, sensitivity adjustment, effect color self-selection and music mode cycle;9. DC5~24V wide voltage input, the power supply has anti-reverse connection function;10. The function of saving setting parameters when power off.Use tutorial1. Download "BanlanX" APP from Apple App Store or Google Play Store2. Turn on the bluetooth of the mobile phone and the position switch (make sure that no other device is connected to the bluetooth), and power on the lamp3. Open the "BanlanX" App, it will automatically connect to the controller. Connections will show the number of connectionsIf the device cannot be connected1. Check whether the lamp is powered on normally2. Whether the Bluetooth of the mobile phone is turned on3. Whether the Bluetooth of the mobile phone is connected by other devices4. Is there any other mobile phone connected, if so, please disconnectNoteThe signal receiver has the (+) symbol in the upper right corner of the text to align with the pins of the upper left (black) arrow at the plug interface. If the plug is reversed, the light strip will not light up
Product Parameters
Key attributes
Industry-specific attributes
Warranty(Year)
1-Year
Type
Blue tooth Control
Max. Load Power
144W
Other attributes
Place of Origin
Guangdong, China
Lighting solutions service
Lighting and circuitry design
Luminous Efficacy(lm/w)
0
Product Weight(kg)
0.1
Brand Name
OEM
Connection Mode
Blue tooth Control
Voltage
DC 5V-24V
Operating temperature
-20ºC~60ºC
Output mode
4pin RGB 5pin RGBW
Maximum load current
RGB<6A (2A*3CH) RGBW<6A(1.5A*4CH)
Input power
5V<30W, 12V<72W, 24V<144W
Static power consumption
<1W
Model
SP623E RGB SP624E RGBW
Controller size
4*1.4*0.7cm (not including cable)
Certification
ce, FCC, RoHS
APP
BanlanX(BT)
Packaging and delivery
Packaging Details
Logo Printing is Acceptable.Customized Package is Acceptable.Selling Units:
Single item
Single package size:
15X9X3 cm
Single gross weight:
0.1kg
Detailed Photos

Packing & shipping
Packaging and delivery
Packaging Details
Logo Printing is Acceptable.
Customized Package is Acceptable.
Selling Units:
Single item
Single package size:
15X9X3 cm
Single gross weight:
0.050 kg
1.We ship the
product to you by
Fedex
or
DHL
or
TNT
or
UPS
or
EMS
or
By sea.
If any question about the shipping methods, please feel free to contact us.
2.We will inform you the tracking number after the parts are delivered with shipping documents.
3.Large quantities can be shipped
by sea.
4.Shipping Time:3-20 days after receiving the deposit.

Shenzhen Kediya Technology Co., Ltd. Is a professional high-tech Led light products enterprise with independent R&D, production lines, marketing, after services department. We focus on OEM/ODM Led strip light, LED linear light , LED Neon flex, flexible pixel strips, rigid pixel bars, LED profile, LED Modules and other relative accessories . Kediya has an area of 1500 square meters. more than 5
R&D engineers and over 60 workers, 6
auto SMD production lines and 7
assembly production lines. The daily output is about 350,000 Meters/pieces monthly. We adopt advanced wave soldering, reflow soldering and SMD machines, Integrating sphere, Glue dispenser machine, Aging test standard laboratory and so on. We have strong capability in R&D, Production, Marketing and customer service with a wide range, good quality, reasonable prices and stylish designs, Growing to be a leading supplier in this field.Kediya is consistently working on improving and designing new products. By our advanced technology, superior product quality, flexible marketing strategy, fast delivery and excellent service, we have got very good response , taken a solid first step and is aiming to become the leading of LED industry in China. Our market has now been expanded to over 30 countries and regions including Europe, America, Oceania, Africa, Southeast Asia, the Middle East and Japan. Our principle is "Quality, Innovation, Integrity and Service"Our pursuit is to provide better solutions and technical support, create greater value for our customers.

FAQ:
Q1: Are you factory or trading company?A1:We are professional Manufacturer of LED strip light, COB strip light , digital strip light, Neon Light, Factory located in Shenzhen City. Factory direct price.
Q1 :How can you ensure high quality?
A1:
1.We have our own material production workshop and die factory for 10 years.2.workers should be well trained before go to work.3.100% QC on line and final inspection, no any defective products can be out from our factory.4. We have a
lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate,
etc.
Q2:If I
need sample, could you support?
A2: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3: Can you provide custom service?
A3:
Yes! We have professional designer can provide free design for you. Please send your requirements to us!
Q4:How do you charge the mold fee?
A4: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a
certain amount.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. How to order custom LED
light?
A6: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q7. How long is your product warranty?
A7: We offer 2-5 years warranty to our products. During the warranty time, if any quality problem we will repair or even replace for you for free.
Q8. What's your leadtime?
A8:.The sample order leadtime will be 3-5days .
Small batch order 10-15 days
Negotiable delivery time for large orders
