基本信息产品详情证书
基本信息
| 型号 | UR-40 |
| 颜色 | 橙色/白色/蓝色 |
| 材料 | 塑料 |
| 传输距离 | 少于50米 |
| 类型 | 按钮 |
| 万有引力 | 通用 |
| 电压 | 5伏直流电 |
| 频率 | 433兆赫 |
| 电学 | 从汽车中获取电力 |
| 工作距离 | 30米 |
| 添加和删除ID | 短路或特殊遥控器 |
| 加密 | 通过专用USB电缆 |
| 工作电压 | 5伏直流电 |
| 电源接口 | 通用串口总线 |
| 应用程序 1 | 滑动门开启系统 |
| 数字调制 | 问 |
| 质量保证 | 一年 |
| 应用程序2 | 自动门开系统 |
| 应用程序3 | 门禁控制系统 |
| 信号传输 | 红外遥控器 |
| 运输包 | 卡通 |
| 规格 | 50×21×8毫米 |
| 商标 | 久泰 |
| 起源 | 中国 |
| 商品编码 | 8526920000 |
| 生产能力 | 每年五千件 |
产品详情
Product Description
Preview
Production Introduction:

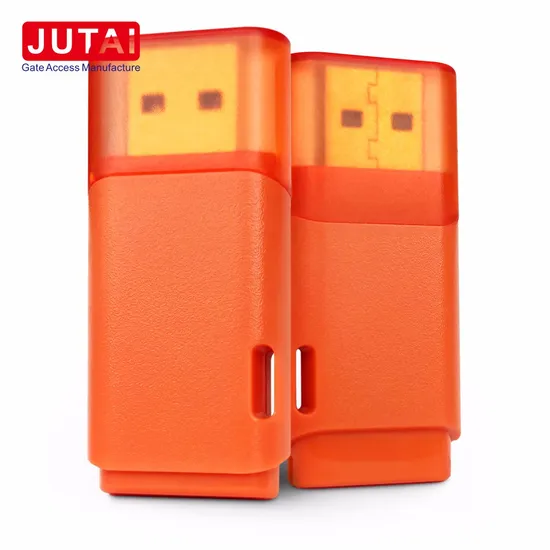

JUTAI USB Remote transponder used for door opening system,which is an application soltuon based on wireless transmission and wireless encryption technology expansion;
how this system work:
1.Firstly,Save the USB Transponder ID number into JUTAI Remote Receiver;
2.Receiver connect to gate controller,when the receiver get the signal from the USB transponder,the receiver will judging the ID is Avaible or not;
3.if avaible, the relay inside of the receiver will output signal, and gate will open;
4.when car enter to home guard, left the safe loop Coils, the Gate will close automatically;
5.The USB Remote Transponder is getting power from the car, so when the car started, the USB transponder can not getting the power again,it will cannot work;
Technical Parameter(USB Transmitter):

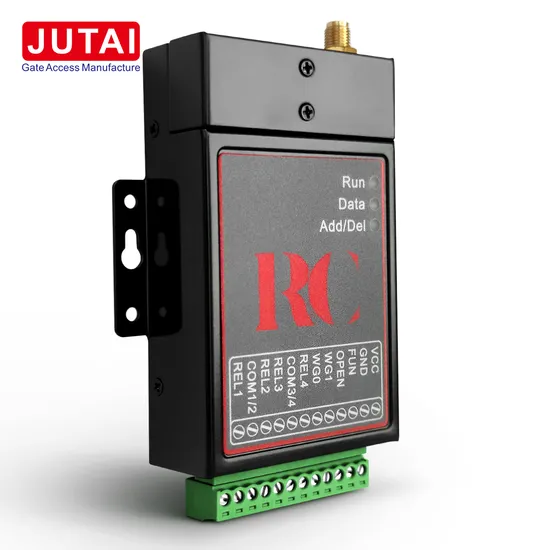

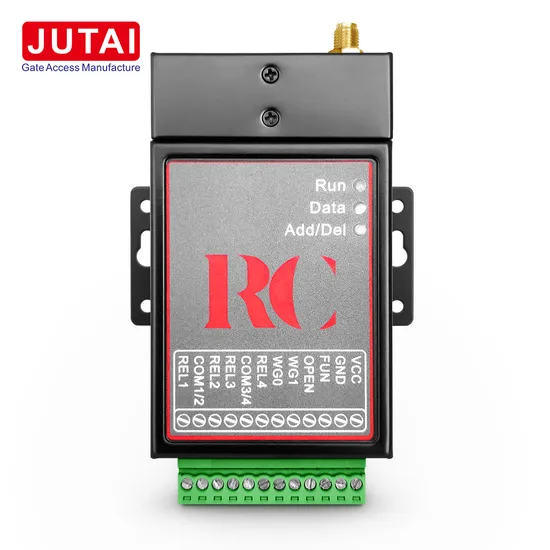

Technical Parameter (Receiver):

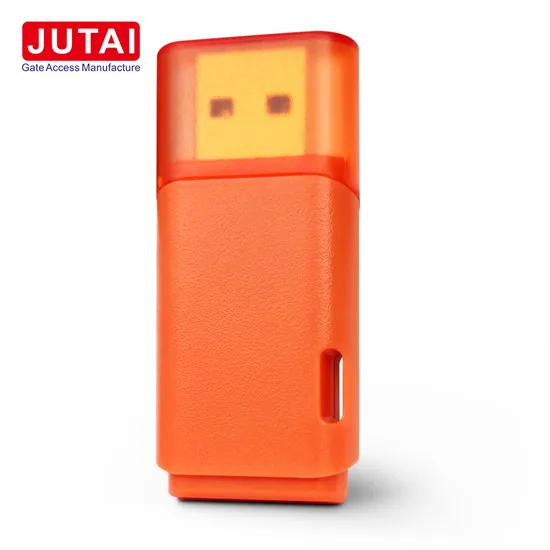

Size and Diagram for USB Transimitter :
JUTAI USB Remote transponder used for door opening system,which is an application soltuon based on wireless transmission and wireless encryption technology expansion;
how this system work:
1.Firstly,Save the USB Transponder ID number into JUTAI Remote Receiver;
2.Receiver connect to gate controller,when the receiver get the signal from the USB transponder,the receiver will judging the ID is Avaible or not;
3.if avaible, the relay inside of the receiver will output signal, and gate will open;
4.when car enter to home guard, left the safe loop Coils, the Gate will close automatically;
5.The USB Remote Transponder is getting power from the car, so when the car started, the USB transponder can not getting the power again,it will cannot work;
Technical Parameter(USB Transmitter):
Technical Parameter (Receiver):
Size and Diagram for USB Transimitter :
Preview
Preview
