基本信息
型号(NO.) | P31mm-B |
像素配置 | 1红1绿1蓝或2红2绿2蓝 |
显示功能 | 视频显示、图像与文字显示、文字显示、市场展示、玻璃建筑外墙 |
平均功耗 | 每平方米220瓦 |
像素密度 | 每平方米1024个点 |
扫描模式 | 静态扫描 |
显示类型 | LED视频显示屏 |
应用程序 | 广告 |
认证 | CE, RoHS, CCC |
控制系统 | 诺瓦星 |
防火等级 | UL94-V0:耐热耐燃性最高级别的测试标准 |
透明度 | 百分之五十五 |
刷新率 | 高于1920赫兹 |
观看距离 | 六米至二百米 |
屏幕权重 | 9千克每平方米 |
视角 | 120°(水平)/120°(垂直) |
亮度 | 2500/4000/6000(每平方厘米发光强度) |
运输包 | 纸箱 |
规格 | 建筑材料 聚碳酸酯 |
商标 | 格林泰克光 |
起源 | 深圳 |
商品编码 | 8531200000 |
生产能力 | 每月五十万平方米 |
产品详情
Product Description
Preview
LED Grid Display Advantages
1. High Transparent Rate, Ultra-thin, Ultra lightweight.The Transparent rate can reach 55% ~ 90%, not obstructing the natural light, which ensures the original lighting and viewing angle requirements of the glass facade and curtain wall, and has good wind resistance effect. The screen is thin (only 15mm) and light weight(only 2 ~ 9kg / sqm)
2. Foldable, Arbitrary Bending, Easy Installation, Without Steel Structure.Flexible & Light Weight, with various shapes, easy to install and maintain. can be freely combined into various shapes to meet the needs of various creative displays.3. Cost Saving, the price is only 1/5 of the Traditional LED Display
By optimizing the structure, we abandoned the heavy box of the traditional screen, and made targeted improvements in the manufacturing process, packaging and control system. Every individual LED pixel dot is changeable, no need to take out a whole string or dismantle any frame structure.After-sale repair has the lowest cost.4. Energy Saving & Environmental Protection
Lower Energy Consumption, the air duct dissipates heat by itself and does not need to be cooled by air conditioning.5. Fully Customizable Building Media Facade
Flex LED Grid

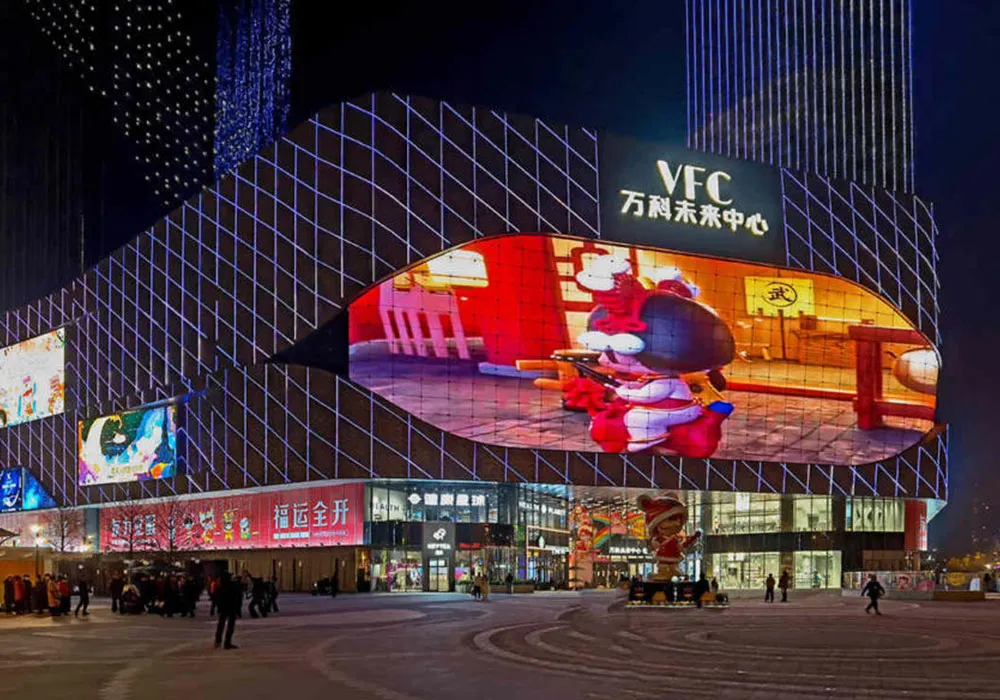

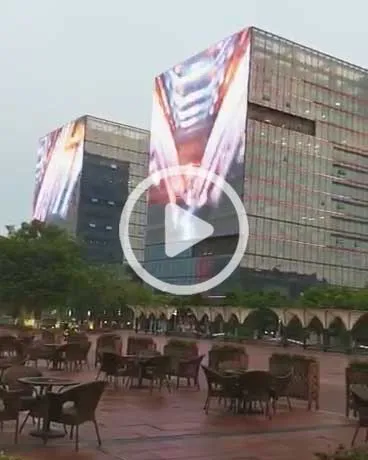

Display composed of LED Pixel Light, Plastic Button Strip, 4-Wire Cable, Stainless Steel Rope and other components connected into a mesh structure Screen. It can meet the needs of lighting decoration and is used for playing text, images and videos. It is a product with the concept of "Large Pixel Height". It has incomparable advantages in the field of super large area display and creative display.The Pixel Distance of the Mesh Screen from P30 to P150mm, and the Area Can be from tens Sqm. to thousands Sqm. It's meet the needs of real estate projects, commercial centers, glass curtain walls, hotels, high-rise building facades and other large-area displays..
1. High Transparent Rate, Ultra-thin, Ultra lightweight.The Transparent rate can reach 55% ~ 90%, not obstructing the natural light, which ensures the original lighting and viewing angle requirements of the glass facade and curtain wall, and has good wind resistance effect. The screen is thin (only 15mm) and light weight(only 2 ~ 9kg / sqm)
2. Foldable, Arbitrary Bending, Easy Installation, Without Steel Structure.Flexible & Light Weight, with various shapes, easy to install and maintain. can be freely combined into various shapes to meet the needs of various creative displays.3. Cost Saving, the price is only 1/5 of the Traditional LED Display
By optimizing the structure, we abandoned the heavy box of the traditional screen, and made targeted improvements in the manufacturing process, packaging and control system. Every individual LED pixel dot is changeable, no need to take out a whole string or dismantle any frame structure.After-sale repair has the lowest cost.4. Energy Saving & Environmental Protection
Lower Energy Consumption, the air duct dissipates heat by itself and does not need to be cooled by air conditioning.5. Fully Customizable Building Media Facade
Flex LED Grid
Display composed of LED Pixel Light, Plastic Button Strip, 4-Wire Cable, Stainless Steel Rope and other components connected into a mesh structure Screen. It can meet the needs of lighting decoration and is used for playing text, images and videos. It is a product with the concept of "Large Pixel Height". It has incomparable advantages in the field of super large area display and creative display.The Pixel Distance of the Mesh Screen from P30 to P150mm, and the Area Can be from tens Sqm. to thousands Sqm. It's meet the needs of real estate projects, commercial centers, glass curtain walls, hotels, high-rise building facades and other large-area displays..
Preview

Preview

Preview

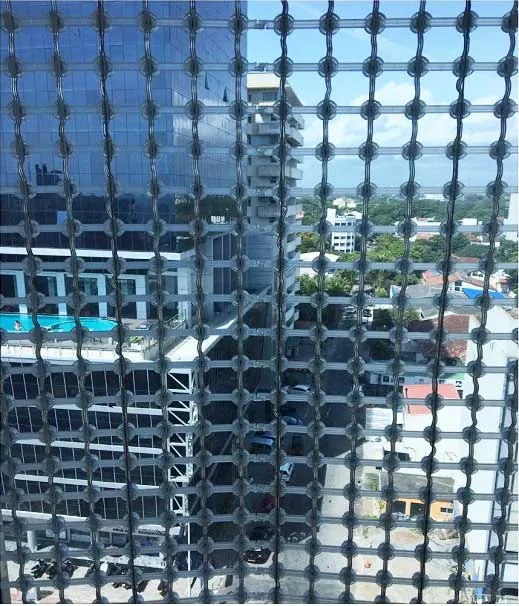

High Transparency
High transparency maximizes the natural light get inside of the building, flexible LED grid screen also ensuring the screen has great ventilation and wind-resistance function.

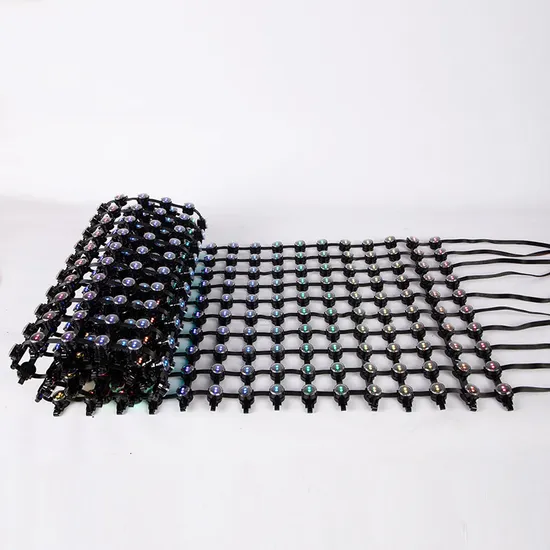

Flexible Design

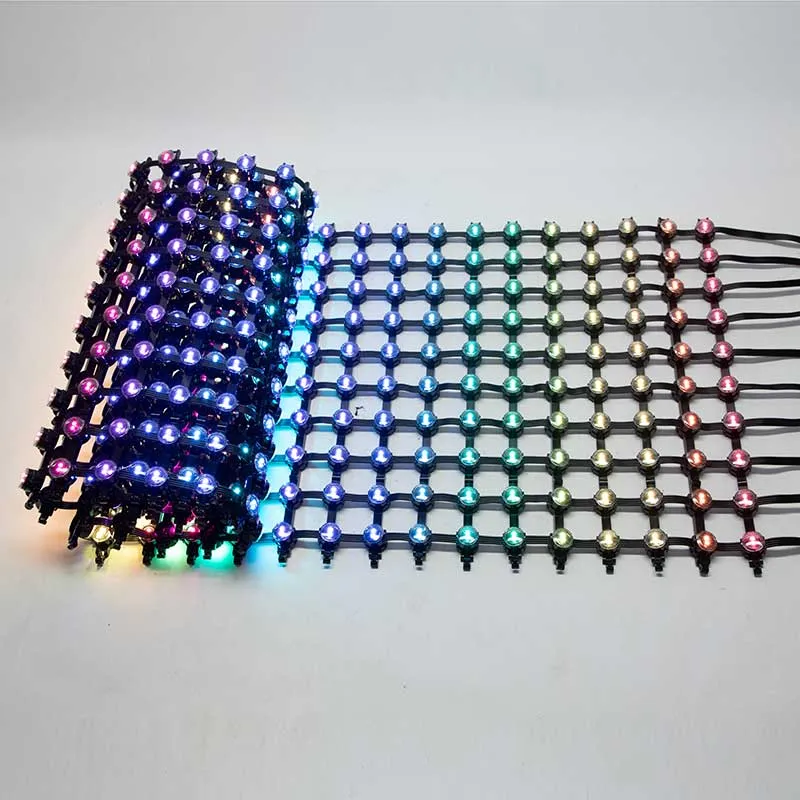

Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available. Bendable, shaped displays, coverage of various irregular structures.
High transparency maximizes the natural light get inside of the building, flexible LED grid screen also ensuring the screen has great ventilation and wind-resistance function.
Flexible Design
Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available. Bendable, shaped displays, coverage of various irregular structures.
Preview

Preview

Preview

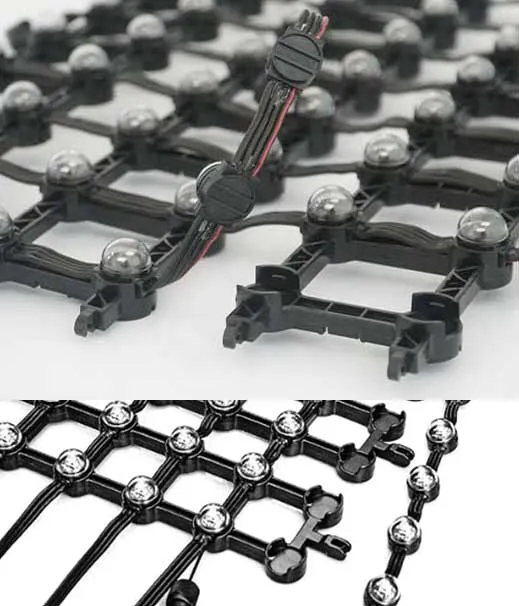

Detachable Element &
Fast Locks
Removing the string directly from the flexible frame in front for quick and trouble-free maintenance. The strings can be also fixed as linear lighting separately in aluminum slot or in a independent bracket .
Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required; Zipper quick lock system, The fast lock lock system makes your hanging job so easy even on the touring stage. Quick Installation

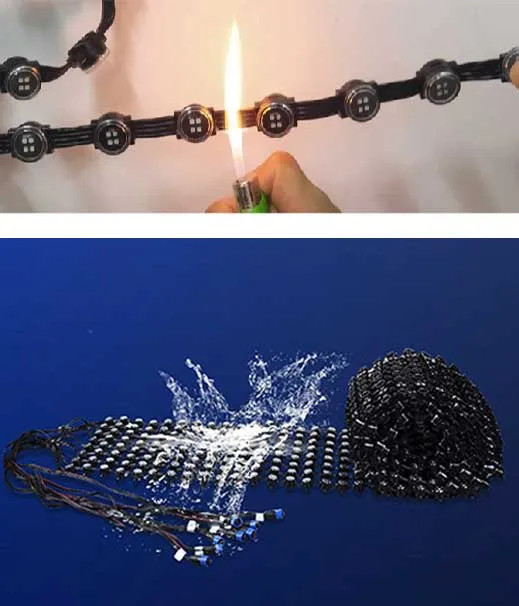

Anti-Fire & IP67 Waterproof
The Lamp body is sealed with silicone gel, Head and tail of the panel, with waterproof connectors.. Good Weather-resistance, is IP67 rated, UV-resistant, Housing and wire adopt Anti-fire material.
LED Grid Display QUICK INSTALLATION
Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.
Fast Locks
Removing the string directly from the flexible frame in front for quick and trouble-free maintenance. The strings can be also fixed as linear lighting separately in aluminum slot or in a independent bracket .
Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required; Zipper quick lock system, The fast lock lock system makes your hanging job so easy even on the touring stage. Quick Installation
Anti-Fire & IP67 Waterproof
The Lamp body is sealed with silicone gel, Head and tail of the panel, with waterproof connectors.. Good Weather-resistance, is IP67 rated, UV-resistant, Housing and wire adopt Anti-fire material.
LED Grid Display QUICK INSTALLATION
Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.
Preview

Preview

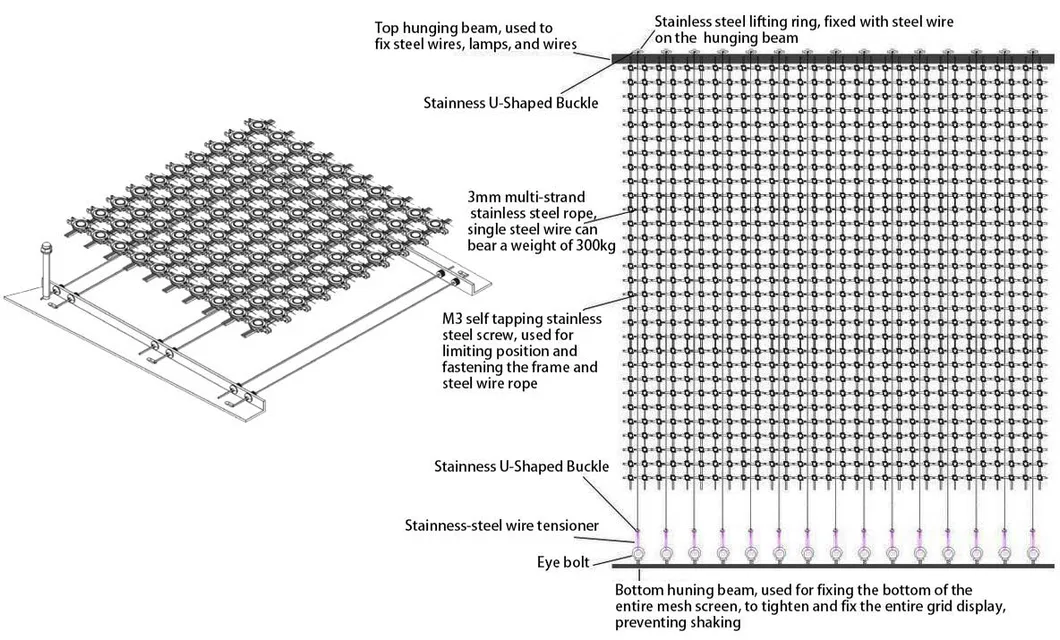

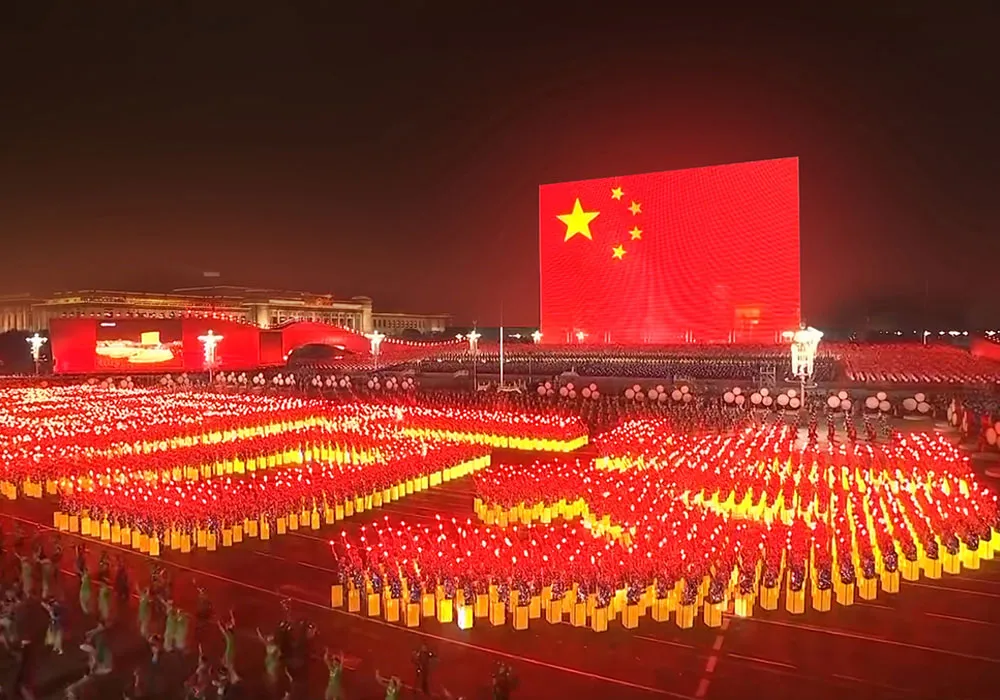

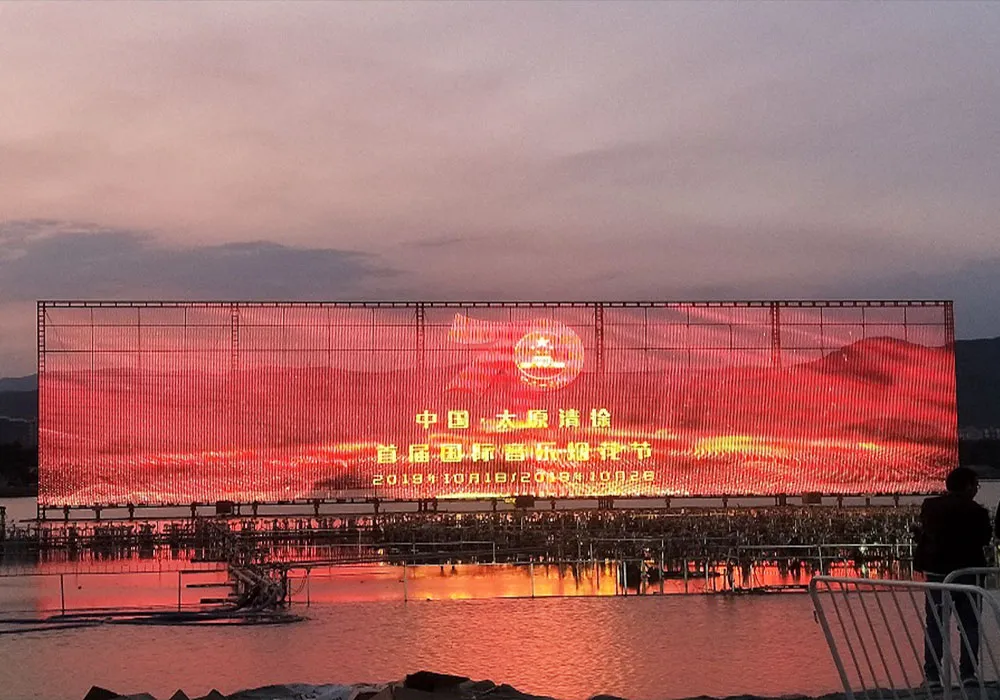

LED Grid Display System ConnectionLED Grid Display After InstallLED Grid Display Installation Projects:
Preview

Preview

Preview

Preview

Preview
