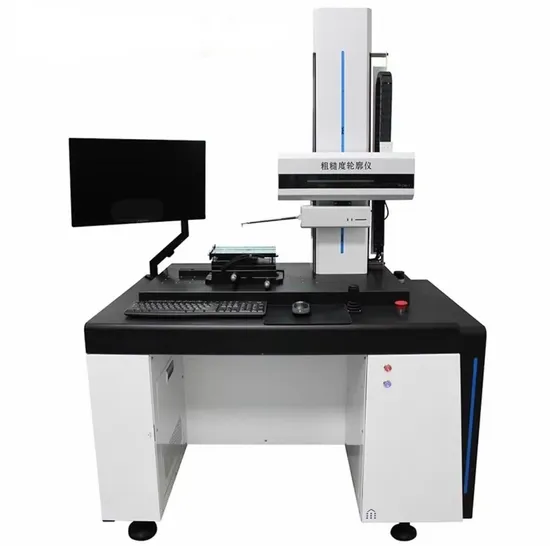

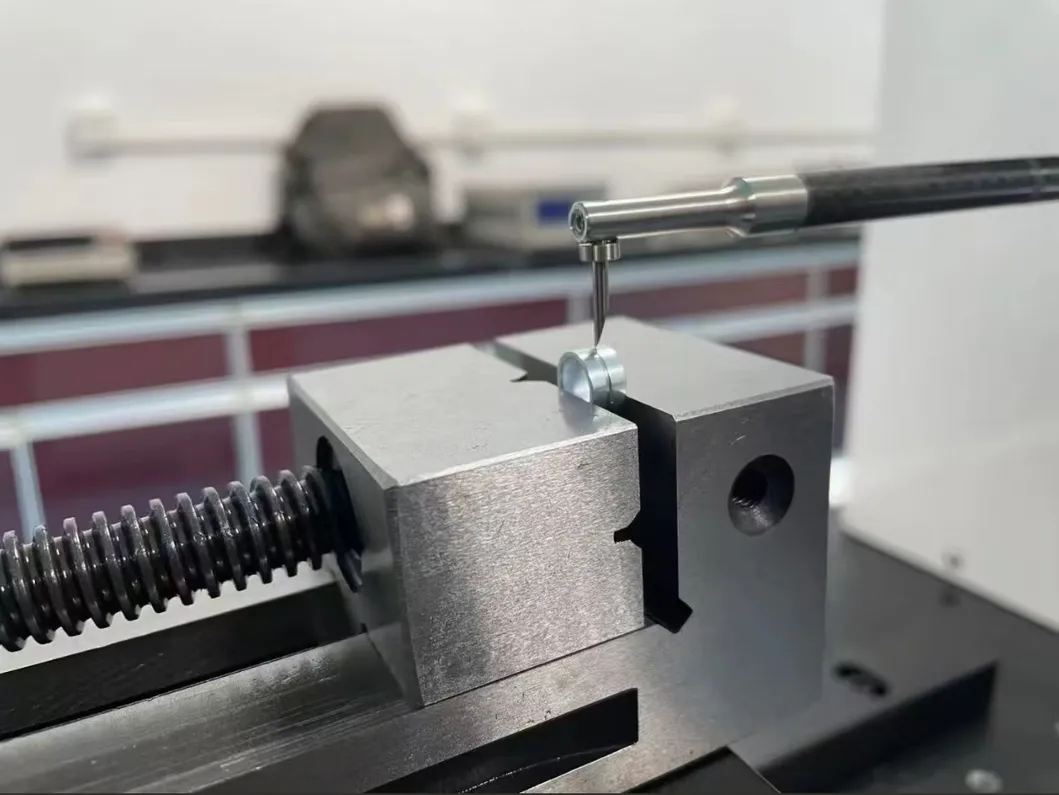

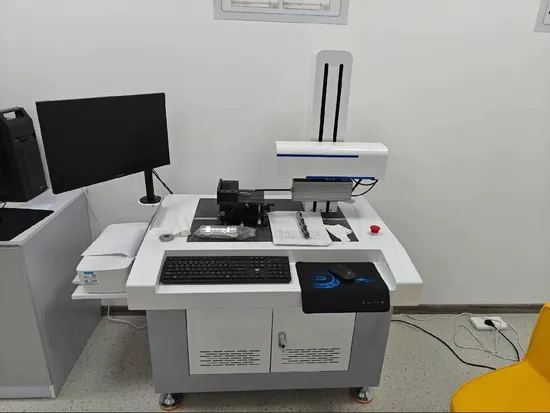

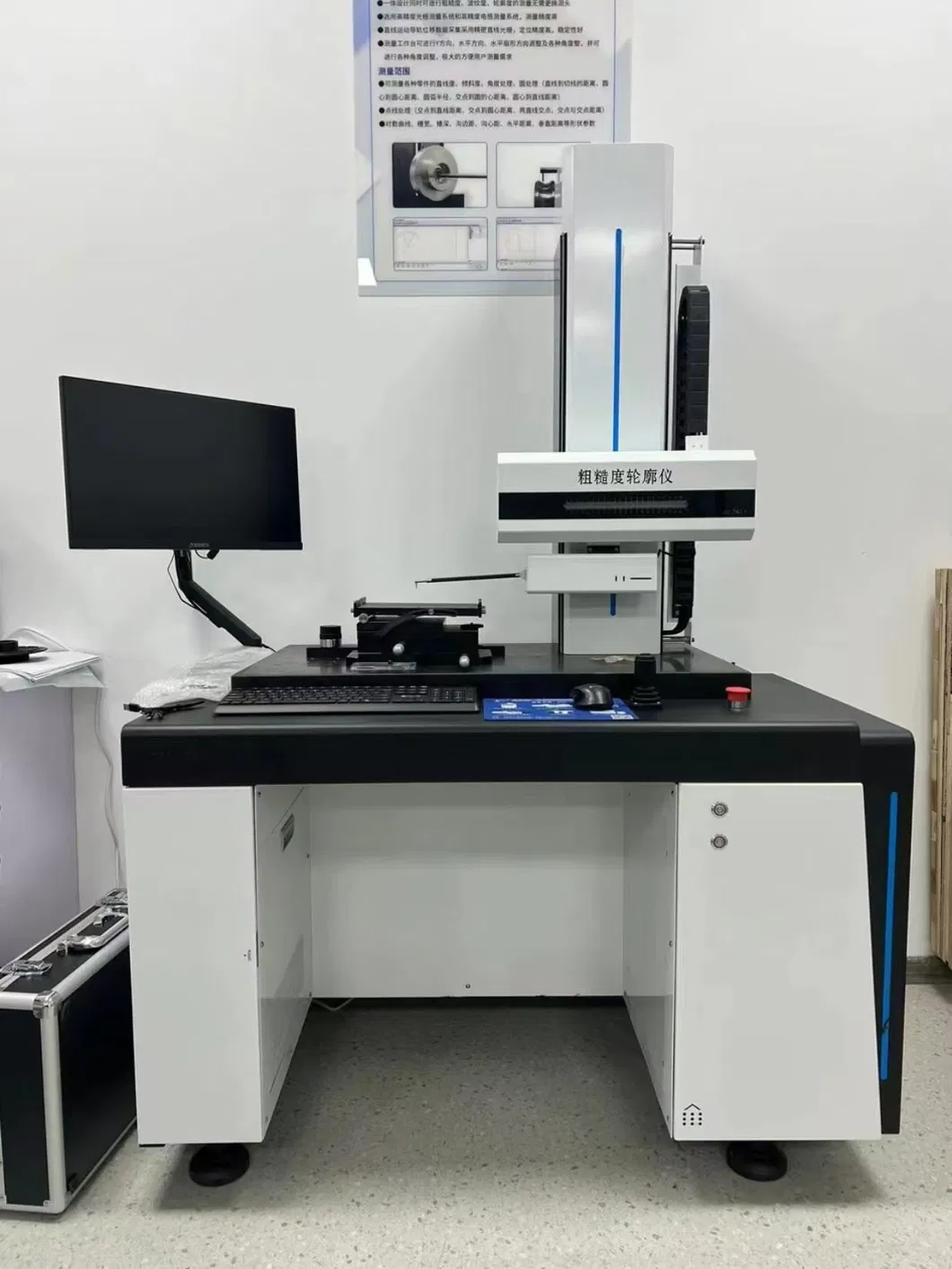

1.The integrated design can measure roughness, waviness and contour at the same time without changing the probe;
2.Select high-precision grating measurement system and high-precision inductance measurement system to achieve high measurement accuracy;
3.Linear motion guide rail displacement data collection adopts precision linear grating, which has high positioning accuracy and good stability;

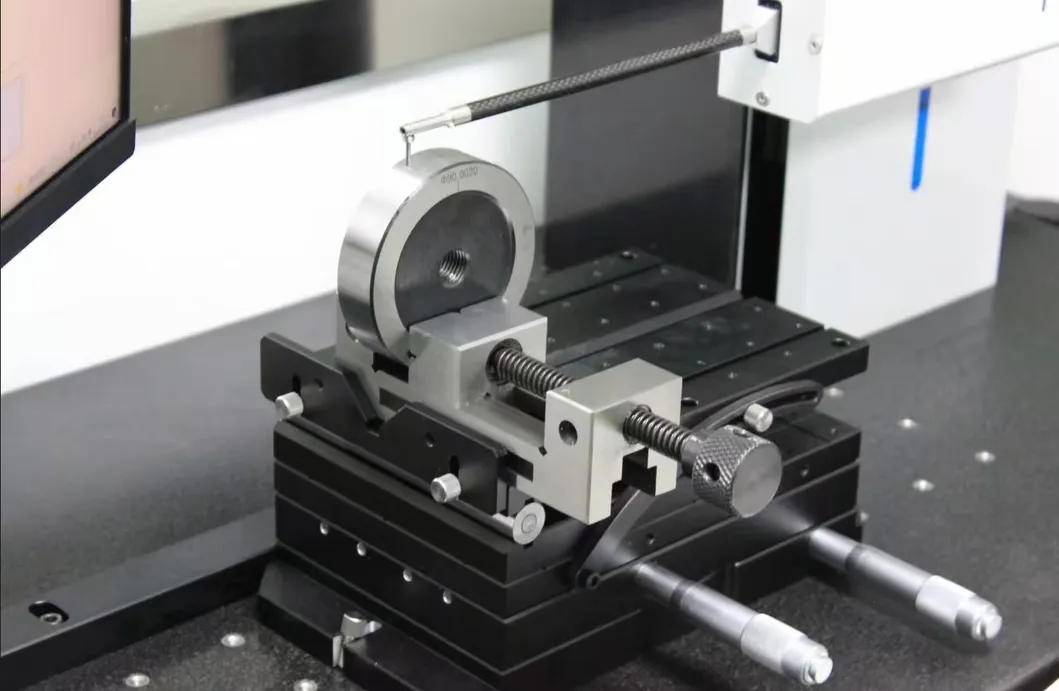

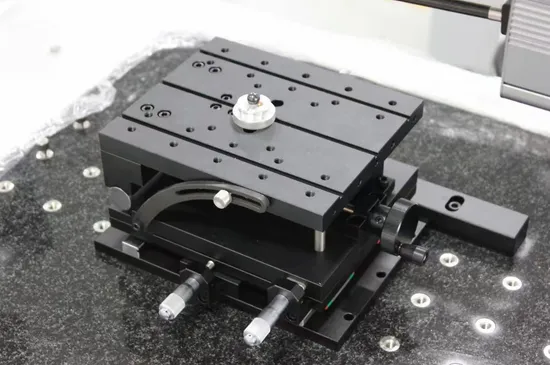

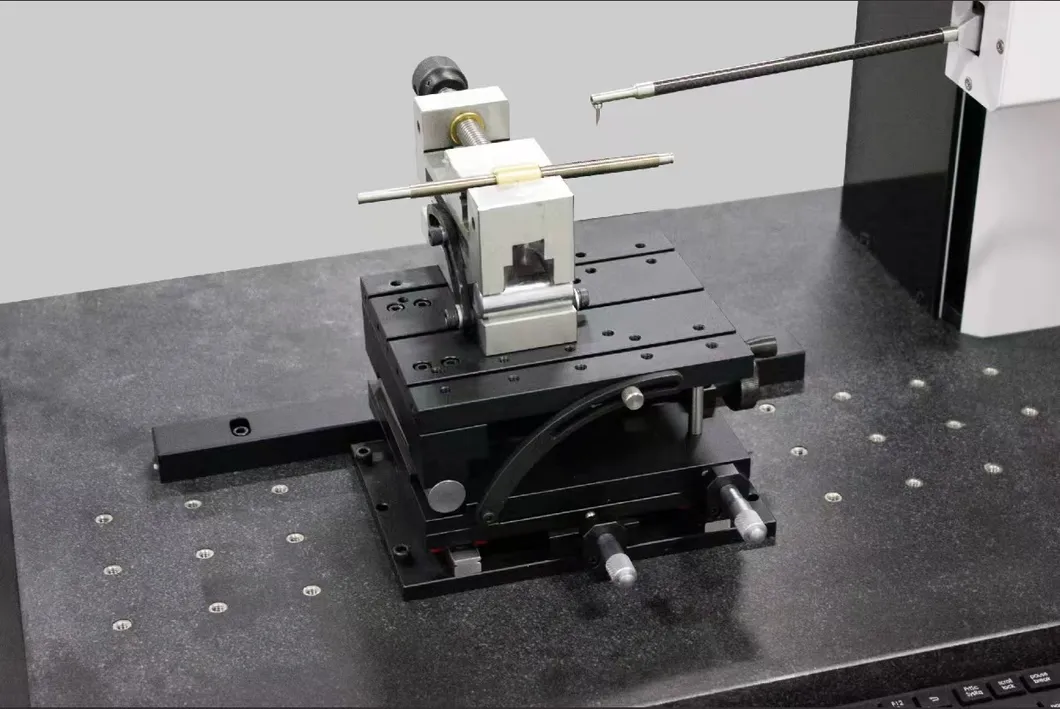

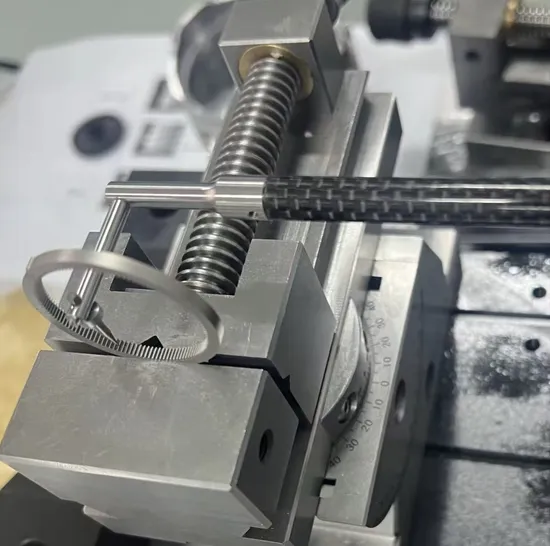

4.The measurement workbench can be adjusted in the Y direction, horizontal direction, horizontal sector direction, and various angle adjustments, which greatly facilitates user measurement needs.
Product Parameters

Advantages

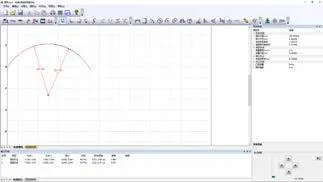

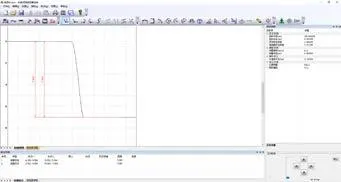

This equipment can measure the line and cross-sectional profile parameters, surface waviness parameters,

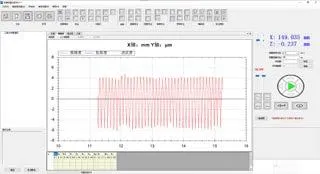

Roughness parameters and other parameters. Can measure straightness, inclination, angle processing, and roundness of various parts

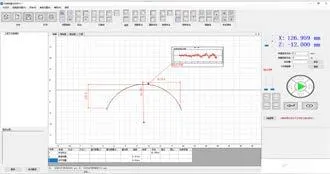

Management (distance from straight line to tangent line, distance from circle center to circle center, arc radius, distance from intersection point to circle center, circle center
distance from the straight line), point and line processing (distance from the intersection point to the straight line, distance from the intersection point to the center of the circle, intersection point of two straight lines, distance between the intersection point and the intersection point), logarithmic curve, groove width, groove depth, groove edge distance, groove center distance, inclination, Shape parameters such as horizontal distance and vertical distance.
