Specifications
Place of Origin: China (Mainland)
Brand Name: XINCHENG
type: Anti-corrosion Pultrusion FRP rods &
tube
Resin Type: Polyester /epoxy resin

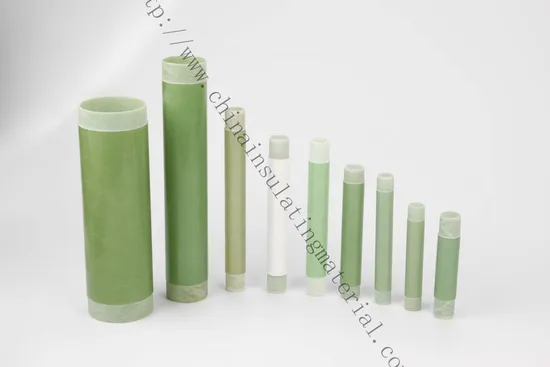

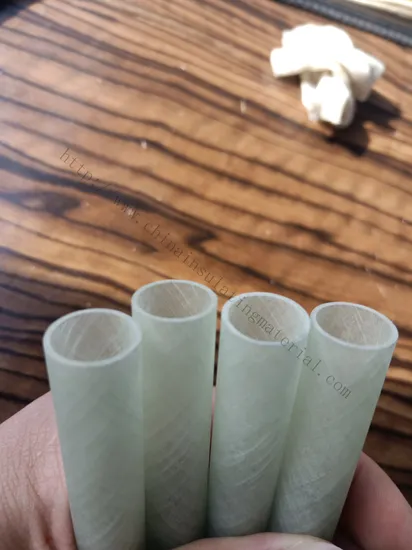

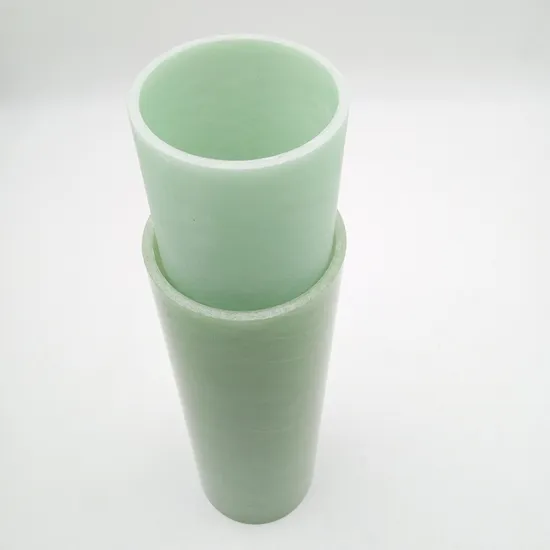

Product name: Fiberglass Winding Tube
Material: fiberglass reinforced plastic &+resin
Fiber Type: E-glass
Technique: pultrusion molding
Application: Industry, construction, corrosion environment
Tensile Strength: 120-190Mpa
Surface Treatment: smooth
Technique: Pultrusion
Dimensions: Optional
Raw material: Resin and fiberglass
Resin: ORP/ISO/VINYL
Compressive Strength(axial): ≥400Mpa
Color: Optional
Working Temperature: <200
ºC
Certificate: ISO9001,SGS,ASTM
Dimensions: Customizable
Length: Cutting according customer requirement
Out Diameter: 1mm-100mm
Thickness: from 2mm to 50mm
Diameter: 1mm ~
100mm &
Custom
Dimension: hollow or solid
CNC service: Available
OEM &
ODM: Available
Wall Thickness: Customize
Shape: Round or customize
Density: 1.8g/cm³~2.0g/cm³
Processing Technique:

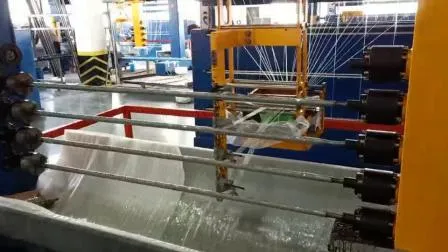

FRP Pultrusion production is a
continous production process to produce fiberglass reinforced polymer profiles of any length and contstant section.Reinforce-ment fibers may be roving,continous mat,woven robing,carbon or others.The fibers are impregnated with polymer matrix (resin,minerals,pigments,additives) and passed through a
pre-forming station that produces the stratification necessary to give the profile the desired properties,After the pre-forming step,the resin-impregnated fibers are pulled through a
heated die to polymerize the resin.

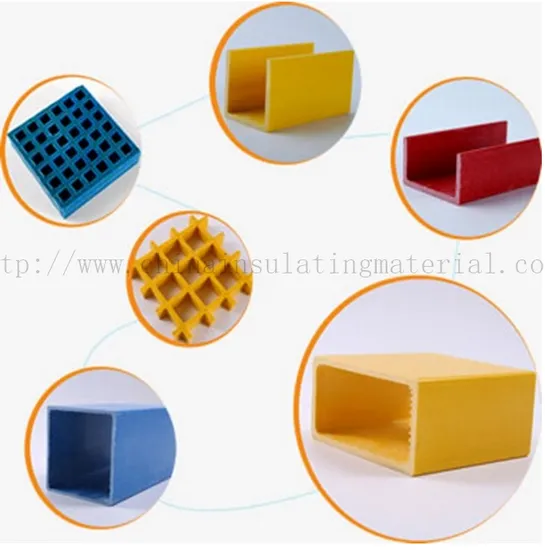

we can produce many different types of FRP pultrusion profile according to customer requirement and drawings.
FRP profile properties:
1. Corrosion resistance:
Products are resistant to the corrosion of gas and liquid of acids, alkalis, salt, and organic solvent so that they can avoid the problem of rusting steel and rotten wood.
2. Light weight and high intensity:
Fiberglass products are molded through the solidification of fiberglass and resin under high temperature. Its density is only one quarter of that of steel, and two-thirds of that of aluminum. But its intensity is ten times that of PVC, exceeding the aluminum products and reaching the level of common carbon steel. Due to its light weight, the products require less base support and possess the features of easy installation and low costs.
3. Inflaming Retarding:
The common oxygen index of common fiberglass products is above 32 (according to GB8924). By design, the flame spreading index of the high inflaming retarding ethylene products is below 10, which meets the requirements of engineering fire resistance for safety.
4. Collision Resistance and Fatigue Resistance:
Fiberglass products can resist collision and keep the original shape after repeated bending so as to be used as spring.
5. Age Resistance:
The normal longevity is more than 20 years. The research result shows that the intensity will still retain more than 85% after 20 years' exposure to the atmosphere.
6.Good appearance and Easy Maintenance:
The color slurry of fiberglass products is mixed with resin to make the color bright and difficult to fade. No painting is needed on the surface which is clean after washing.

Advantage
1 High strength, directly buried under the driveway, no need to add concrete cover ,
to speed up the construction progress.
2 Good toughness and resistance to external pressure and damage caused by foundation settlement.
3 Electrical insulation, good flame retardant, heat resistant performance, without defromation under 130 degrees high temperature for long use.
4 Corrosion resistance, long service life, resistance to acid, alkali, salt and organic solvents, its service life can be up to 50 years.
5 Inside sleek, not scratching the cable. Rubber seal socket joint, convenient installation, and adapt to heat bilges cold shrink.
6 Small proportion, light weight, can be carried by only one person, can be installed by only two persons, shortening the construction period and reducing the cost of installation. At the same time, this will avoid long exposure time and urban traffic problems.
7 No electric corrosion, non-magnetic. No like magnetic materials, such as steel tube,which will make cable heat and damage after producing eddy current.
8 Wide application scope. FRP cable protection pipe can be used as protection tube when cable need to be burried under ground,also can be used as cable cross the bridges or rivers. It adopts complete set of tube pillow combination and constitute multilayer pipe line ways.
FRP pipe application
can meet the specific requirements of users, and could be used in muddy soft soil area, collapsible loess areas, lakes area and high chemical corrosive medium area,etc. It adopts complete set of tube pillow combination and constitute multilayer pipe line ways. It can also be the protecting tube when cable cross the bridge or rivers.
1 Urban power grid construction and renovation project.
2 City municipal renovation project.
3 The civil aviation airport construction.
4 Industrial park, village construction.
5 Traffic road and bridge engineering construction
Note
: The marking *
listed in the specification in the table1-2 should be produced after signing the contract
and MOQ should not be less than 1000m
If you can't find the suitable specification in the form. Please inform us.
We can
manufacture
acording to your request.
General Specifications:

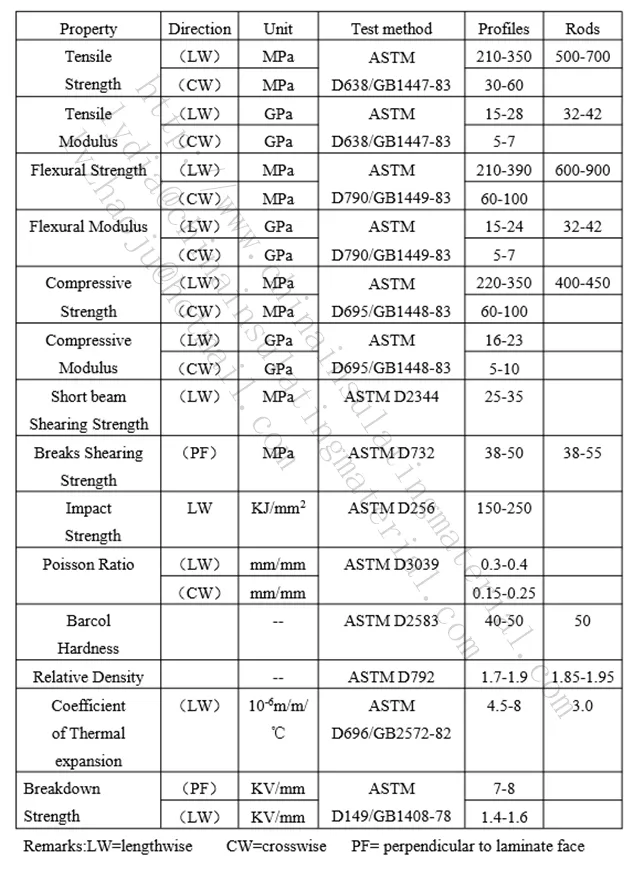

Performance Table:

1. Q:
Are you Trading Company or Manufacturing Factory?
A:
We are a
manufacturer& trading company, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q:
I am interested in your products, could I
get sample for free?
We can supply a
few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
3. Q:
How about the Delivery time?
10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a
20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!
4. Q:
How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
5. Q:
What is about the payment terms.
Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.
6. Q:
Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design, we will offer you a
reasonable price ASAP.
Packaging &
Delivery
Packaging Details:
Packed by bubble membrane, carton, pallet, or according to customer requirement.
Delivery Time:10-15 days
