基本信息产品详情
基本信息
型号(NO.) | KA110 |
磁结构 | 永久磁铁 |
功能 | 驾驶 |
结构 | 旋转极型(电枢固定) |
极数 | 10 |
通风 | 保护类型 |
认证 | CCC |
品牌 | Knd |
适配驱动器工作电压(伏特) | 220 |
绝缘等级 | F |
保护等级 | IP67 |
安装类型 | 法兰安装 |
无刹车 | 163 |
带刹车 | 194 |
交通包裹 | 纸箱 |
规格 | 5.5公斤 |
商标 | KND |
起源 | 北京 |
生产能力 | 五万 |
包装大小 | 33.50厘米 * 24.00厘米 * 20.50厘米 |
包装总重量 | 7 千克 |
包装尺寸 | 33.50厘米乘以24.00厘米乘以20.50厘米 |
包装总重量 | 7 千克 |
产品详情
Product Description
Preview
KND brand was founded in Beijing in 1993, mainly engaged in CNC system and industrial automation product research and development, production, sales and service. After nearly 30 years of development, KND
has a series of products in six categories, including CNC system, robot controller, pan-automation controller, feed drive and motor, spindle drive and motor, and industrial Internet, which meet the application needs of CNC lathes, CNC milling machines, machining centers, grinding machines and other tool and equipment industries and industrial robots, truss robots, workshop networking, data acquisition and analysis, etc., providing a sufficient range of choices for different users.
has a series of products in six categories, including CNC system, robot controller, pan-automation controller, feed drive and motor, spindle drive and motor, and industrial Internet, which meet the application needs of CNC lathes, CNC milling machines, machining centers, grinding machines and other tool and equipment industries and industrial robots, truss robots, workshop networking, data acquisition and analysis, etc., providing a sufficient range of choices for different users.
Preview

Preview
>·Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
>·Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
>·On Your Need
We can modify standard products or customize them to meet your specific needs.
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
>·Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
>·On Your Need
We can modify standard products or customize them to meet your specific needs.
Preview

Preview

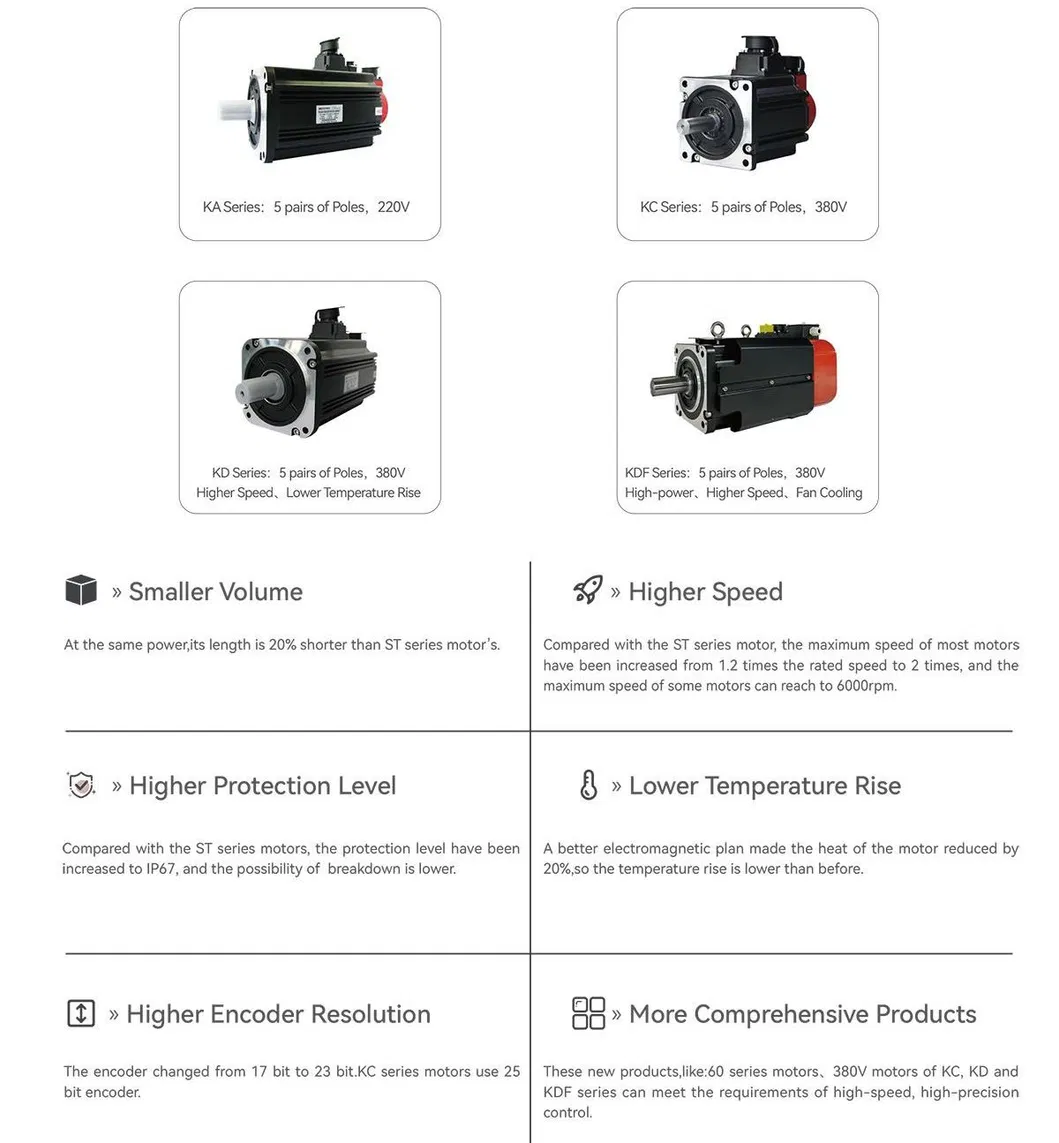

Motor Features
Five pairs of poles, smaller volume (80% of the volume of the original 4 pairs of poles ST series motor)
Equipped with high resolution encoder (23-bit absolute encoder)
Maximum torque 300%, stronger overload capacity
The protection level is increased to IP67
The vibration level is raised to A level
Motor heating is reduced by 20%
380V motor, rated speed improved
Five pairs of poles, smaller volume (80% of the volume of the original 4 pairs of poles ST series motor)
Equipped with high resolution encoder (23-bit absolute encoder)
Maximum torque 300%, stronger overload capacity
The protection level is increased to IP67
The vibration level is raised to A level
Motor heating is reduced by 20%
380V motor, rated speed improved
Preview

Preview

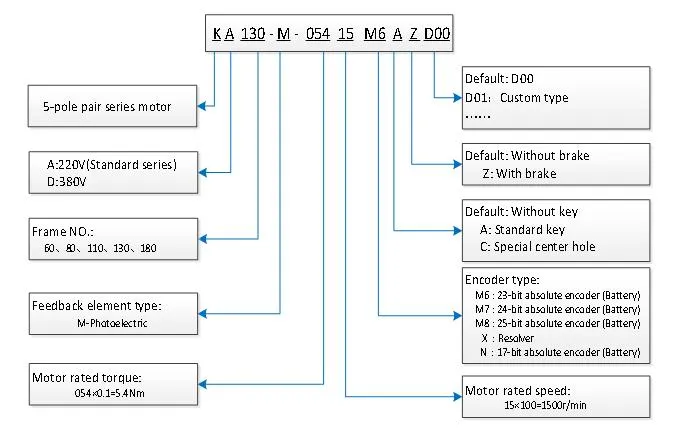

Model Explanation
Preview

Preview

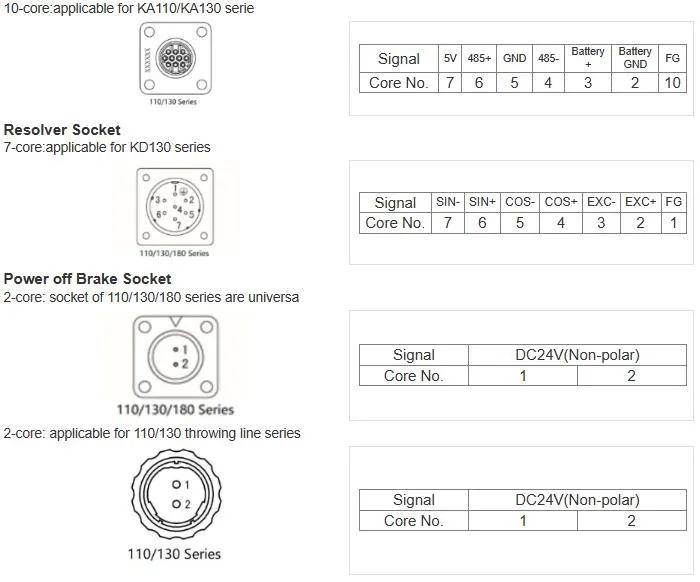

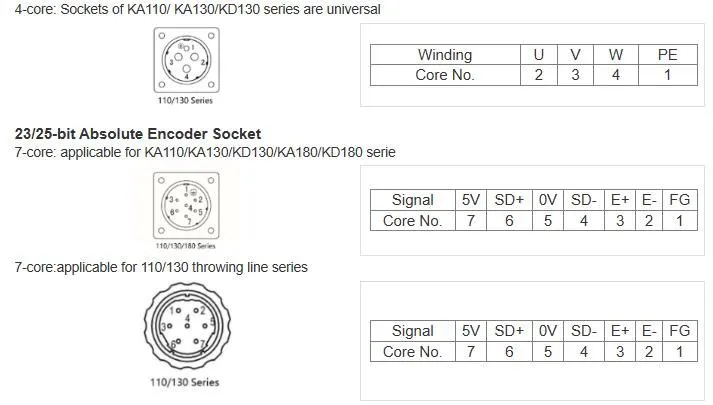

Wiring
Power Socket
Power Socket
Preview

Preview
17-bit
Absolute Encoder Socket
Absolute Encoder Socket
Preview

Preview
Specification & Dimension
Preview

Preview

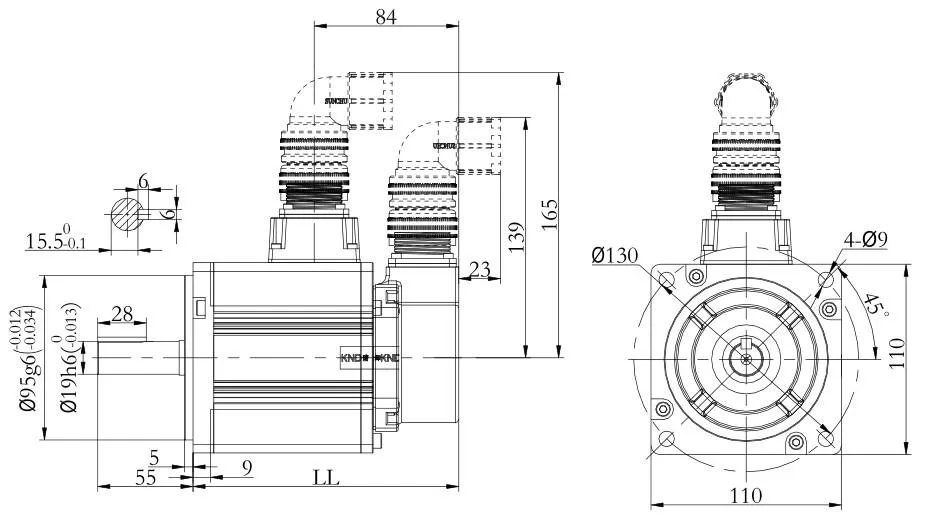

Fig.KA110
series servo motors'
mounting dimensions(unit:mm)
*Note: We can manufacture products according to customer's requirements.

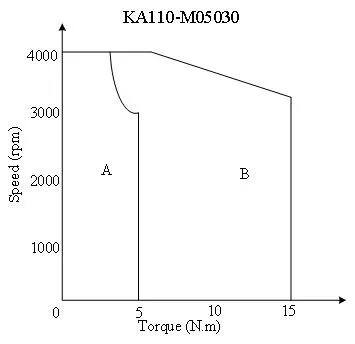

Motor characteristic curve
A:Continuous work area;B:Short-term work area
series servo motors'
mounting dimensions(unit:mm)
*Note: We can manufacture products according to customer's requirements.
Motor characteristic curve
A:Continuous work area;B:Short-term work area
