This series is suitable to operate in such an indoor environment with an altitude not more than 1,000m and a coolant temperature not more than 40ºC, with less dust, and without vapour, acid, alkali or corrosive/explosive gas. The rated voltage is 6000V for this series, and we can design with 3000V and 10000Vaccording to the requirements from the customers. Its allowable voltage deviation range is +5%, rated supply frequency 50Hz and rated power factor 0.9 (lead).The motor has a cylindrical shaft extension, whose rotation direction shall be consistent with that on the nameplate, ordinarily anticlockwise when seen from the end of collecting ring, and also, we can produce the ones with a clockwise rotation. When a coupling is used to connect the motor and a mill, the motor's shaft extension shall not bear extra radial or axial force. 50hz and rated power factor 0.9 (lead).The series adopts a stationary controllable silicon exciter.It is allowed to be directly started at full voltage, when such starting mode is not allowed due to the capacity of the power grid of one user, it can be started at reduced voltage, at this time, the decrease of its starting current is in direct proportion to its terminal voltage while the decrease of starting torque is in direction to the square of its terminal voltage.Stator leads: 6 leads, respectively U1, V1, W1, U2, V2 & W2, all of which are led out by a high-voltage cabtyre cable from the terminal clamp at the bottom of the frame, and can be led out by a junction box customized according to customer requirements.Pedestal bearing:
ring-oiled or combined bearings adopted, installed between baseboards and underlaid with insulating padding plates to prevent shaft current.Pedestal bearing:

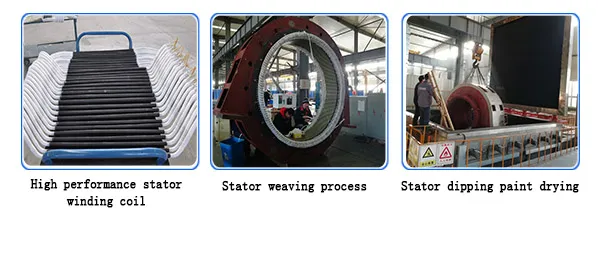

ring-oiled or combined bearings adopted, installed between baseboards and underlaid with insulating padding plates to prevent shaft current.Frame: welded by steel plates, leading-out terminal at the bottom.Stator: its iron core is made of piled fanning strips stamped with 0.5mm low-loss silicon steel plate, and is separated by radial duct spacer; stator windings adopt formed double-layer short-pitched coils with an insulation class of B or F (temperature rise assessed according to class B), that are helpful to prolong service life; and because winding terminals have been fixed and strapped reliably and processed with solvent-free VPI (vacuum pressure impregnation) and have gone through many times of tests for turn-to-turn impulse withstand voltage and withstand voltage to ground, the motor has excellent and reliable insulation performance, high mechanical strength and strong moisture proofing.Rotor: its magnetic poles made of stamped steel plates which are installed at rotor field yoke together with pole coils with an insulation class of B or F. When a customer wants to adopt a pneumatic clutch, we can design a revolving shaft or a shaft with punched holes according to customer requirements.The series is a kind of large-sized 3-phase AC synchronous motor mainly used to drive mills in mines, including grate ball mill, rod mill and coal mill.

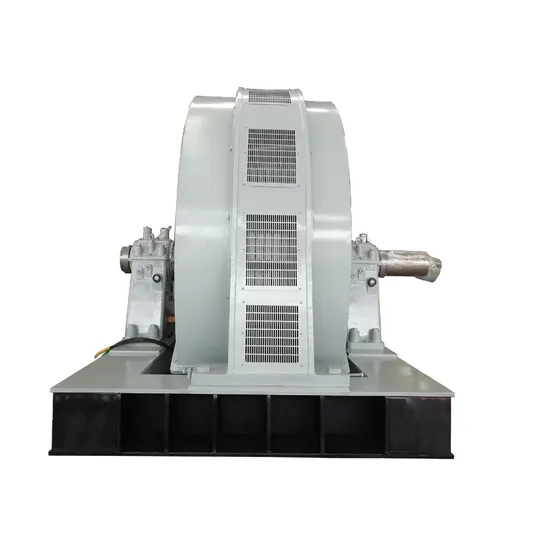

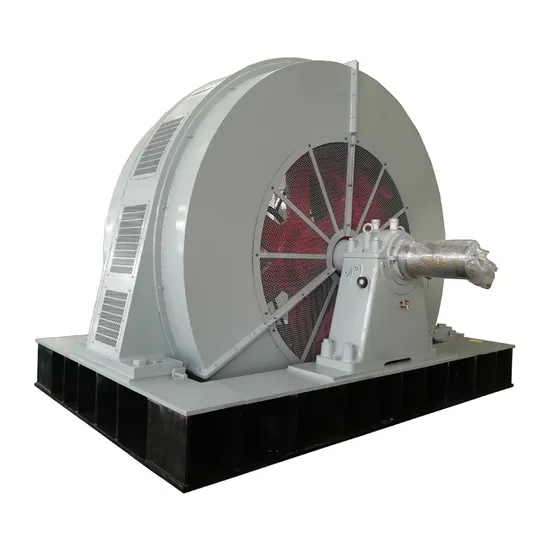

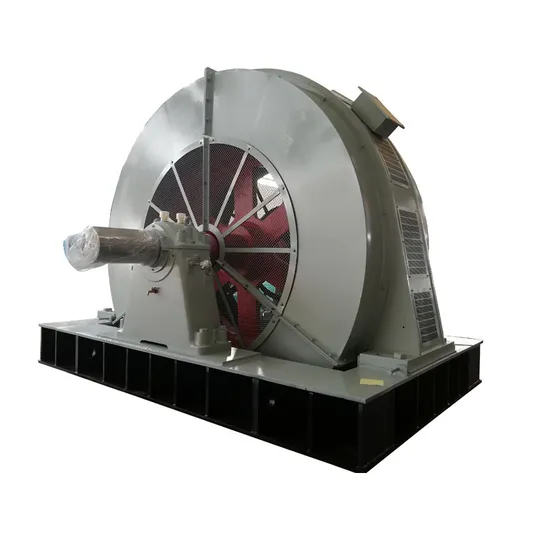

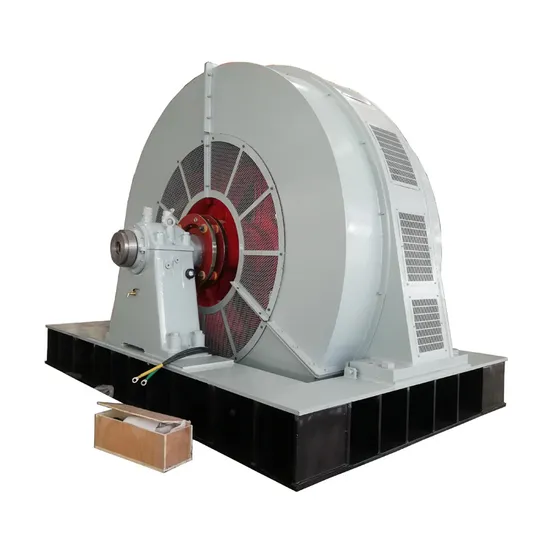

Motor Name: TDMK Mine High Voltage Synchronous Motor
Power range: 300KW-5000KW
Speed range: 150--500 r/min
Rated voltage: 6000V/10000V/13800V (can also be made into other grade voltages)
Rated frequency: 50HZ/60HZ
Power factor: 0.9
Insulation class: F
Temperature rise level: B
Maximum torque multiple: 2.0
Protection level: IP00/IP21/IP23
Installation method: IM7311
Working system: S1
Excitation mode: static thyristor, other excitation methods can also be used
Connection: Y
Cooling method: IC01. Other forms of motors can also be produced according to user requirements, such as duct ventilation and air and air cooling.
Mine synchronous motor use elevation: no more than 1000m, the motor can be installed according to the requirements of temperature measurement, heater, impact protection and other devices. The allowable voltage has a deviation range of ± 5%, because the power factor is ahead of the grid, which has a certain compensation effect on the grid. This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

TDMK mining synchronous motors have high starting torque and high out-of-step torque. The motor has an advanced power factor (which improves grid power factor), high efficiency, high stability and high overload capability, and has the performance that the speed does not change with load.

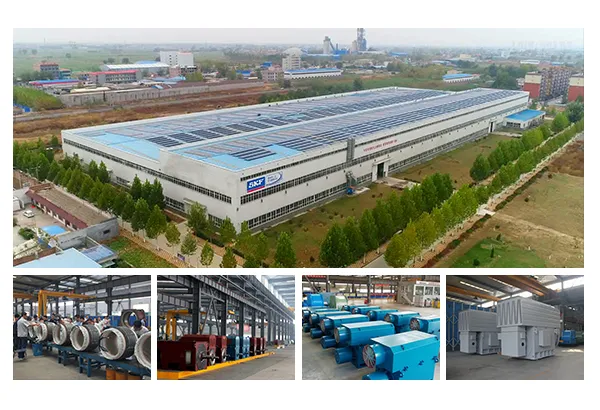

ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.
