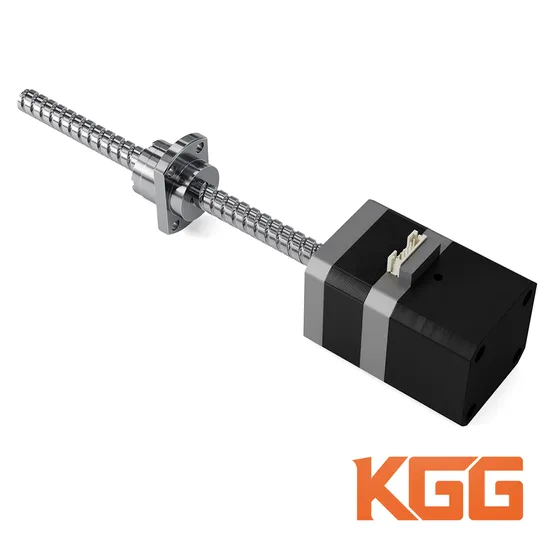

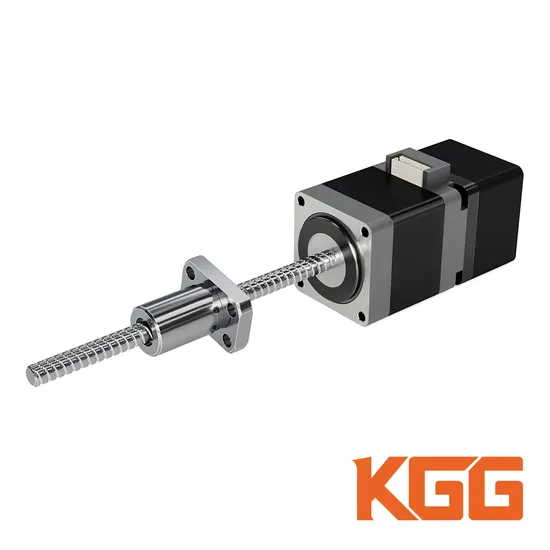

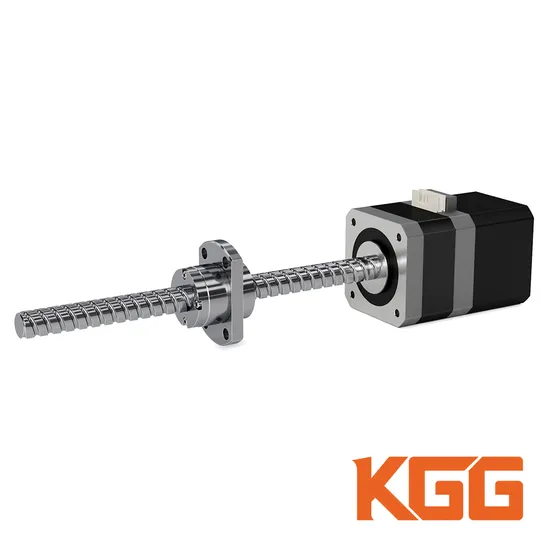

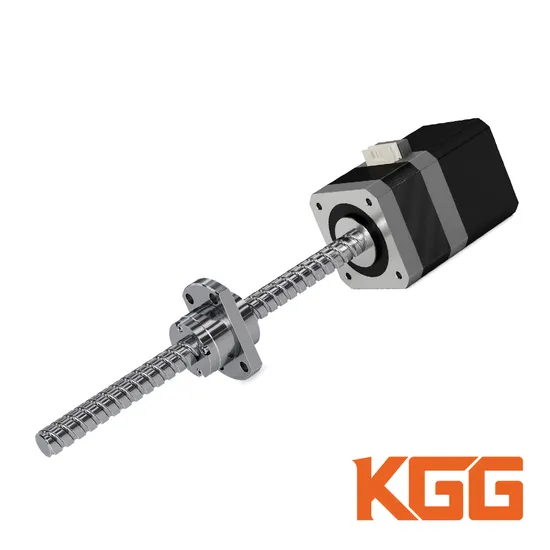

FEATURES OF SCREW MOTOR DIRECT CONNECTIONTransmission upgrade, simple structureA 2-phase stepping motor is directly installed on the shaft end of the ball screw, and the ball screw axis is used as the ideal structure of the motor rotation
axis.Compact and compactTwo-phase stepping motor and rolled ball screw integrated product, through the integration of the motor shaft and the ball screw shaft, no coupling is
needed, saving the size of the long side direction.High precision, high stability, excellent cost performanceThe combination of rolling ball screw and 2-phase stepping motor saves the coupling, and the integrated structure reduces the combined accuracy error, and
can make the repeated positioning accuracy ± 0.001mm.Multiple shaft ends can be customizedProvide a variety of shaft end shapes and stroke specifications, and non-standard products can be customized according to customer requirements.
Application:
Medical industry,Lithium battery industry,Solar photovoltaic industry,Semi conductor Industry,General industry machinery,Machine tool,Parking system,High-speed rail and aviation transportation equipment,3C industry etc
Rich products, complete specificationsThe motor specifications are 20, 28, 35, 42, 57 stepping motors, which can be matched with ball screws and resin sliding screws.

Motor Specification
Product Index

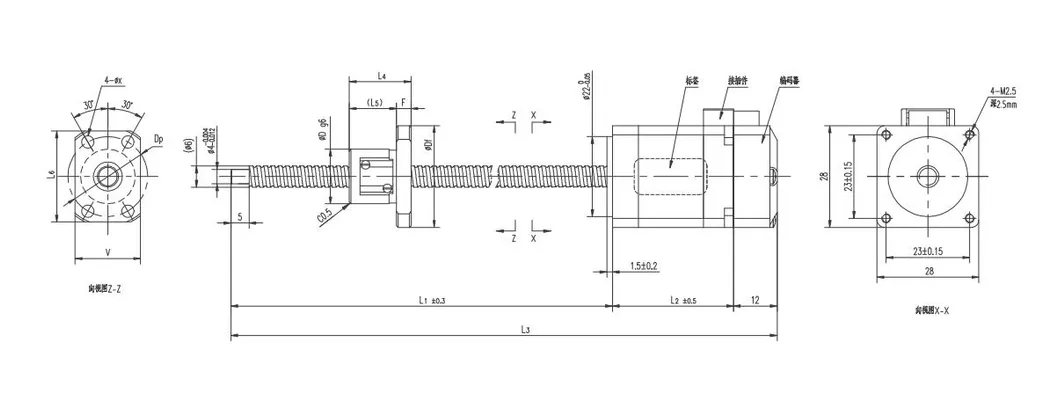

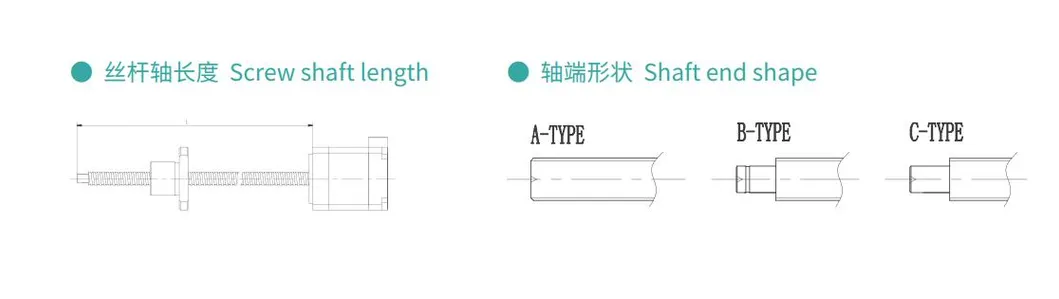

Technical Drawing

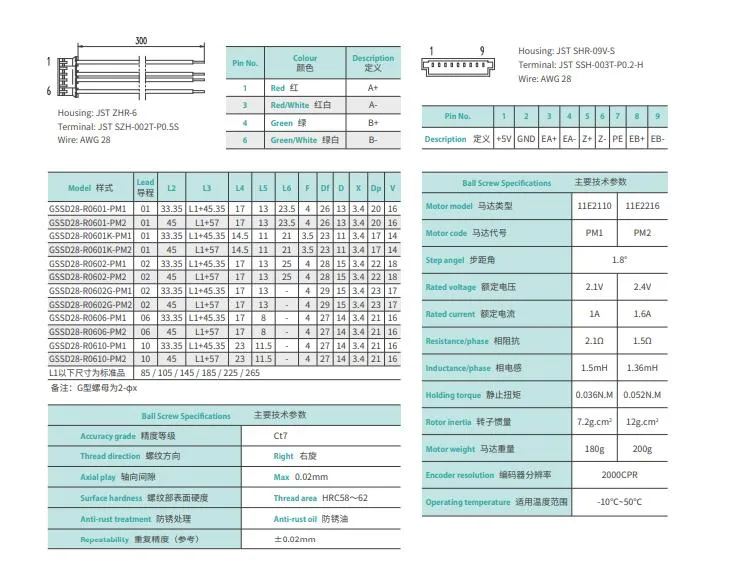

Specification List

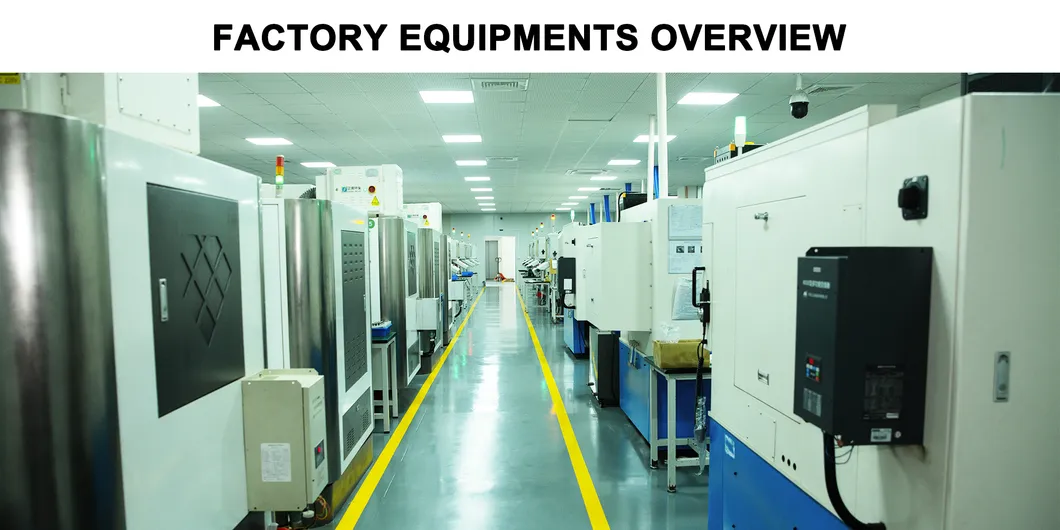

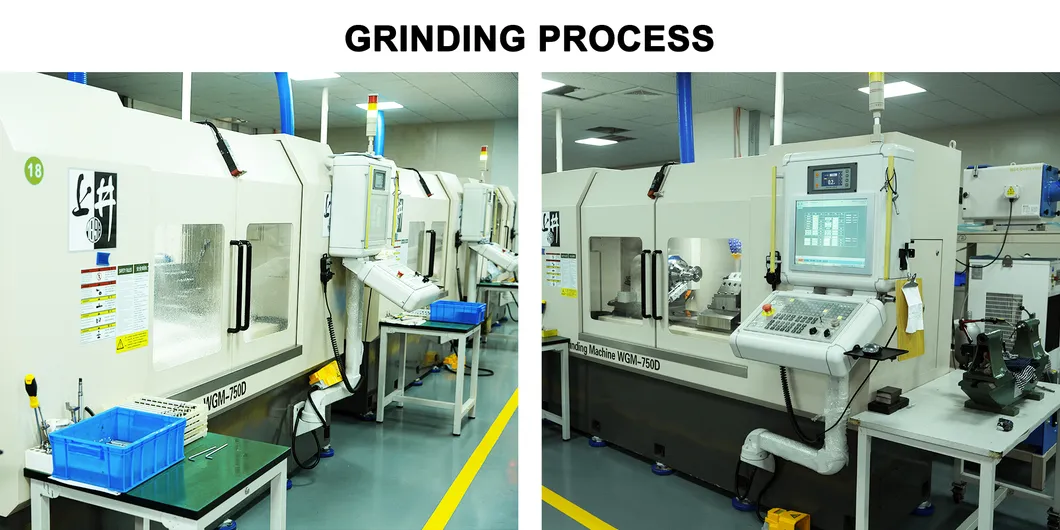

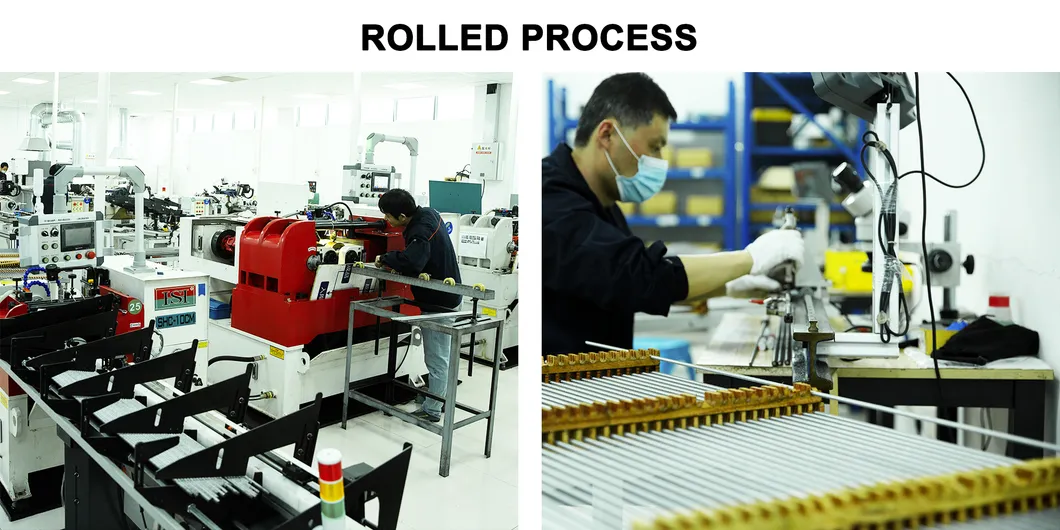

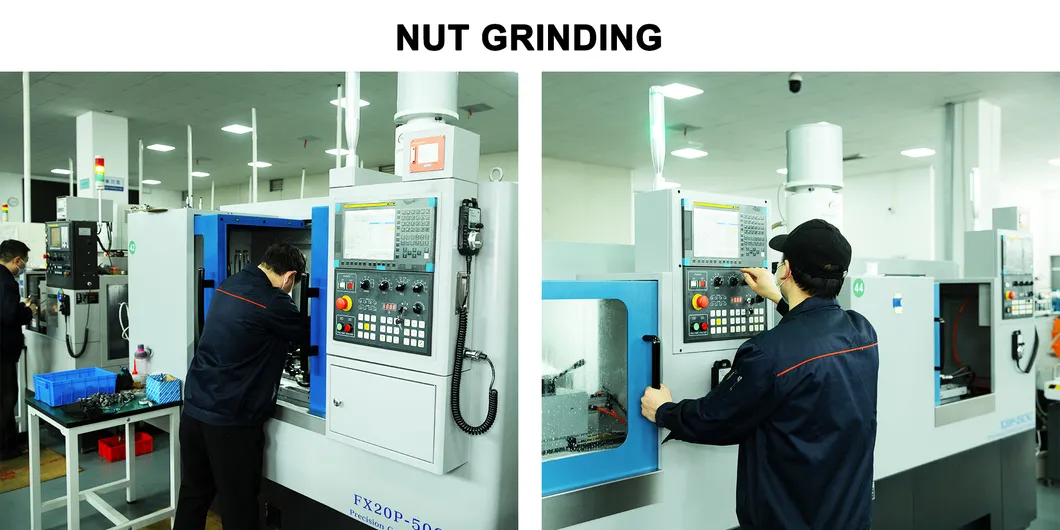

FACTORY DETAILED PROCESSING PHOTOS

HIGH QUALITY CONTROL SYSTEM

1. Why choose KGG China?
Over the past 14 years, KGG has always insisted that "products and services" start from Japanese industry standards,taking Taiwan standards as the bottom line, actively invest in the development of new transmission components and self-experiment and test. With the service tenet of "exceeding customer expectations", establish a "trusted" partnership.
2. What is your main products ?
We are a leading manufacturer and distributor of linear motion components in China. Especially miniature size of Ball Screws and Linear Actuators and linear motion guideways.Our brand "KGG" stands for " Know-how," " Great Quality," and " Good value"

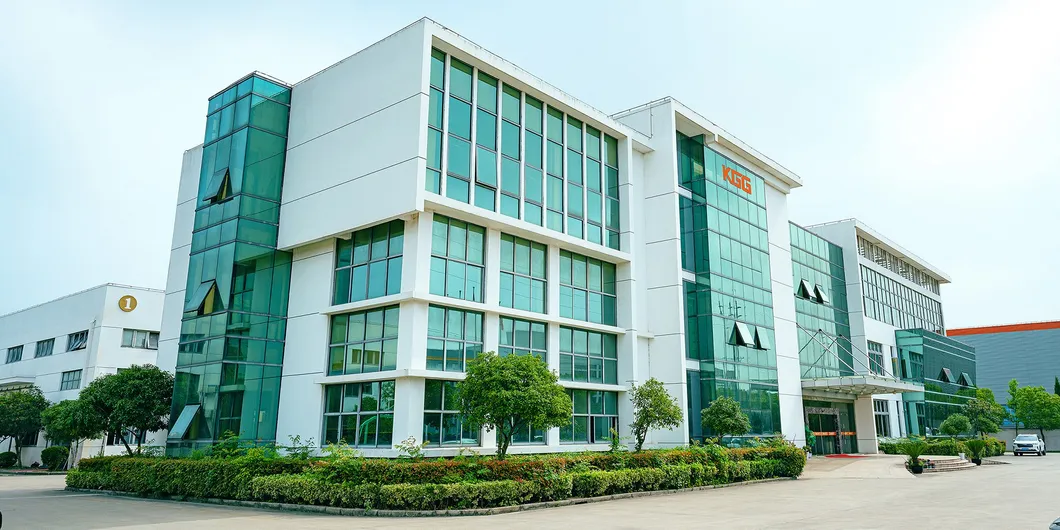

and our factory is located in the most advanced
city in China: Shanghai
with the best equipment and sophisticated technology, completely strict quality control system. Our aim is to supply world leader class linear motion components but with most reasonable price in the world.
3. How to Custom-made (OEM/ODM)?
If you have a product drawing or a sample, please send to us, and we can custom-made the as your required. We will also
provide our professional advices of the products to make the design to be more realized & maximize the performance.
4. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.
5. How can I get a sample to check the quality?
After confirmation of our quoted price, you can place the sample order. The sample will be started after you sign back our detailed technical file.
6.What's your payment terms?
Our payment terms is 30% deposit,balance 70% before shipment.
