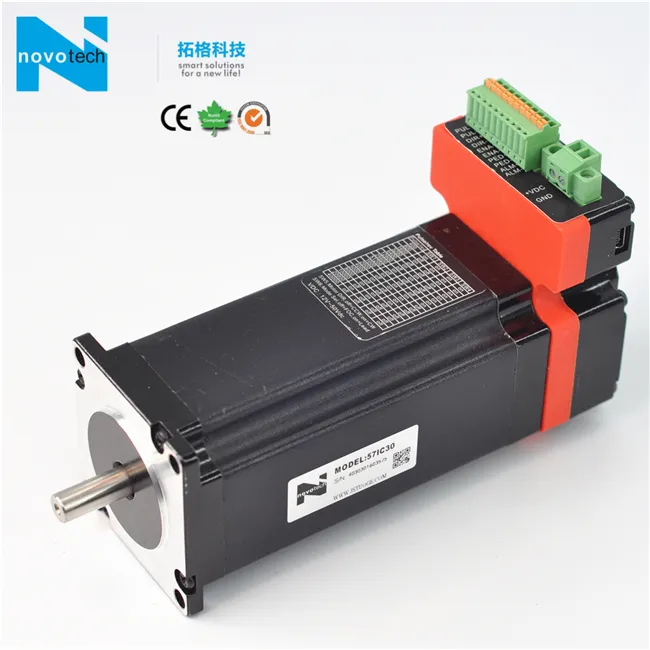

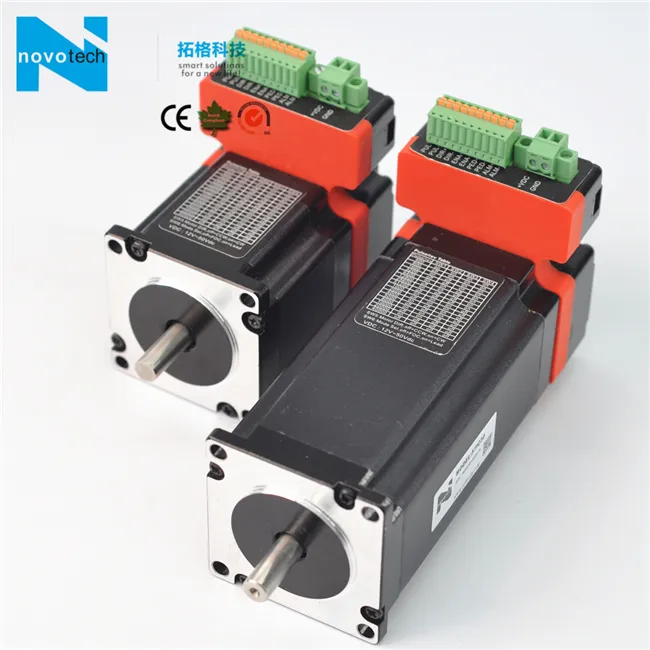

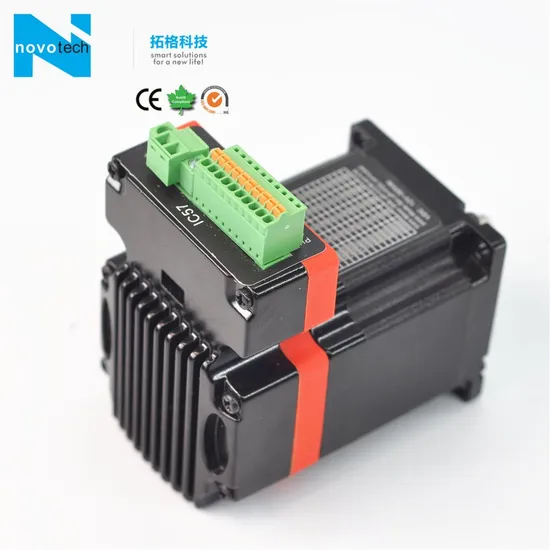

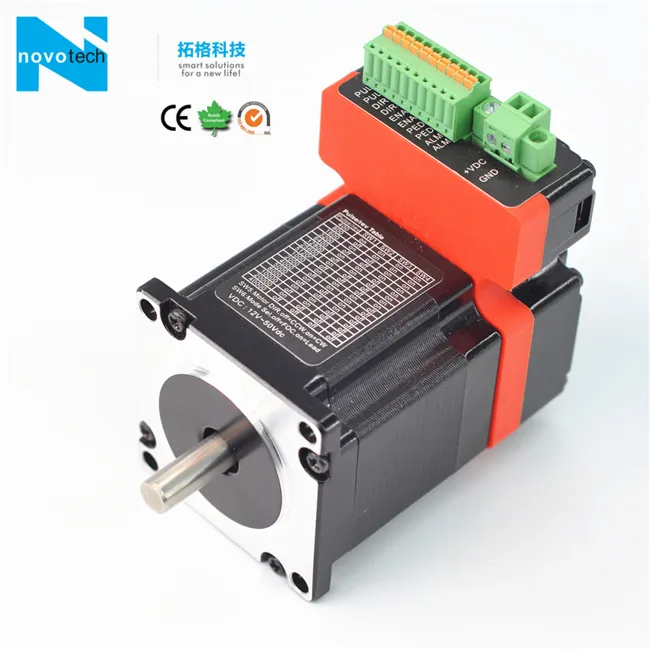

Composite Motor & Driver For Packaging Equipment

57IC09/57IC22/57IC30 Features
1.Operating voltage: DC input voltage 15VDC to 50VDC,recommend working voltage 36V
2.The max continuous output current is 8.2A, the max peak current is 13A (advanced overload capacity of step servo)
3.Using FOC magnetic positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
4.Using advanced variable current technology and frequency conversion technology, effectively reducing heat and vibration of motor and driver
5.The number of pulses per cycle (subdivision) can be set by the debug software or the dial switch setting,the max subdivision no.is 51200.6.The max pulse frequency of control instruction is 500KHz (factory default is 200KHz)
7.Pulse, direction and enable signal input interface level is 4.5 to 28V compatible
8.Performance: smooth speed, small overshoot ,good output strength in medium and high speed, small tracking error, low heat of motor and driver
Driver Model And Selection Guide
Dialing Switch Settings
Note : All above is normally used, and we can customize according to your request or choose the
suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area.
Application
Suitable for all kinds of small and medium-sized automation equipments and instruments. Such as: laser equipment, medical equipment, 3D printer, small and medium-sized engraving machine, electronic processing equipment, automatic crawling equipment, special CNC machine tool, packaging equipment and robot. It is especially useful for users who expect low noise and high speed applications.
Packaging and shipping
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
Our service
1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on
the quantities you need.3.Warrantity period : 18 months and Life-long maintenance service for the product.4.We accept products customize.

choose
2.Before we send out the goods,we check them more than three times
.
