基本信息
型号编号 | PMC007B6SEP2I/M |
激发模式 | HB-Hybrid |
功能 | 控制 驾驶 |
磁极数 | 2 |
操作模式 | 两阶段 |
类型 | 磁电 |
认证 | CE RoHS |
品牌 | 普苏罗博特 |
电压 | 12至48伏 |
微步进 | 可调至0/256 |
编码器类型 | 可选增量/绝对值 |
温度范围 | 零下40摄氏度至80摄氏度 |
Host | PC |
支持马达 | 两相步进电机 |
增量编码器分辨率 | 200-4000次/分(可选项) |
最大脉冲频率 | 20万 |
开发环境 | Vc |
编码器分辨率 | 12位多圈绝对值 |
交流 | Modbus |
波特率 | 5K-1m波特率/9.6K-115.2K波特率可调 |
模式切换 | 指令集转换指定功能 |
Io函数 | 数字输入/输出、模拟输入等等 |
扭矩 | 1.6纳米到2.6纳米 |
交通总包 | 纤维纸板箱 |

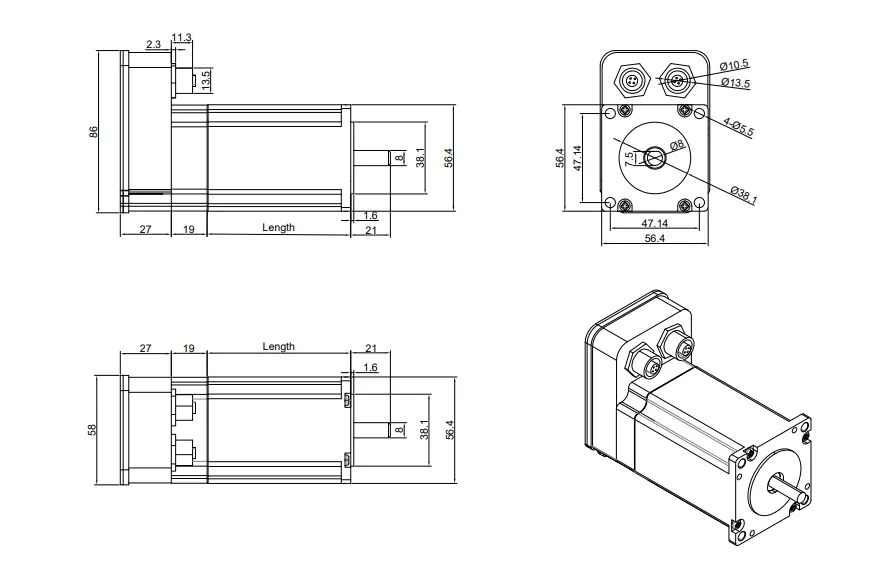

规格 | 57乘以57 |
商标 | 普西罗伯特 |
起源 | 中国 |
商品编码 | 8501109990 |
生产能力 | 年产量 5 万个 |
包装尺寸 | 29.00厘米×17.00厘米×19.00厘米 |
包装总重量 | 2.000kg 千克 |
包装尺寸 | 29.00厘米×17.00厘米×19.00厘米 |
包装总重量 | 2.000kg 千克 |
产品详情

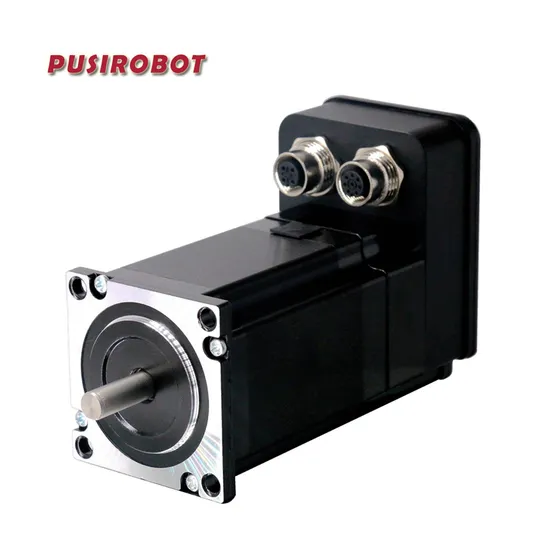

Product Description
Preview
1. Power supply range 12~48v DC, 0~256 micro stepping adjustable.
2. Output current 0.3A~6A, command can adjust phase current.
3. S curve acceleration and deceleration automatic control.
4. Support position mode, speed mode, PV mode, PP mode, PVT mode, analog positioning, synchronous positioning mode, low speed mute and other modes.
5. Support 200-4000CPR incremental encoder,
multi-turn absolute encoder.
6. Electromagnetic brake control function.
7. Sensorless stall detection.
8. User-defined program programming and offline automatic execution.9. Automatic over temperature, over current, under voltage, over voltage protection.10. PVT interpolation, Temp.Range -40~80ºC.11. IP65 waterproof and dustproof, plug and play.
2. Output current 0.3A~6A, command can adjust phase current.
3. S curve acceleration and deceleration automatic control.
4. Support position mode, speed mode, PV mode, PP mode, PVT mode, analog positioning, synchronous positioning mode, low speed mute and other modes.
5. Support 200-4000CPR incremental encoder,
multi-turn absolute encoder.
6. Electromagnetic brake control function.
7. Sensorless stall detection.
8. User-defined program programming and offline automatic execution.9. Automatic over temperature, over current, under voltage, over voltage protection.10. PVT interpolation, Temp.Range -40~80ºC.11. IP65 waterproof and dustproof, plug and play.
Preview

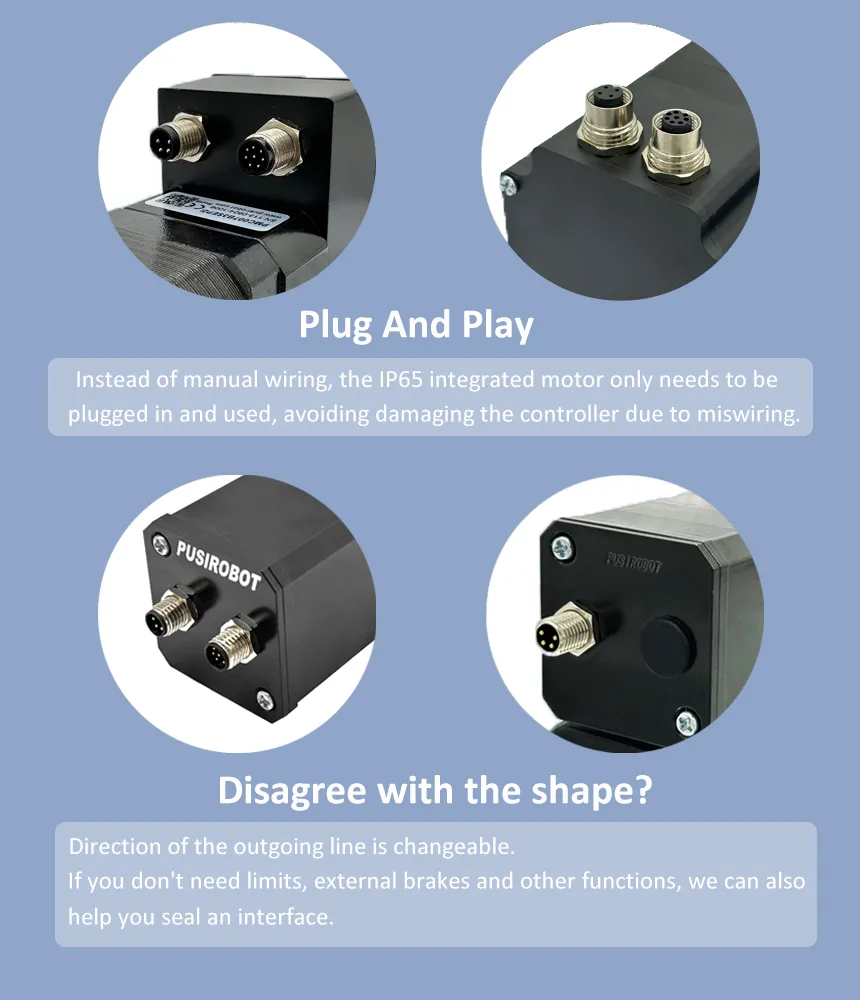

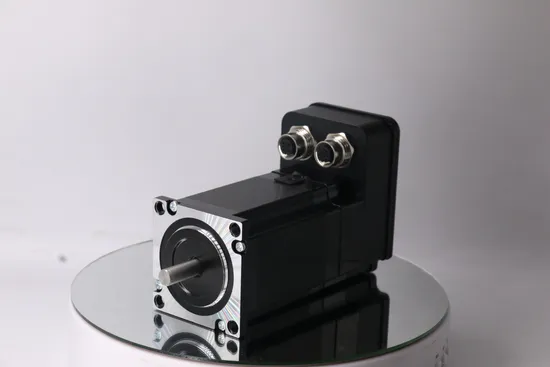

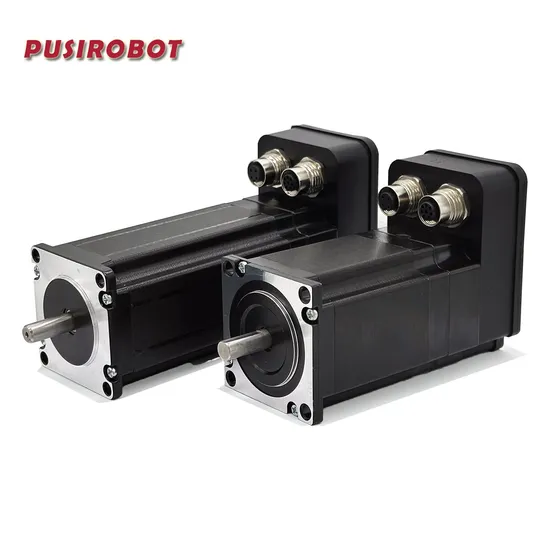

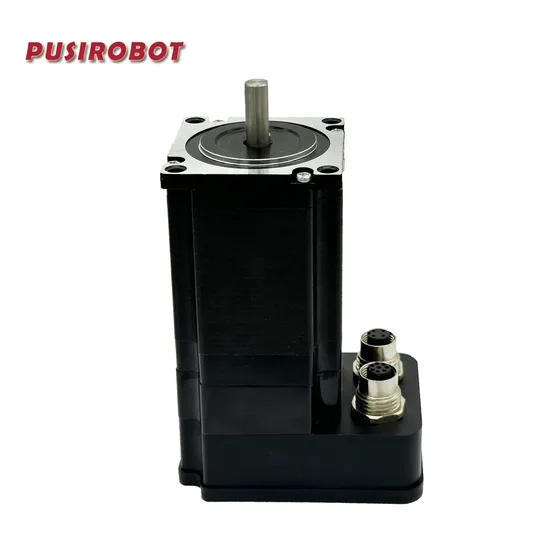

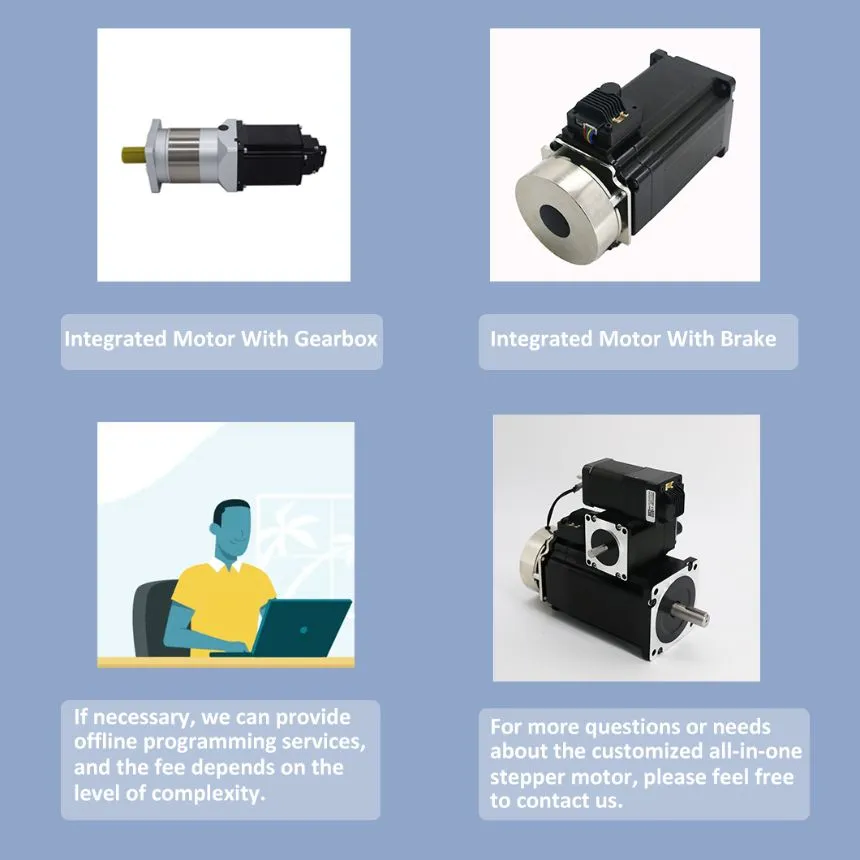

Detailed Photos
Preview

Preview

Preview

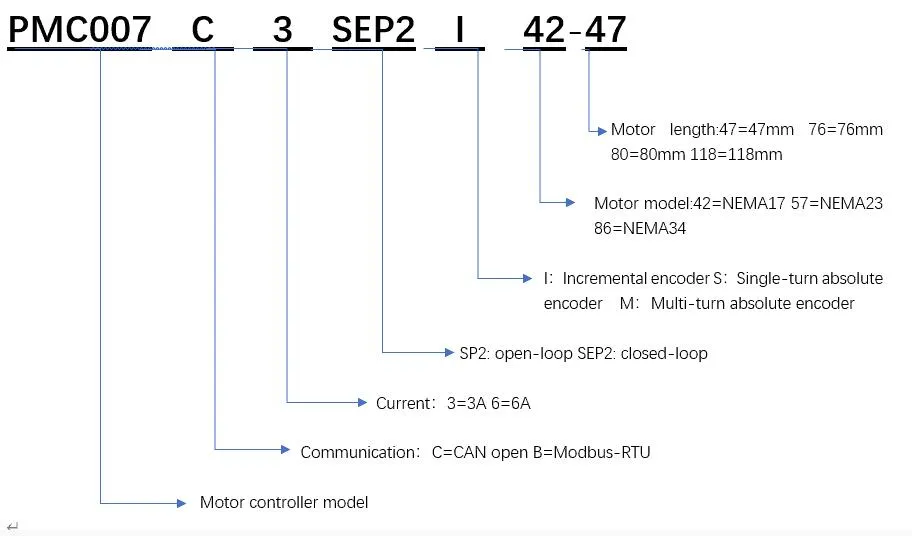

Product Parameters
Preview

Preview

Preview

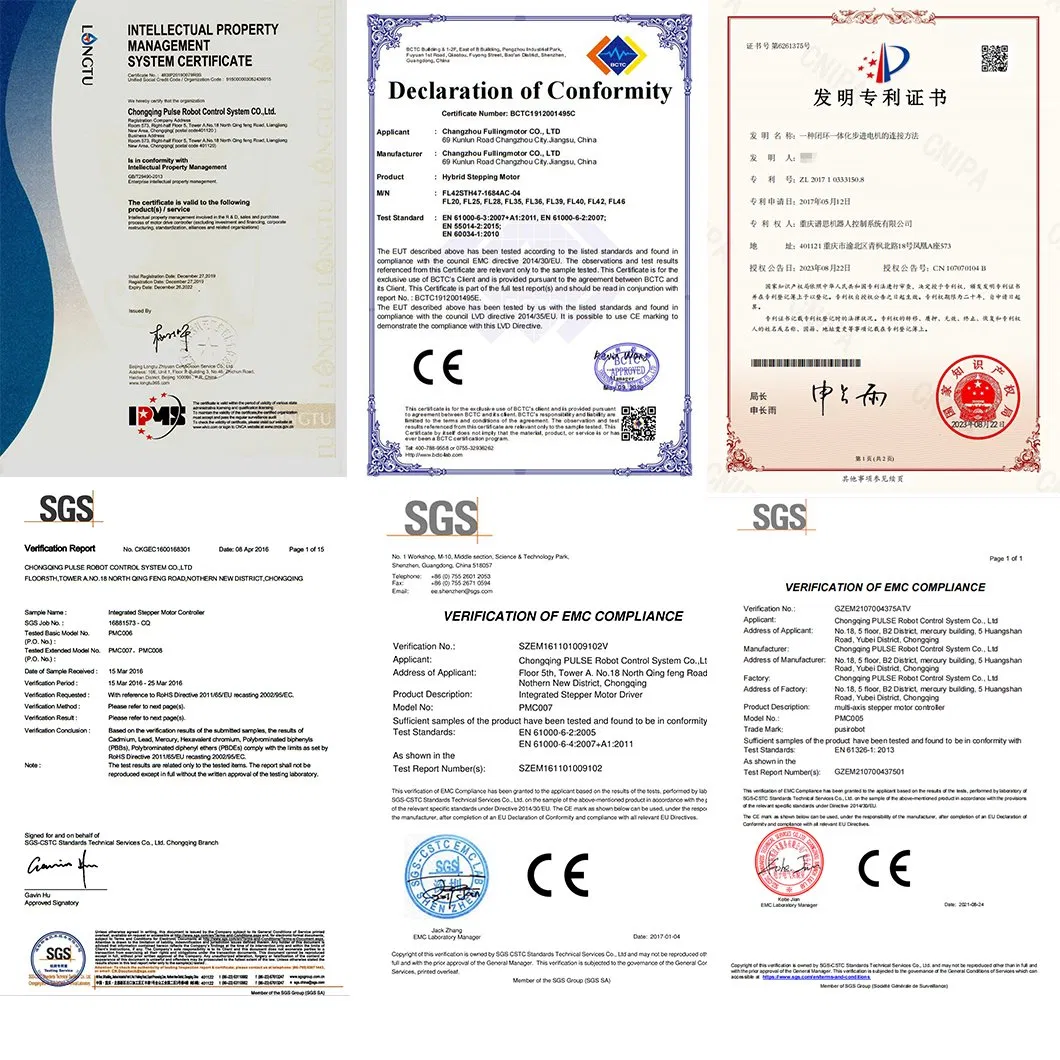

Certifications
Preview

Preview

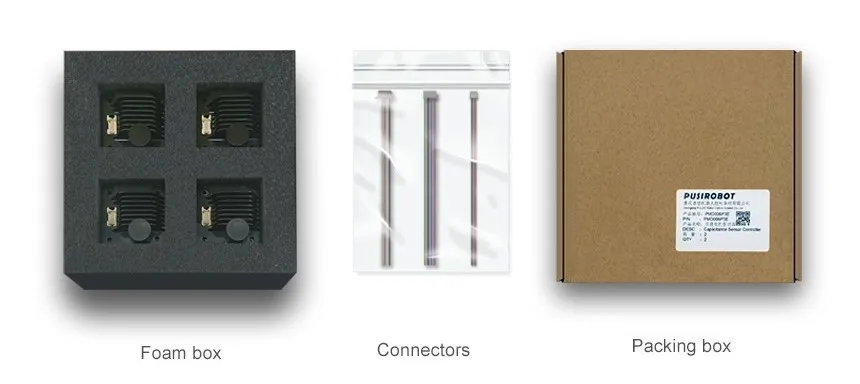

Packaging & Shipping
Preview

Preview

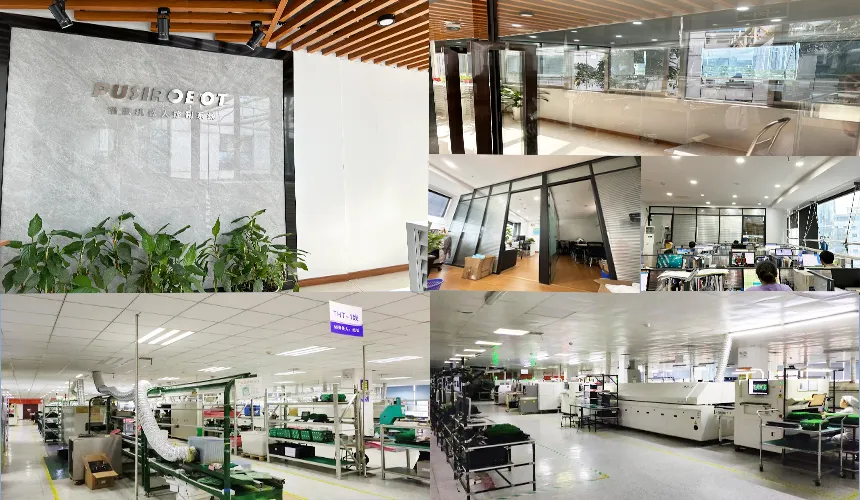

Company Profile
Preview
As an innovative enterprise, we will move towards new growth areas."Quality and Innovation" is the statement of PULSE. Our business philosophy is "providing goods and services that satisfy customers". The automation equipment that the customer owns is in endless variety. The size, weight, unit time processing, moving speed and acceleration, and control methods are different because of the difference in customer's industry, manufacturing and manufacturing processes. We develop intelligent controllers every year to meet the needs of various devices and equipment.The driver and controller developed by us can be controlled through RS485, CAN, EtherCat and other buses. It has the characteristics of simple programming and convenient control. Our products can meet the needs of the control system of various devices or equipment of the customers and have been certified by CE and ROHS. Our responsibilities are mainly to provide products and services that exceed our customers' expectations.We will continue to innovate and provide professional motor control for our customers. Please support us in the future.
Preview

Preview
After Sales Service
We offer a one-year warranty and a lifetime after-sales service.After your purchase, we will send you a user manual and debugging tools.You can email us anytime if you have any questions about wiring, debugging, limit setting, command sets or offline programs.You can also make a video call with us via WhatsApp to quickly solve your problem.We will do our best to help you, wish you a happy purchase!
We offer a one-year warranty and a lifetime after-sales service.After your purchase, we will send you a user manual and debugging tools.You can email us anytime if you have any questions about wiring, debugging, limit setting, command sets or offline programs.You can also make a video call with us via WhatsApp to quickly solve your problem.We will do our best to help you, wish you a happy purchase!
Preview
FAQ
Preview
Q:
What is your advantage?
A:
Our controller is integrated with drive and control, small, powerful, and space-saving.Q:
What is the difference between driver and controller?
A:
The normal driver can only receive pulses,
you also need to buy a controller to send pulses to it.Q:
Do I need an adapter for your controller?
A:
Yes, you need a Canopen bus or Modbus adapter. We recommend our PCAN-mini can adapter, it can be
an alternative to the original Peak adapter.
Q:
What kind of Canbus adapters do you support?
A: CANable & PCAN adapter
What is your advantage?
A:
Our controller is integrated with drive and control, small, powerful, and space-saving.Q:
What is the difference between driver and controller?
A:
The normal driver can only receive pulses,
you also need to buy a controller to send pulses to it.Q:
Do I need an adapter for your controller?
A:
Yes, you need a Canopen bus or Modbus adapter. We recommend our PCAN-mini can adapter, it can be
an alternative to the original Peak adapter.
Q:
What kind of Canbus adapters do you support?
A: CANable & PCAN adapter
