基本信息
| 型号/编号 | B3、B5、B14、B34、B35 |
| 功能 | 驾驶 |
| 频率 | 20赫兹至80赫兹 |
| 类型 | 异步电动机 |
| 阶段 | 三相/单相 |
| 标准 | NEMA和IEC |
| 材料 | 304不锈钢 |
| 防护等级 | IP55 |
| 名字 | 不锈钢电动机 |
| 安装 | B3、B5、B14、B34、B35 |
| IEC帧 | 63, 71, 80, 90, 100, 112, 132 |
| NEMA框架 | 56c，182tc/184tc |
| 进气压力冲击 | 自然进气 |
| 活塞运动 | 旋转的 |
| 点火模式 | 电子点火 |
| 气缸数 | 单缸机 |
| 冷却缸 | 水冷 |
| 交通包 | 纸箱或按客户需求 |
| 规格 | CE，UL |
| 商标 | 桑德瑞姆 |
| 起源 | 上海 |
| 商品编码 | 8501 |
| 生产能力 | 每月一万元 |
产品详情
Product Description
Preview

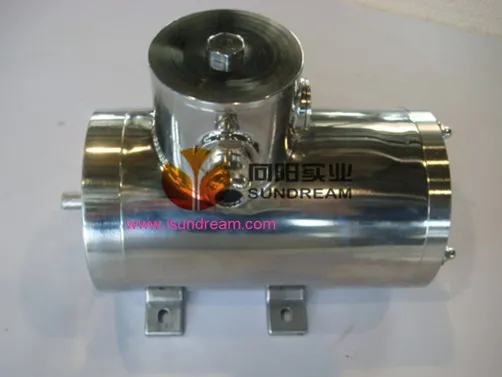

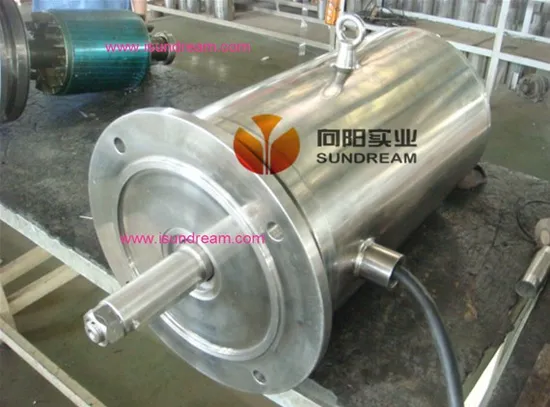

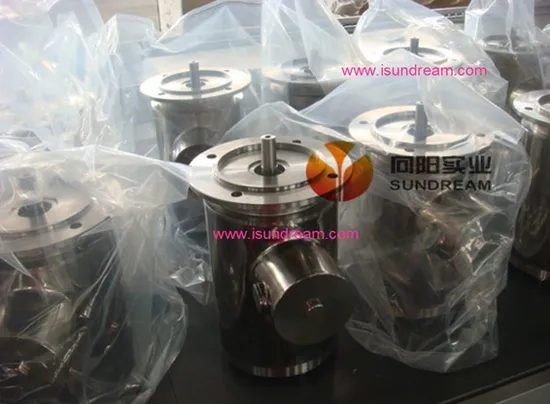

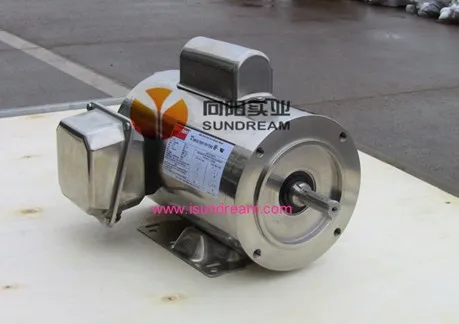

NEMA & IEC Stainless Steel Electric Motor
The AQUA-TECH series of stainless steel motor which have special features, performance and value, top notch feature make AQUA-TECH series stainless steel motor the best worldwide influence.
It includes NEMA standard stainless steel motor and IEC standard stainless steel motor which has per different manufactures standards.
Special features of stainless steel motor
One: Special advanced stator AQUA-TECH insulation system
1: Efficiency
A: NEMA stainless steel motor. Exceeds NEMA EPAC efficiency standards.
B: IEC standards motor: As per 60034-30-2008 Euro standard.
2: Variable speed capability: Related 20Hz to 80Hz capable.
3: Thermistors as standard: PTC style thermistors for early detection of excessive temperature rise.
4: Noise levels: DBA noise is the lowest in industry.
Two: Frame construction
1: Stainless steel Frame: High polished premium 304 material.
2: Welding technique: Precision Robotic TIG welded inside the frame without welds vestige outside.
3: Extra deep rabbet ted fits: Extra deep rabbetted for 100% concentricity and sealing(explosion proof tolerance. )
Three: End-shield construction
1: Stainless steel End shield: Precision machined from premium 304 stainless steel and end-shield is fitted by long bolts. It is easily to disassembly.
2: Housing: The housing which matched with convex bolt and stainless steel thread. Nice looking and easily disassembly.
3: Extra deep treatment: Special O type ring proprietary submersible O type ring construction on the end shields for double the protection against entry of water.
Four: Terminal box
1: Frame to conduit box: Epoxy encapsulated head entrance conduit box to positively keep chemicals and moisture from entering motor.
2: Conduit box cover: Conduit box cover with seals simply twists on or off for quick and easy installation and maintains.
3: Entrance connector: IP55 submersible style cable gland is provided as standard.
The AQUA-TECH series of stainless steel motor which have special features, performance and value, top notch feature make AQUA-TECH series stainless steel motor the best worldwide influence.
It includes NEMA standard stainless steel motor and IEC standard stainless steel motor which has per different manufactures standards.
Special features of stainless steel motor
One: Special advanced stator AQUA-TECH insulation system
1: Efficiency
A: NEMA stainless steel motor. Exceeds NEMA EPAC efficiency standards.
B: IEC standards motor: As per 60034-30-2008 Euro standard.
2: Variable speed capability: Related 20Hz to 80Hz capable.
3: Thermistors as standard: PTC style thermistors for early detection of excessive temperature rise.
4: Noise levels: DBA noise is the lowest in industry.
Two: Frame construction
1: Stainless steel Frame: High polished premium 304 material.
2: Welding technique: Precision Robotic TIG welded inside the frame without welds vestige outside.
3: Extra deep rabbet ted fits: Extra deep rabbetted for 100% concentricity and sealing(explosion proof tolerance. )
Three: End-shield construction
1: Stainless steel End shield: Precision machined from premium 304 stainless steel and end-shield is fitted by long bolts. It is easily to disassembly.
2: Housing: The housing which matched with convex bolt and stainless steel thread. Nice looking and easily disassembly.
3: Extra deep treatment: Special O type ring proprietary submersible O type ring construction on the end shields for double the protection against entry of water.
Four: Terminal box
1: Frame to conduit box: Epoxy encapsulated head entrance conduit box to positively keep chemicals and moisture from entering motor.
2: Conduit box cover: Conduit box cover with seals simply twists on or off for quick and easy installation and maintains.
3: Entrance connector: IP55 submersible style cable gland is provided as standard.
Preview
Preview
Preview
Preview

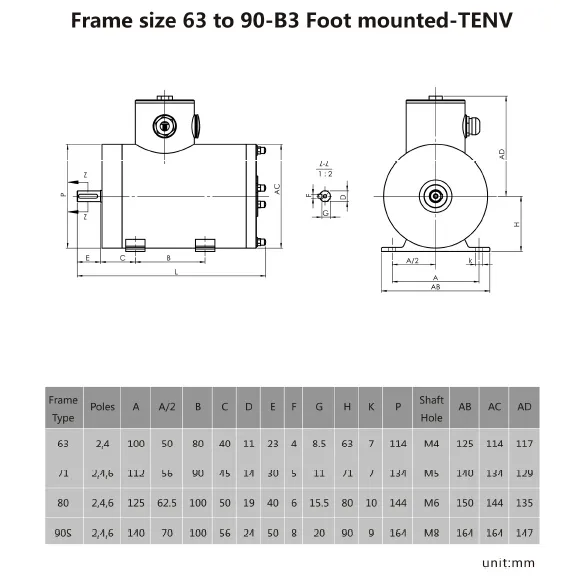

IEC STAINLESSSTEEL MOTOR(B3)
For more details information of our motors, pls contact us by email or call us directly .
0086-15805885358
For more details information of our motors, pls contact us by email or call us directly .
0086-15805885358
