基本信息
| 型号 | XZC57BL122R18-330SF-001A |
| 功能 | 驾驶 |
| 套管保护 | 保护类型 |
| 极数 | 4 |
| 结构和工作原理 | 无刷的 |
| 类型 | Z4 |
| 认证 | ISO9001 |
| 品牌 | 星钻电机 |
| 绕组式 | 星形/三角形 |
| 霍尔效应角 | 120度电角度 |
| Shaft Runout | 0.025m |
| 径向播放 | 每50克变化0.06毫米 |
| 结局回放 | 0.08毫米/50克 |
| 最大径向力 | 法兰缘起28n/20mm |
| 最大轴向力 | 10n |
| 绝缘等级 | B类 |
| IP Class | IP 40 |
| 介电强度 | 持续500VDC电压1分钟 |
| 绝缘电阻 | 100兆欧姆最小500VDC |
| 交通包 | 盒子 |
| 规格说明 | 57乘以57乘以123 |
| 商标 | 锡诺达马达 |
| 起源 | 中国 |
| 商品编码 | 8501310000 |
| 生产能力 | 年产量为 20000 片 |
| 包装尺寸 | 10.00cm乘以10.00cm乘以10.00cm |
| 包装总重量 | 2000.000公斤 |
| 包装尺寸 | 10.00cm×10.00cm×10.00cm |
| 包装总重量 | 2000.000kg |
产品详情
Product Description
Preview

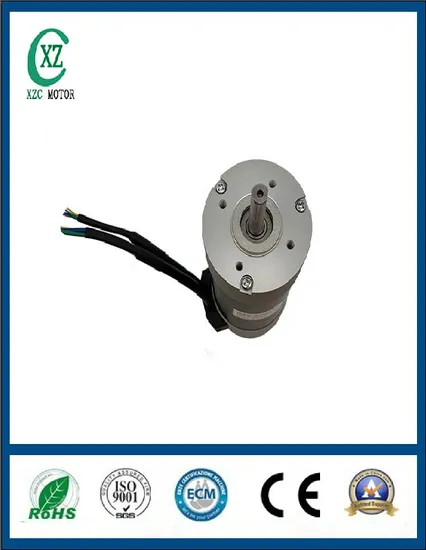

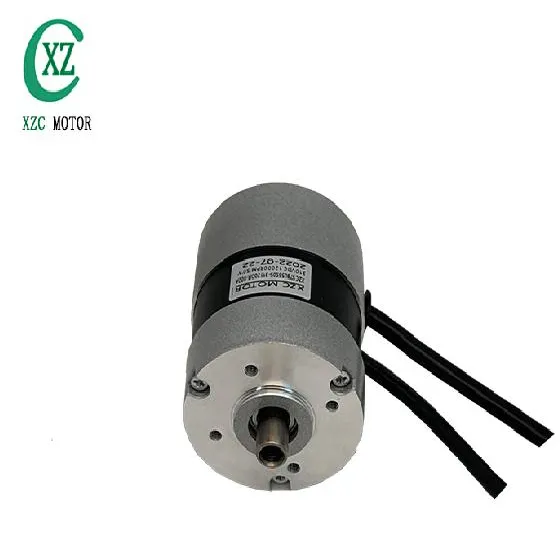

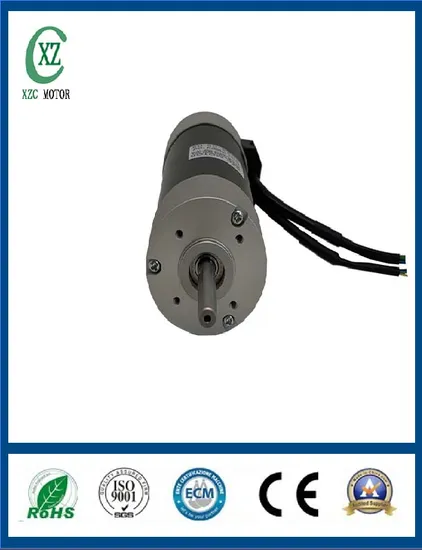

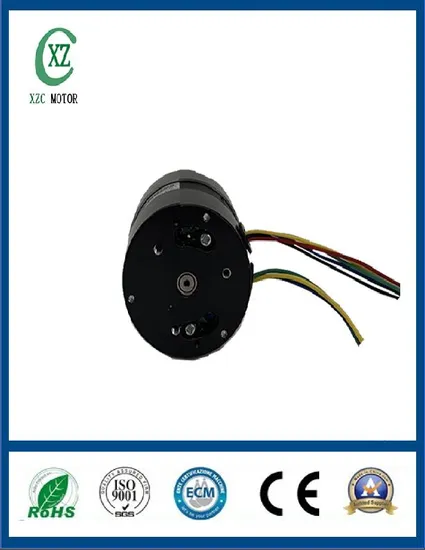

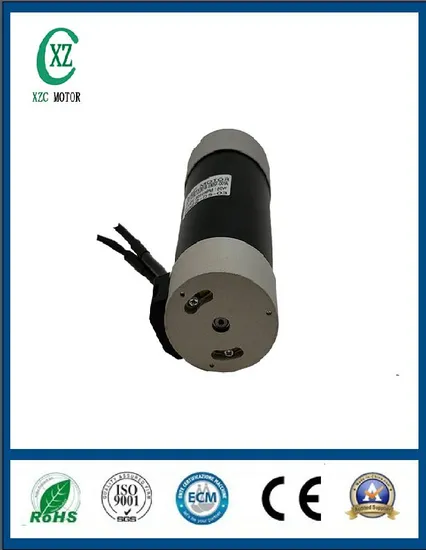

This brushless dc gearmotor is 57mm (motor length),which is apply to textile machine,medical device,machine tool spindle,and other elctromechanical device.
The motor can be stepless speed adjusted, and high efficient working.The work long life can be 20000 hours.Our factory can product 300 pcs motors per day.We have strict quanlity management for the production.and we have excellent after-sales service for every customer.If you need the motor with special design ,we can produce the motor as your requirements.
Product Name: Brushless DC MotorNumber of Phase: 3 PhaseNumber of Poles: 4 Poles /8 Poles /10 PolesRated Voltage: 12v /24v /36v /48v /310vRated Speed: 3000rpm /4000rpm /or customizedRated Torque: CustomizedRated Current: CustomizedRated Power: 23w~2500W
Product Parameters
The motor can be stepless speed adjusted, and high efficient working.The work long life can be 20000 hours.Our factory can product 300 pcs motors per day.We have strict quanlity management for the production.and we have excellent after-sales service for every customer.If you need the motor with special design ,we can produce the motor as your requirements.
Product Name: Brushless DC MotorNumber of Phase: 3 PhaseNumber of Poles: 4 Poles /8 Poles /10 PolesRated Voltage: 12v /24v /36v /48v /310vRated Speed: 3000rpm /4000rpm /or customizedRated Torque: CustomizedRated Current: CustomizedRated Power: 23w~2500W
Product Parameters
Preview
Preview
Preview
Our Advantages
The products are mainly used in:

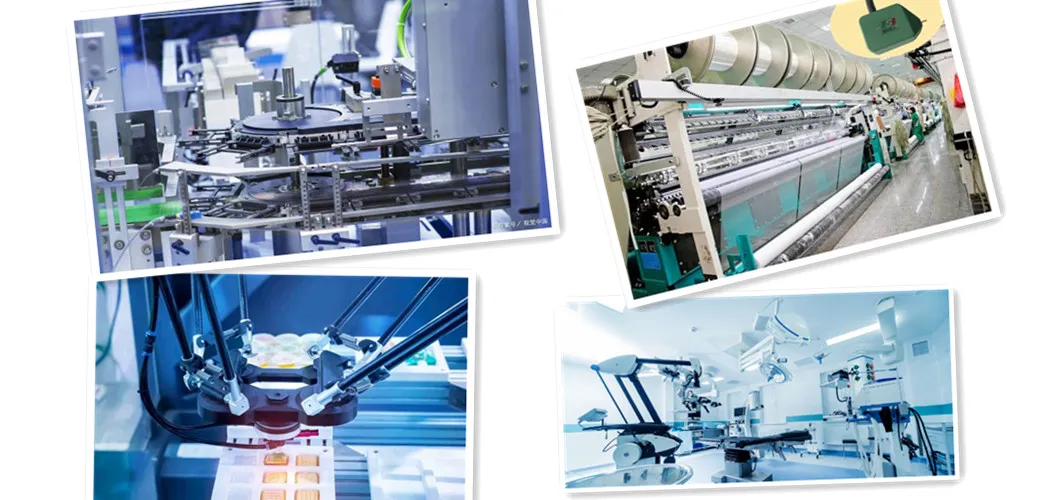

Printers, engraving machines, 3D printers, financial equipment, medical instruments, textile industry and other automation equipment and instruments in all walks of life.
The products are mainly used in:
Printers, engraving machines, 3D printers, financial equipment, medical instruments, textile industry and other automation equipment and instruments in all walks of life.
Preview
Preview
Company Profile
Preview

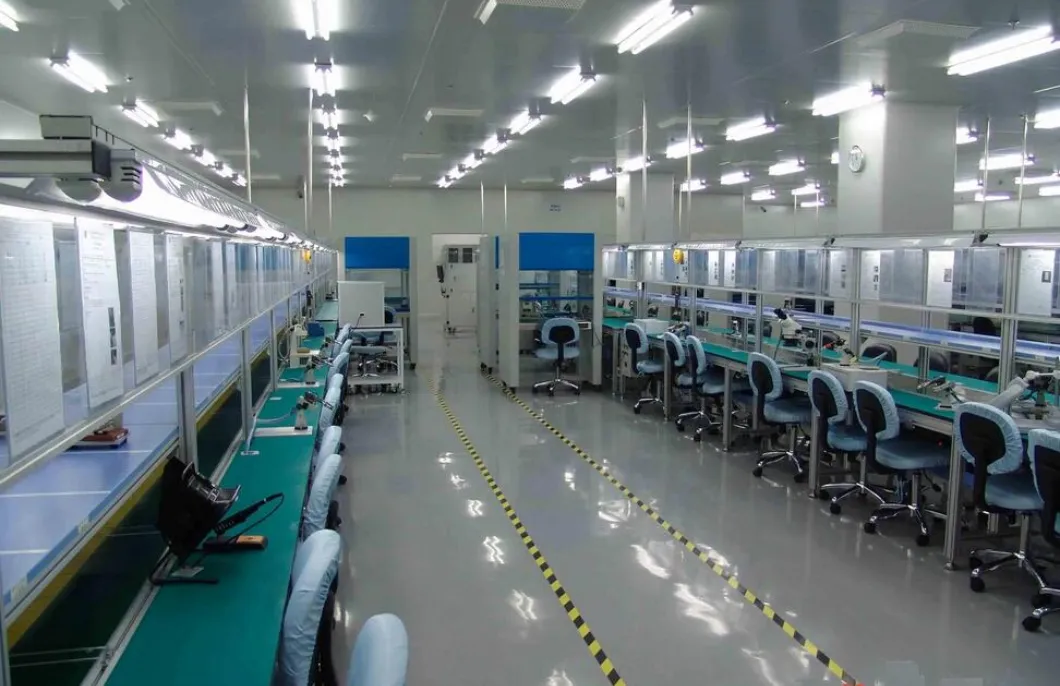

Changzhou Xinzhichuang Electromechanical Co., Ltd. Is a professional manufacturer that integrates R & D and produces all kinds of Brushless DC motors, stepping motors and their control systems. The products include brushless DC motor, hybrid stepping motor, stepping reducer motor, motor driver, electrical control system, etc. The products are mainly used in: Printers, engraving machines, 3D printers, financial equipment, medical instruments, textile industry and other automation equipment and instruments in all walks of life.
Preview
Preview
Preview
FAQ
Preview
1.Problem:The motor can not working.
Answer:The motor's connection is wrong,please check the connecting and connect the right wires to the drivers.
2.Problem:The motor do not run with the load and the driver give an alarm.Answer:The load is exceed the rated torque of the motor.3.Problem:The noise is high and the motor runs quaveringly.Answer:The assembling of the motor to the machine is not right,or
the load dynamic balance is not good.4.Problem:The speed of the motor is lower or higher than the speed of your requirement.Answer:Maybe the load of your machine is not same to the rated torque of the motor.You can choose the high torque
of
the
motor and ruduce the speed by bldc motor driver.
Answer:The motor's connection is wrong,please check the connecting and connect the right wires to the drivers.
2.Problem:The motor do not run with the load and the driver give an alarm.Answer:The load is exceed the rated torque of the motor.3.Problem:The noise is high and the motor runs quaveringly.Answer:The assembling of the motor to the machine is not right,or
the load dynamic balance is not good.4.Problem:The speed of the motor is lower or higher than the speed of your requirement.Answer:Maybe the load of your machine is not same to the rated torque of the motor.You can choose the high torque
of
the
motor and ruduce the speed by bldc motor driver.
