基本信息
| 型号 | D126L165-WP-57Kv |
| 功能 | 驾驶 |
| 保护套 | Open Type |
| 极数 | 10 |
| 结构和工作原理 | 无刷的 |
| 认证 | ISO9001 |
| 品牌 | Quanly |
| 住房 | CNC黑色铝阳极氧化处理 |
| 维度 | D126XL165mm 毫米 |
| 配置 | 12槽/10极 |
| 蜿蜒的 | 5t减去y |
| Kv是千伏（Kilovolt）的简称。 | 57千伏 |
| 峰值功率 | 42千瓦 |
| 最大扭矩 | 66牛米 |
| 最大转速 | 8618转每分 |
| 峰值电流 | 580A |
| 重量 | 8.0公斤 |
| 寿命 | 8000小时 |
| 电机类型 | 永久磁铁直流电动机 |
| 运输包 | 纸箱包装 |
| 规格 | 40*30*30厘米 |
| 商标 | 数量 |
| 起源 | 中国 |
| 商品编码 | 8501320000 |
| 生产能力 | 三百 |
| 包装尺寸 | 45.00cm * 35.00cm * 27.00cm |
| 包装总重量 | 10.000千克 |
| 包装尺寸 | 45.00cm * 35.00cm * 27.00cm |
| 包装总重量 | 10.000千克 |
产品详情
Applications
Preview
Preview
Applications:
Electric Propulsion
for various watercrafts
1. Efoil / Waterbike
2. Jet Surf/Surboard
3. Underwater thruster
4. Small boat /SUP / Kayak
5. POD drive
6. Jetski / Speed Boat
7. Yacht
Either work with propeller directly or as an integrated part in
a airtight cabin of
trolling motor/outboard motor / POD
Electric Propulsion
for various watercrafts
1. Efoil / Waterbike
2. Jet Surf/Surboard
3. Underwater thruster
4. Small boat /SUP / Kayak
5. POD drive
6. Jetski / Speed Boat
7. Yacht
Either work with propeller directly or as an integrated part in
a airtight cabin of
trolling motor/outboard motor / POD
Preview

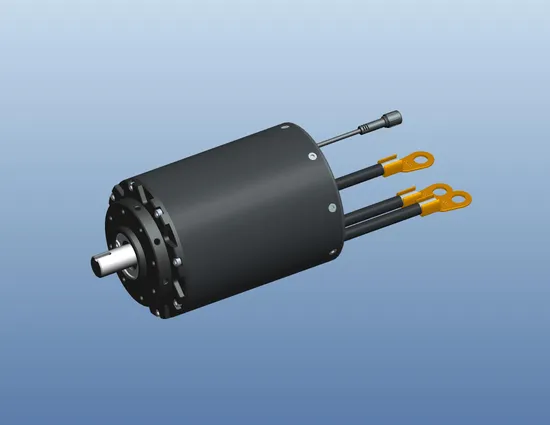

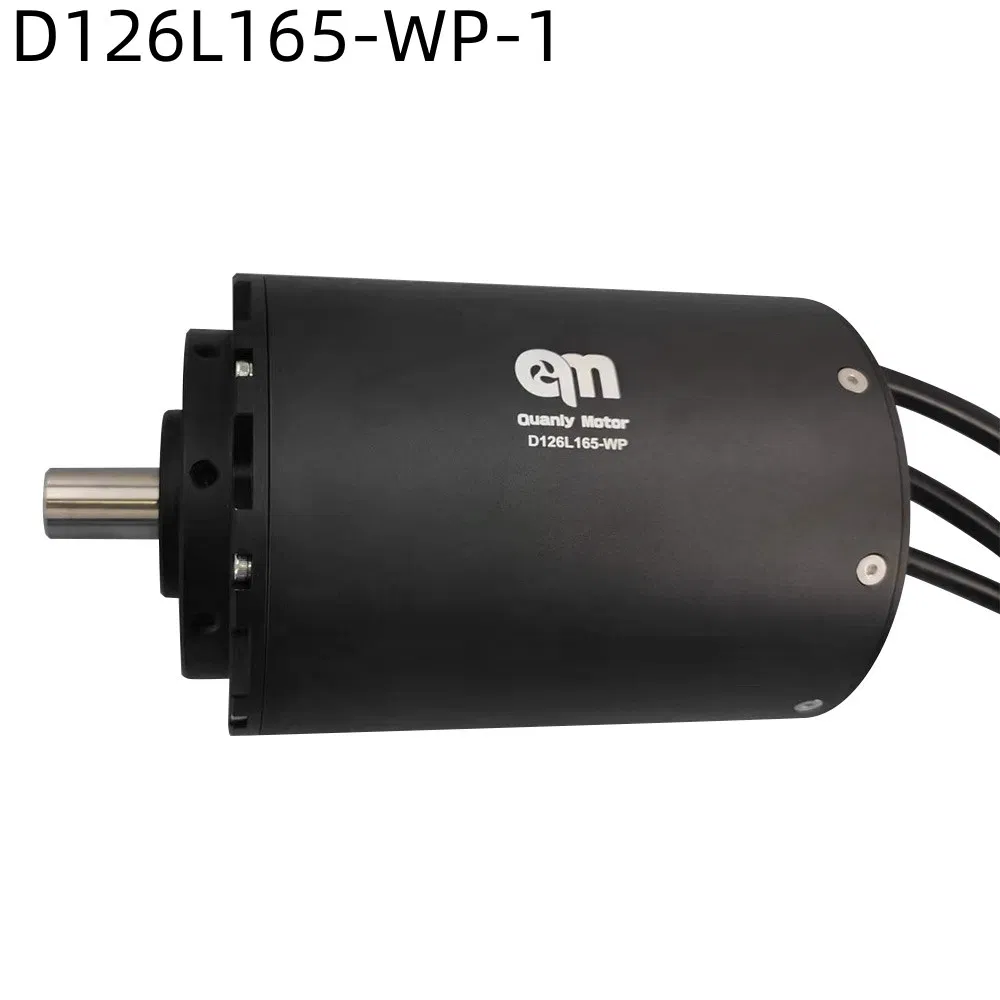

Product Description
Preview
Preview
With an advanced 10-pole encapsulated core and 126mm
diameter, this series compact DC motors deliver high torque up to
66 N.M with maximum output power at 40KW.
Thanks to the unique sealing configuration design, these motors
are tested waterproof IP68 according to ingress protection class,
and can be operated permanently underwater and applied in dusty
environments.
1. Working voltage:
14-36S (50-151.2V)
2. Rated Power: 10kw~25kw
3. Peak Power: 42Kw
4. Speed: 2850~8618 rpm
5. Rated Torque: 50N*m
6. Peak Torque: 78N*m
7. Motor Efficiency:
>90%
Features

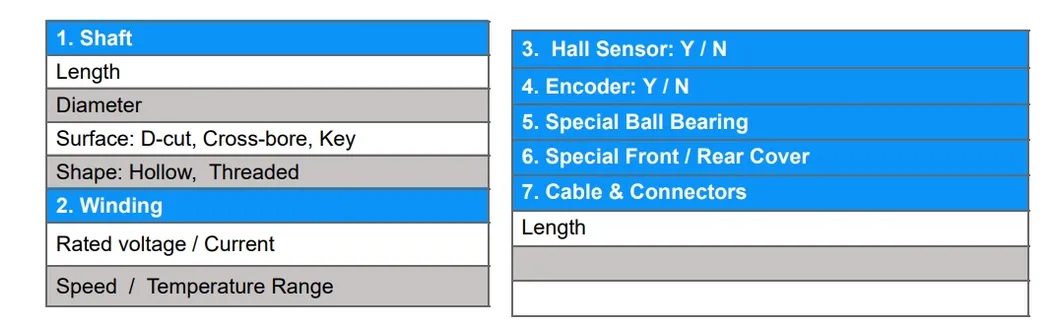

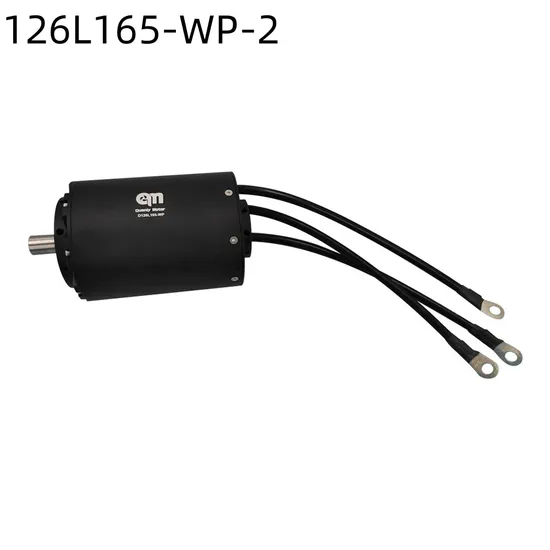

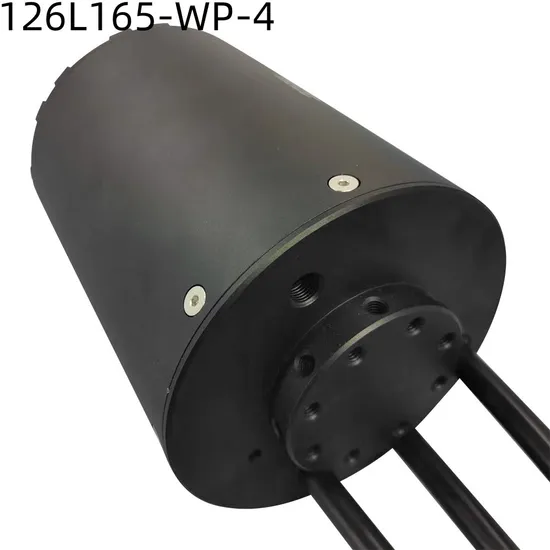

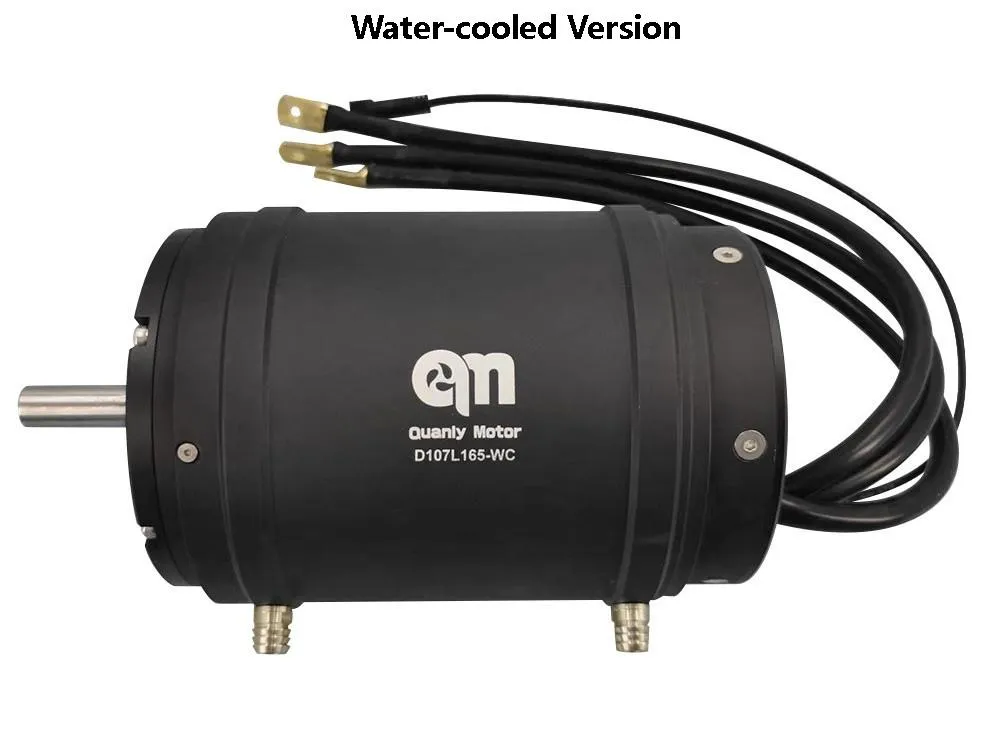

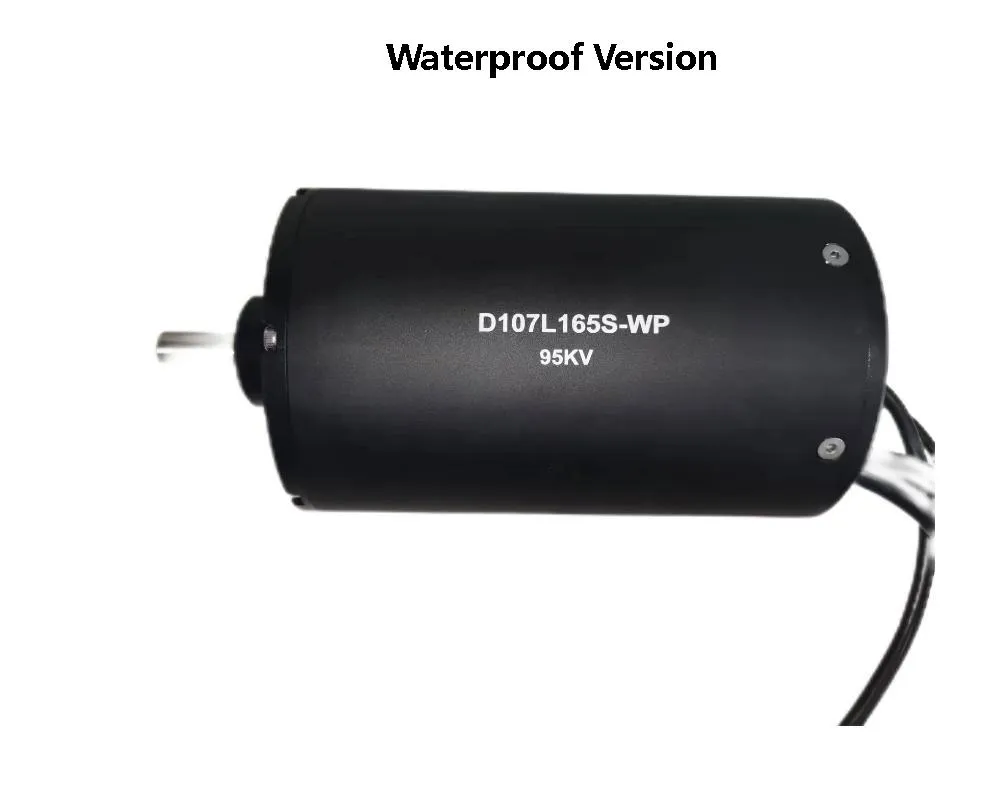

Variants
diameter, this series compact DC motors deliver high torque up to
66 N.M with maximum output power at 40KW.
Thanks to the unique sealing configuration design, these motors
are tested waterproof IP68 according to ingress protection class,
and can be operated permanently underwater and applied in dusty
environments.
1. Working voltage:
14-36S (50-151.2V)
2. Rated Power: 10kw~25kw
3. Peak Power: 42Kw
4. Speed: 2850~8618 rpm
5. Rated Torque: 50N*m
6. Peak Torque: 78N*m
7. Motor Efficiency:
>90%
Features
Variants
Preview
Preview
Preview
Product Parameters
Preview
Preview

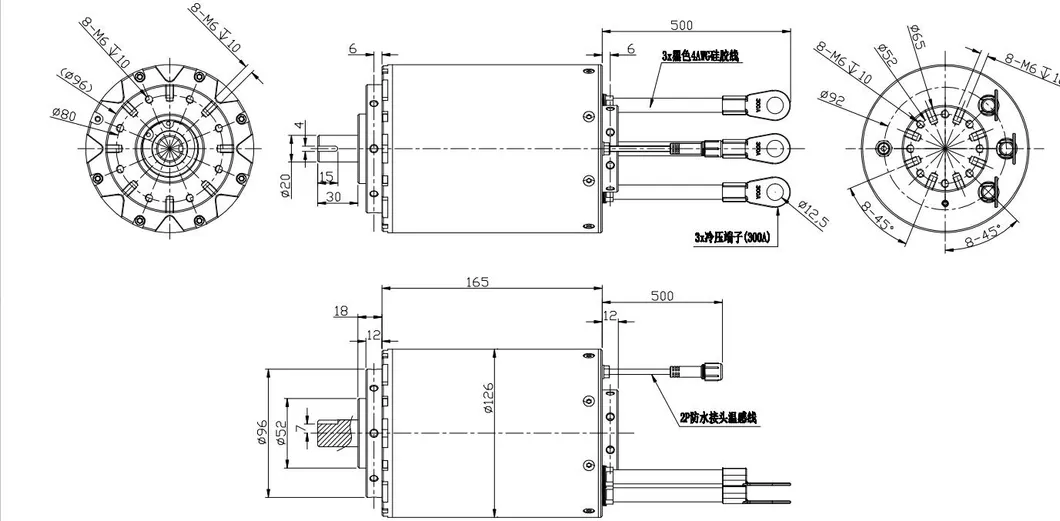

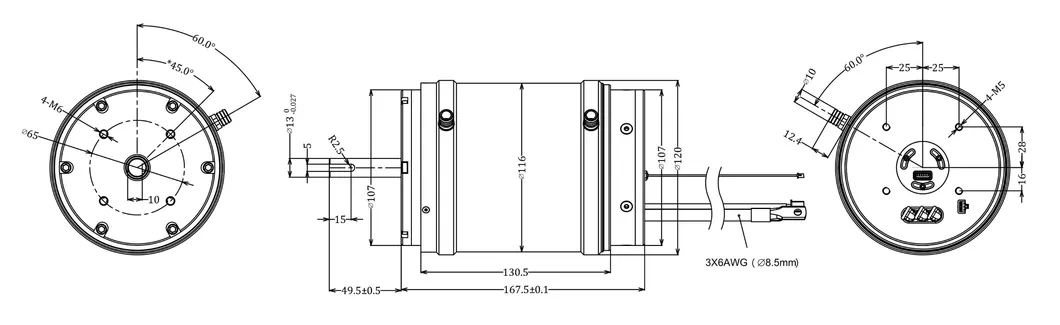

Drawing Dimension
Preview
Preview
Preview

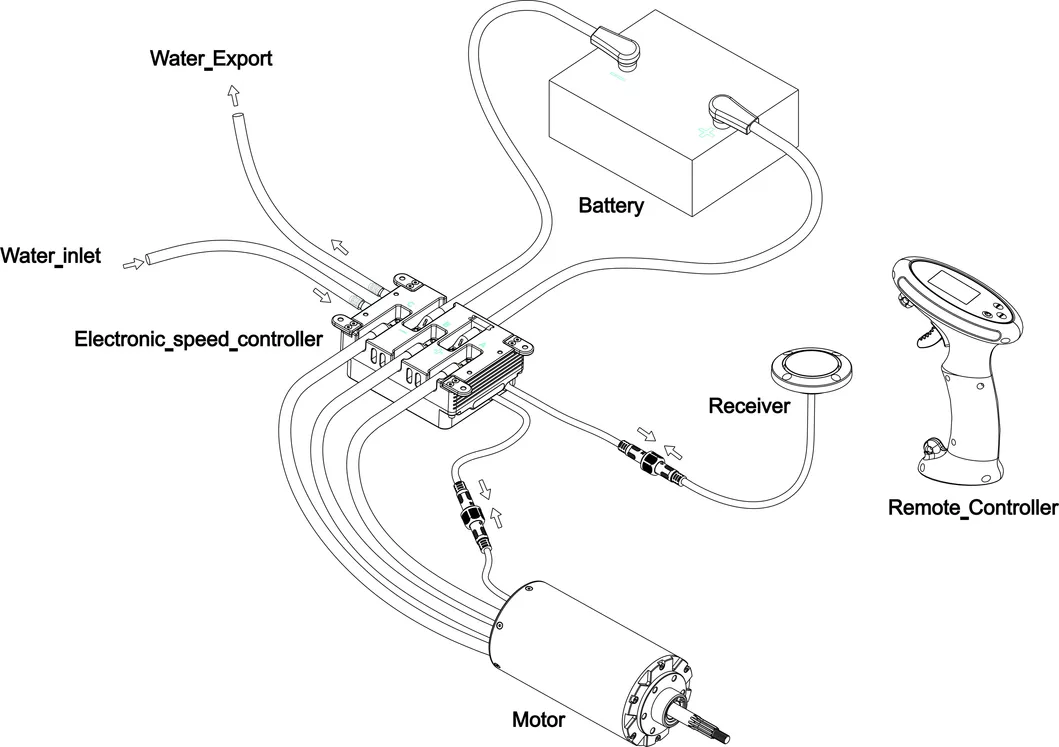

Wiring Diagram
Preview
Preview
Auto Dyno Testing
Preview
证书
标题：环境管理体系证书
Preview
72V 96V 140V 57kv D126L165 防水电动马达 40kw 用于船用发动机
