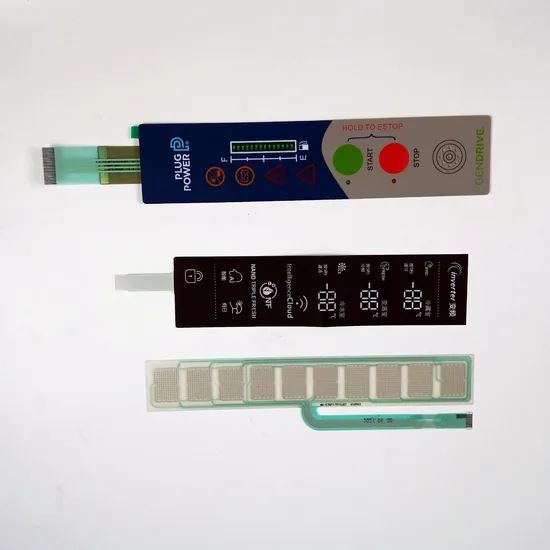

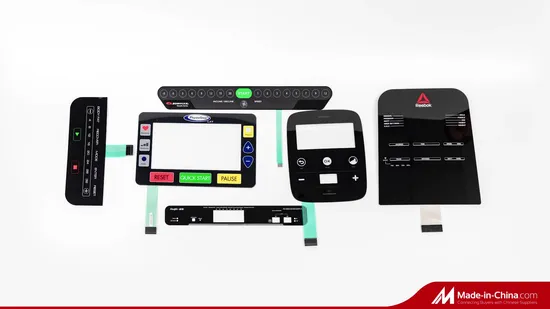

CUSTOM MEMBRANE SWITCH

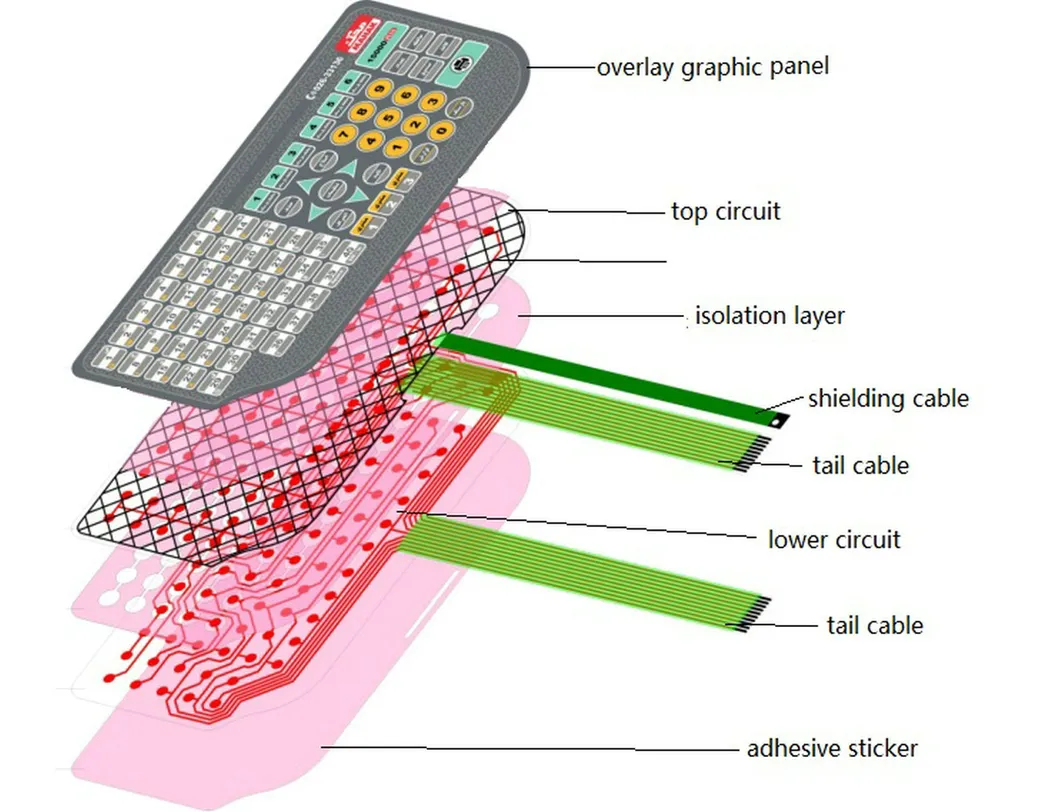

STRUCTURE
1, graphic overlay panel
2, top circuit
3, isolation layer
4, lower circuit
5, back adhesive sticker
6, tail cable
7, FPC connector.

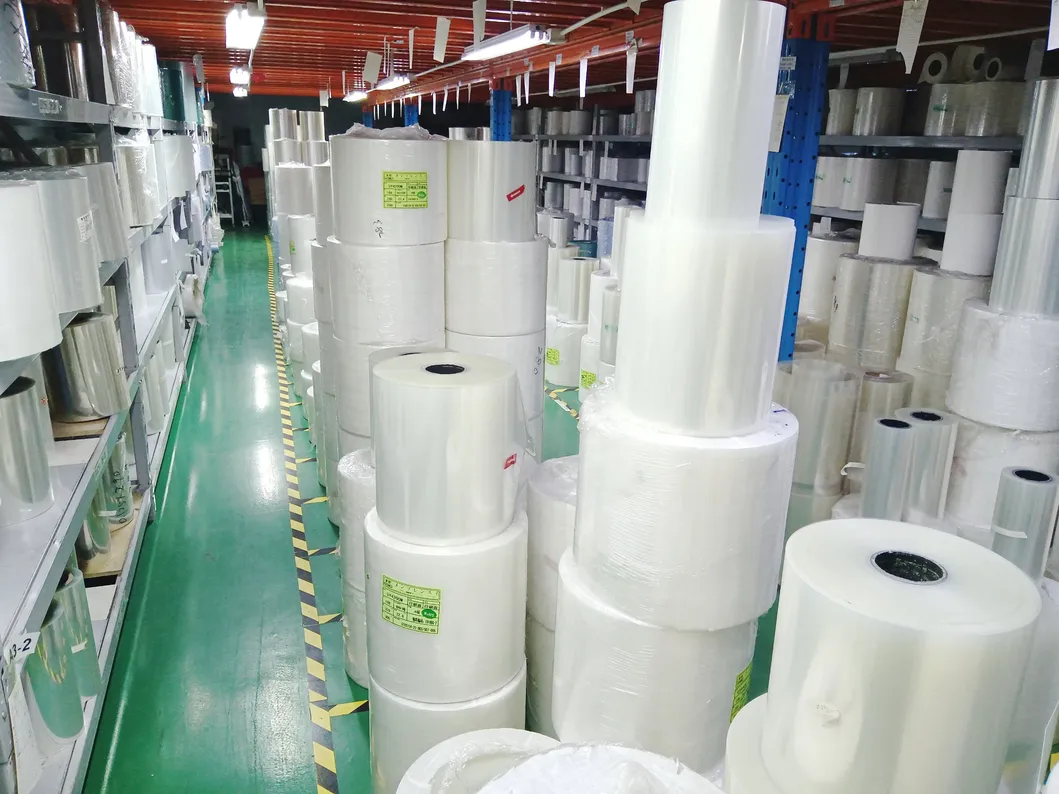

Material

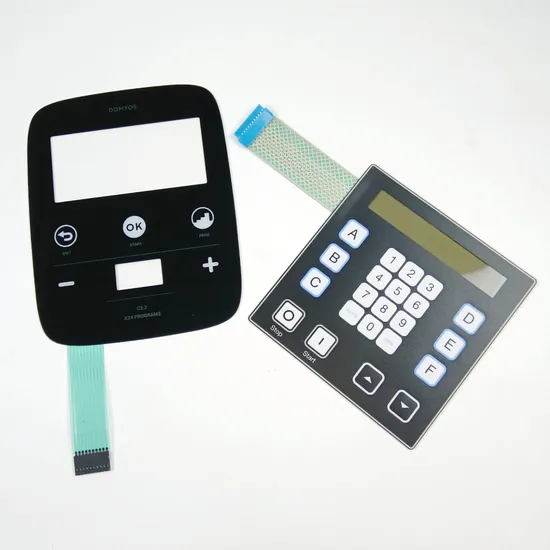

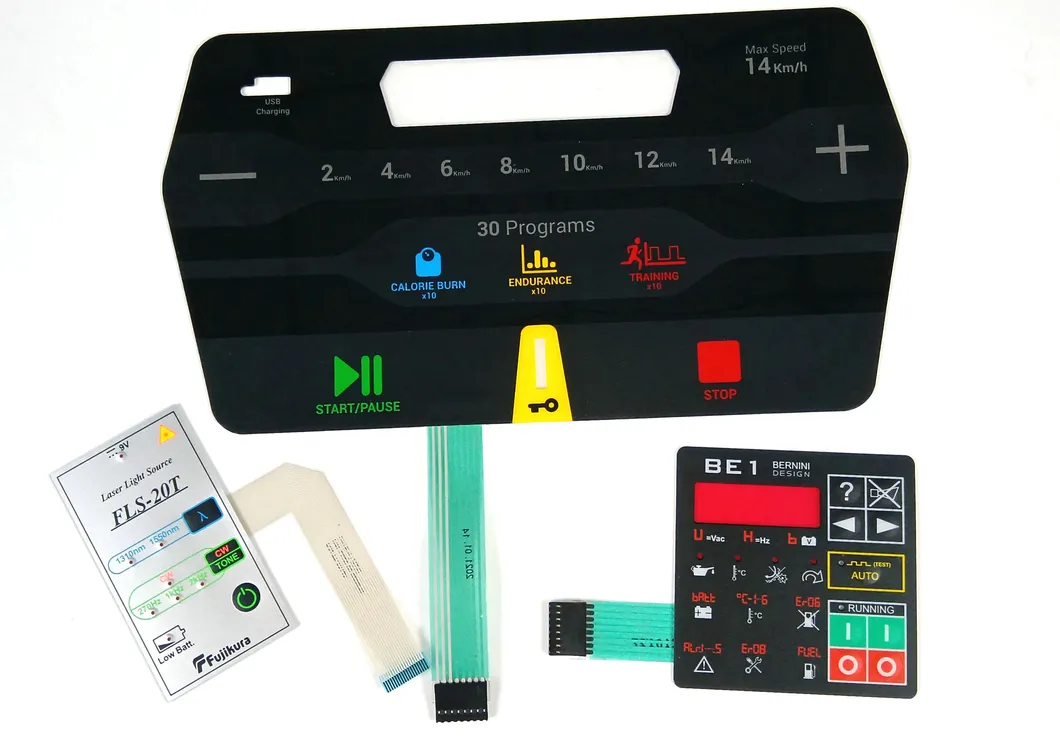

Type

Technical Parameter

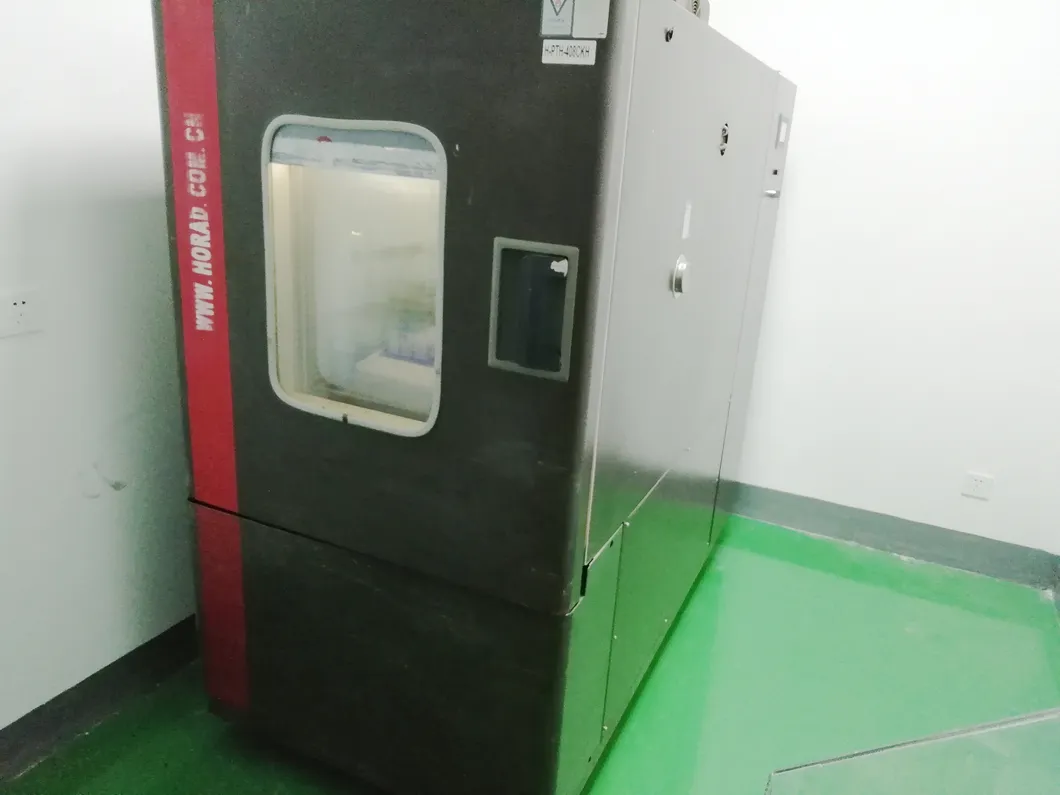

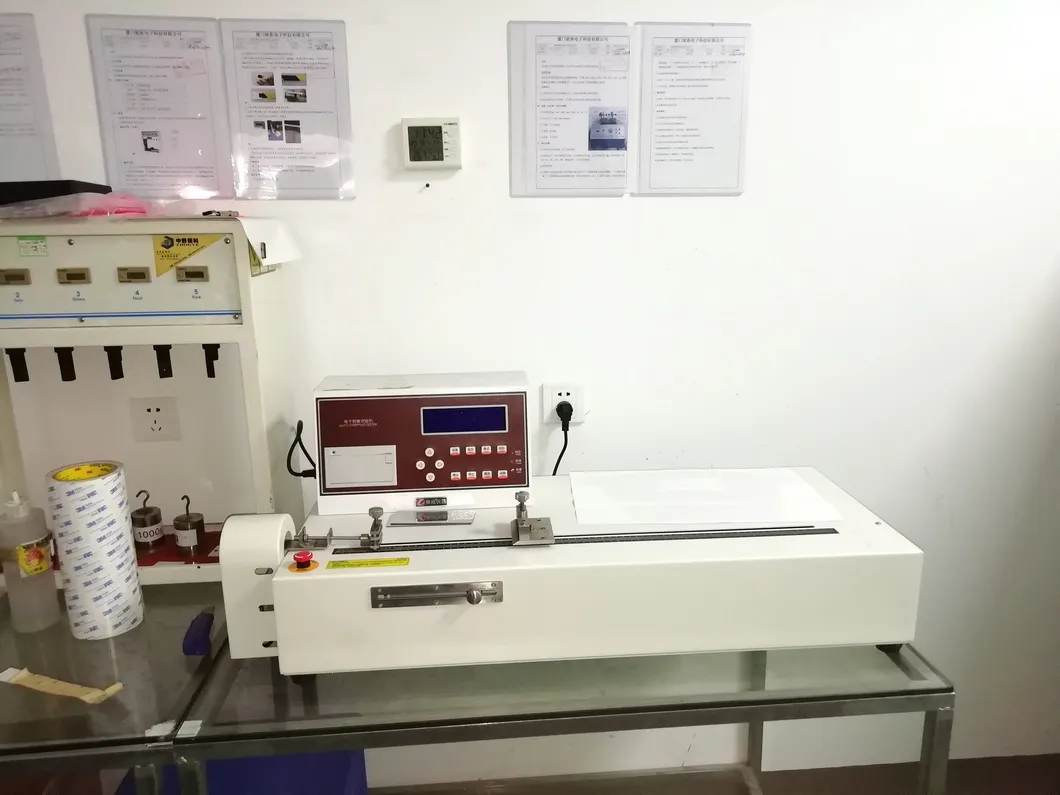

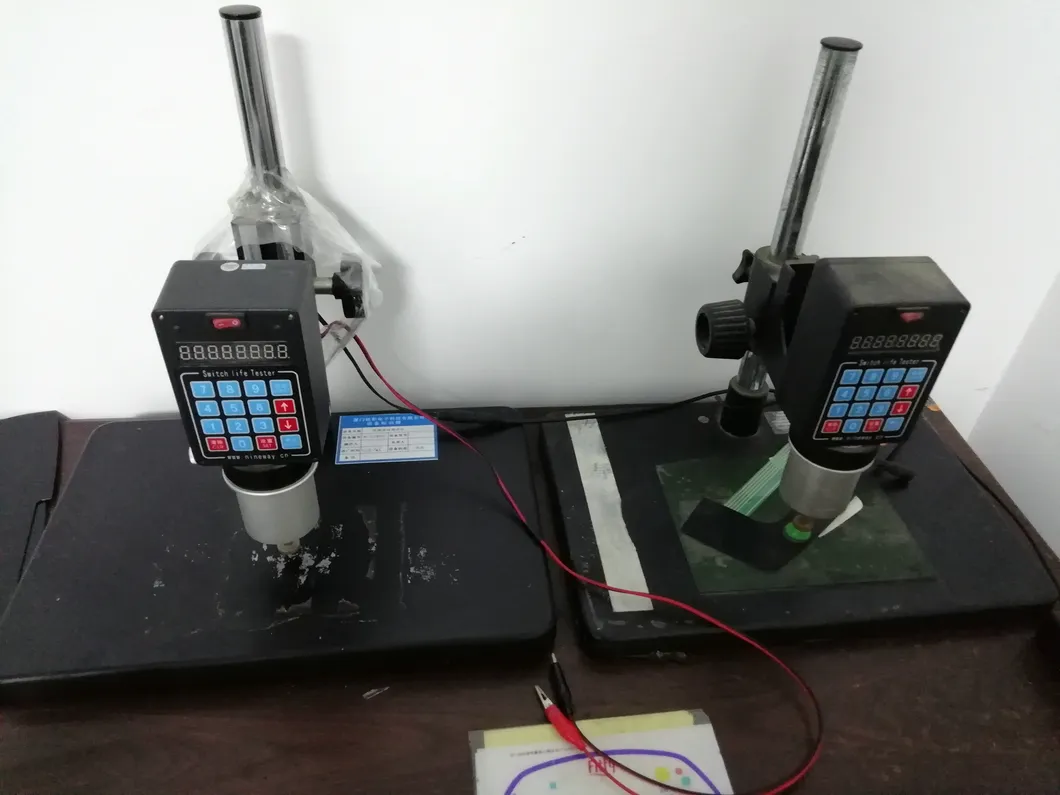

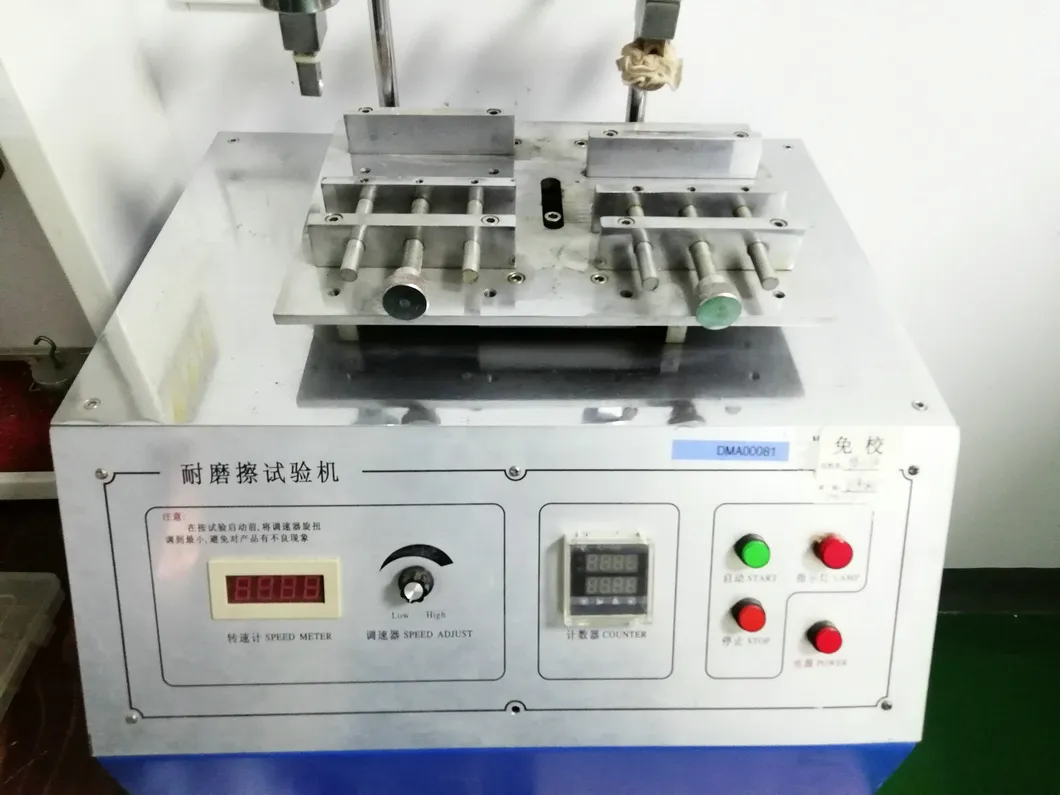

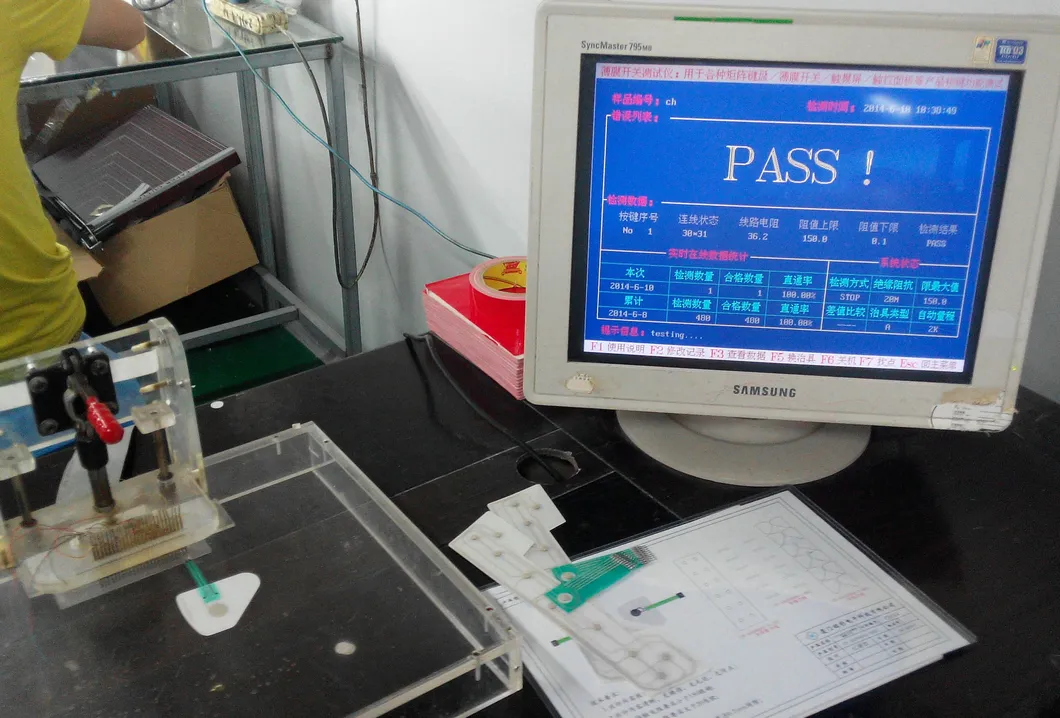

Test Equipment and

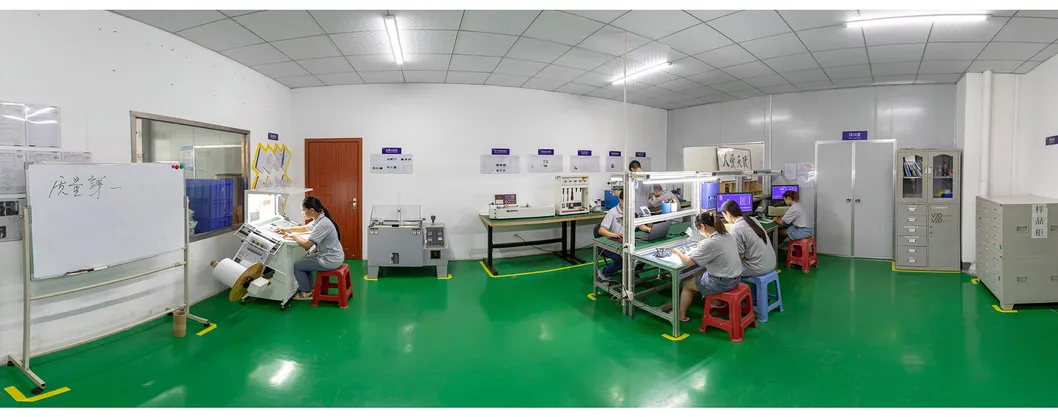

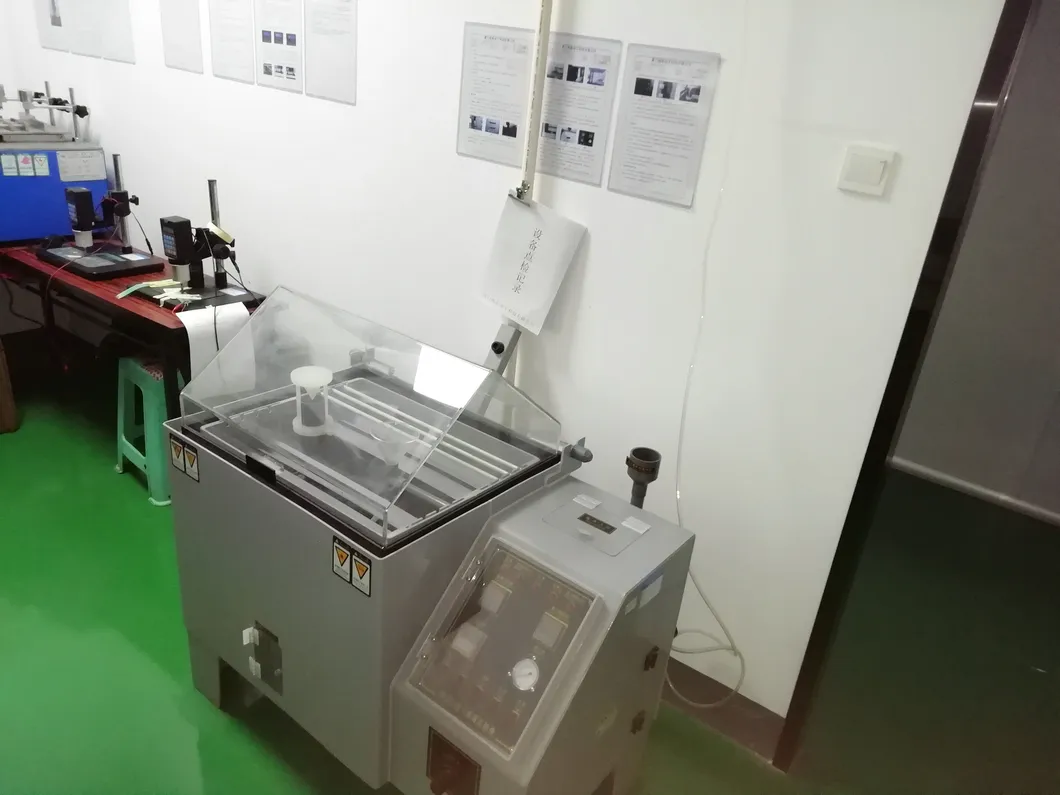

Test Laboratory

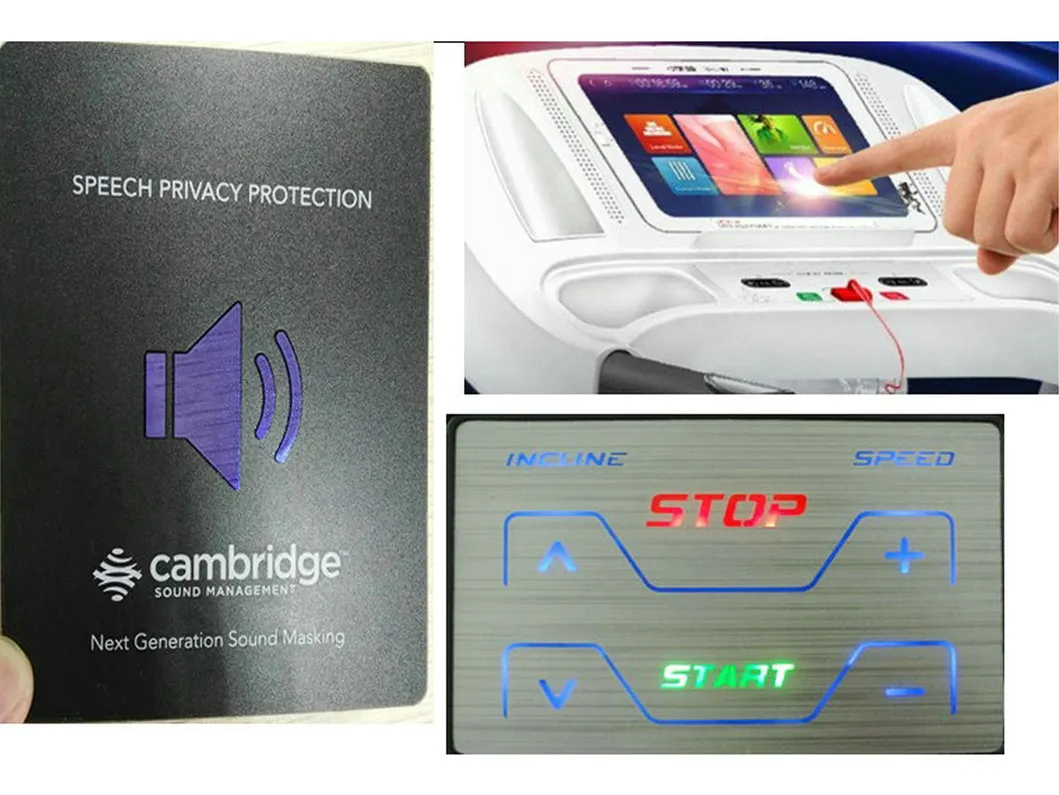

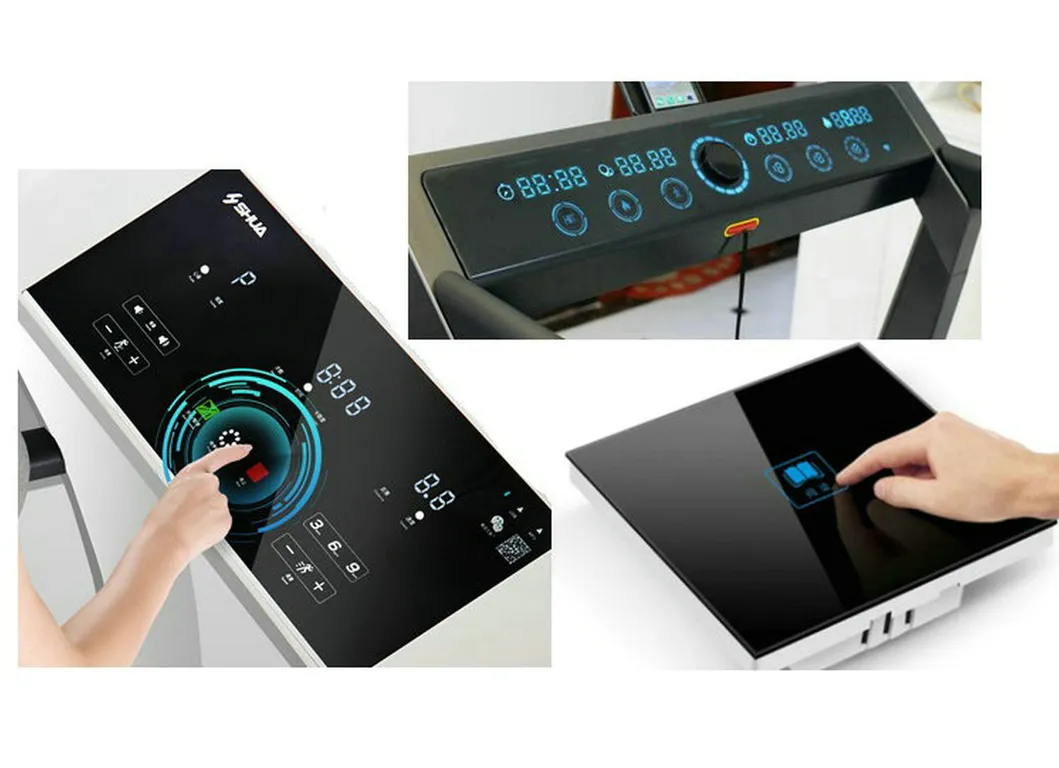

Application
Our products are widely used in industrial control equipment, household appliances, display instruments, medical equipment, fitness equipment, security equipment, automobile instrumentation, product logo, remote control, electronic scale, intelligent furniture and other fields.

Q1.What format of design file is required for customized products?A1. AI of PDF format is ok for us.Q2.Can the product be customized without design drawings?A2. Yes, we can copy it according your sample.Q3.How to ensure the accuracy of the color?A3.Customers need to provide standard Pantone color number or color sample.Q4.Sample preparation time?A4. within 7 days.Q5.Do you need the sample charge?A5.For our existing products, no sample fee is required,
for customized products, customers need to pay the
tooling fee and sample fee.Q6. What is the main material of membrane panel?
A6. PET, PC, Acrylic.Q7.Type of membrane switch?A7. PET membrane switch, metal dome switch and
Capacitive touch membrane switch.Q8.Thickness of PET material?A8. There are usually 0.10mm, 0.125mm, 0.188mm, 0.25mm, 0.38mm ...Q9. Thickness of acrylic material?A9. There are usually
0.4mm, 0.5mm, 0.8mm, 1.0mm to 8.0mm.Q10.What kind of adhesive is usually used for membrane switches?A10. We usually use 3M adhesives, or special adhesives can be selected according to customer's requirements.Q11.What is the life of the membrane switch?A11. The general test requirement is 500,000 times, and the special requirement can be up to 1 million times.Q12.Can membrane switches be waterproof?A12. Yes, for special requirements, we can choose waterproof materials and waterproof adhesive.Q13. What is the distance between the tail wires of the membrane switch?A13. 0.5mm, 1.0mm, 1.25mm. 2.0mm and 2.54mm.Q14.How to do membrane switch inspection before shipment?A14.We have done 100% inspection on all products before shipment.
