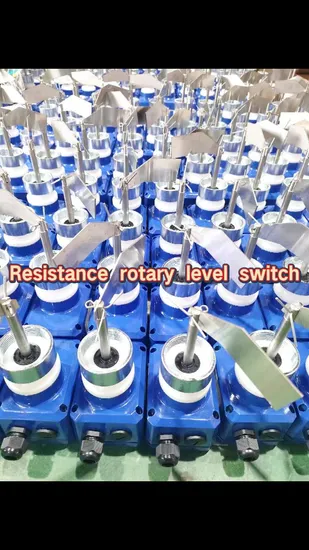

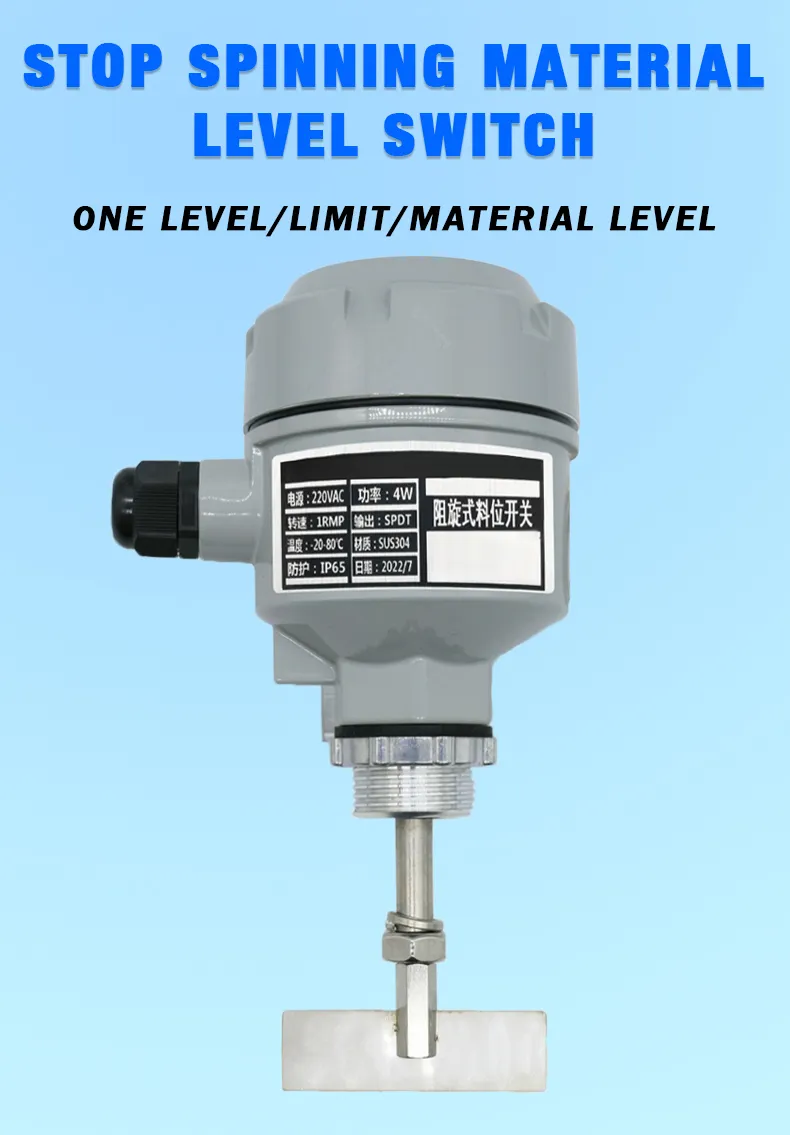

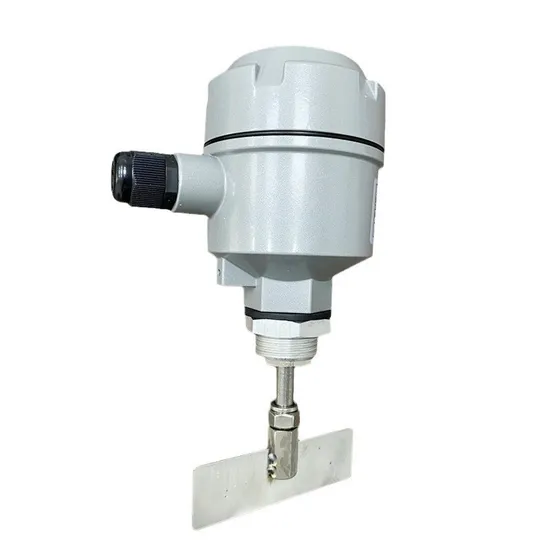

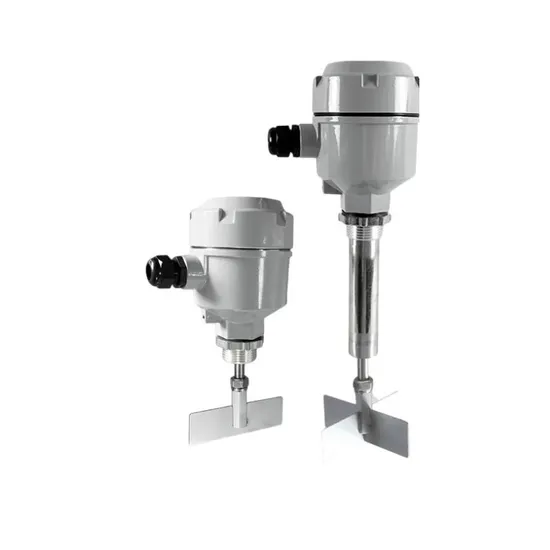

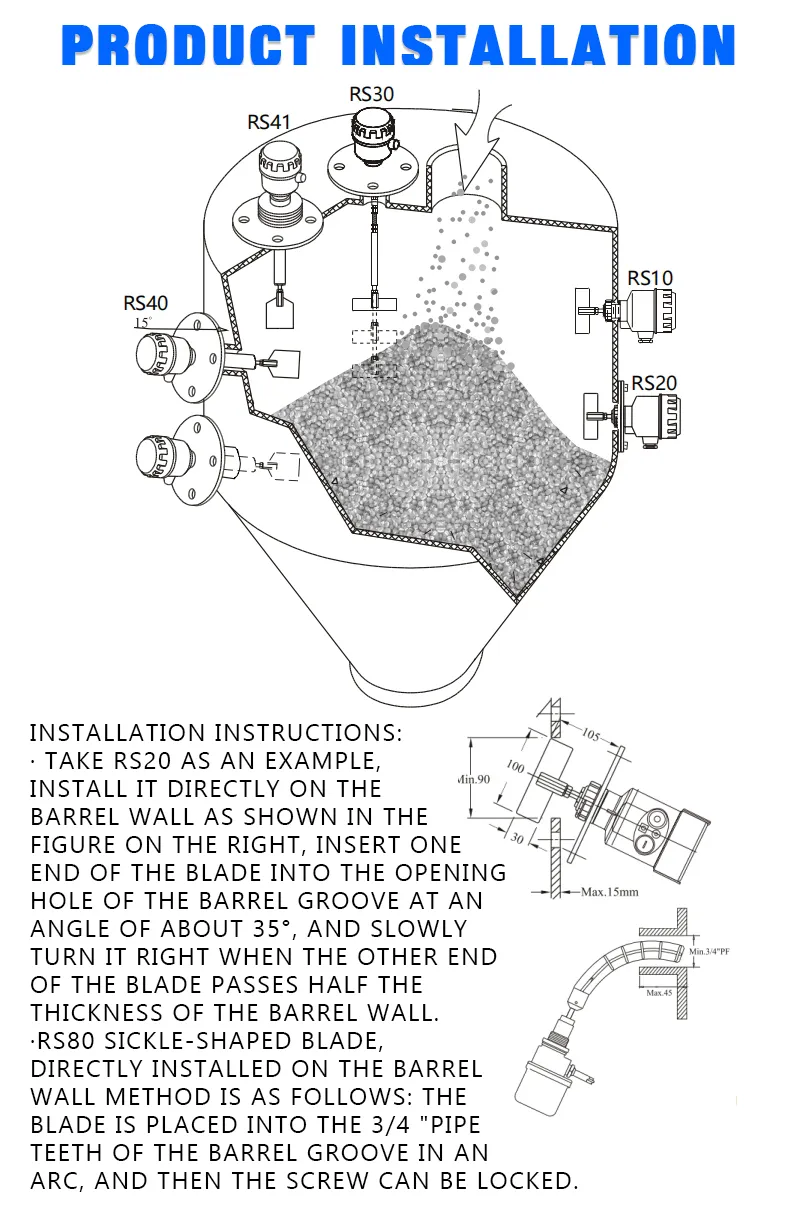

Level Indicators are designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos. Function As soon as the material level reaches the measuring paddle rotation is blocked. As soon as the material level sinks below the paddle radius, rotation restarts activating other system components. The top or side-mounted indicators are commonly used for powdery and granular materials.
Product Parameters
(1). Power supply: 220 vac / 110 vac / 24 vac / 24 VDC
(2). Contact capacity: 250VAC/10A SPDT(single pole double throw)
(3). Power: 4W
(4). Blade speed: 1RPM
(5). Torque: 1.0kg ×cm
(6). Material specific gravity: ≥0.5g/ cm3
(7). Operating temperature: -10ºC-80ºC (up to 400ºC)
(8). Insulation resistance: 100 m Ω or higher
(9). Dielectric strength: 1500V*1min
(10). Protection level: IP65
(11). Blade material: SUS304
