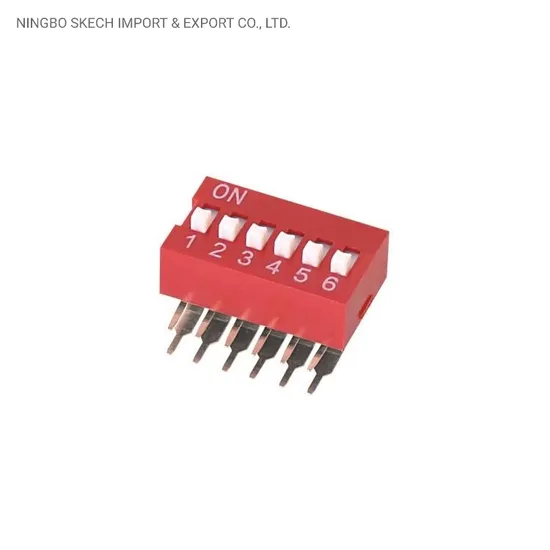

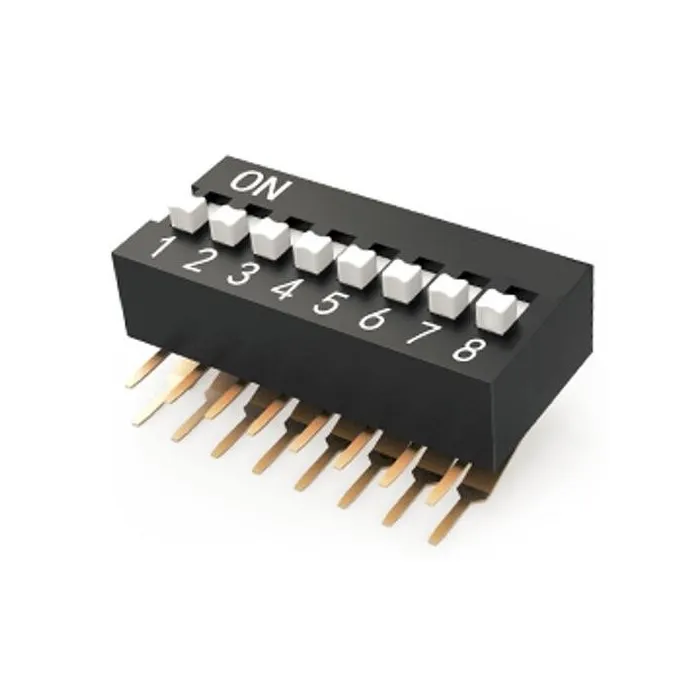

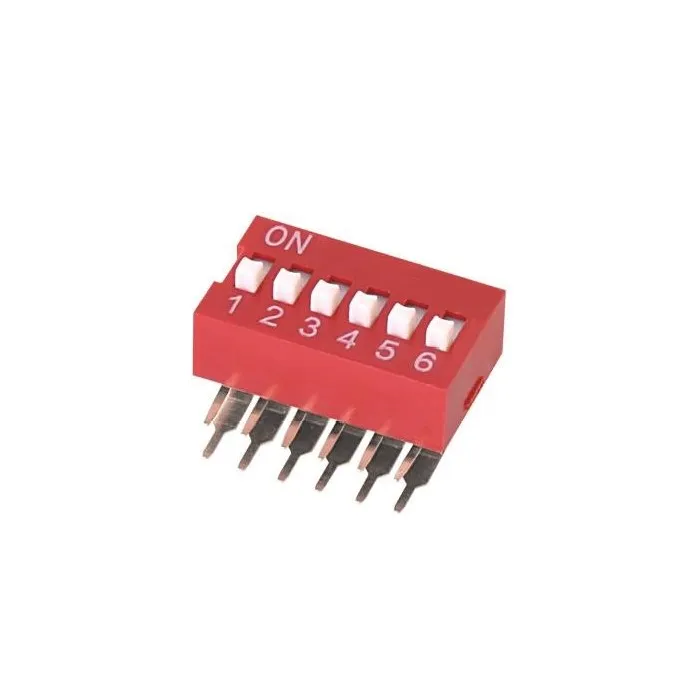

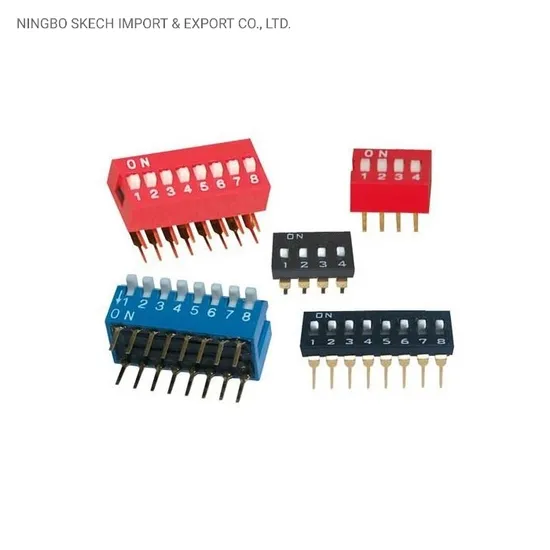

Right Angle Type DIP Switch Slide Plastic 1-12 Position DIP tact Switch DIP Code Switch Dialing Switch KF1003Application :
The DiP switch is
widely used in
all types of electronic equipment such as
security, lighting, instrument & meter, industrial power, communication equipment ,
audio devices,office devices,TVs,video record recorders,automotive sets
and other fields.
Materials:
Switch over :Thermoplastic UL94V-0 rate, BlackSwitch Base: Thermoplastic UL94V-0 rate, BlackSwitch Actuator: Thermoplastic UL94V-0 rate, White
Terminal Contact:
Phosphor Bronze,
Gold-plated

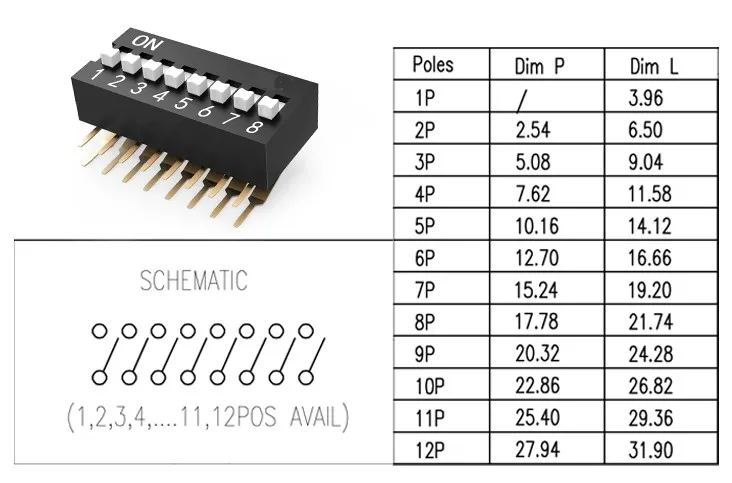

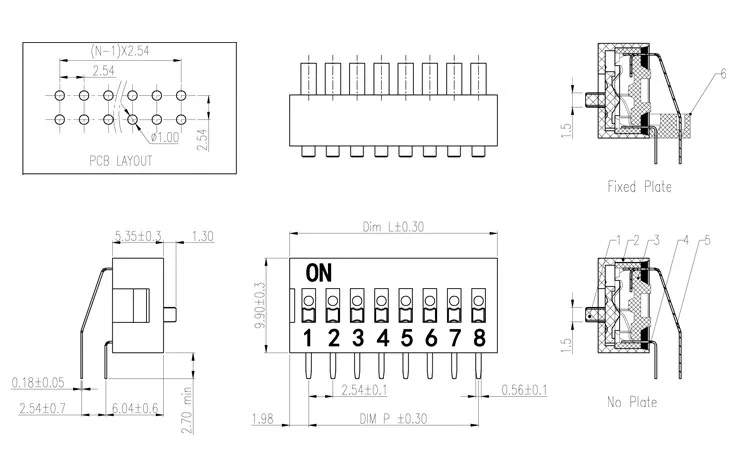

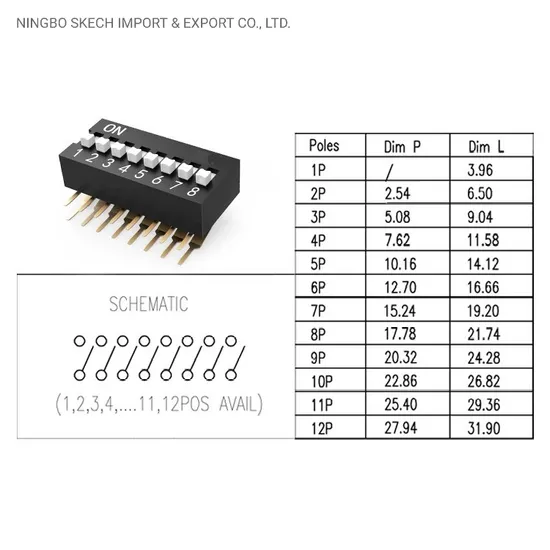

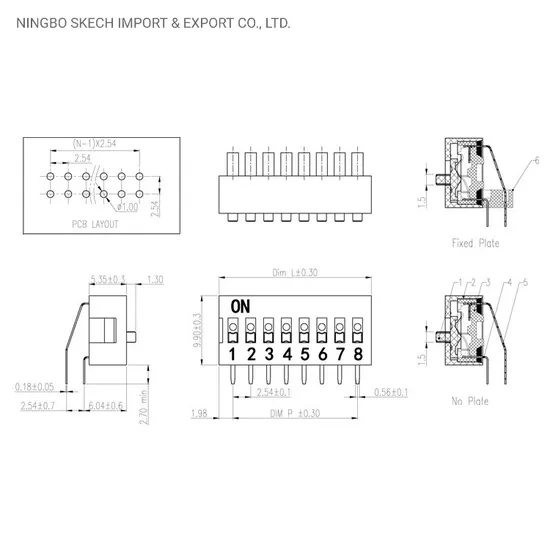

Product Parameters
Soldering Information:
Keep all switch contacts in their "off"
position for all operations.
Hand Soldering-- Soldering iron 30W or
under at
320±5ºC
for 3 sec./Max. Or 270ºC for 5sec./Max.
Reflow Soldering- - Reflow zone at 240ºC for 20 seconds.
Wave Soldering--
Recommended solder
temperature at 260±5ºC
Max. 5 seconds
Cleaning:--
Soldering Information:Keep all switch contacts in their "off"
position for all operations.Hand Soldering-- Soldering iron 30W or under at 320±5ºC
for 3 sec./Max. Or 270ºC for 5sec./Max.Reflow Soldering- - Reflow zone at 240ºC for 20 seconds.Wave Soldering-- Recommended solder temperature at 260±5ºC Max. 5 seconds
Cleaning:--
Cleaning process using ultrasonic method,can give better results,use steam mode,temperature should not exceed 51ºC

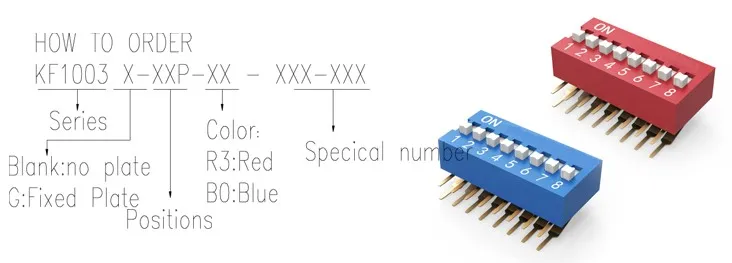

How to Order:
How to Order:

Our Advantages
1.We have first-class production line and strict quality management system.2.We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.3.We can provide the most competitive price to meet your budget.4.We also design and innovate the new products based on our rich experience .5.We have professional team to provide comprehensive one-stop service for you.

Q: Can
you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Does your factory get global safety approval?
A:
Yes, our all our products get CE and
CQC approval.
Q: Would you tell me the main items you export?
A: Main items to export are
rocker switches, tact switch ,
fiber optical series, cables , telecommunication accessories,
keystone, cabinet etc.
Q: What's the capacity per month?
A: Over 2
million pieces per month for various electrical switches series.
Q: What about the shipment way for delivery?
A: Normally we will go ahead with shipping, DHL, TNT ,Fedex or flight, it depends our discussion.
Q: Which payment term for Skceh company accept?
A:
100% T/T in advance or 30% deposit.
Q: What's the lead time of mass production?
A: Within 2-4weeks. but we will inform you the delivery time after receiving your payment.
