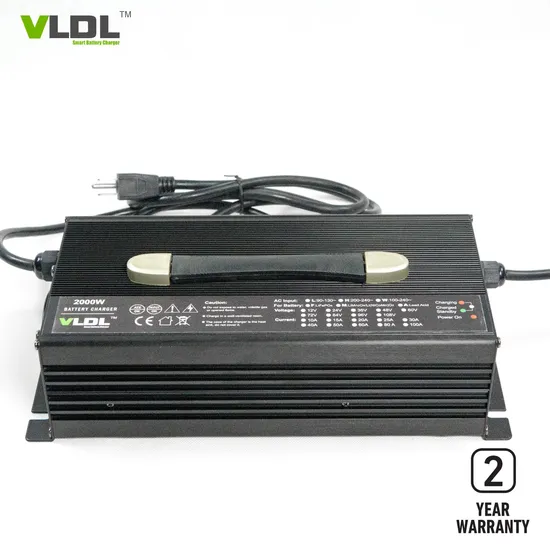

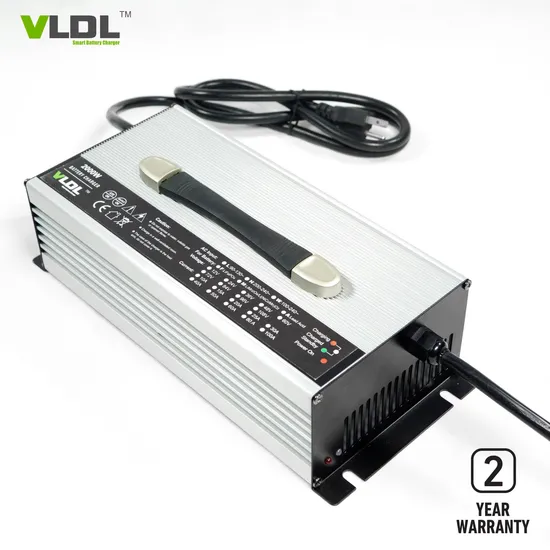

36V 40A Smart Battery Charger With LCD Display, 110V or 230V AC
InputBrief Description:
36V 40Amps intelligent battery charger is designed for
lithium or lead acid battery, input with single
230Vac and rated output voltatge is 24 Volt 60
amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42V / 43.8V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with
very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 90%.

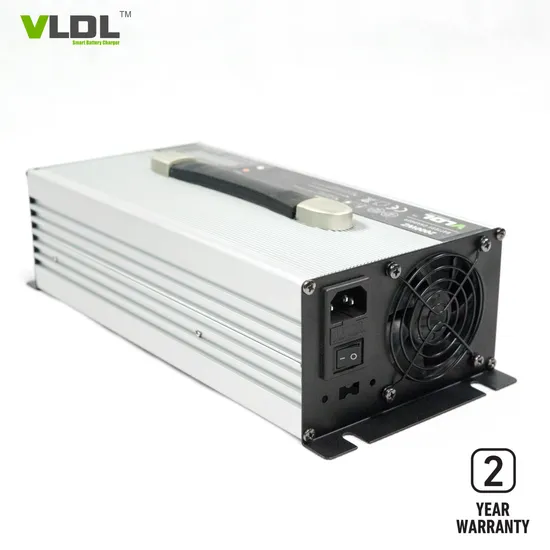

Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH):
330 x 150 x 90 mm
2) Net weight:
5.0 KG
3) Max charging voltage(CV):
43.8 / 44.1 volts
4) Floating voltage:
custom-made
5) Max output current (CC):
40 amps
6) Charging method:
Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage:
230Vac
8) AC input freq.:
50 / 60 Hz
9) AC plug:
custom-made
10) Output connector type:
customized by applications
11) Enclosure:
Aluminum
Battery Knowledge
Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.
Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?
A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.
Battery Charger Knowledge
Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.
Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.
Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger's type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don't forget the charger.
Our Sevice
OEM Service:
providing all switching mode power supply technology manufacturing service including power supply, smart battery chargers.
ODM Service:
providing design and technology of power supply and battery chargers, full charging solution for electric vehicles or battery powered equipment.
After Service: 24 hours response to your inquiry and 2 years warranty for all our battery chargers.
