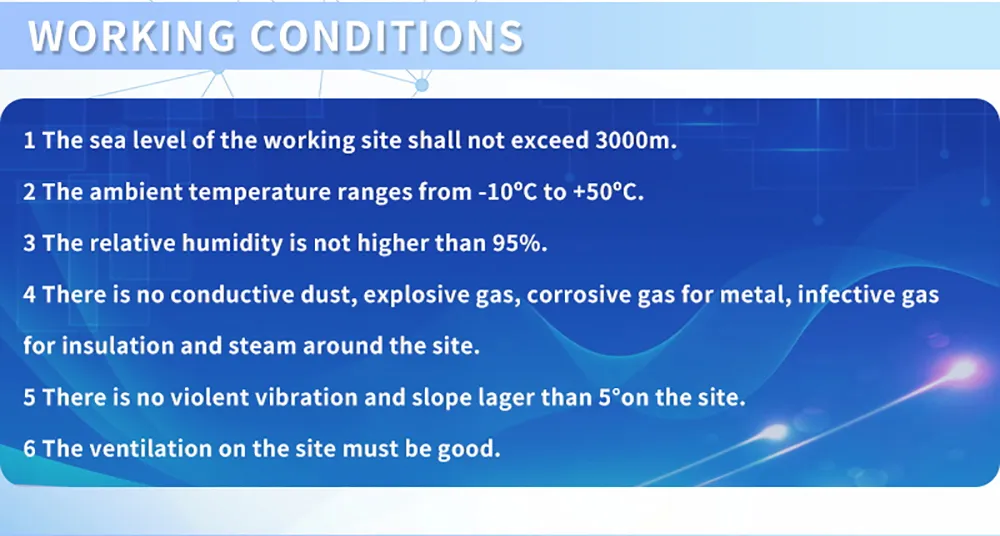

1 The sea level of the working site shall not exceed 3000m.
2 The ambient temperature ranges from -10ºC to +50ºC.
3 The relative humidity is not higher than 95%.
4 There is no conductive dust, explosive gas, corrosive gas for metal, infective gas for insulation and steam around the site.
5 There is no violent vibration and slope lager than 5°on the site.
6 The ventilation on the site must be good.

1
.Charger technical parameters
2.Input: three phase AC380V 50Hz(as per customer requirement), the allowable voltage tolerance for the line is ±5%.
3
.power rate 36KVA.
4.The rated DC output current: 200A.
5
.The rated DC output voltage: 50V.
6.The rated DC output voltage means the max. charge voltage, if the input AC voltage of the line is 10% lower than the nominal voltage, then the DC output voltage will be lower than rated voltage. The rated DC output current means the max. charge current during operation.
7. Functions: constant current, constant voltage
8. The accuracy for constant current: the accuracy for current is less than ±1% when the rated value ranges from 20% to 100%.
9. The accuracy for constant voltage: the accuracy for voltage is less than ±1% when the rated value ranges from 20% to 100%.
10. The running mode for the main circuit: three-phase full-bridge controlled rectifier.

.

1. Are u manufacturer?
we are
Subsidiary of Zibo Torch Energy ( which is a subsidiary of CSSC). Our group company
manufacture
different kinds of goods.We can sell all the products which are produced by ourself and by our sister companies.Like the machines for battery making, laser machines, charging system,
batteries, material for battery making etc.
2. How long is the warranty?
1 year warranty, and after one year we can provide spare part as per your order.
3. How can we reach your factory?
our Factory locates in ZIBO city, you can take train and reaching ZIBO station , or you can take flight reaching JINAN or Qingdao Airport. We will arrange the pickup.
Usually it depends on your products and the QTY,, the delivery time varies from 3days to 90 days.
You can pay to our company account directly with the PI provided by us.We accept TT and L/C.
We can arrange the delivery by sea, by air and by express carrier, Such as DHL, TNT, UPS, Fedex etc.FOB, CFR and CIF are all OK for us.And the nearest port is Qingdao port.
