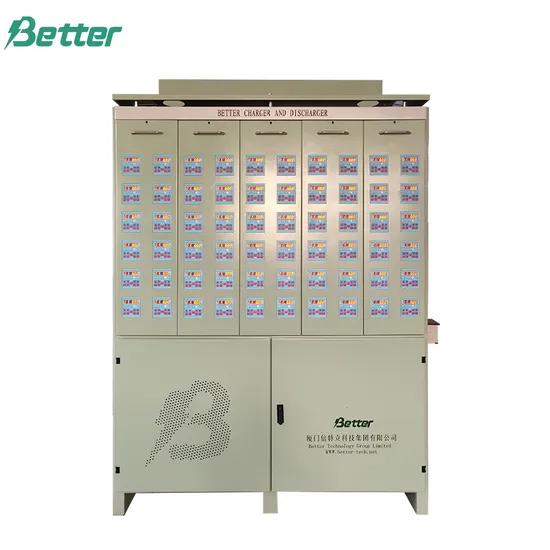

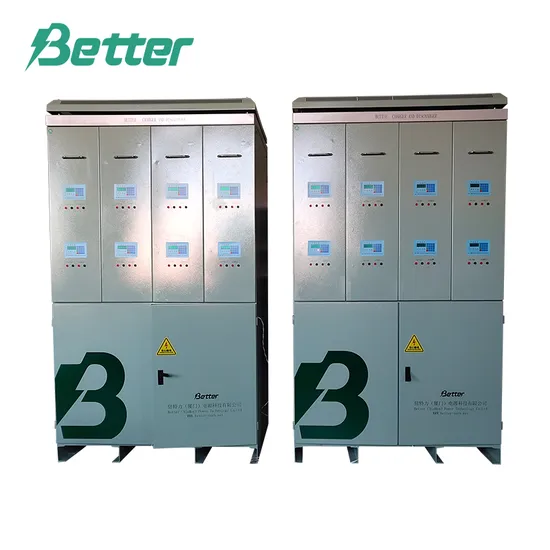

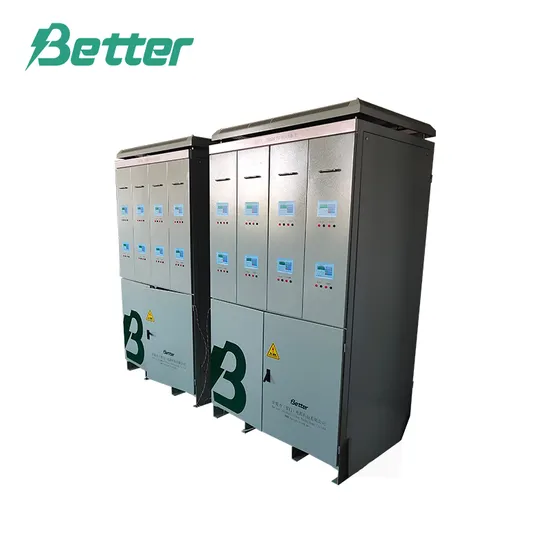

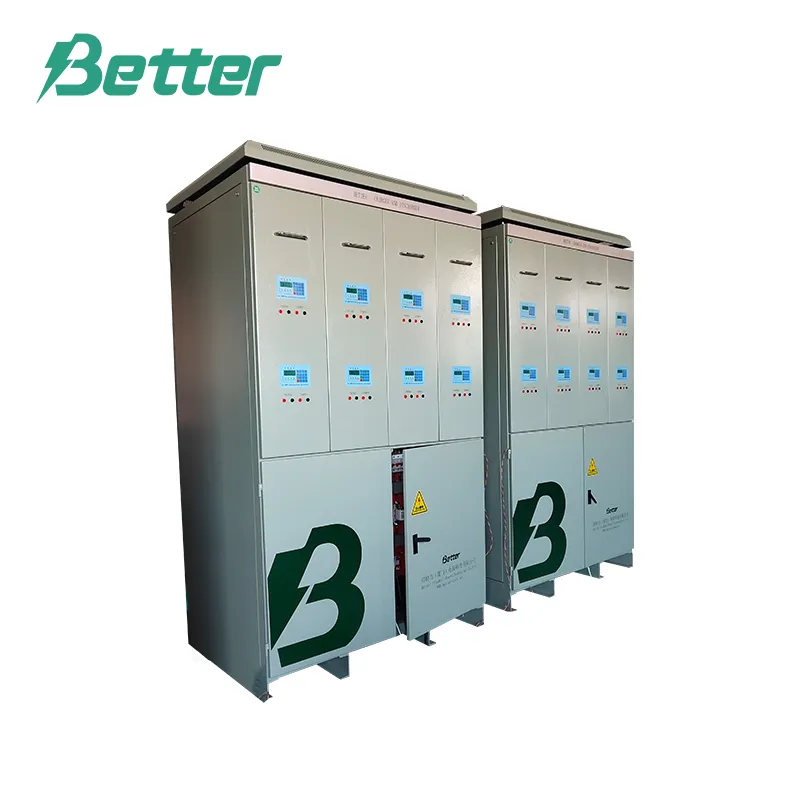

SCR Battery Charger and Discharger

1.Equipment dimension: 1200*8500*2100mm;
2. Equipment features:
(1) Microprocessor control, digital tube display.
(2) 1-32 process procedures (multi-step setting) can be prepared on the controller and run automatically.
(3) 1-32 process programs can be compiled on the computer and uploaded to the controller for automatic operation.
(4) With battery plate formation, battery formation of the need for a variety of charge and discharge mode control.It has constant current charging, constant current voltage limiting charging, constant discharge current, reverse charging (plate customization), static, cycle and other working modes.
(5) With power failure data maintenance, automatic resumption of calls and other functions.
(6) Can store more than 1400 records of data (every 1-60 minutes automatically record a state), and can be transferred to the computer centralized storage, display, print.
(7) It has fault detection functions such as disconnection, over current detection, power supply phase loss, disconnection, positive and negative pole connection.
(8) Multi-computer communication function, can realize up to 135 controller computer centralized management.
(9) 60A/ 8-channel equipment is equipped with automatic function.
3. Technical Specification:
Main technical requirement:
(1) Style no.: KGCFS-20H-60A/60A/420V/8
(2) Maximum output voltage: 420V;
(3) Maximum charging current: 60A;
(4) Maximum discharge current: 60A;
(5) Control mode: SCR controllable rectifier;
(6) Number of cycles: 8;
Technology index:
(1) Voltage control accuracy :<+ 0.5% f. S (f. S = 420 v);
(2) Current control accuracy :<+ 0.5% F.S (f. S = 60 a);
(3) DC output current: 0-60A;
0-60A;
(4) Time control accuracy :<+10S/24H;
(5) Voltage control range: 5%~100%F. S (F. S=420V);
(6) Current control range: 1%~100% F.S (F.S =60A);
(7) Control board input voltage: AC16V, consumption current <
200mA;
(8) Controller unit input voltage: AC18V, consumption current <
100mA;
(9) Photoelectric isolation communication unit input voltage: AC9V, consumption current <100mA;
(10) Analog unit input voltage: =DC12V, consumption current <
50mA;
(11) Current analog input: 0-5V, corresponding to the maximum full range of current 60.0A;
(12) Voltage analog input: 0-5V, corresponding to the maximum full range voltage of 420.0V;
(13) Given analog output: 0-5.5V;
(14) Cooling mode: self-cooling or air-cooling;
(15) Communicator: RS232/485 universal interface, DC9V power supply;
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Why choose us
BETTER has developed into an innovative enterprise to provide general contracting system integration services, including R&D and design, project planning, complete equipment, installation and commissioning, technical output,technical training, after-sales guarantee and so on. We has created"China's First Station" and became the "Purchasing Center in China" for many international customers. BETTER took the lead in putting forward the concept of battery industry full-resource operation, and thoroughly solved problems including the long project construction period, heavy technical communication task, unreasonable production line matching, and cumbersome business communication arising from purchasing from multiple sources by customers.Service Project
1. Battery manufacturing equipment and turn-key solutions for complete sets of equipment,
2. Battery factory designs, battery product designs and tooling,
3. Battery manufacturing technology support and Transfer,
4. Production management guidance & consultancy for battery manufacturers,
5. Battery manufacturing related accessories, raw materials, chemicals,
6. On-site Battery Production Guidance & Consultancy.Service Standards
Nice Performance , Nice Price , Free Planning , Pleasant: Never Say "No",
they constitute 4P service standards for the
global
battery manufacturing industry
established by
BETTER.Packing & Delivery

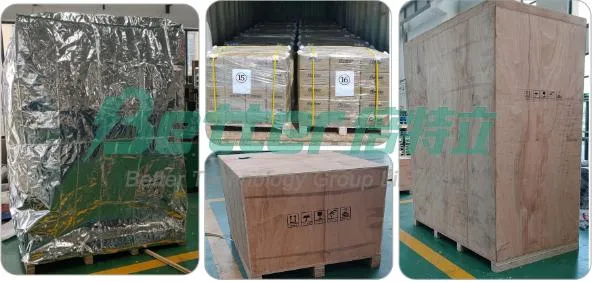

Packing:Wooden case, export standard package
