Auto Counter UAVs Solution
R&D Background
As rapid evolution of low-cost, highly capable drones presents a new set of challenges. The concerns grow, a new market for counter-drone technology is rapidly emerging.

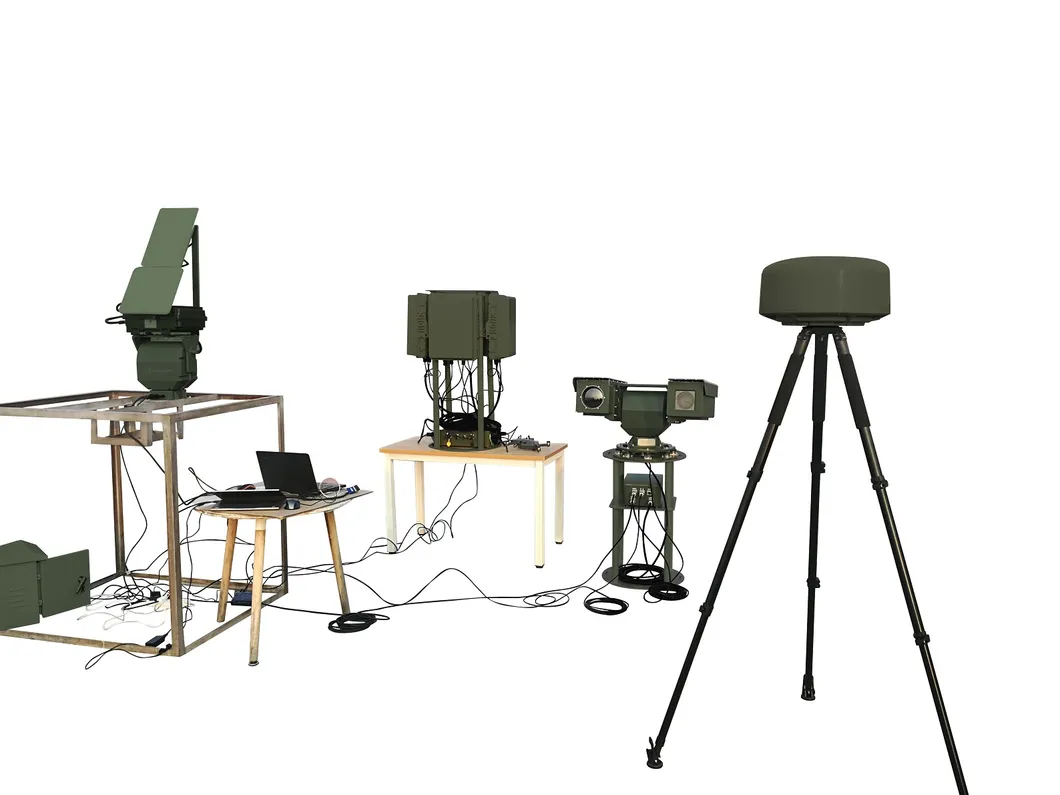

Our integrated anti drone solution unique and flexible approach enables us to offer comprehensive drone defense protection. It mainly provides RF sensor passive detection, or Radar active surveillance detection , EO/IR tracking and location of multiple detected low-flying drones, as well as the mitigation by the RF neutralization system.

Working Principle
Radar Detection Subsystem--Drone Radar Real-Time Detection

Radars emit electromagnetic waves and receive and process the echoes reflected by objects, usually to locate them. Drone detection Radar enables detection beyond the RF signal, which provide Front-end Real-time detection & monitoring with 360 degree/90 degree coverage and fastest scan rate, able to detect drones at distance of up to 1-3km, with automatic detection and tracking of multiple detected drones.
Radar surveillance systems
-- Microwave Pulse Doppler technology based; (C-band & S-band)
-- Detection of wide variety of moving objects (pedestrians, land vehicle and low flying drones)
-- 360 degree/90 degree real-time monitoring
-- Available for short range, medium range and long range requirement
Drone detection radar in combination with RF detection system or RF neutralization system to provide drone detection and counteraction for drones intrusion within protected area.

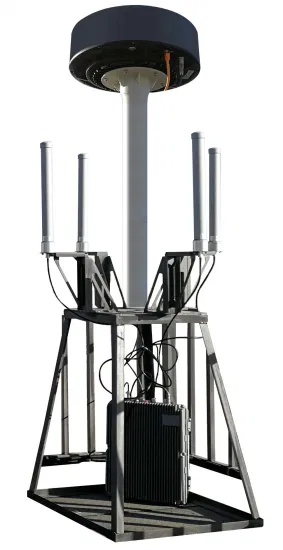

RF Detection Subsystem--RF passive sensor detection system

Civil drones are usually operated via a radio control signal and often have on-board data link transmitters for real-time sensor download. RF detection system can passively detect and identify the presence of RF transmissions that related to drones, even the signals are of low power or in RF noisy conditions.
RF drone detection systems
-- RF sensor detect for any drone that emits an RF signal ( Known and unidentified drones)
-- 360 degree detection radius of up to 3 kilometer (diameter)
-- Simultaneous detect for many drones during the intrusion
-- Even geolocation of the drone and the drone controller
RF sensor detection system can work together with Radar detection system to give the 3D location of the drones, the flight height as well as air speed. Once a drone is detected, the system will trigger an alert.
EO/IR Camera Tracking Subsystem
EO visual and thermal camera tracking
Our visual and thermal camera surveillance guarantees the ability to view any target, day or night. To be regarded as an additional layer to on top of RF/Radar to provide imaging of detected targets.
-- High sensitivity Tracking capability within the detection range;
-- Excellent visual output for day camera & thermal imaging camera;
-- Visual intrusion alarms;

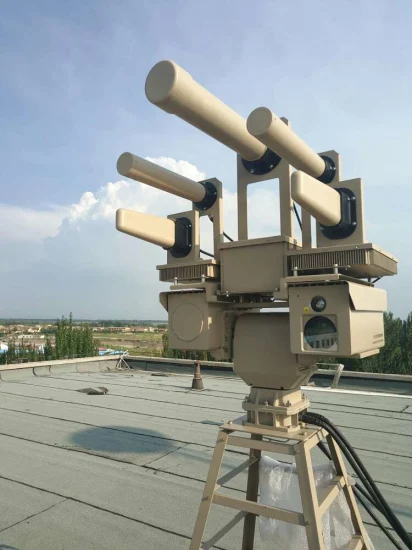

RF Neutralization Substem
RF neutralization subsystem was designed to neutralize the flight unauthorized Drones by interfering their control and navigation signals.
-- GNSS:1550-1620 MHz;
-- Remote Control Signal:860-930MHz; 2400-2500MHz; 5725-5850MHz;
-- Optional Frequency: 5150-5350MHz; 315MHz; 433MHz;
-- Omnidirectional & directional antenna both available;
-- Additional jamming bands can be added upon demand;
-- Remote Control Signal: 1-3km; GNSS Signal: 3-5km;

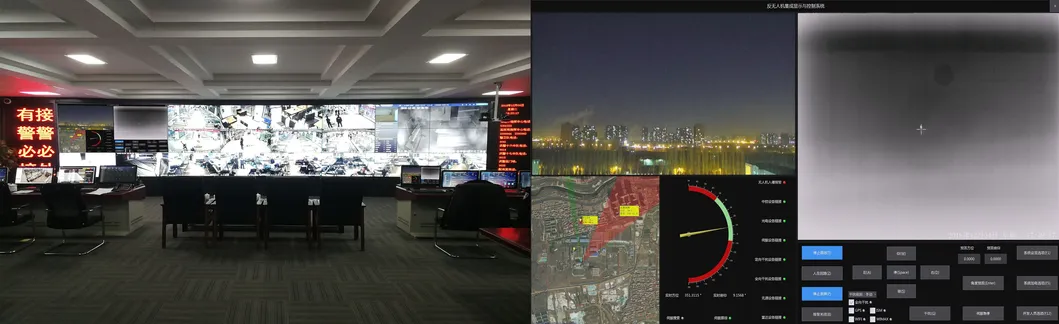

Monitoring Software Center

An information processing and command center of the automatic UAV detection and defense system used to control each subsystem and equipment of the system through collection, presentation, analysis, statistics and query of various information as well as real-time control of the system.
--
Simple, intuitive display and control of one or more
subsystem
--
Microsoft Windows based
--
User definable alert and exclusion zones
--
Automatic selection of background maps
--
Continuous record and playback facility for post-event analysis
For more details, please visit:
a5250379796602ad.en.made-in-china.com

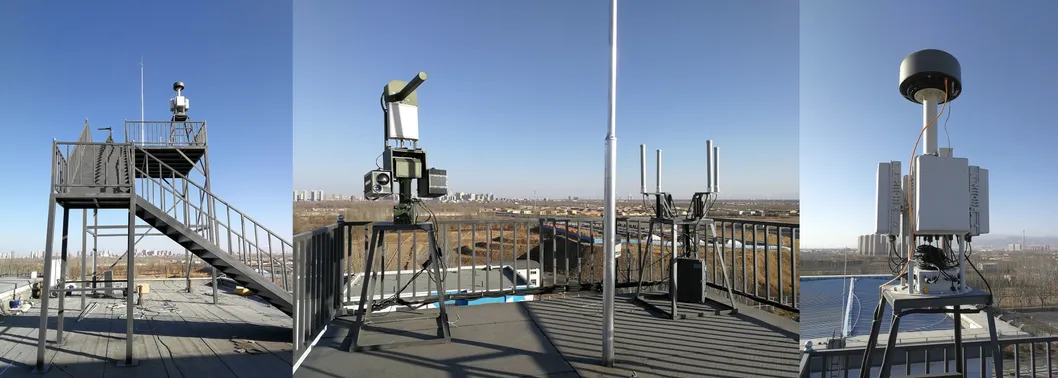

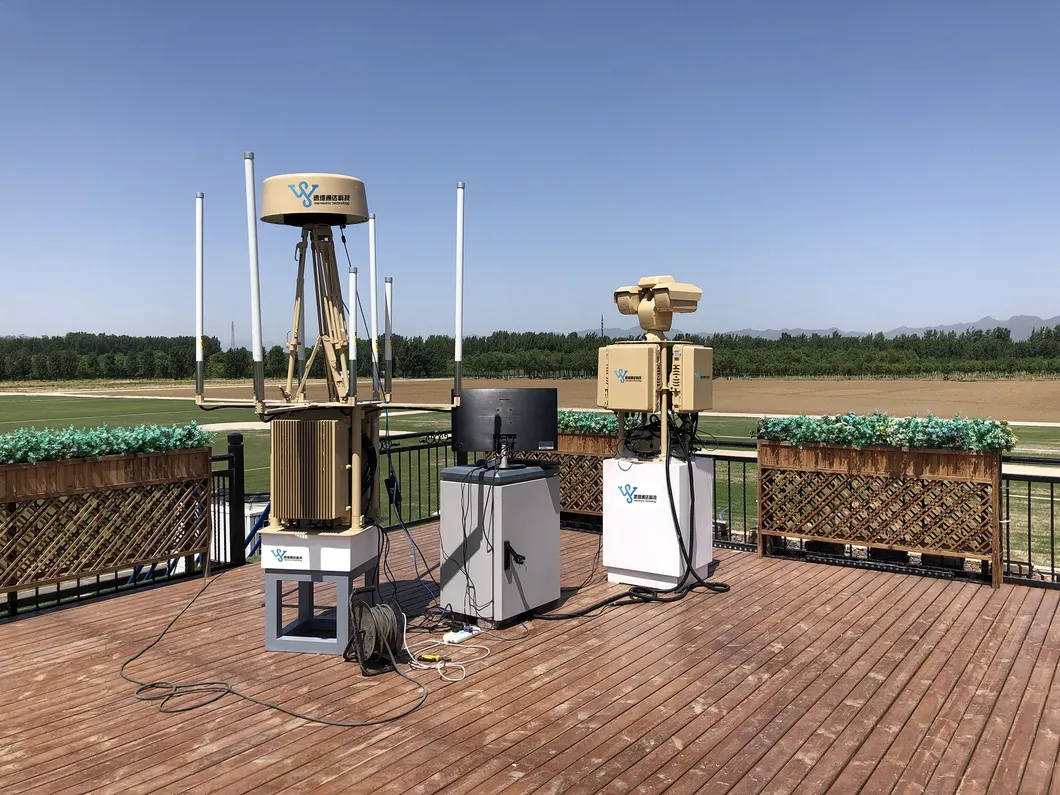

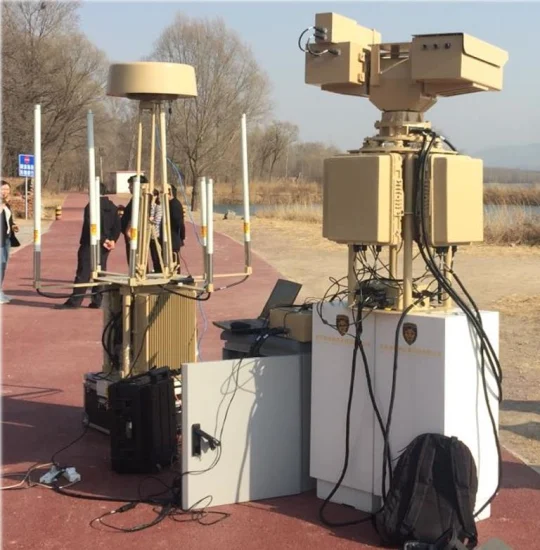

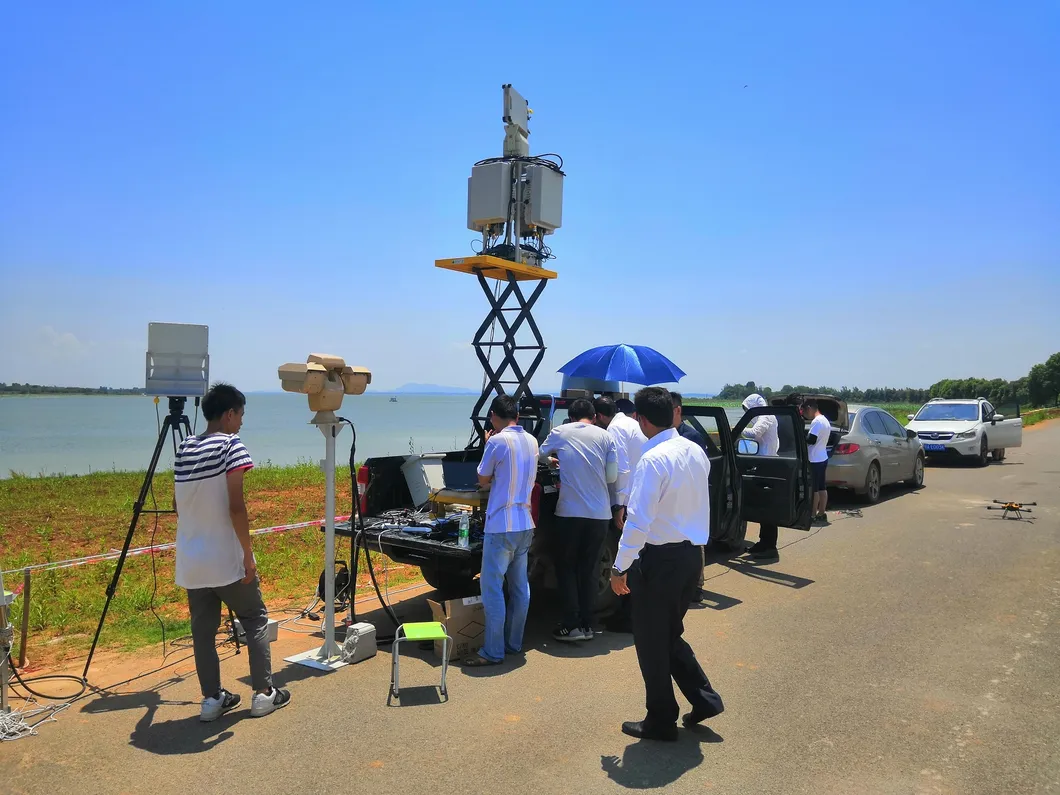

More project reference
