基本信息
| 型号 | NR-2.2-9-30N-6S-51-140 |
| 波动范围 | C波段范围程序 |
| 类型 | 伸缩桅杆 |
| 扩展高度 | 6米，8米，10米，12米，15米，18米，21米，25米，30米 |
| 有效载荷 | 最大载重400kg@高度15m |
| 材料 | 铝合金6063t5 |
| 升降式 | 气动升降 |
| 工作气压 | 0.15/0.2兆帕 |
| 运输包 | 海运板条箱 |
| 规格 | 9米载重30公斤货物 |
| 商标 | nrentech |
| 起源 | 中国 |
| 生产能力 | 每月200单位 |
产品详情
Product Description
Preview

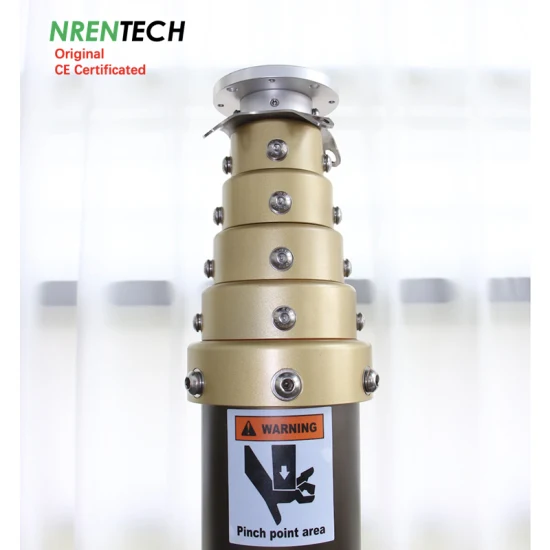

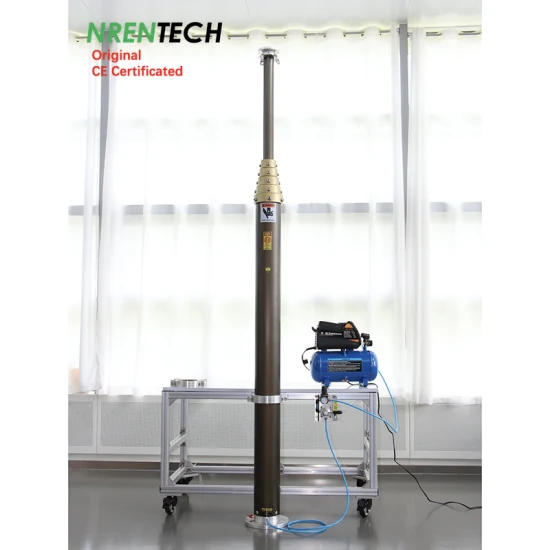

9m Pneumatic Telescopic Mast-30kg payloads NR-2.2-9-30N-6S-51-140
9m Non-lockable Pneumatic Telescopic Mast-30kg payloads
Item #: NR-2.2-9-30N-6S-51-140
1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 30kg maximum @ 0.15Mpa/22 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 6
6> Section dia. * thickness: 51~140mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 50kg approx.9> Working air preesure: 0.15Mpa/22PIS as maximum recommend
10> Working temperature: -25~55 Celcius Degrees

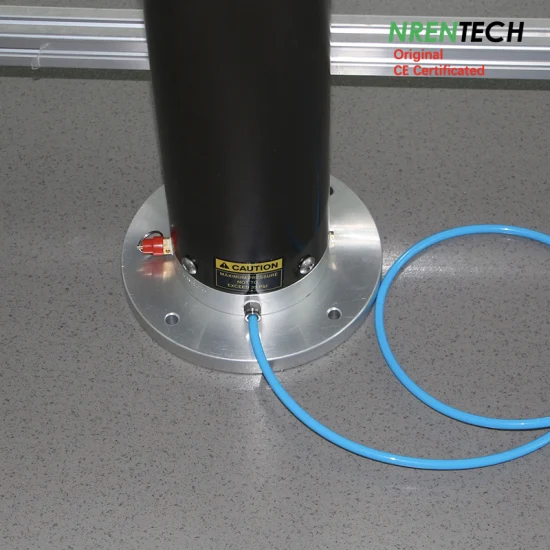

11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel

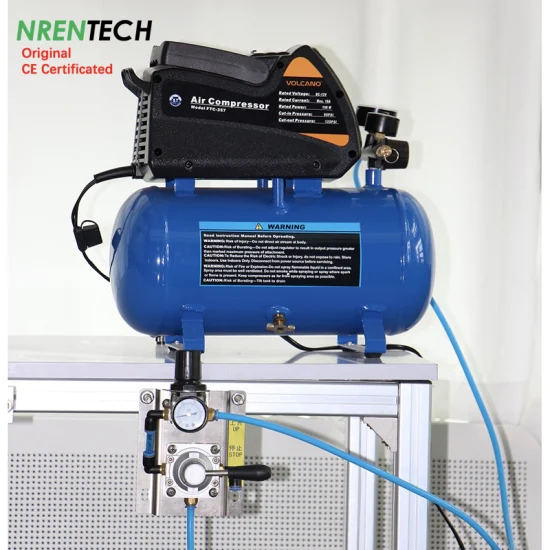

Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC
leading time: 20 days
data update on 20230701
9m Non-lockable Pneumatic Telescopic Mast-30kg payloads
Item #: NR-2.2-9-30N-6S-51-140
1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 30kg maximum @ 0.15Mpa/22 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 6
6> Section dia. * thickness: 51~140mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 50kg approx.9> Working air preesure: 0.15Mpa/22PIS as maximum recommend
10> Working temperature: -25~55 Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel
Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC
leading time: 20 days
data update on 20230701
