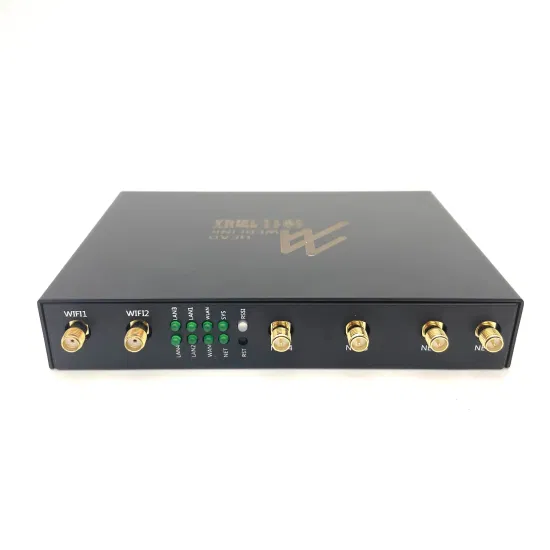

HDRM200
industrial
cellular
VPN
router
enables
wireless
data
connectivity
over
public
and private 3G/4G LTE/5G
cellular networks at 3G/4G/5G high speed
bandwidth.Support 4G LTE/5G global frequency band. Supports 4G LTE CAT 6, CAT 12 and 5G internet access. The maximum downlink bandwidth of 4G LTE is 300Mbps~600Mbps, and the maximum uplink bandwidth is 50Mbps~150Mbps. Or support 5G NSA. Up to 2.5Gbps (DL)/650Mbps (UL), 5G SA. Maximum 2.1Gbps (DL)/900Mbps (UL) access bandwidth service.HDRM200
router has dual SIM backup, 5 Gigabit Ethernet ports, 1*RS232 and 1*RS485 interfaces are provided
to support Serial to IP communication. GPS is optional based on LTE module capability. Supports
+6V
to +36VDC wide range power input, designed with reverse-voltage protection mechanism. It is an
advanced choice for wireless M2M applications
with reliable features for data transmission.Support for WIFI 2.4GHz/5GHz dual-band function to meet the access and sharing needs of more than 60 users' WIFI hotspots.Supports GPS positioning function, which is convenient for users to monitor operation and maintenance.Providing stable and high-speed wireless broadband access for home and business users.• 3G/4G/5G data transmission.
• Supports global frequency bands.
• Power-on automatic network dialing.
• Built-in watchdog, system crashes self-recovery.
• Built-in link maintenance and self-recovery mechanism.

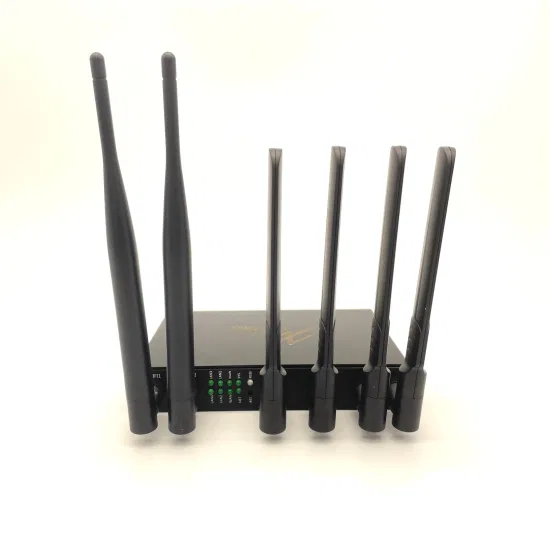

• 4G/5G 4*4
MIMO
antenna.
• WIFI 2*2
MIMO
antenna.
• Support 5G SA and NSA network modes.
• Supports GPS funtion(Optional).

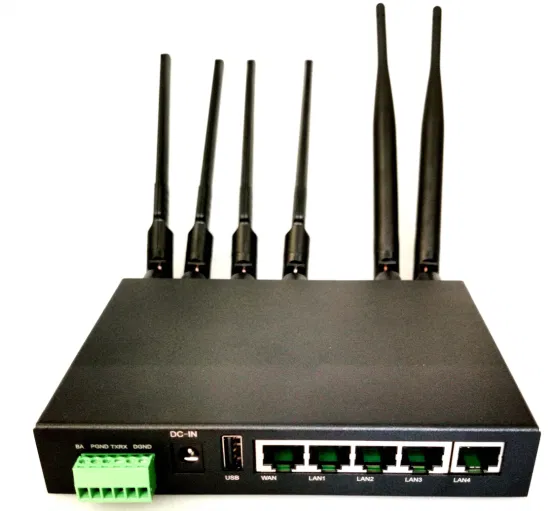

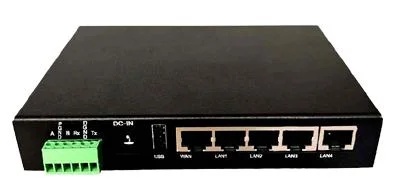

• One WAN/Four LAN
gigabit Ethernet port.
• One USB port,1*RS232/1* RS485 or 2*RS485 Interface.

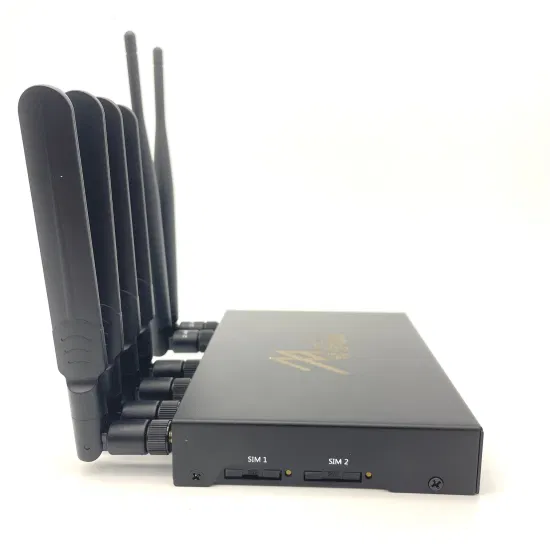

• With two SIM card slots, SIM card and network failure automatically switch.
• Support local UI upgrade and remote upgrade.
• Supports
WIFI 5, 802.11AC, 1200Mbps.
• Support more than 60 users to share WIFI access to the Internet.
• Operating system: Openwrt 18.06, which supports secondary development by users.
Product features
Supports 3G/4G LTE/5G global
frequency bands,
Wireless Mobile
Broadband 3G / 4G
LTE
/5G Connection.System crashes and automatically recovers. The system
automatically maintains the data link and is permanently online.Supports 1*WAN/4*LAN Gigabit ethernet ports,1*RS232,1*RS485 port,1*USB2.0.Supports
Multiple VPN tunnels for data encryption
.Designed
for
industrial
application scenarios
Power Input Range. DC
+6V/2.5A
to
+36V/0.5A
Industrial design for harsh environment.Metal casing and din-rail installation.Easy
to use
and easy
maintenance
User friendly web interface for user interaction.Supports
Central Management Platform.Supports
local web UI and remote FOTA update firmware.
Operating system
Built-in OpenWRT 18.06
operating system. Supports user secondary application development.
SPECIFICATIONS
