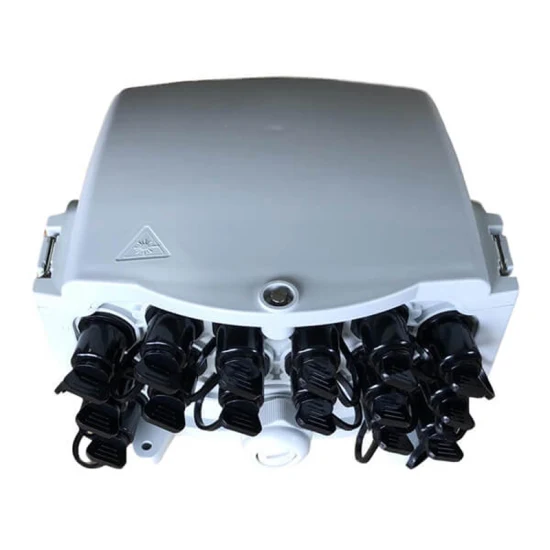

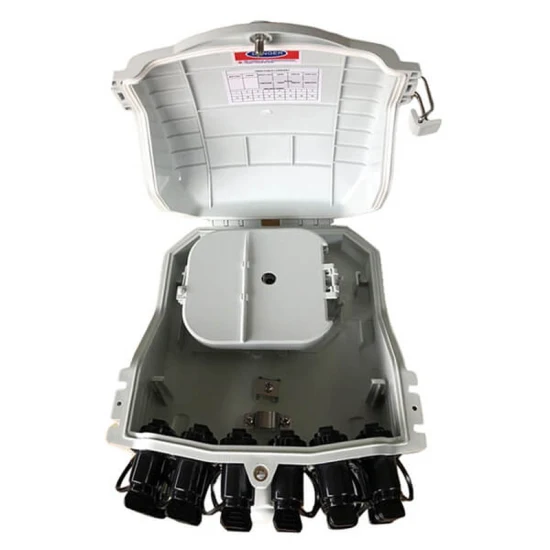

FTTx Optical Splice Communication Box 16 Ports Compact
Fiber Optic Termination Box
Fiberlink's FLK-AFAT-327
16 Port Fiber Optic Termination Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network. The fiber terminal box allows 16pcs drop cable with fast connector as output ports. It provides solid protection and easy management for the FTTx network building. The fiber termination box can splice and connect the optical fibers in manhole, pole or wall mounted for both indoor and outdoor use.
1.IP Protection Grade: IP65
2.The fiber terminal box used for drop cables with Fast connector.
3.Max hold 8pcs SC simplex adapters
4.Available for 2pc 1:4 or 1 pcs 1:8 micro PLC splitter optional
5.Seal with silicon rubber ring at the closure body and entry ports.
6.Adopt plastic clip lock for easy reopen and maintenance
7.Applicable for wall-mounted or pole-mounted installation
Technical Parameter
1. Environmental requirement
Working temperature: -40ºC-+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 62Kpa-106Kpa
2. Main technical parameter
Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical parameter
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC);
IR≥2MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V (DC)/min, no
puncture, no flashover; U≥3000V

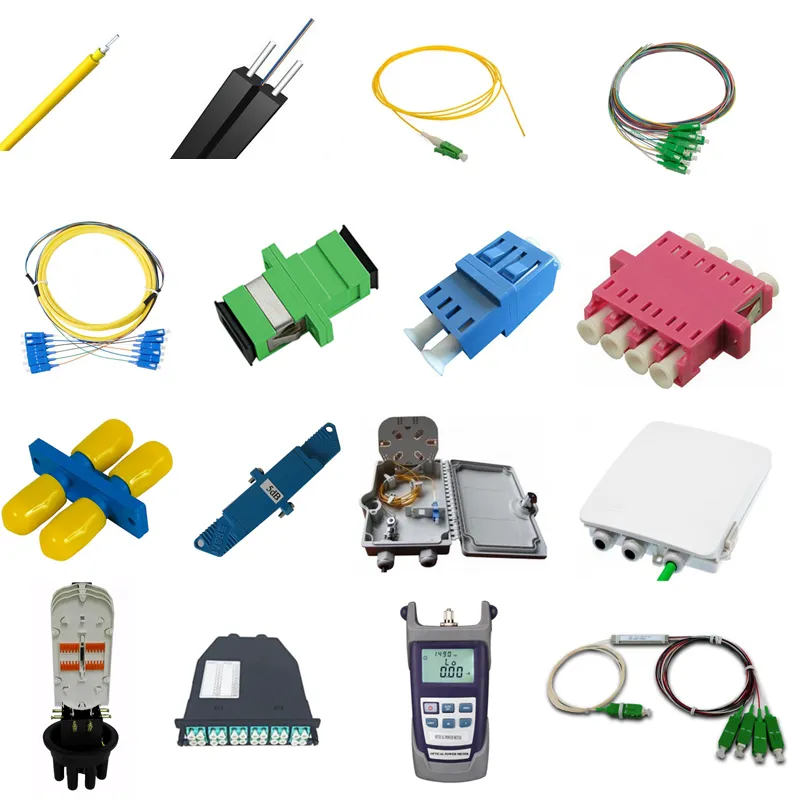

Main Products:

Shenzhen Fiberlink Communication Limited,established in 2008 in Shenzhen China, We specialized in Fiber Optic products manufacturing for more than 10 years.With an area of 15000 square meters and capacity, 20000 pcs fiber optic cables every year.

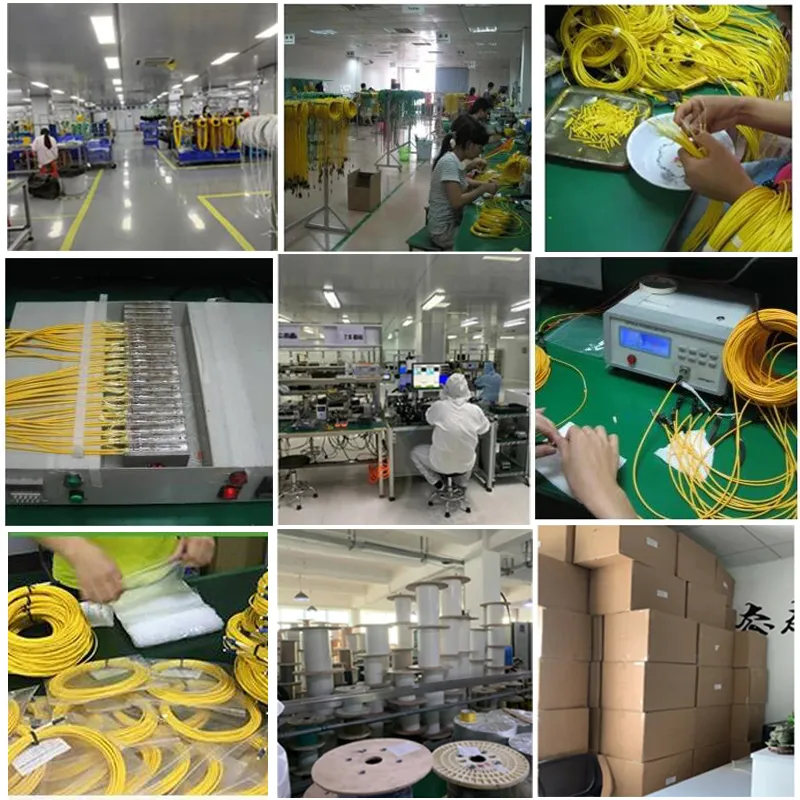

Our factory:

Q1. Can I have a sample before order?Sure, you can have sample to test firstly, we also can provide free sample, but without shipping fee.Q2. What about the lead time?Sample need 3-5days, mass production need 1-2 weeks.Q3. How do you ship the goods and how long does it take to arrive?DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q4. Can I need customized color or put logo?Sure, support OEM and ODM.Q5. What's your MOQ?Support small quantity order, and we can negotiate.Q6. What's your payment terms?T/T, Western Union are acceptable.Q7:Why choose us to cooperate?1.We have first-class production line and strict quality management system.2.We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.3.We can provide the most competitive price to meet your budget.4.We also design and innovate the new products based on our rich experience .5.We have professional team to provide comprehensive one-stop service for you.
Can I have a sample before order?Sure, you can have sample to test firstly, we also can provide free sample, but without shipping fee.
What about the lead time?Sample need 3-5days, mass production need 1-2 weeks.
How do you ship the goods and how long does it take to arrive?DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Can I need customized color or put logo?Sure, support OEM and ODM.
What's your MOQ?Support small quantity order, and we can negotiate.
What's your payment terms?T/T, Western Union are acceptable.
Q7:Why choose us to cooperate?1.We have first-class production line and strict quality management system.2.We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.3.We can provide the most competitive price to meet your budget.4.We also design and innovate the new products based on our rich experience .5.We have professional team to provide comprehensive one-stop service for you.
