150瓦特700-2700兆赫兹氮化镓连续宽带射频功率放大器

Preview

基本信息产品详情证书

基本信息

型号编号	HPA-G52（700-2700MHz）
信息内容	数据
认证	CE, RoHS
条件	新
输出功率	150瓦
频率	700-2700兆赫兹
增益	大于50分贝
工作模式	Cw
运输包	纸箱
规格	20×16×3厘米
商标	原始设备制造商
起源	中国深圳
商品编码	8543709200
生产能力	每年1000单位

产品详情

Product Description

Preview

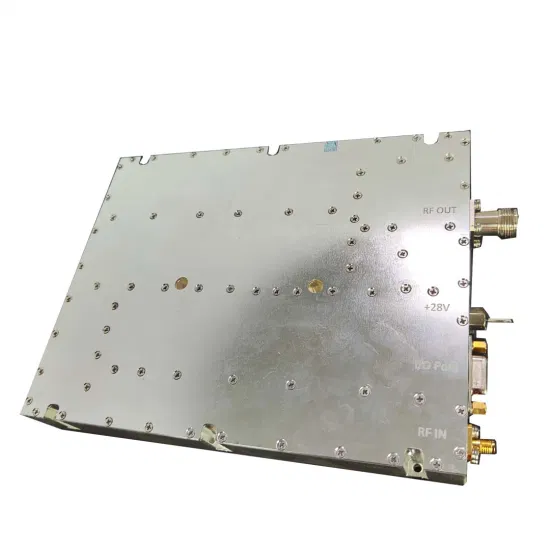

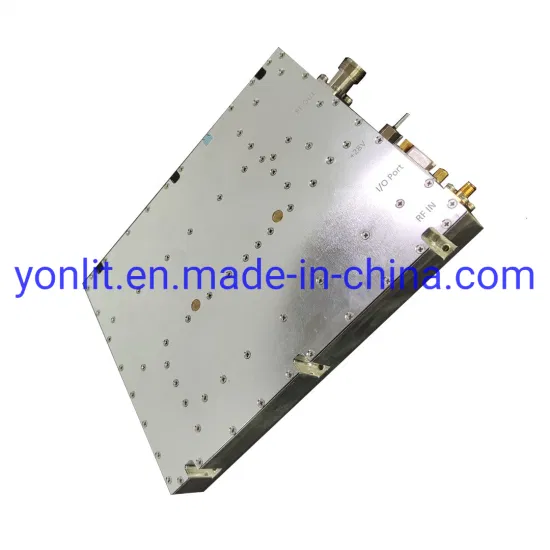

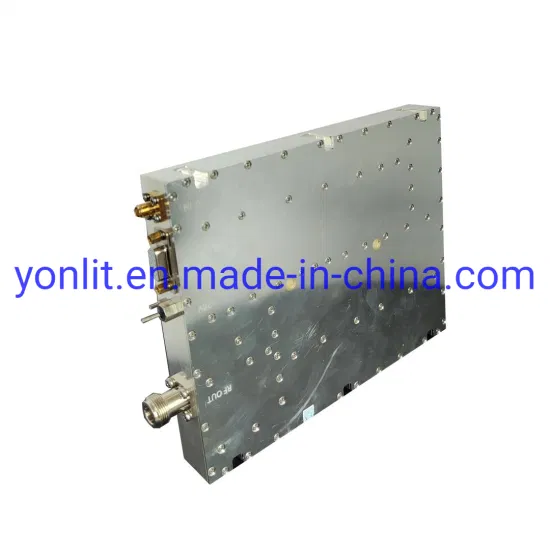

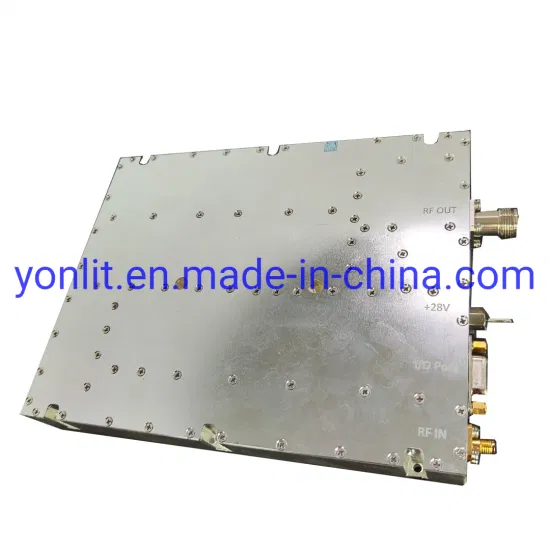

TECHNICAL SPECIFICATION:Frequency Range:
700-2700MHz
Gain:
>50dB
± 1.5dBPin
:
-5-0dBmPout:
>150W
Harmonics:
<10dBCSpurious:
<60dBCRF IN/Out
VSWR:
<1.5Working Voltage
28VDCWorking Current:
<20APower Connector:
Pull-core CapacitorRF IN Port:
SMA-KRF OUT Port:
NKDimension :
200x160x25mm (
Exclusive Connector)Working Temperature:
-25 to 65ºC
Protection:
Alarm and
Shutdown more than 75ºC
Alarm and
Shutdown over High-VSWR
Monitoring :
Forward Power, Reversed Power, Temperature, Current
PAYMENT TERMS, ORDER INFO &
PACKING:
We accept T/T and Western Union for payment.
Leadtime within 1
month, subject to actual requirement might have change.

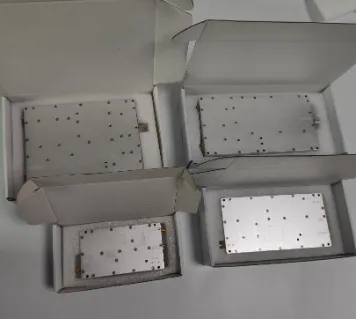

Product will got packed in carton with foam, each unit will have single box for packing.
