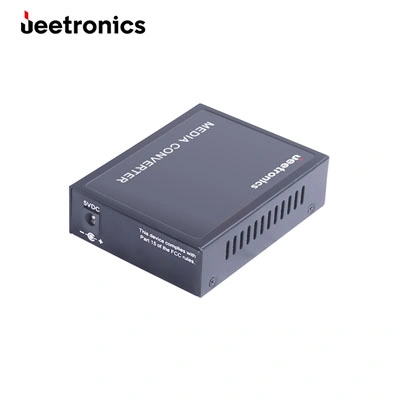

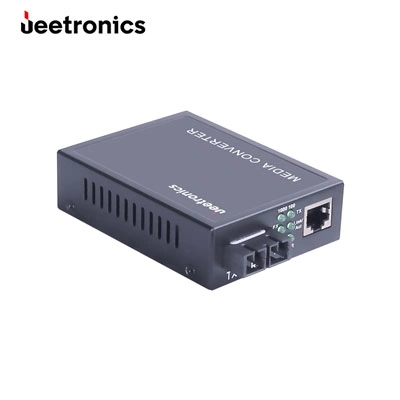

JGA101-15S100 fiber converter
1x 10/100/1000Base-TX to 1x 1000Base-FX (1550nm SMF 100km Dual SC) Unmanaged Gigabit Ethernet Fiber Media Converter
Feature :
Complies with IEEE 802.3 , IEEE 802.3u , IEEE 802.3ab , IEEE 802.3z , IEEE 802.3x
1x 1x 10/100/1000Base-TX
1x 1x 1000Base-FX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
5V DC universal power supply
Extends fiber distance up to 100km
Operating Case Temperature : 0~50C
Data Rate
10/100/1000Mbps
Device Type
Unmanaged
Form Factor
Stand-alone
Interface Characteristics
Copper Interface
1x 10/100/1000Base-TX
Fiber Interface
1x 1000Base-FX
Wavelength
1550nm
Media
SMF
Distance
100km
Connector
Dual SC
LED indicators
PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
1000 (100M transmission rate of twisted pairs)
Technology
Standards and Protocols
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
Processing Type
Store and Forward
Flow Control
Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
Power
Power Input
DC 5V
Power Consumption
<3W
Switch Properties
Delay
<20μs
Buffer space
128K
MAC address table
8K
Physical
Casing Mat.Cold Rolled Steel
Dimensions
External: 94mm x 70mm x 26mm
Internal: 140mm x 110mm x 30mm
Installation
Standalone or Rack mount
Environmental
Operating temperature : -10~55ºC
Storage Temperature: -40~70ºC
Relative Humidity: 5% to 97% non-condensing
Regulatory
ISO
Manufactured in ISO-9001 facility
Safety & Emission
CE , FCC, RoHS
Realiability
MTBF
>50,000Hrs
More series for you choosing:
P/N
Category
Device Type
Copper Interface
Fiber Interface
Wavelength
Media
Distance
Connector
Power Input
JGA101-15S100
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
1550nm
SMF
100km
Dual SC
DC 5V
JGA101-P
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
Based on SFP Spec
Based on SFP Spec
Based on SFP Spec
SFP Port
DC 5V
JGA101-08S05
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
850nm
MMF
550m
Dual SC
DC 5V
JGA101-13S20
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
1310nm
SMF
20km
Dual SC
DC 5V
JGA101-13S40
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
1310nm
SMF
40km
Dual SC
DC 5V
JGA101-15S60
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
1550nm
SMF
60km
Dual SC
DC 5V
JGA101-15S80
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
1550nm
SMF
80km
Dual SC
DC 5V
JGA101-B35S20
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1310/RX1550nm
SMF
20km
Single SC
DC 5V
JGA101-B53S20
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1550/RX1310nm
SMF
20km
Single SC
DC 5V
JGA101-B35S40
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1310/RX1550nm
SMF
40km
Single SC
DC 5V
JGA101-B53S40
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1550/RX1310nm
SMF
40km
Single SC
DC 5V
JGA101-B35S60
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1310/RX1550nm
SMF
60km
Single SC
DC 5V
JGA101-B53S60
Fiber Media Converter
Unmanaged
1x 10/100/1000Base-TX
1x 1000Base-FX
TX1550/RX1310nm
SMF
60km
Single SC
DC 5V
